MIDAS DM16 Mixer

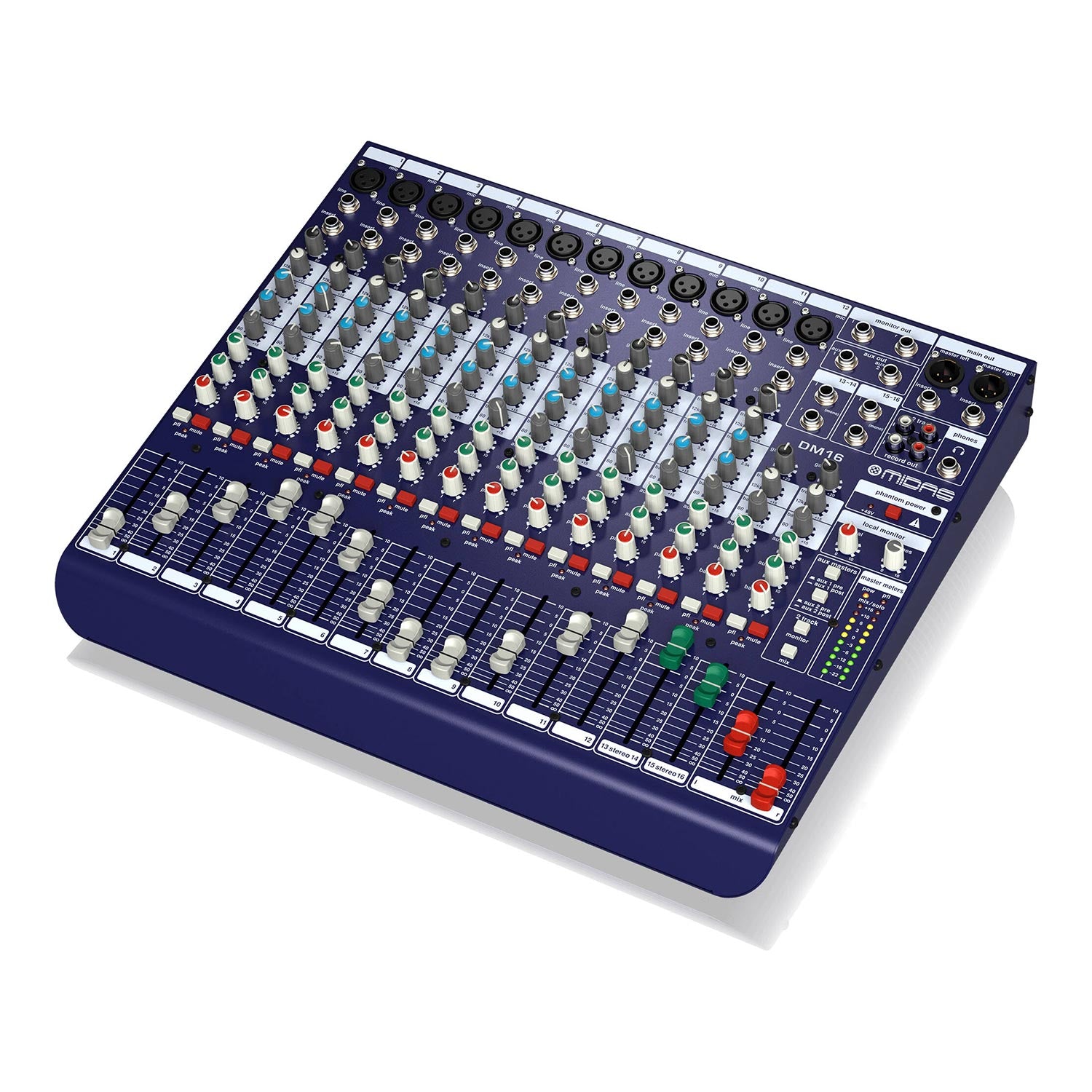

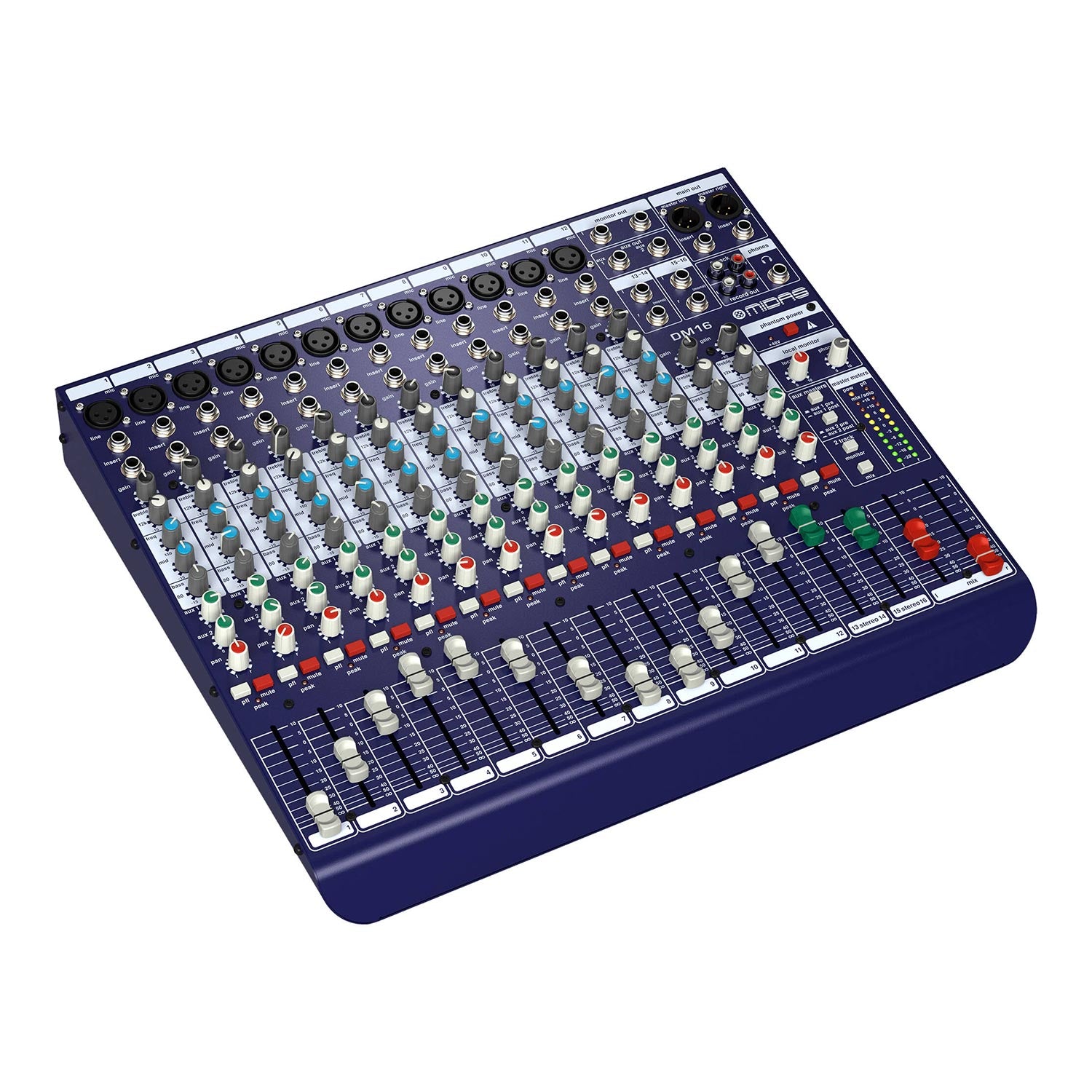

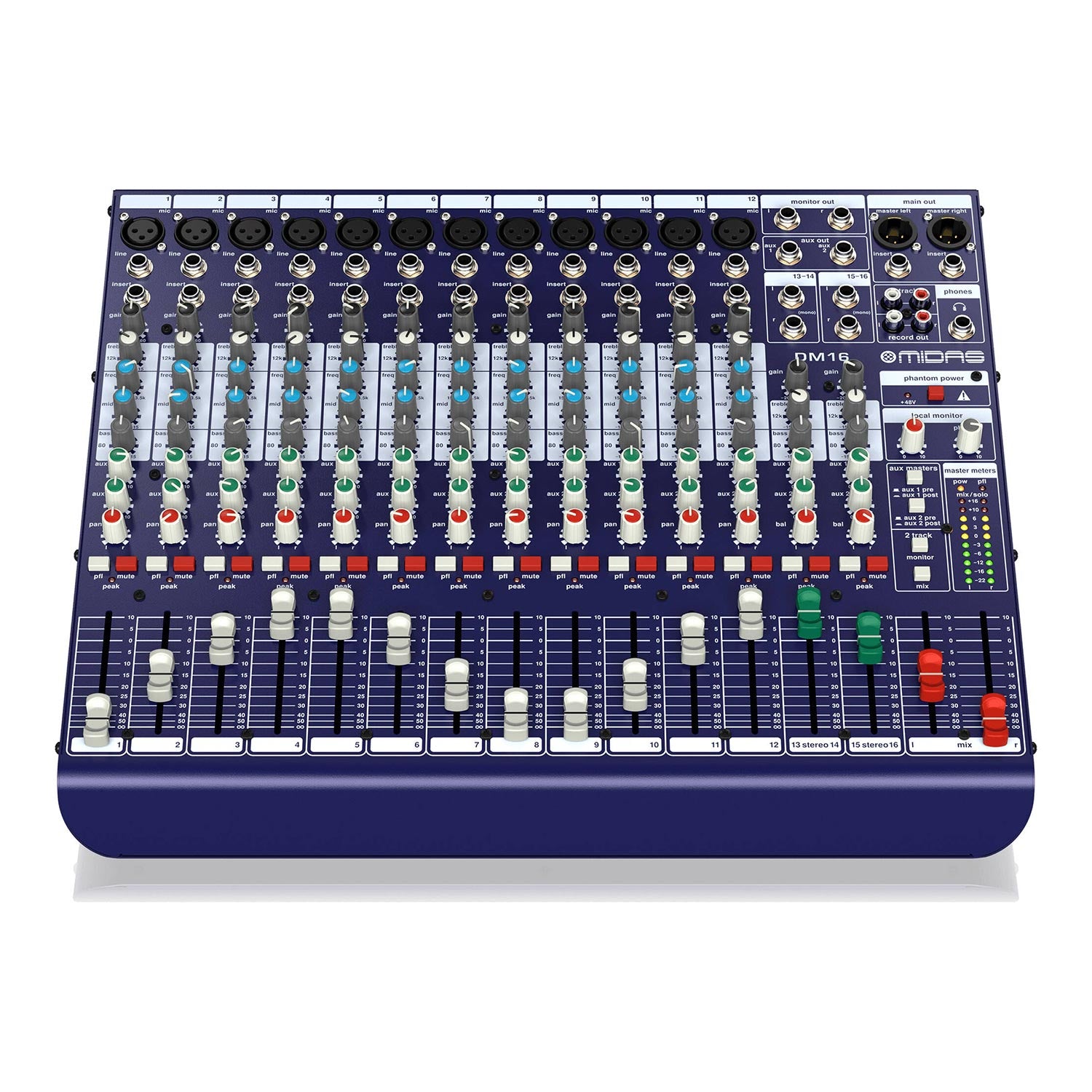

MIDAS DM16 16-Input Analogue Mixer

The MIDAS DM16 is a 16-input analogue mixer designed for live sound, studio recording, keyboard setups and drum submixing.

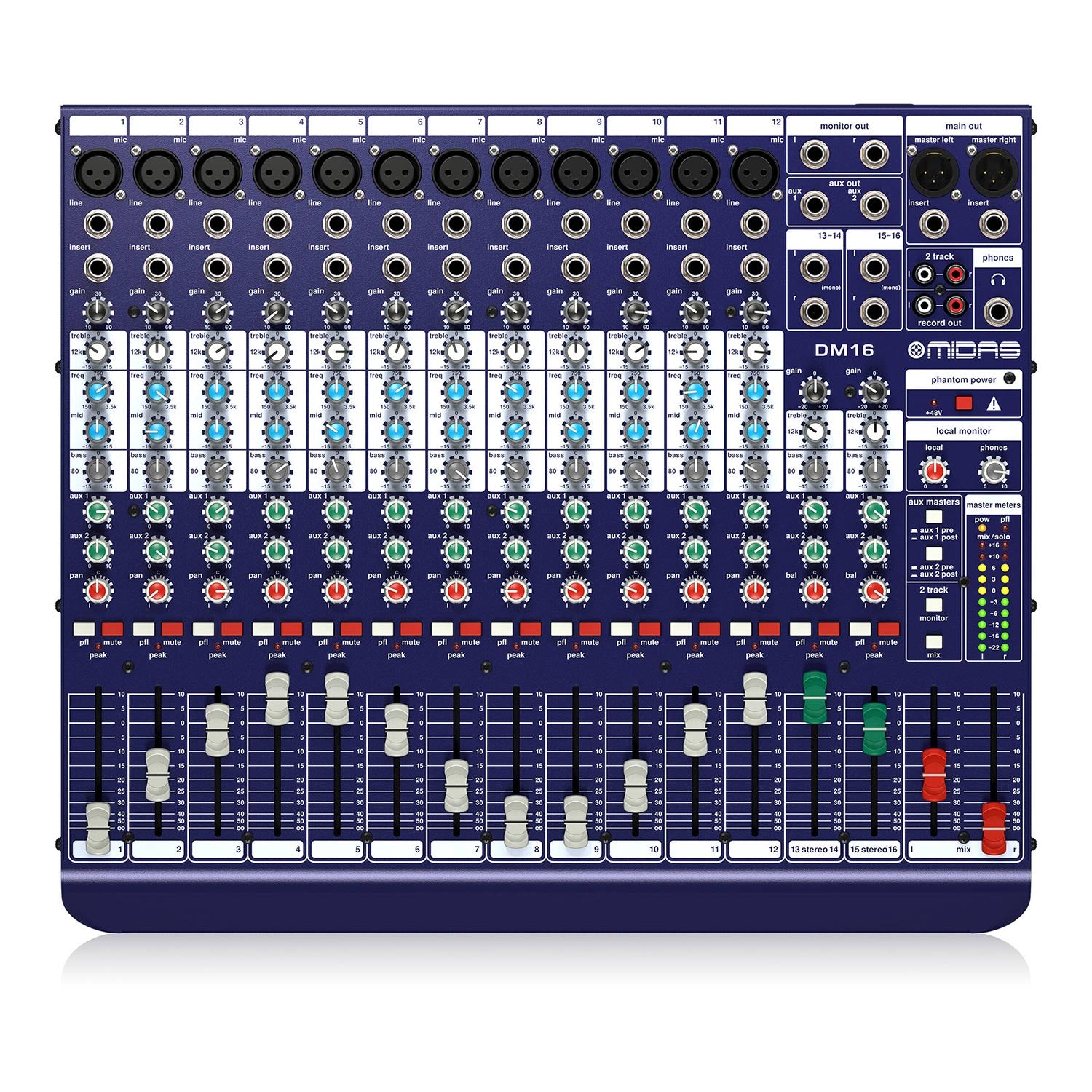

The compact mixer features 12 mono input channels equipped with MIDAS microphone preamplifiers, balanced XLR microphone inputs, balanced 1/4-inch TRS line inputs and channel inserts. Global +48 V phantom power is available for condenser microphones and active DI boxes.

Each mono channel provides a 3-band EQ with a sweepable mid-frequency control from 150 Hz to 3.5 kHz. The two dedicated stereo channels are suitable for keyboards, playback devices and stereo effects returns, while balance controls also allow them to accommodate mono signals.

Two auxiliary sends can be switched between pre-fader and post-fader operation for monitor mixes or external effects. The DM16 also provides dedicated monitor outputs, 2-track RCA inputs and outputs, a headphone output, channel PFL and mute controls, peak indicators and precise 60 mm faders.

Main Features

• 16-input analogue mixer for live performance and studio recording
• 12 MIDAS microphone preamplifiers provide low-noise microphone signal amplification
• 12 mono channels with balanced XLR microphone inputs, balanced TRS line inputs and inserts
• Two dedicated stereo channels accommodate keyboards, playback equipment and stereo effects returns
• 3-band EQ on every mono channel with a sweepable mid-frequency control for precise tonal adjustment
• Two auxiliary sends with pre-fader or post-fader operation for monitor mixes and external effects
• Global +48 V phantom power supports condenser microphones and compatible active equipment
• PFL, mute and peak indication on every input channel simplify signal monitoring
• Separate monitor and headphone level controls provide flexible monitoring
• 60 mm channel and main mix faders allow accurate and repeatable level adjustment

Technical Specifications

• Mixer type: Analogue live and studio mixer
• Total inputs: 16
• Mono channels: 12
• Stereo channels: 2 stereo channels / 4 line inputs
• Microphone preamplifiers: 12 MIDAS microphone preamplifiers
• Microphone inputs: 12 balanced XLR
• Microphone input impedance: 2 kΩ balanced
• Maximum microphone input level: +11 dBu at +10 dB gain
• Microphone gain range: +10 to +60 dB
• Equivalent input noise: -131 dBu with a 50 Ω source at 60 dB gain; -128 dBu with a 150 Ω source
• Microphone input noise: -97 dBu at +10 dB gain
• Mono line inputs: 12 balanced 1/4-inch TRS
• Line input impedance: 20 kΩ balanced
• Maximum line input level: +30 dBu
• Line input gain range: -10 to +40 dB
• Channel inserts: 12 × 1/4-inch TRS
• Stereo line inputs: 4 balanced 1/4-inch TRS
• Stereo input gain range: -20 to +20 dB
• Maximum stereo input level: +21 dBu
• Mono channel EQ: Low ±15 dB at 80 Hz; sweepable mid ±15 dB from 150 Hz to 3.5 kHz; high ±15 dB at 12 kHz
• Stereo channel EQ: Low ±15 dB at 80 Hz; high ±15 dB at 12 kHz
• Auxiliary sends: 2, independently switchable pre-fader or post-fader
• Auxiliary outputs: 2 balanced 1/4-inch TRS
• Monitor outputs: 2 balanced 1/4-inch TRS
• Auxiliary and monitor output impedance: 240 Ω balanced / 120 Ω unbalanced
• Maximum auxiliary and monitor output level: +21 dBu
• Main outputs: 2 electronically balanced XLR
• Main output impedance: 100 Ω balanced / 50 Ω unbalanced
• Maximum main output level: +21 dBu
• Main output inserts: 2 × 1/4-inch TRS
• Headphone output: 1 stereo 1/4-inch TRS
• Headphone output impedance: 25 Ω
• Maximum headphone output level: +21 dBu
• 2-track input: 2 RCA, 20 kΩ impedance, +21 dBu maximum level
• Recording output: 2 RCA, 1 kΩ impedance, +21 dBu maximum level
• Total harmonic distortion plus noise: 0.005% at 1 kHz
• Faders: 60 mm channel and main mix faders
• Phantom power: Global +48 V

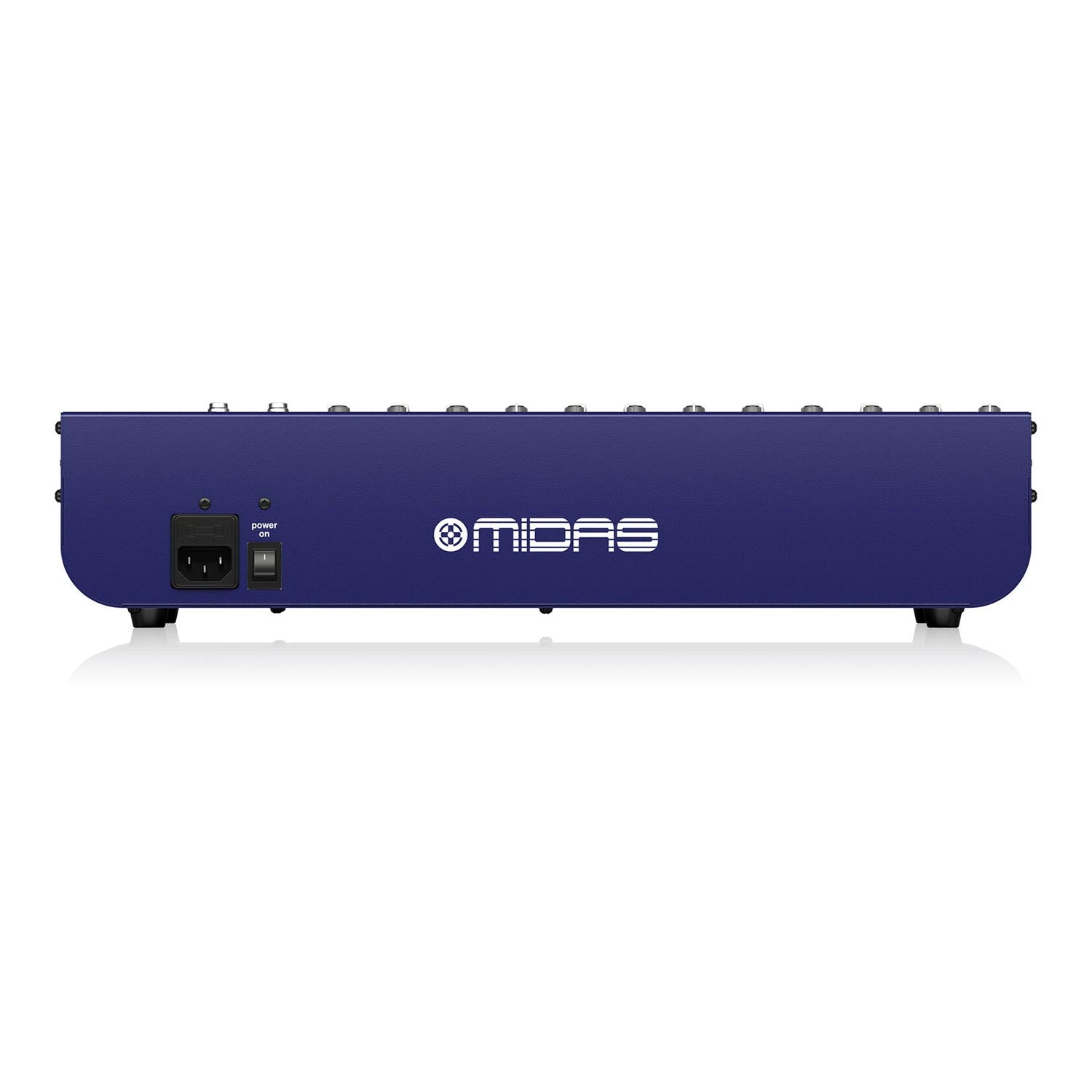

• Power supply: 100–240 V AC, 50/60 Hz, standard IEC connection
• Power consumption: 40 W
• Dimensions: 95 × 438 × 370 mm
• Weight: 5 kg

In the Box

• MIDAS DM16 analogue mixer

Who Is It For

The MIDAS DM16 is designed for small bands, worship teams, live sound engineers and recording studios that require a compact analogue mixer with multiple microphone and line inputs. It can also serve as a dedicated keyboard or drum submixer in larger performance systems.
