M-Live B.Beat PRO16 Plus 1 TB Wi-Fi Audio and Video Player

M-Live B.Beat PRO16 Plus 1 TB Wi-Fi Audio and Video Player

M-Live B.Beat PRO16 Plus 1 TB Wi-Fi plays up to 24 mono or 12 stereo backing-track channels and records up to 12 audio channels.

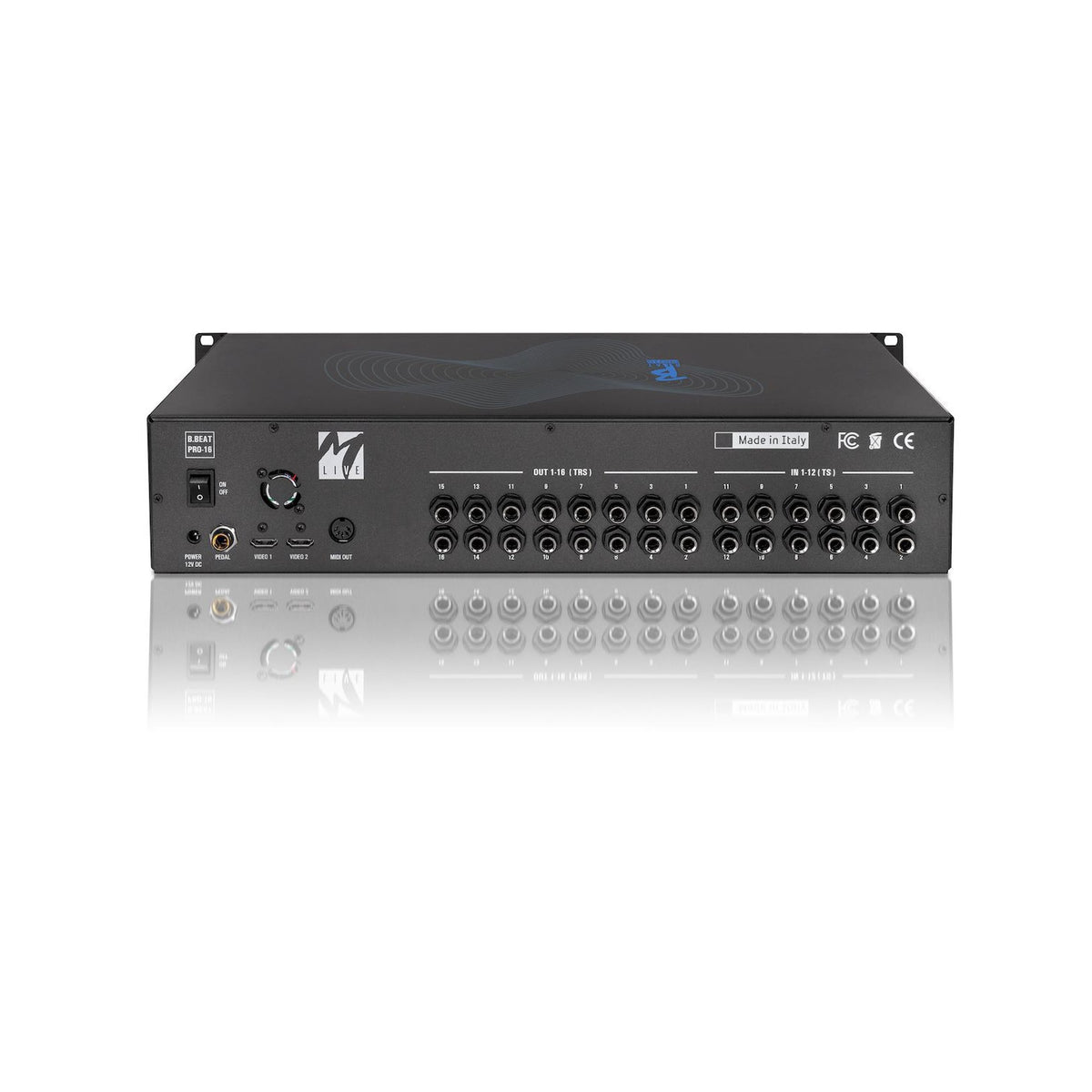

Sixteen separate outputs and twelve line inputs route backing-track parts and accept external signals. The internal mixer manages the click, mixer return and headphone mix through four physical controls. Enabling headphones uses two channels, leaving fourteen discrete outputs available.

Two HDMI outputs display synchronized video and lyrics simultaneously. PDF sheet music can be sent to Wi-Fi-connected smart devices running the Prompter app. Playlists, show scenes and MIDI commands organize the performance sequence in advance.

This PLUS version includes 1 TB of storage and Wi-Fi. It records external signals while a backing track is playing, then inserts the recorded tracks into the project. Markers and loops let you adapt the song structure during a performance.

B.Beat Manager prepares projects, while E.Beat lets you edit the repertoire without connecting the player and transfer it later using a USB drive. The twelve-input, sixteen-output USB audio interface supports computer-based rehearsals and sound checks.

Main Features

• Automatically generated, rhythm-aligned markers allow selected song sections to loop.
• PLUS video tools provide transition effects and adjustable audio/video synchronization.
• Stem Remover selectively removes vocals, drums, bass or other instruments from a stereo backing track.
• Track EQ and transposition adjust the backing track's tone and key.
• Controls Fractal Axe, Helix, Quad Cortex, Kemper and generic MIDI guitar modelers, with rhythm-aligned preset and scene changes.
• The metronome or an automatically detected click track can be sent to a selected output and the headphones.
• Remote app control, MIDI Clock and synchronization with an automatic backup-system switcher integrate the player into a stage system.
• LIVE mode limits accidental operations during a performance; Song Service MTA backing tracks are supported.

Technical Specifications

• Internal Storage: 1 TB
• Audio Tracks: Up to 24 mono or 12 stereo
• Recording and USB Audio Interface: Up to 12 recorded channels; 12 inputs / 16 outputs
• Internal Audio Format: PCM, 48 kHz, 24-bit
• Audio Formats: WAV 44.1 / 48 / 96 kHz, 16 / 24-bit; MP3 CBR 64–320 kbps and VBR; OGG CBR 64–320 kbps; AAC; STEMS; MTA M-Live
• Video Formats: MP4, MOV; H.264 HD / Full HD, 1280 × 720 / 1920 × 1080; JPG, PNG; lyrics 1280 × 720
• D/A Converter: 16 channels, 24-bit, 48 kHz, Sigma/Delta; typical S/N 112 dB
• A/D Converter: 12 channels, 24-bit, 48 kHz, Sigma/Delta; typical S/N 107 dB
• Audio Inputs: 12 × 6.35 mm unbalanced mono; 10 kΩ; 18 dBu / 6 Vrms; typical THD+N -93 dB, SNR 107 dB
• Audio Outputs: 16 × 6.35 mm balanced mono; 10 dBu / 2.5 Vrms, balanced 20 dBu / 5 Vrms; typical THD+N -94 dB, SNR 112 dB
• Headphone Output: 6.35 mm stereo; 6 dBu / 1.5 Vrms; typical SNR 105 dB
• Display: 2.4-inch monochrome OLED, 128 × 64
• Video Outputs: 2 × HDMI Type A, up to 1920 × 1080
• Network: Wi-Fi and RJ45 Ethernet 10/100/1000 Mbps
• MIDI: 5-pin DIN OUT; IN through an optional USB-MIDI cable
• Footswitch Connection: 6.35 mm, normally open or normally closed
• USB: 2 × USB 2.0 Type A, maximum combined current supply 500 mA; USB Type B for the audio interface
• Power: 12 V DC, 2 A; maximum 19 W; adapter input 100–240 V AC, 50–60 Hz
• Project Software: B.Beat Manager: Windows 10 or later, macOS 13 Ventura or later
• SKU: MLI-BEAT PRO16 PLUS
• EAN: 8052334930333

What’s Included

• 1 × M-Live B.Beat PRO16 Plus 1 TB Wi-Fi
• Power adapter
• RJ45 network cable

Who Is It For

Designed for concerts and shows requiring many discrete audio channels, two video outputs and recording of external signals. PLUS functions suit performances where song sections need to repeat or recording must continue alongside backing-track playback.
