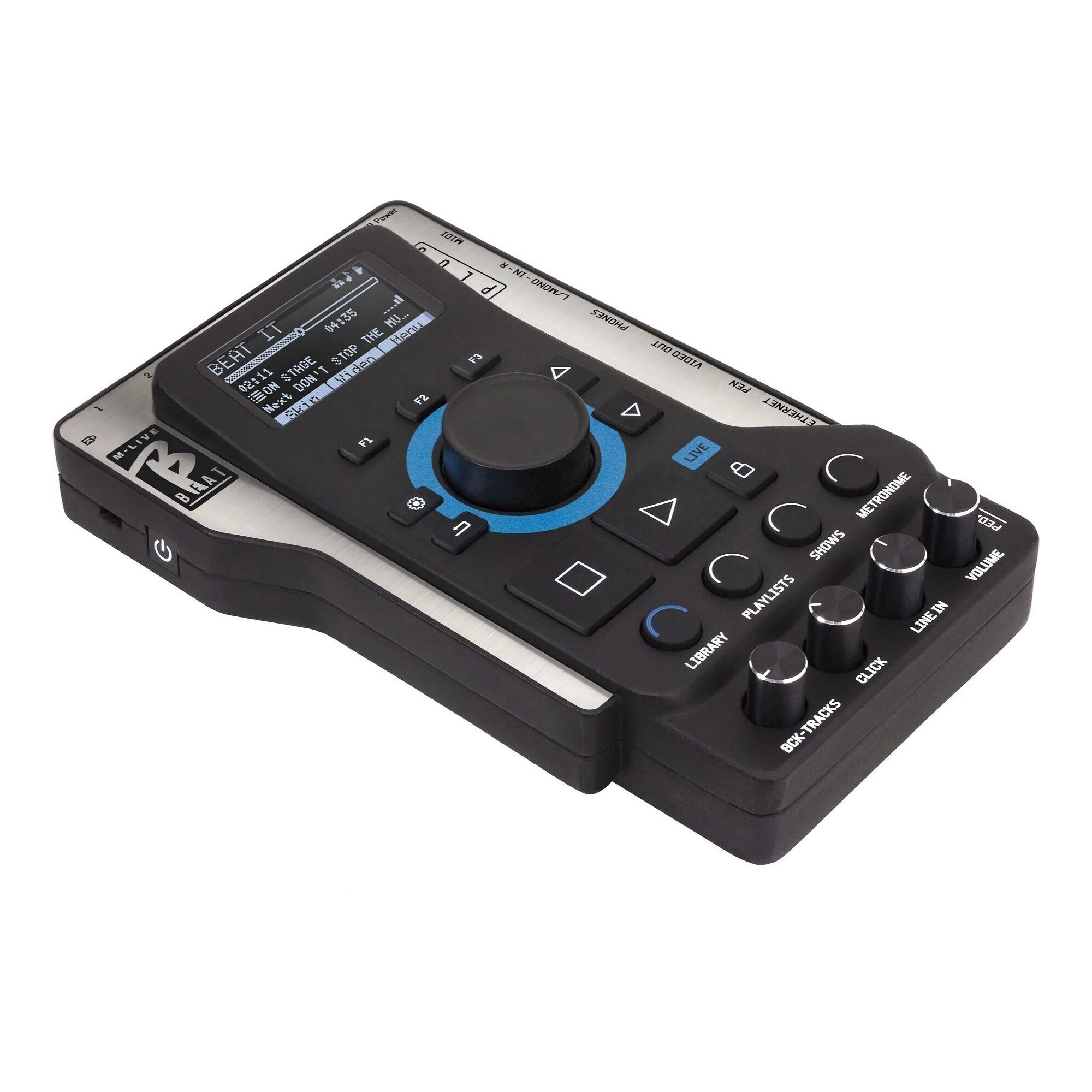

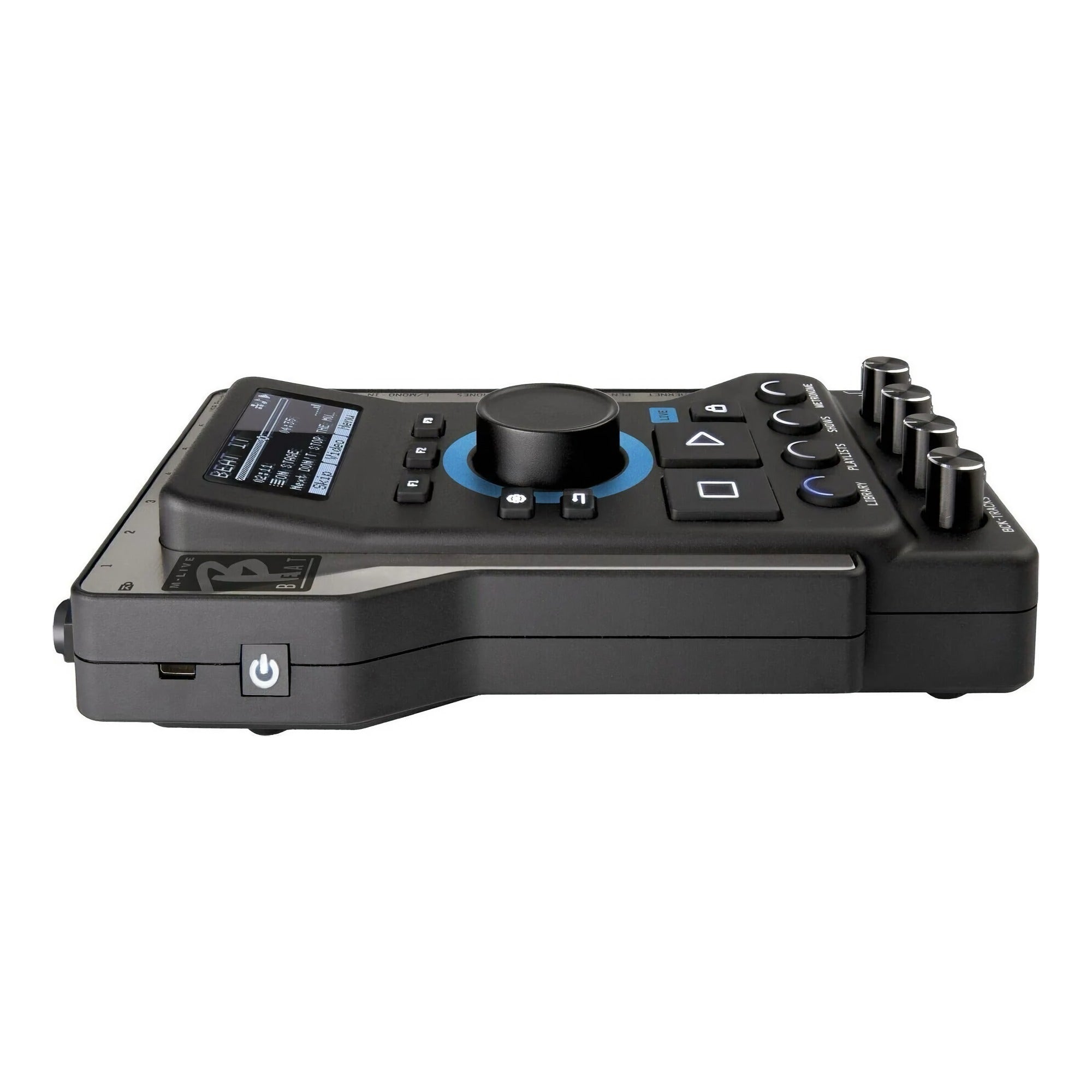

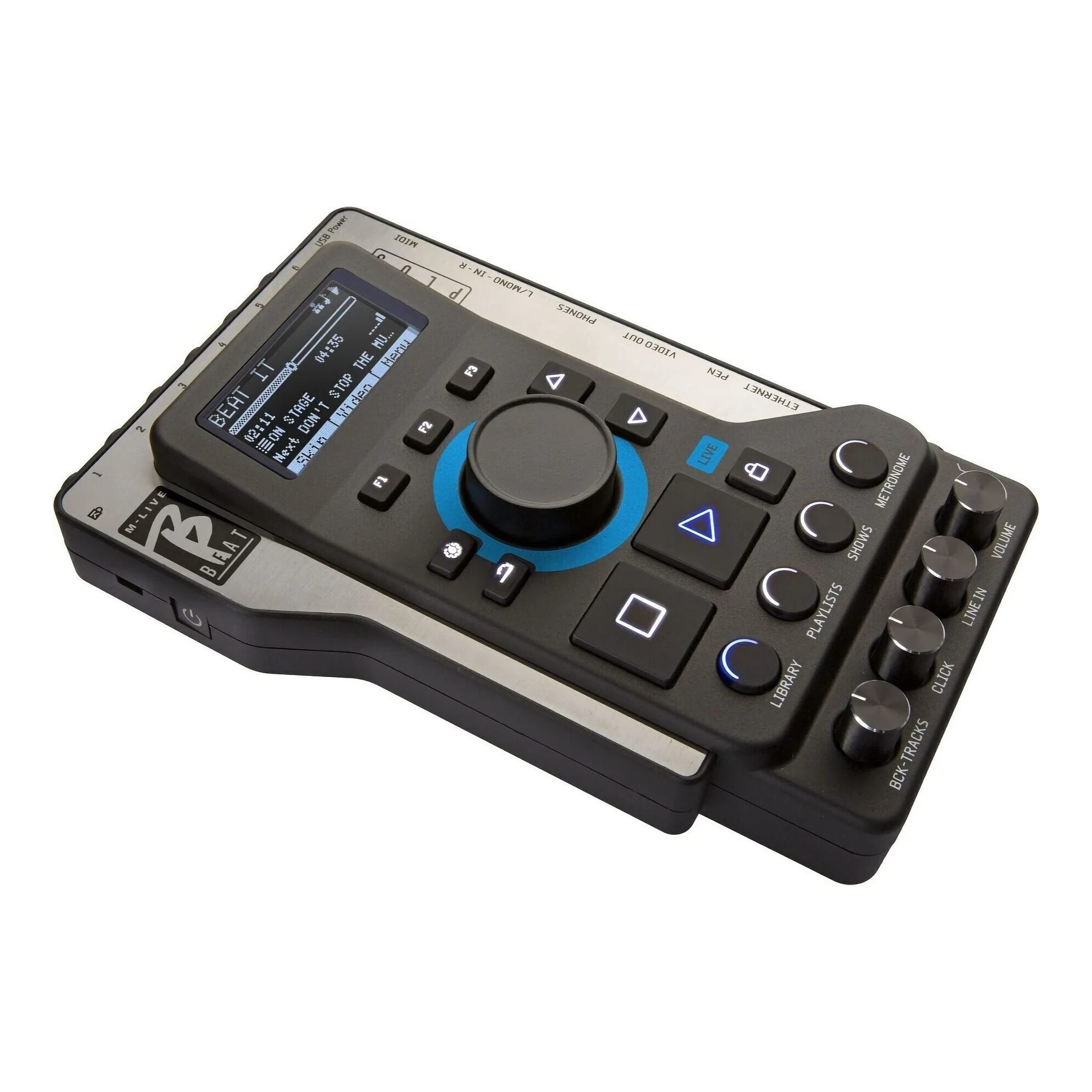

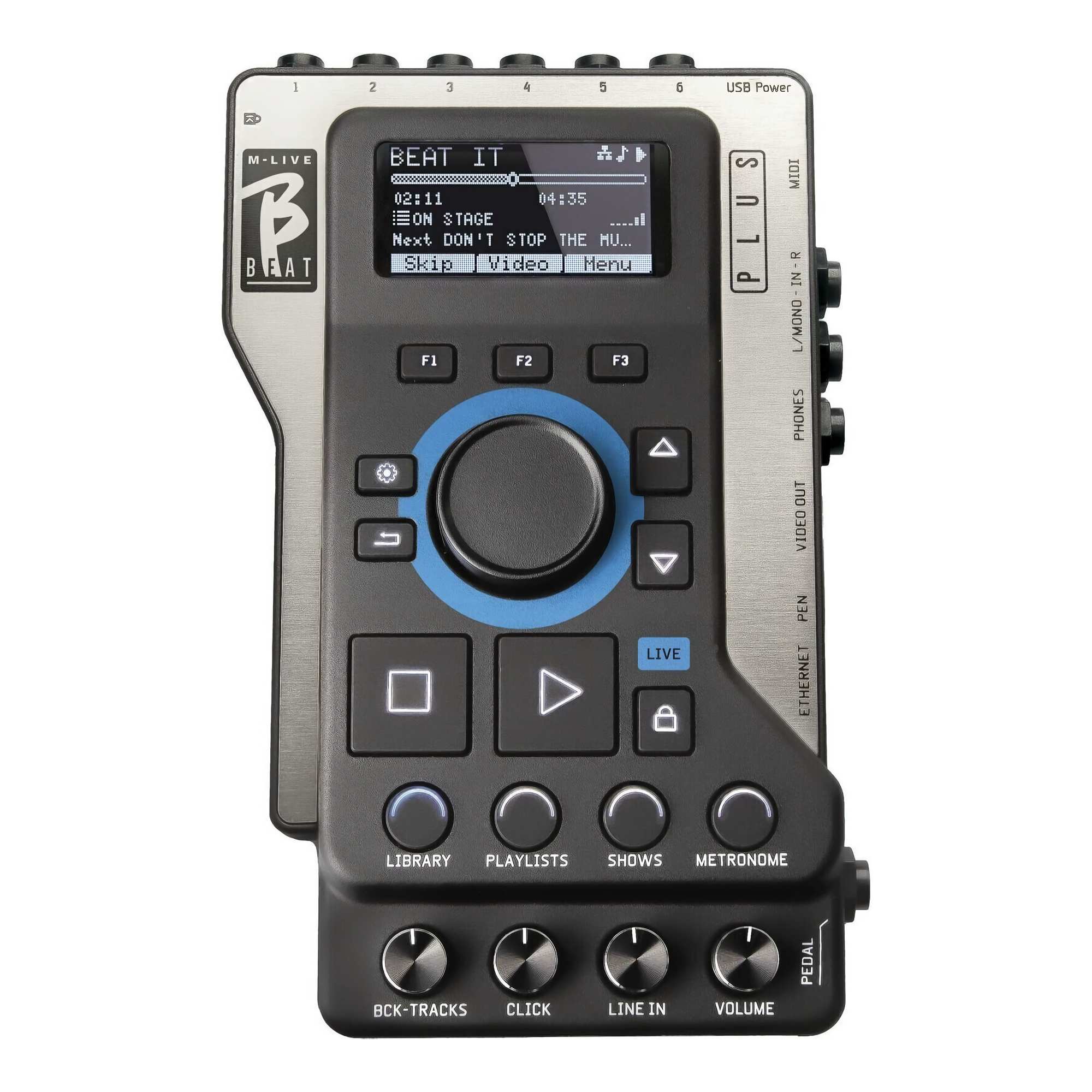

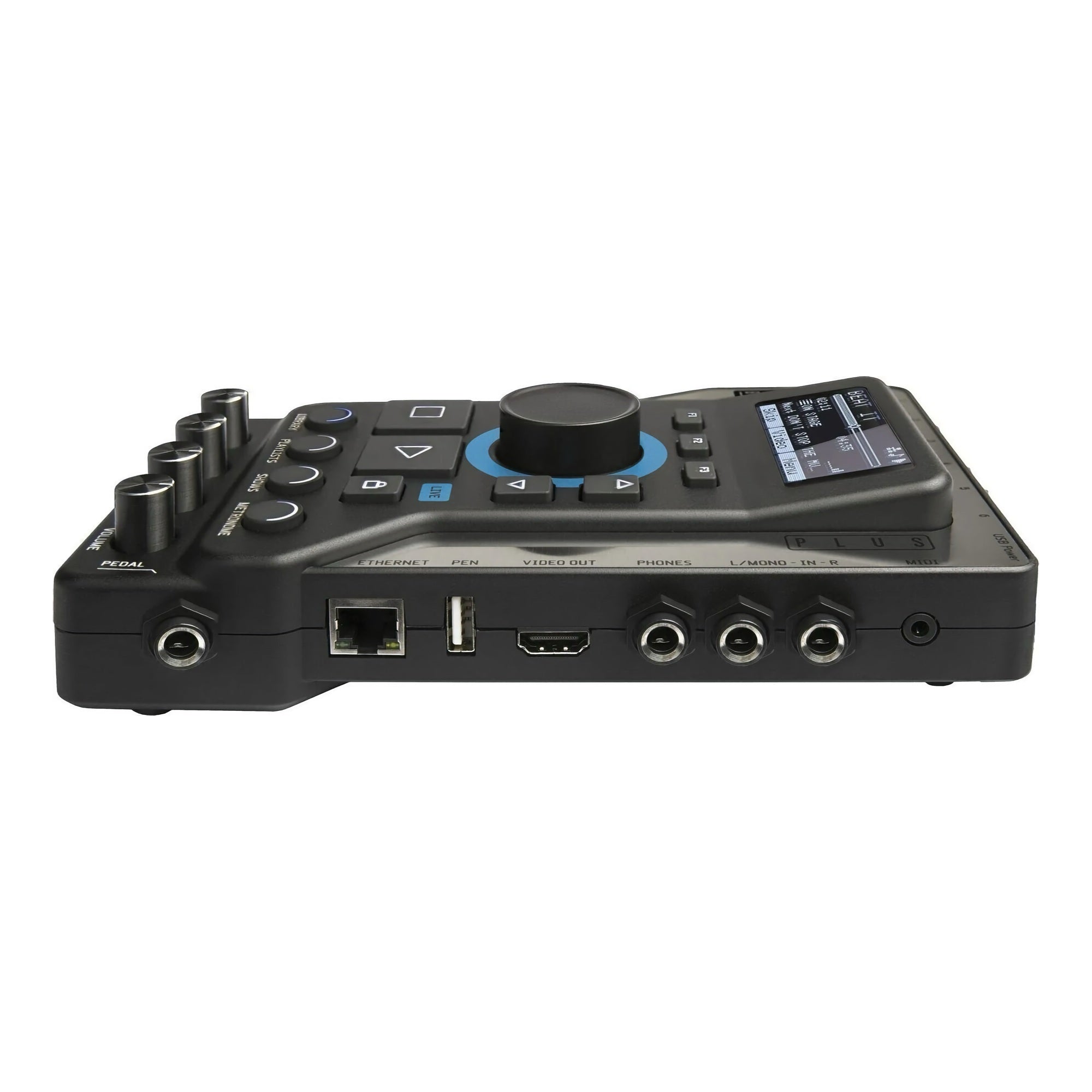

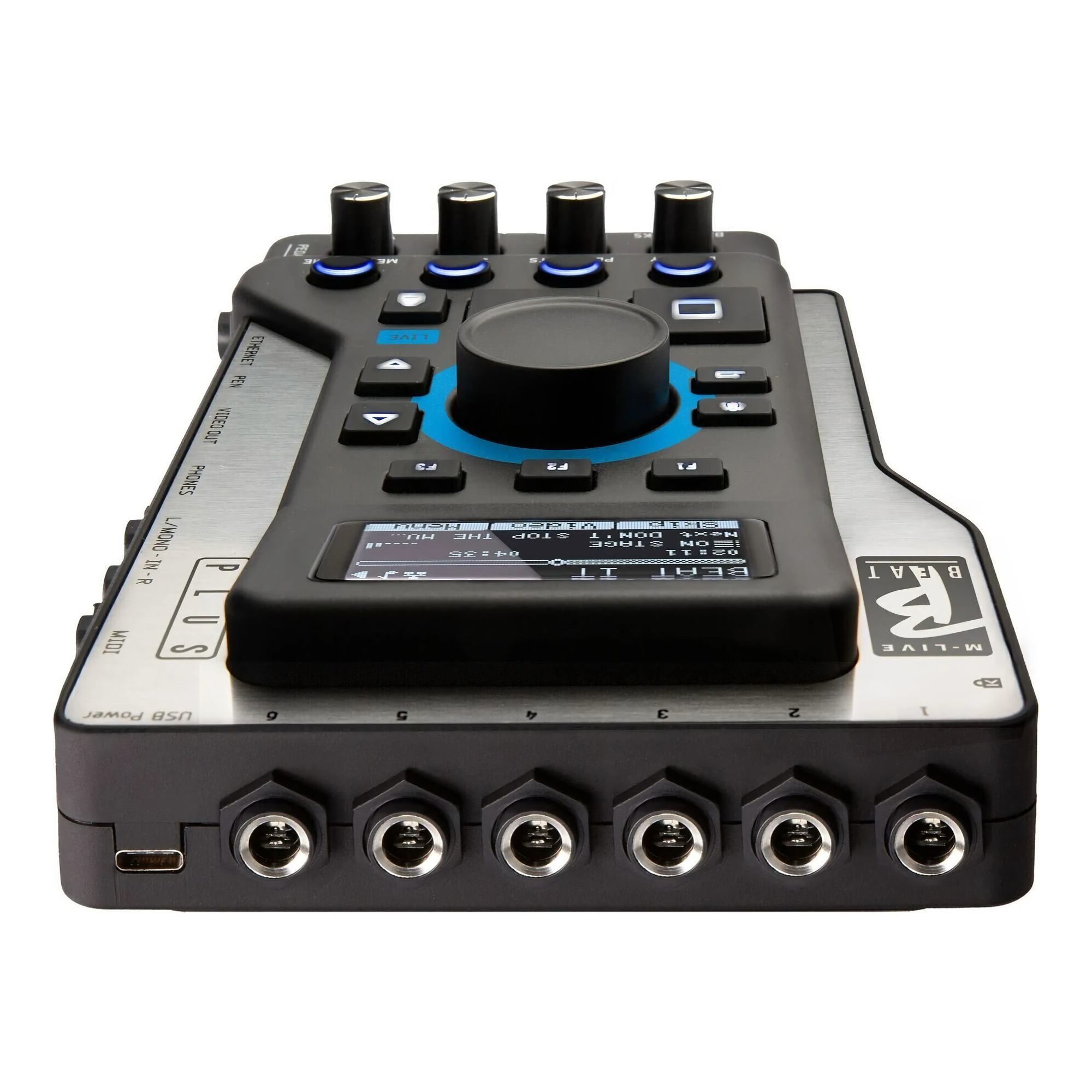

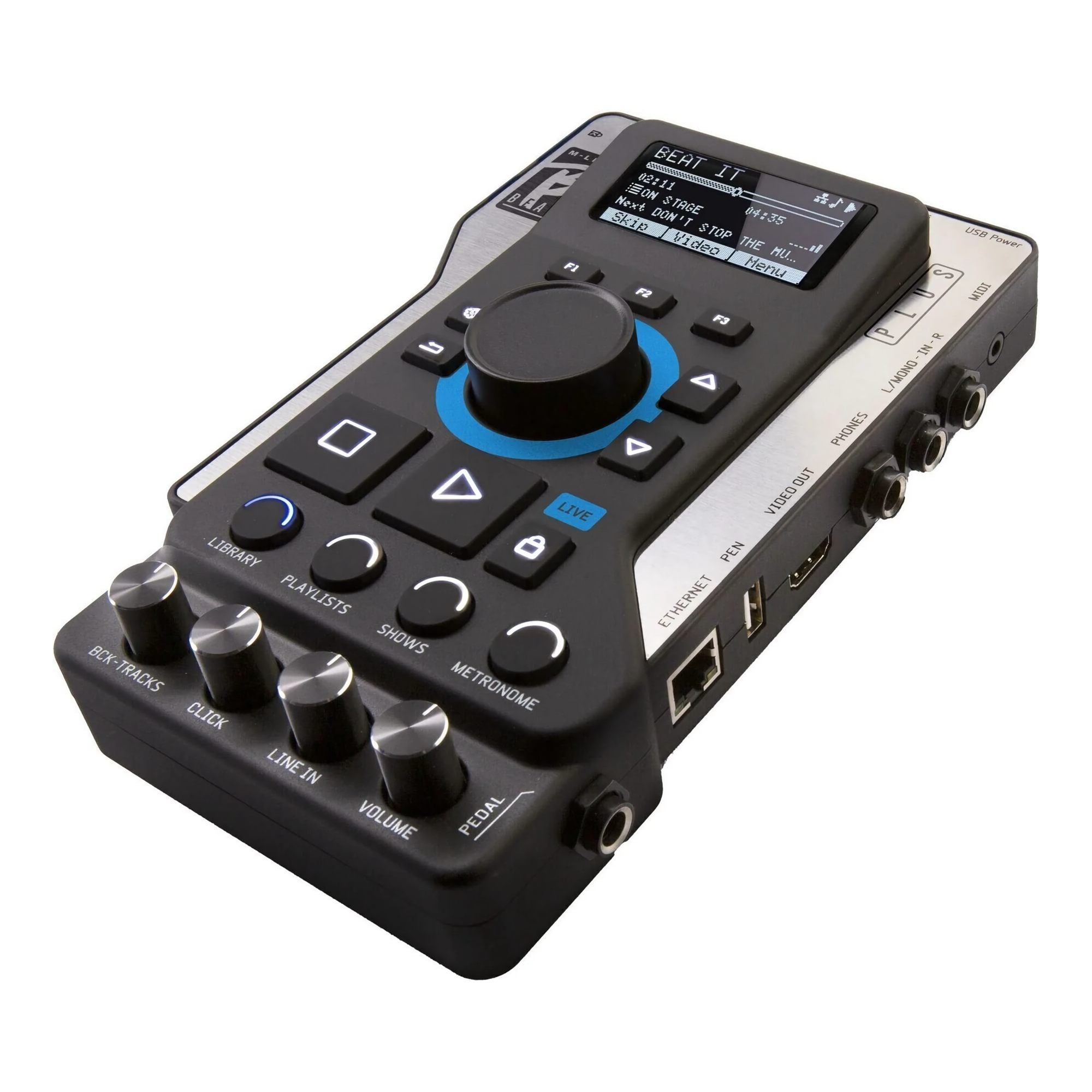

M-Live B.Beat PLUS Multitrack Backing Track and Video Player

M-Live B.Beat PLUS Multitrack Backing Track and Video Player

M-Live B.Beat PLUS is a standalone multitrack backing track and video player designed to manage music, MIDI commands and visual content during live performances.

The unit plays stereo and multitrack audio projects. Individual songs can be organised into playlists and shows, then associated with video files, images, lyrics or sheet music. Projects can also include MIDI tracks for controlling external stage equipment.

The PLUS version uses markers to identify song sections and repeat them during a performance. Markers can be generated automatically and quantised to the rhythmic grid. The unit also provides backing-track transposition, selective removal of vocals, drums, bass or other elements from a stereo track, and an independent 3-band EQ for every audio track. Advanced video tools include crossfades, fade-in and fade-out control, and adjustable audio-to-video synchronisation.

The integrated digital mixer provides six discrete audio outputs, two line inputs and a headphone output. A click track included in a project can be detected automatically and routed to a selected audio output and the headphones at the same time. Four physical controls let the performer adjust the balance of the sources heard in the headphones.

B.Beat Manager for Windows and macOS is used to prepare projects, assign audio tracks to outputs and transfer content. The 256 GB internal memory stores the show repertoire, while USB, Ethernet, MIDI and HDMI connections allow the unit to become part of a stage system. No computer is required during the performance.

Main Features

• Plays stereo and multitrack backing tracks together with synchronised video content
• Markers, automatic marker generation and quantisation to the rhythmic grid allow selected song sections to be repeated accurately
• Stem Remover can selectively remove vocals, drums, bass or other elements from a stereo track
• Transpose changes the key of a backing track to suit a vocalist or instrument
• An independent 3-band EQ for each of up to 16 audio tracks provides flexible tonal control
• Six discrete audio outputs let you route tracks individually to the stage or front-of-house mixer
• Two line inputs accept a mono or stereo return and can be routed to outputs 1–6
• A click track can be routed to an audio output and the headphones, while four controls adjust the headphone balance
• The MIDI output can send messages and program changes, including scene control for compatible guitar modellers
• The HDMI output supports resolutions up to 1920 x 1080 for synchronised visuals

Technical Specifications

• Internal audio format: uncompressed PCM, 48 kHz, 24-bit
• Imported audio formats: WAV 44.1 / 48 / 96 kHz, 16-bit or 24-bit; MP3 CBR 64–320 kbps; MP3 VBR; OGG CBR 64–320 kbps; AAC; STEMS; MTA M-Live
• Internal video format: H.264 HD / Full HD, 1280 x 720 / 1920 x 1080
• Imported video formats: MP4, MOV
• Image formats: JPG, PNG
• Audio track count: up to 16 mono or 8 stereo
• D/A conversion: 8-channel, 24-bit Sigma/Delta, 48 kHz
• Typical D/A signal-to-noise ratio: 112 dB
• Equaliser: independent 3-band EQ for each of up to 16 tracks
• Display: 2.4-inch monochrome OLED, 128 x 64
• Output level: up to +10 dBu
• Audio outputs: 6 x 6.35 mm balanced mono jack
• Audio inputs: 2 x 6.35 mm unbalanced mono line jacks; used as a stereo L/R pair or a single mono L input; routable to outputs 1–6
• Headphone output: 1 x 6.35 mm stereo jack
• Internal storage: 256 GB
• Network connection: RJ45 Ethernet, 10/100/1000 Mbps
• MIDI connection: 3.5 mm Type B MIDI mini jack
• Footswitch connection: 6.35 mm jack for a normally open (N/O) or normally closed (N/C) momentary footswitch
• Video output: HDMI Type A, maximum resolution 1920 x 1080
• USB port: USB 2.0 Type A for a USB memory stick, wireless USB interface or USB MIDI device
• Power: USB-C, 5.1 V DC, 3 A
• Current consumption: 1700 mA
• Power bank operation: approximately 6 hours with a 10,000 mAh / 2.4 A power bank

What’s Included

• M-Live B.Beat PLUS
• USB-C power adapter
• RJ45 network cable
• User manual

Who Is It For

M-Live B.Beat PLUS is designed for solo performers, bands, drummers, guitarists and live-show technicians who need multitrack backing-track playback, individual audio-track routing, a click track in the headphones, MIDI control and synchronised video.
