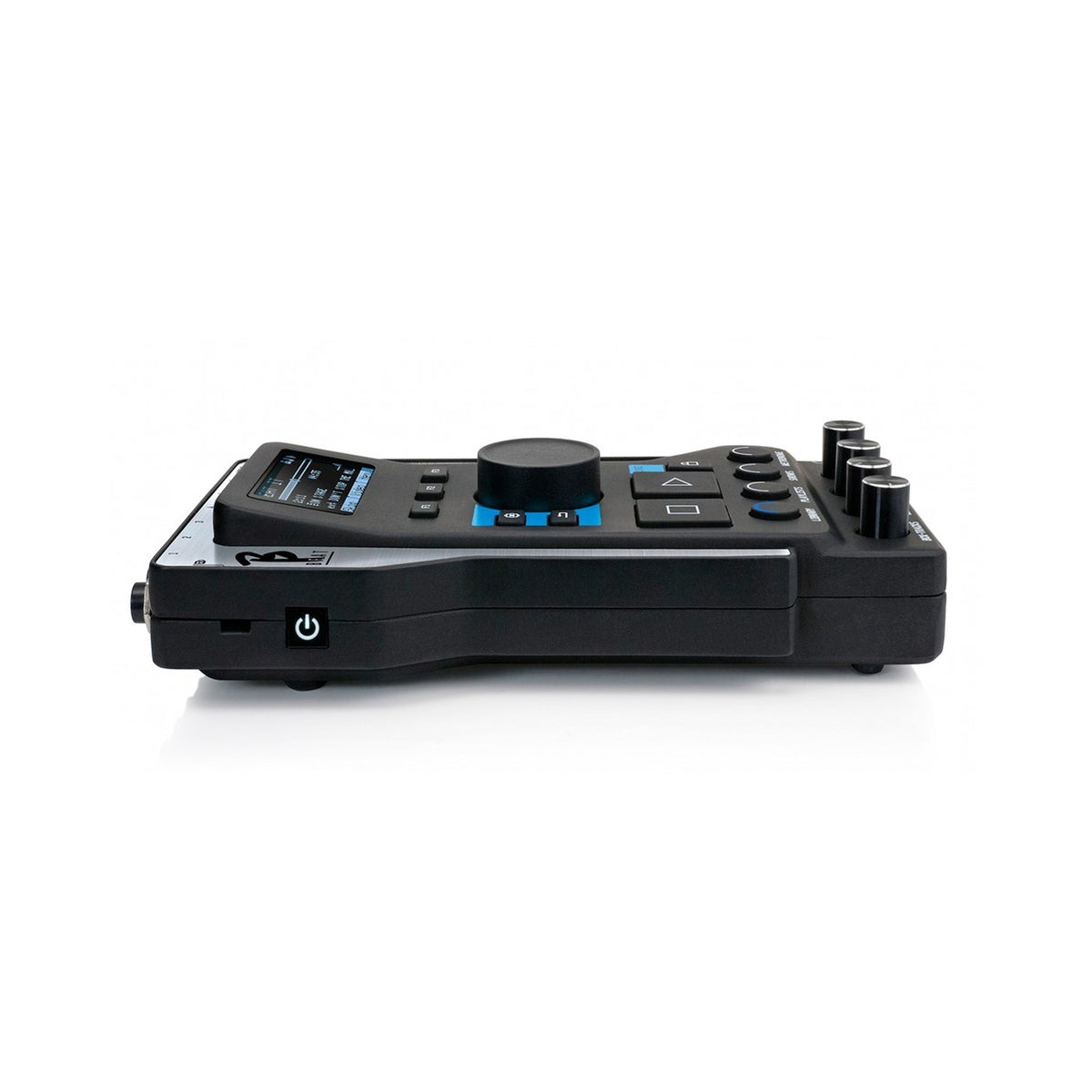

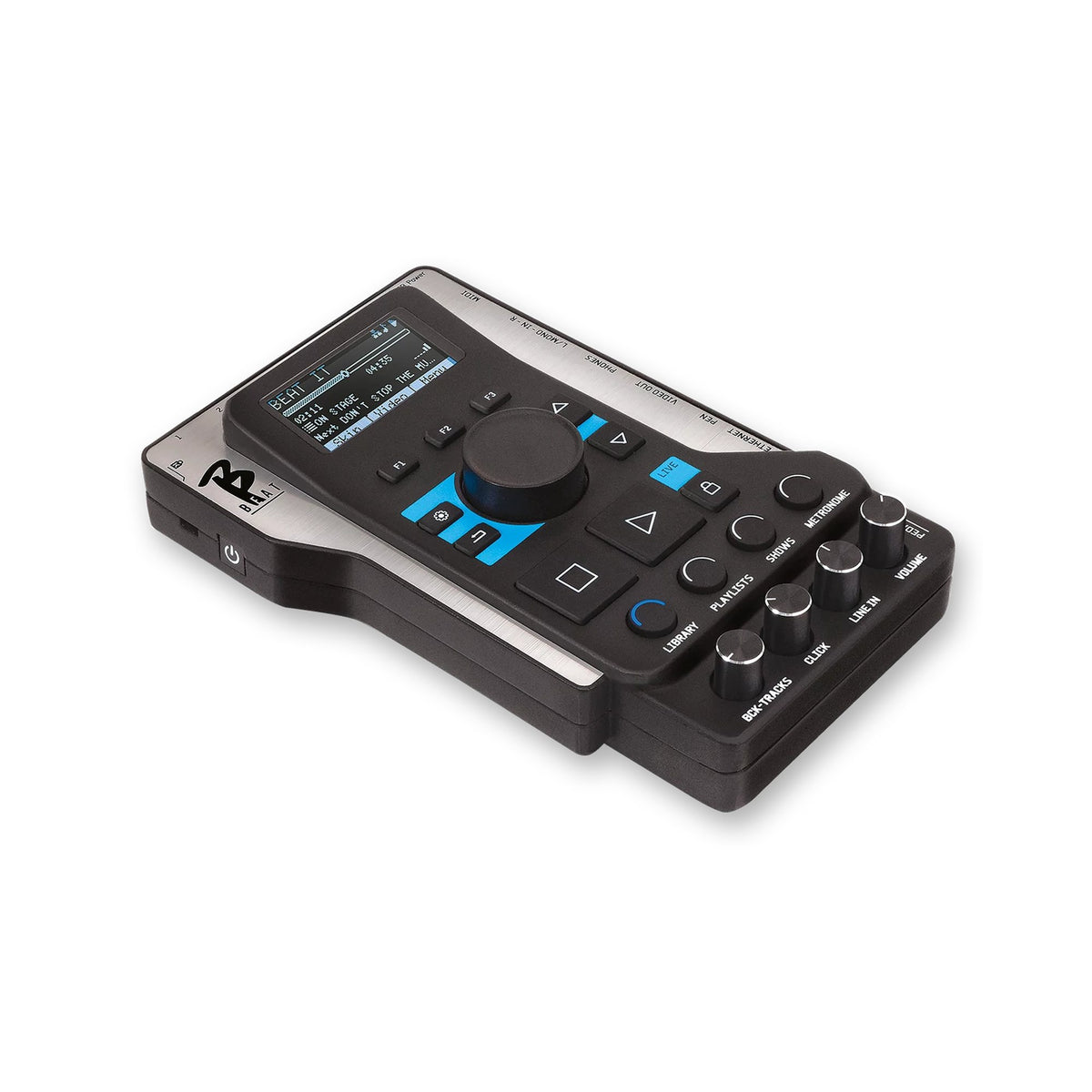

M-Live B.Beat 32 GB Audio and Video Player

M-Live B.Beat 32 GB Audio and Video Player

M-Live B.Beat 32 GB plays up to 16 mono or 8 stereo backing-track channels together with synchronized video and MIDI commands.

The built-in digital mixer routes tracks to six separate outputs. Two line inputs accept a mono or stereo return from the stage mixer, while four controls adjust the balance of the backing tracks, click and other headphone sources.

Songs can be organized as individual projects, playlists or shows made up of scenes. A MIDI track controls other stage equipment, and the HDMI output displays video or still images.

B.Beat Manager prepares projects, assigns outputs, adjusts levels and transfers audio and video content. Video can follow the music or run independently. MP3 files can be copied from a USB drive or played directly from it.

This 32 GB version does not include built-in Wi-Fi. An optional M-Pen adapter is required for wireless connection to the Prompter app, which displays lyrics, chords and sheet music on connected smart devices.

Main Features

• Playback of 16 mono or 8 stereo tracks keeps individual backing-track parts under separate control.
• Six discrete outputs route backing-track parts to separate stage-mixer channels.
• An automatically detected click track can be sent to a selected output and the headphones at the same time.
• The built-in metronome provides direct tempo and click control on stage.
• Playlists and show scenes let you arrange the performance repertoire in advance.
• LIVE mode limits accidental operations during a performance.
• Song Service MTA backing tracks are supported as eight stereo tracks.
• Power-bank operation provides approximately six hours with a 10,000 mAh / 2.4 A battery.

Technical Specifications

• Internal Storage: 32 GB
• Audio Tracks: Up to 16 mono or 8 stereo
• Internal Audio Format: PCM, 48 kHz, 24-bit
• Imported Audio Formats: WAV 44.1 / 48 / 96 kHz, 16 / 24-bit; MP3 CBR 64–320 kbps and VBR; OGG CBR 64–320 kbps; AAC; STEMS; MTA M-Live
• Video Formats: MP4, MOV, AVI; internal H.264 HD / Full HD, 1280 × 720 / 1920 × 1080
• Image Formats: JPG, PNG
• D/A Converter: 8 channels, 24-bit, 48 kHz, Sigma/Delta; typical S/N 112 dB
• Display: 2.4-inch monochrome OLED, 128 × 64

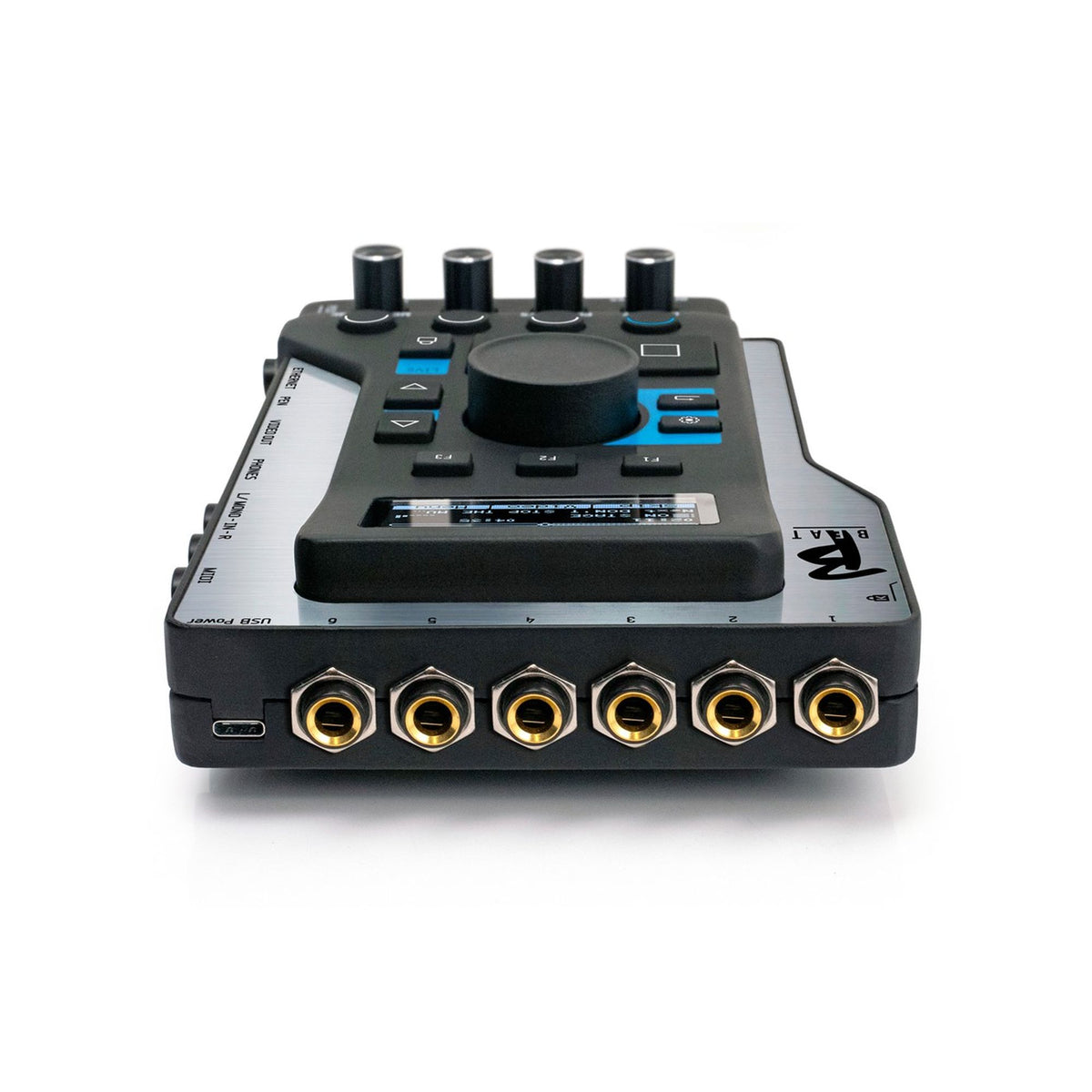

• Audio Outputs: 6 × 6.35 mm balanced mono
• Audio Inputs: 2 mono line inputs L/R, stereo or left channel only
• Headphone Output: 6.35 mm stereo
• Network: RJ45 Ethernet, 10/100/1000 Mbps
• MIDI Output: 3.5 mm Type B
• Footswitch Connection: Normally open or normally closed switch pedal
• USB: USB 2.0 Type A for a flash drive or wireless adapter
• Power: USB-C, 5.1 V DC, 3 A; current consumption 1700 mA
• Software: B.Beat Manager: Windows 10 or later, macOS 13 Ventura or later
• Weight: 600 g
• SKU: MLI-BEAT32
• EAN: 0806812165025

What’s Included

• 1 × M-Live B.Beat 32 GB
• Power adapter
• RJ45 network cable

The M-Pen wireless adapter, case and mounting clamp are not included.

Who Is It For

Suitable for concerts and rehearsals where backing-track parts and the click need separate mixer channels and a computer-free stage setup. Complete audio editing and video synchronization before transferring the material to the player.
