Lab Gruppen PD3000 Power Amplifier

Lab Gruppen PD3000 Power Amplifier

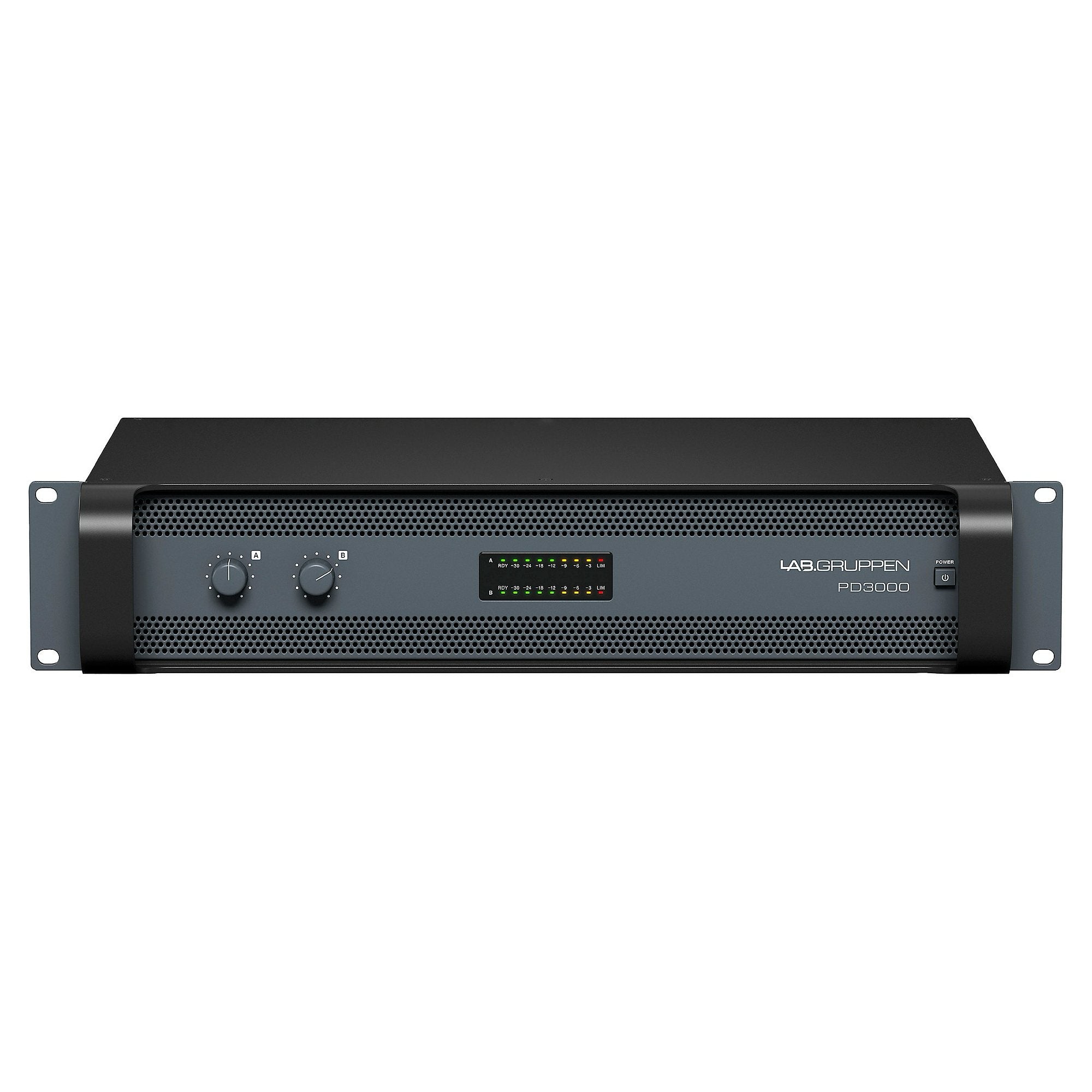

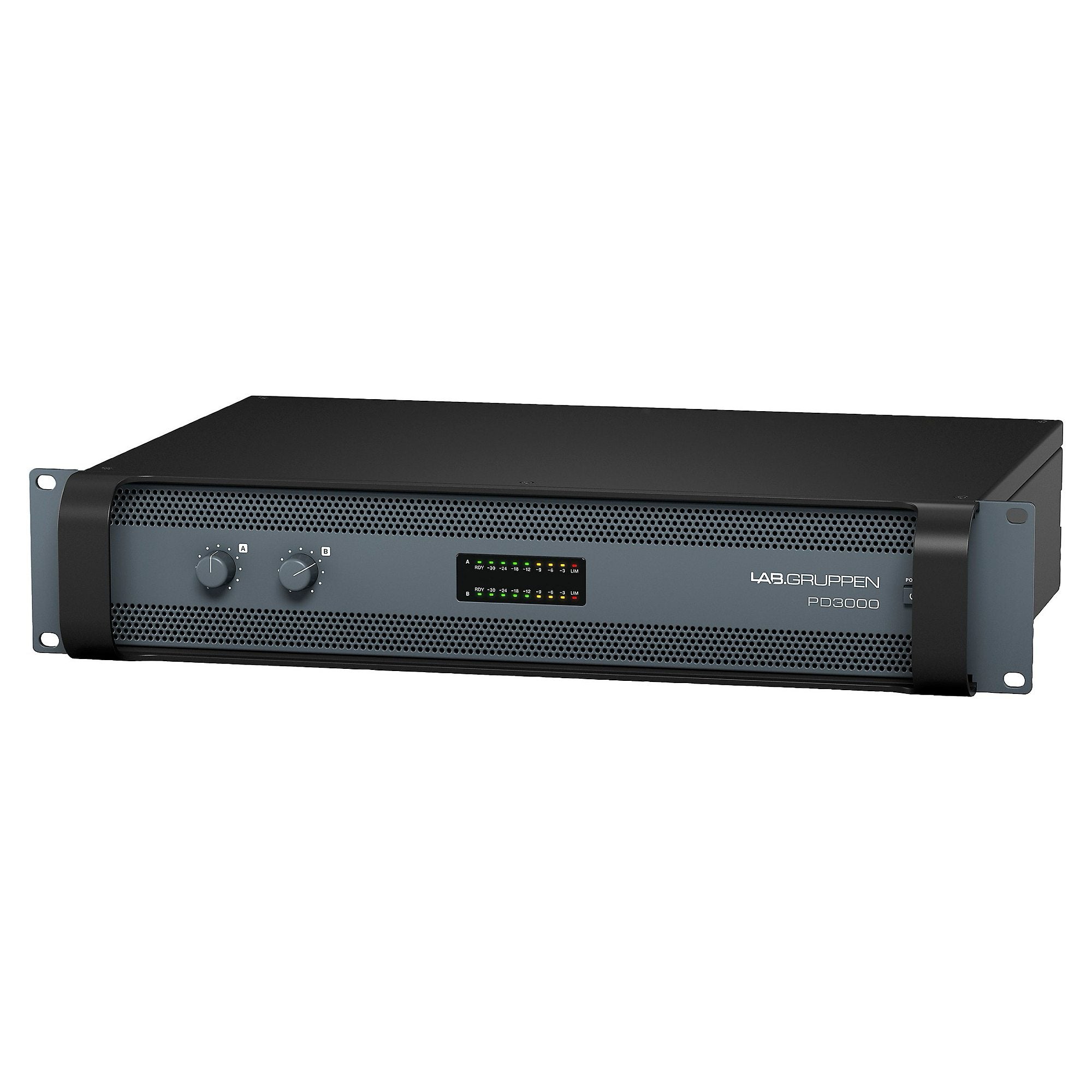

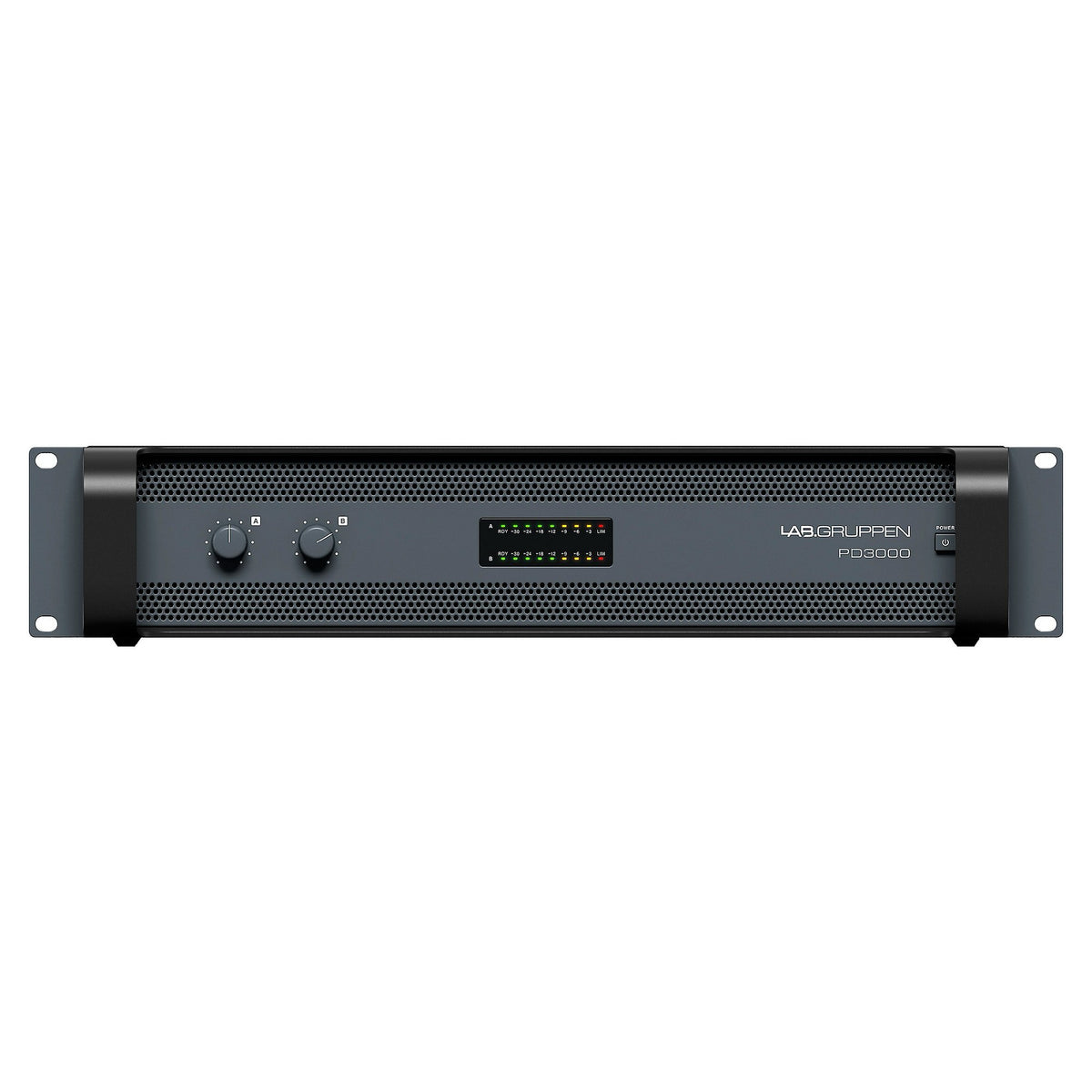

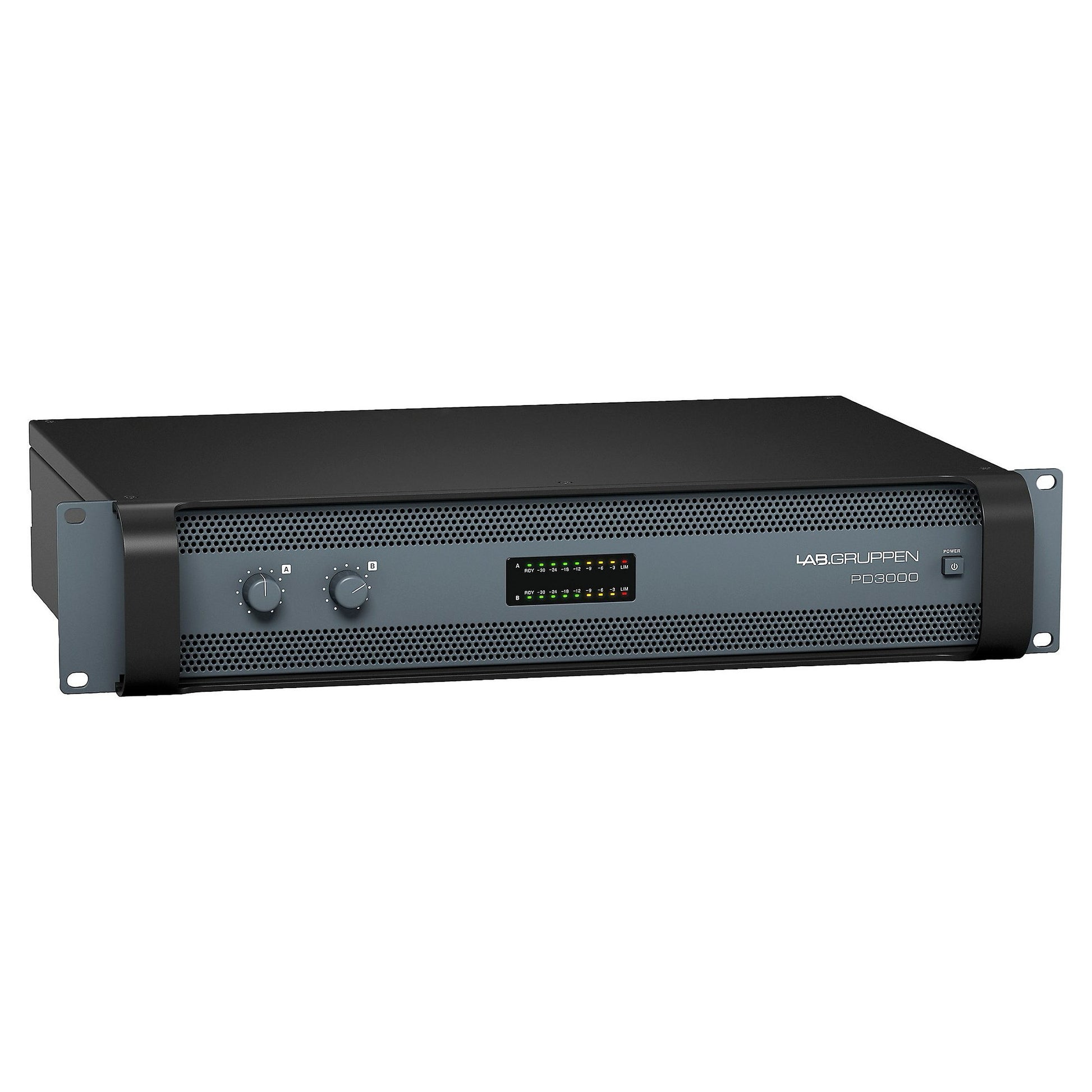

The Lab Gruppen PD3000 is a two-channel Class D power amplifier for passive PA loudspeakers.

Each channel delivers up to 1500 W into 4 Ω. The PD3000 suits main loudspeakers, stage monitors and subwoofers where substantial amplifier power is required without onboard DSP.

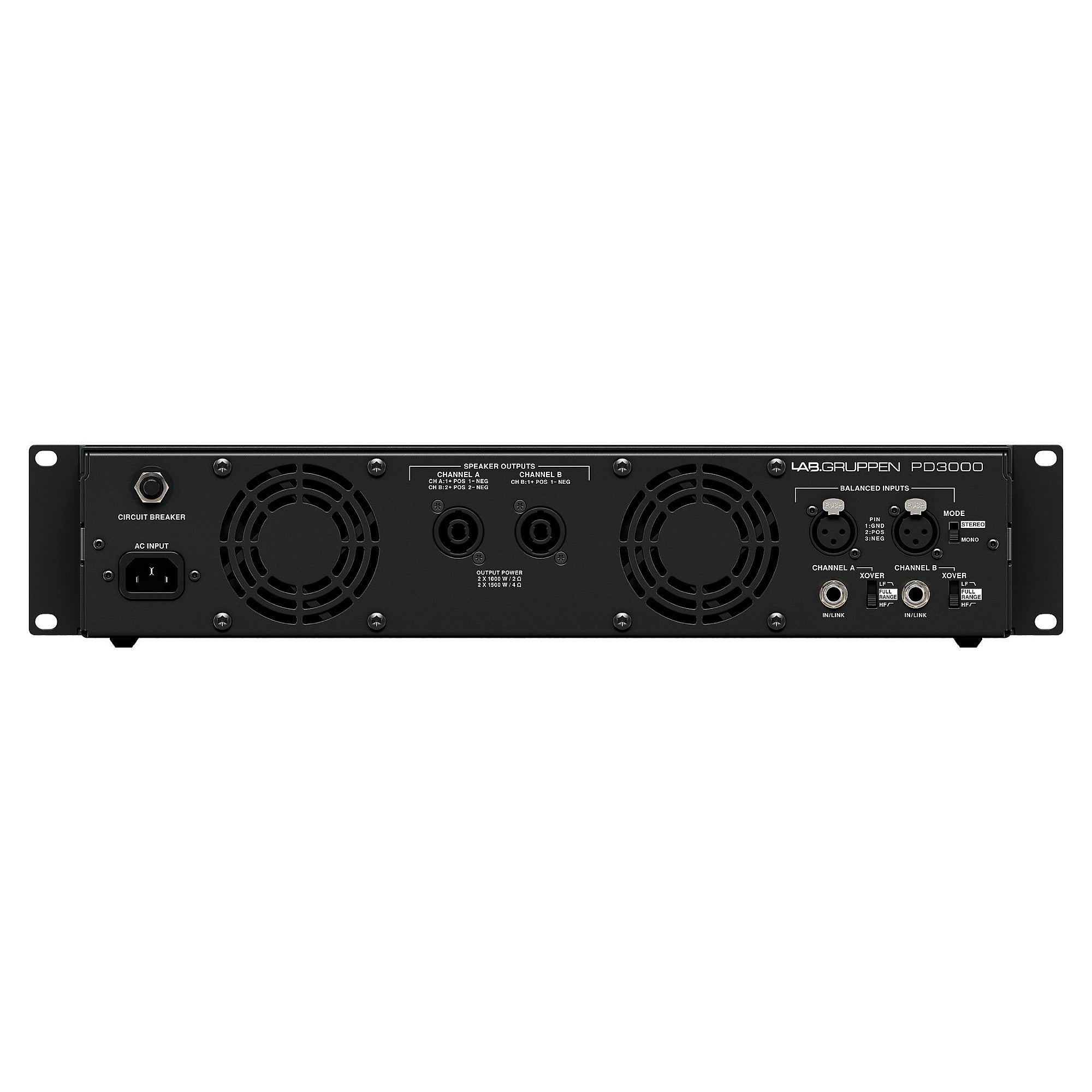

Rear-panel switches select stereo or mono operation and configure the 100 Hz crossover for LF, full-range or HF use. Thermal, DC, short-circuit and peak-current protection safeguard the amplifier and connected load.

Two XLR and two 6.3 mm TRS input or link connections simplify integration into analogue PA systems. Two speakON NLT4 connectors provide the loudspeaker outputs.

Main Features

• Two channels delivering 1500 W into 4 Ω provide power for larger passive loudspeakers.
• The Class D output stage reduces thermal losses and overall amplifier weight.
• LF, full-range and HF modes configure the internal 100 Hz crossover.
• Stereo and mono modes offer flexibility when routing an analogue source.
• Thermal and DC protection reduce the risk of amplifier damage.
• Peak-current limiting and load protection help maintain safe operation.
• XLR and 6.3 mm TRS connections support common analogue audio cabling.
• The 2U rack chassis suits portable and fixed PA systems.

Technical Specifications

• Channels: 2
• Output power: 2 x 1000 W at 2 Ω, 2 x 1500 W at 4 Ω, 2 x 800 W at 8 Ω
• Amplifier class: Class D
• Crossover: 100 Hz, LF / full range / HF
• Frequency response: 10 Hz to 20 kHz, +0.5 / -1 dB
• Signal-to-noise ratio: greater than 90 dB
• Inputs and link connections: 2 x XLR, 2 x 6.3 mm TRS
• Loudspeaker outputs: 2 x speakON NLT4
• Bridge mode: not supported
• Power supply: 220–240 V, 50/60 Hz, EU version
• Dimensions: 93 x 483 x 326 mm
• Weight: 6.5 kg

What’s Included

• 1 x Lab Gruppen PD3000 amplifier
• Region-appropriate IEC power cable

Who Is It For

Suitable for concert and event PA systems, passive main loudspeakers, stage monitors and subwoofers where signal processing is handled by a separate processor.
