Lab Gruppen IPX 2400 DSP Power Amplifier

Lab Gruppen IPX 2400 DSP Power Amplifier

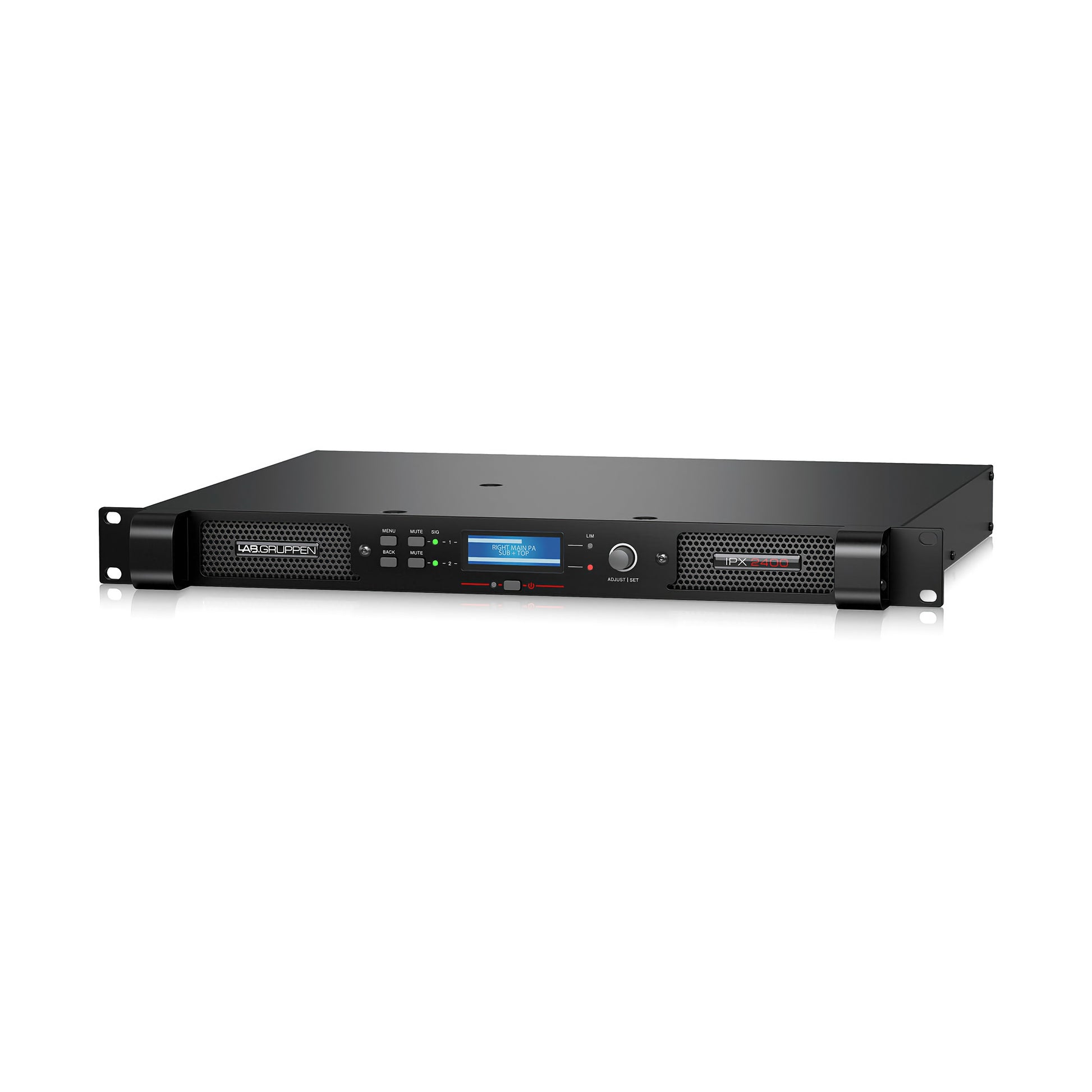

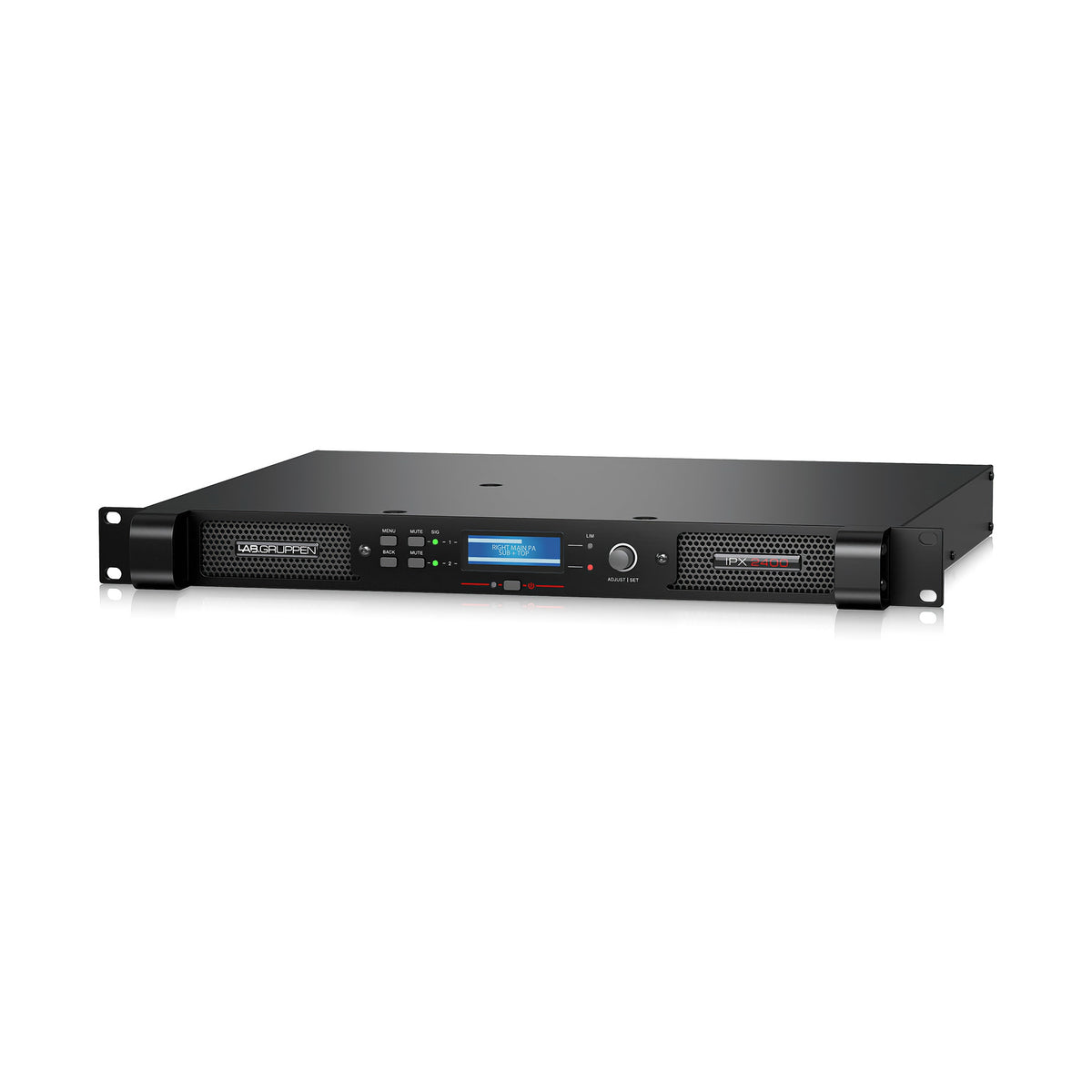

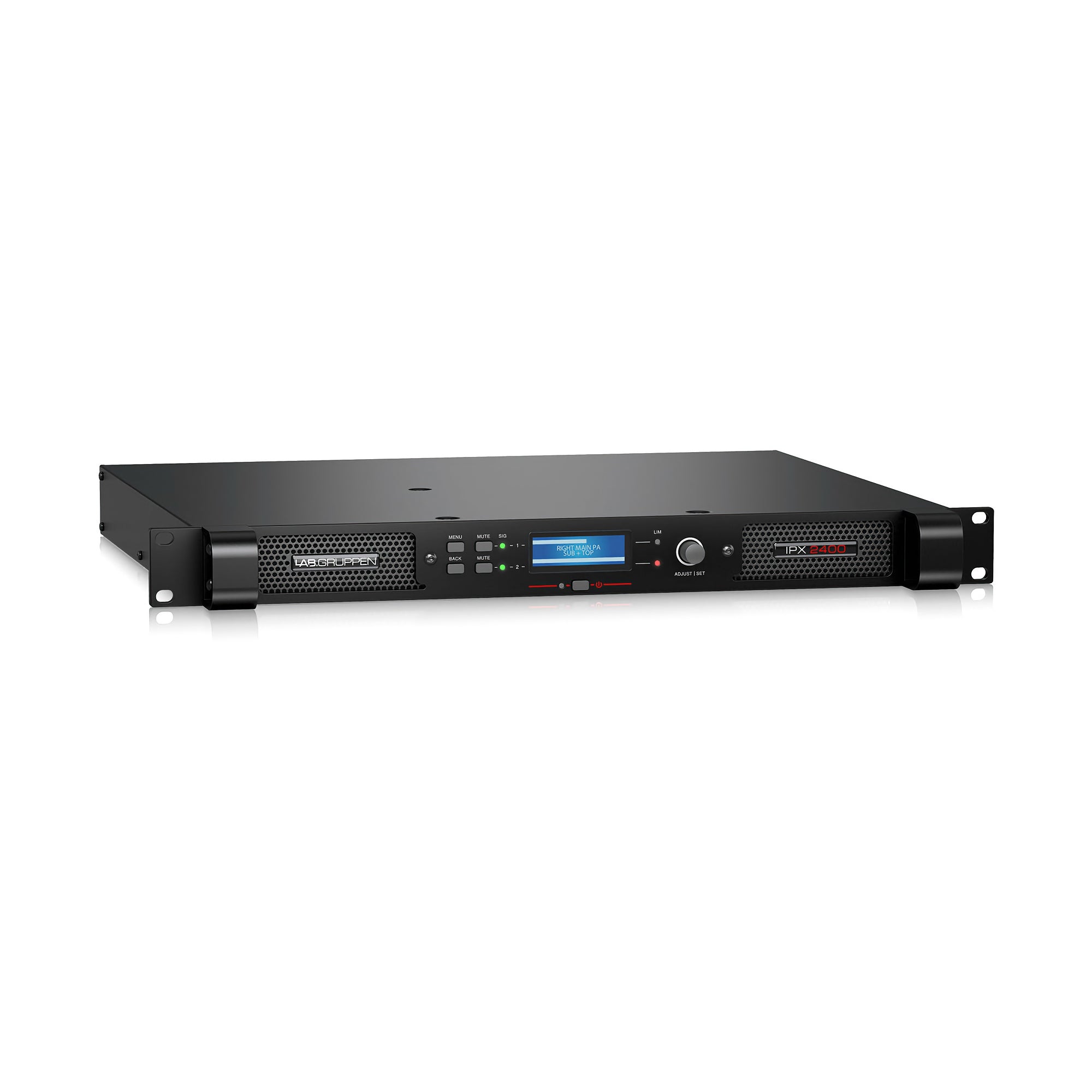

The Lab Gruppen IPX 2400 is a two-channel Class D power amplifier with integrated DSP.

It delivers 1200 W per channel into 4 Ω and combines substantial output power with signal processing in a 1U chassis. It is suited to high-output main PA loudspeakers, stage monitors and subwoofer systems.

The DSP includes parametric EQ, high-pass and low-pass filters, crossover functions, input and output delay, and a loudspeaker protection limiter. Setup is available from the front panel or remotely over Ethernet with IPX Controller.

Analogue and AES3 inputs include dedicated link outputs. speakON and binding-post loudspeaker connections allow integration into portable and permanently installed systems.

Main Features

• Two channels delivering 1200 W into 4 Ω support high-output passive loudspeakers.
• Integrated DSP handles system filtering, delay and protection in the amplifier.
• The AES3 input provides direct digital audio connectivity.
• Ethernet enables remote amplifier monitoring and control.

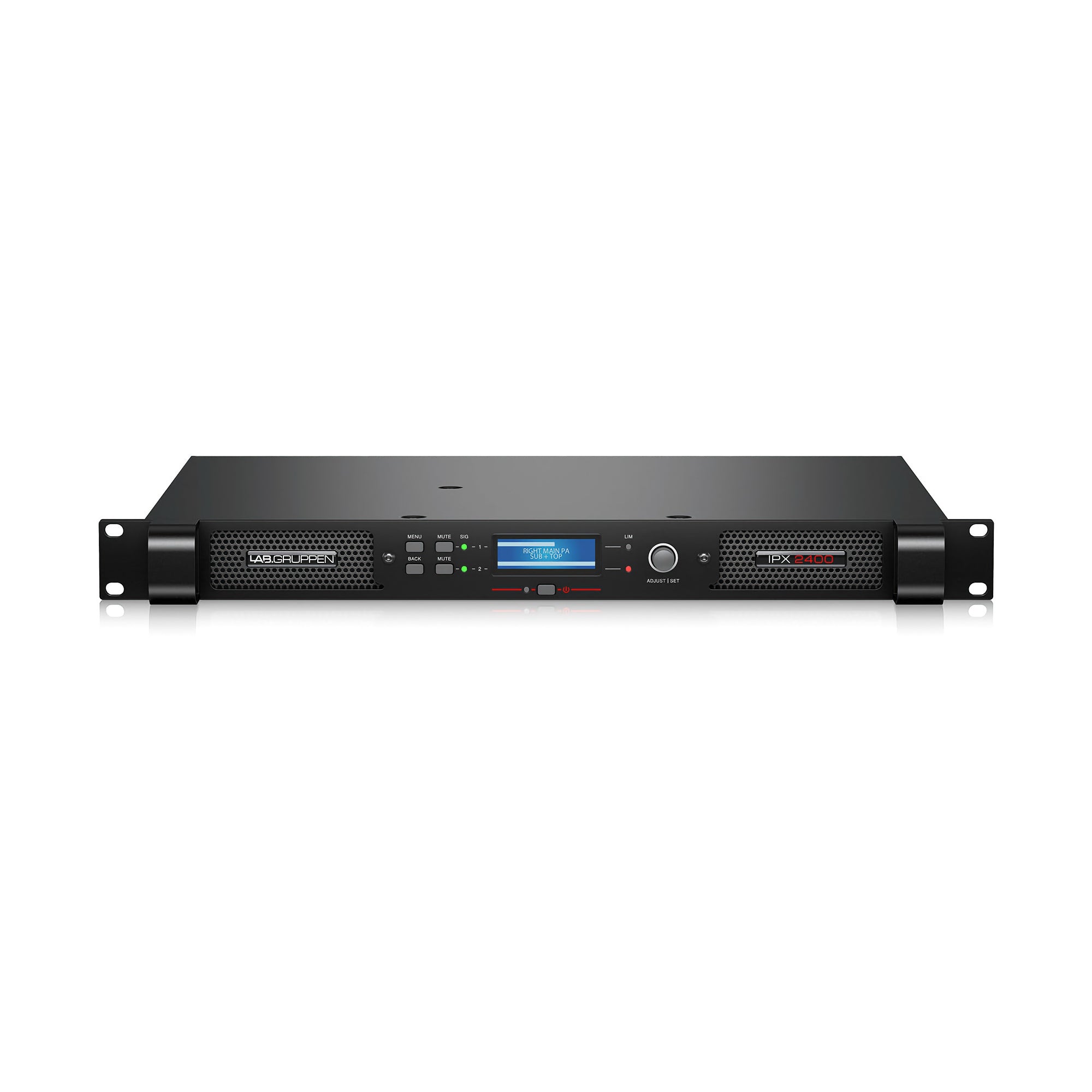

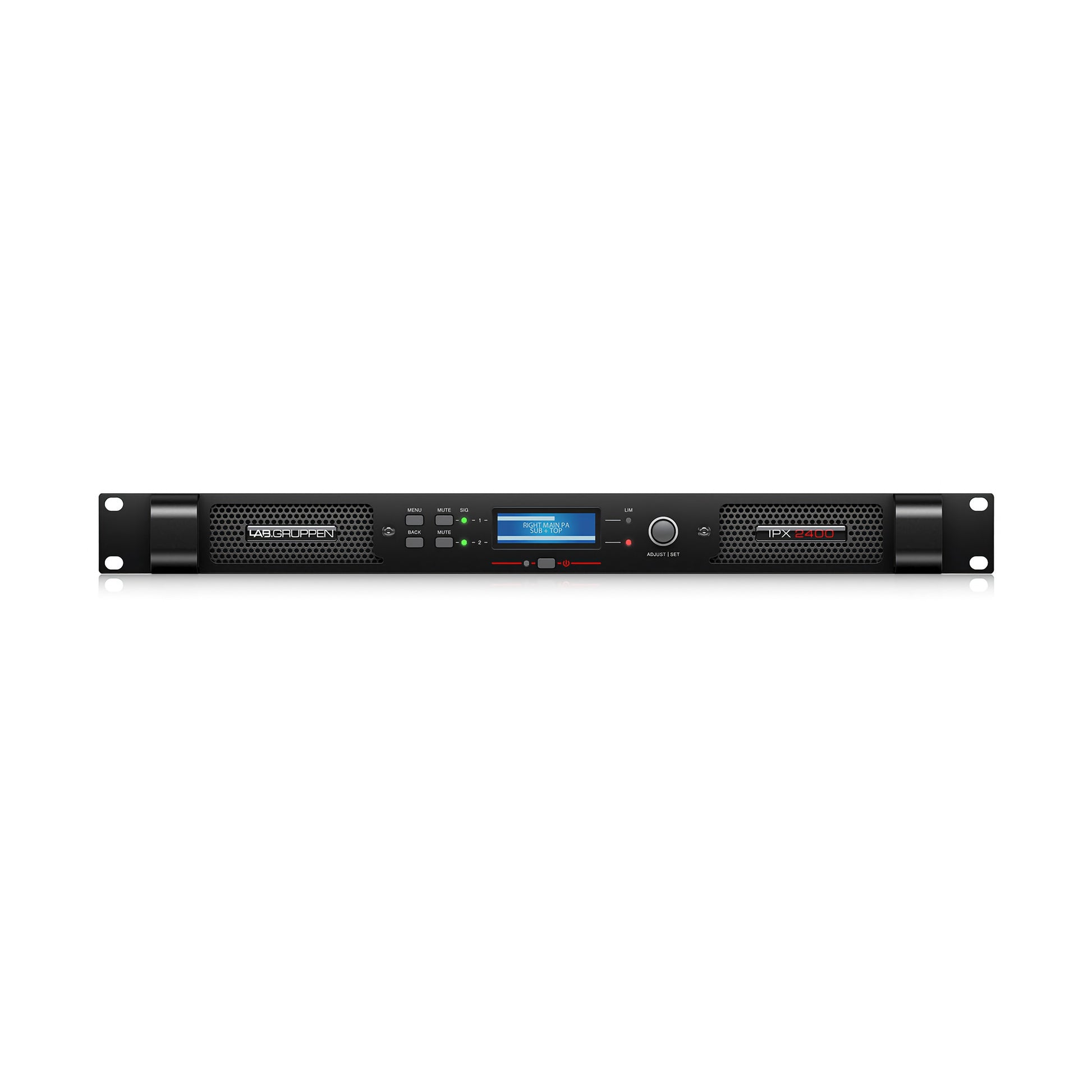

• The front-panel display and controls provide access to setup at the rack.
• Dedicated channel mute buttons simplify system testing.
• speakON and binding-post outputs suit different loudspeaker cable formats.
• The 1U chassis makes efficient use of rack space.

Technical Specifications

• Channels: 2
• Output power: 2 x 800 W at 2 Ω, 2 x 1200 W at 4 Ω, 2 x 600 W at 8 Ω
• Amplifier class: Class D
• DSP functions: parametric EQ, high-pass and low-pass filters, crossover, delay, limiter
• Analogue inputs: 2 x XLR
• Digital input: 1 x XLR, AES3

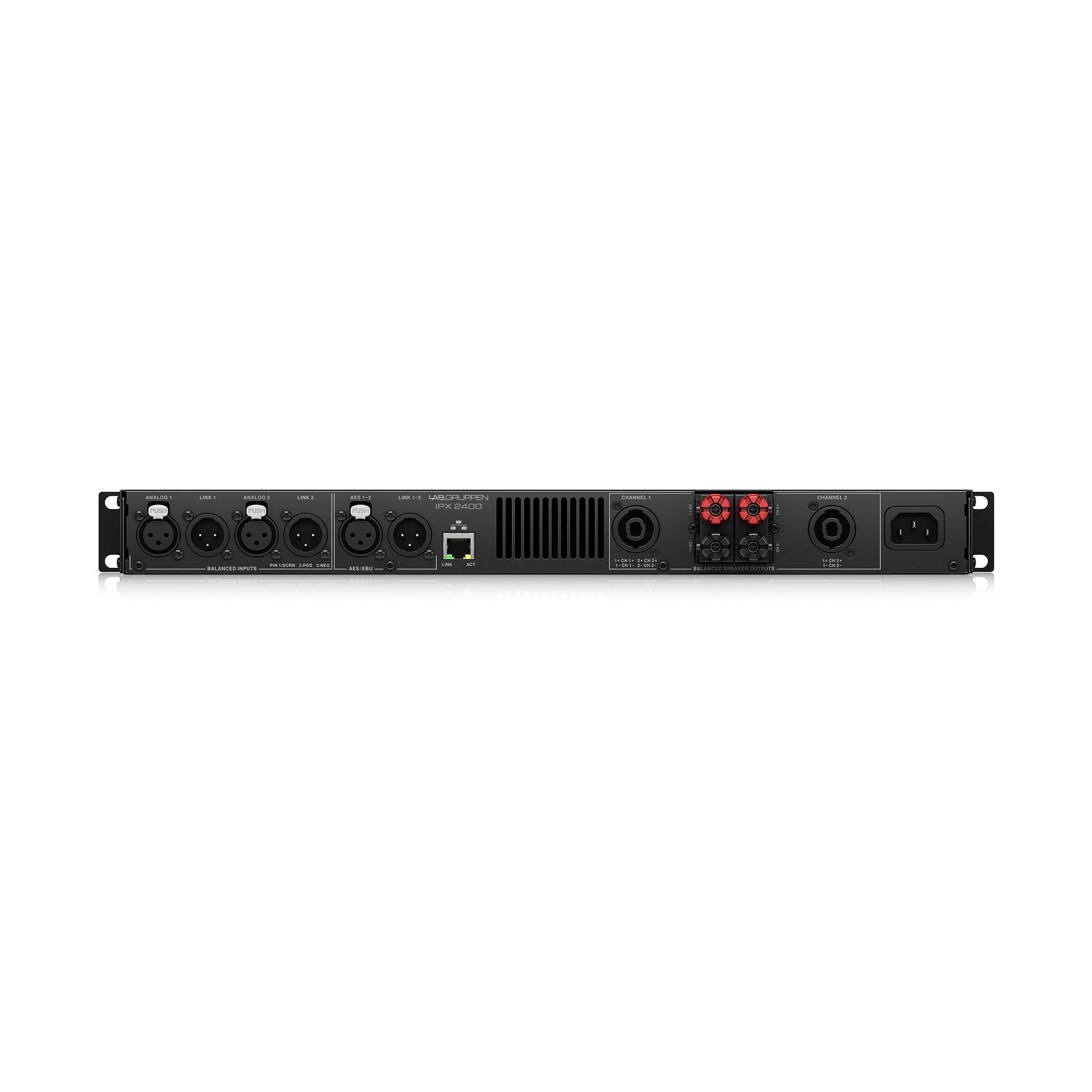

• Loudspeaker outputs: 2 x speakON NLT4, 2 pairs of binding posts
• Network connection: RJ45 Ethernet
• Power supply: 100–240 V, 50/60 Hz
• Dimensions: 44 x 483 x 423 mm
• Weight: 7 kg

What’s Included

• 1 x Lab Gruppen IPX 2400 amplifier
• Rear rack support brackets
• Region-appropriate IEC power cable

Who Is It For

Suitable for concert and event PA systems, stage monitoring, passive subwoofers and fixed low-impedance sound systems.
