Lab Gruppen IPX 1200 DSP Power Amplifier

Lab Gruppen IPX 1200 DSP Power Amplifier

The Lab Gruppen IPX 1200 is a two-channel Class D power amplifier with integrated DSP.

It delivers 600 W per channel into 4 Ω from a compact 1U chassis. The amplifier is suitable for passive main loudspeakers, stage monitors and smaller subwoofer systems in portable PA rigs or fixed installations.

The onboard DSP provides parametric EQ, high-pass and low-pass filters, crossover functions, input and output delay, and a loudspeaker protection limiter. Parameters can be adjusted from the front panel or over Ethernet with IPX Controller software.

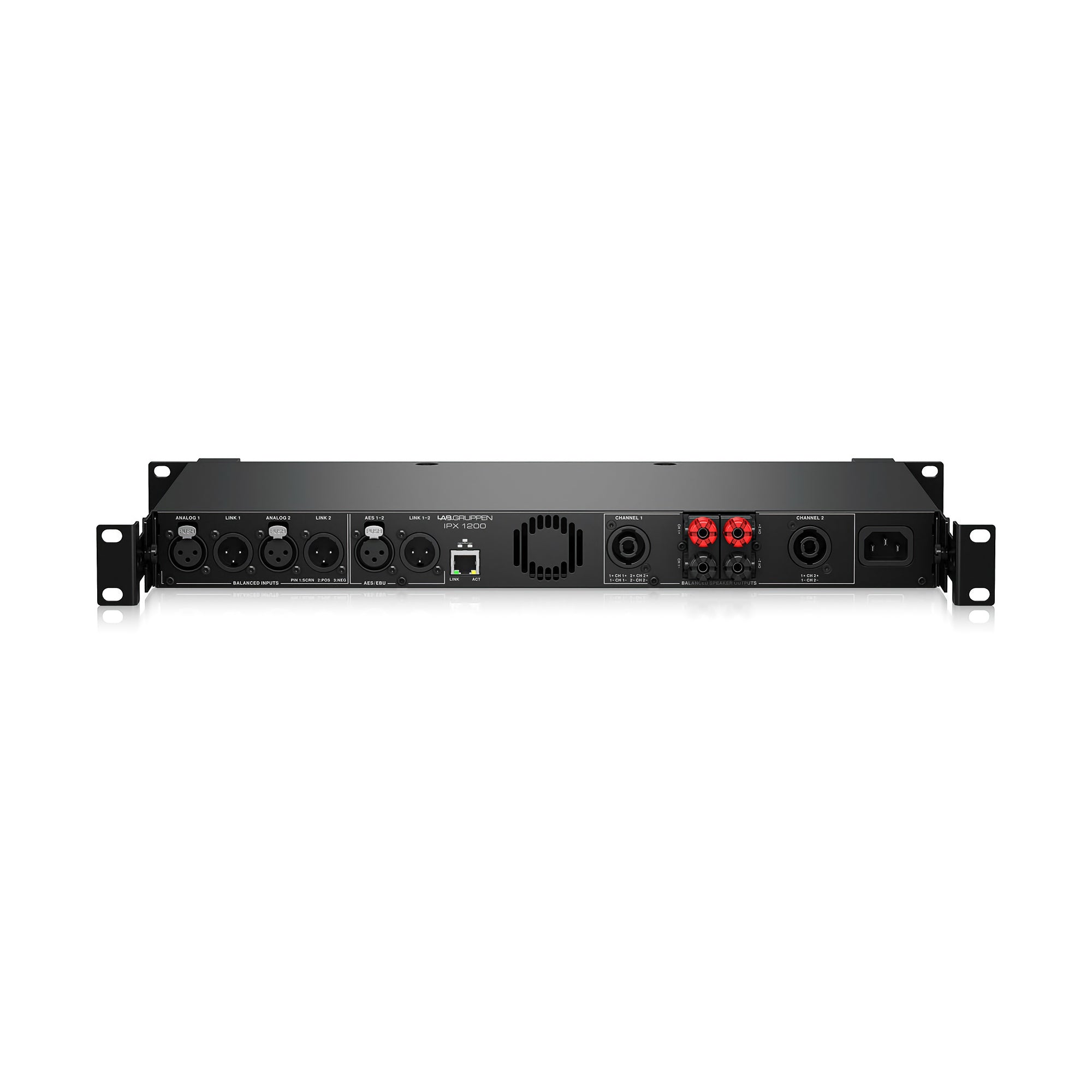

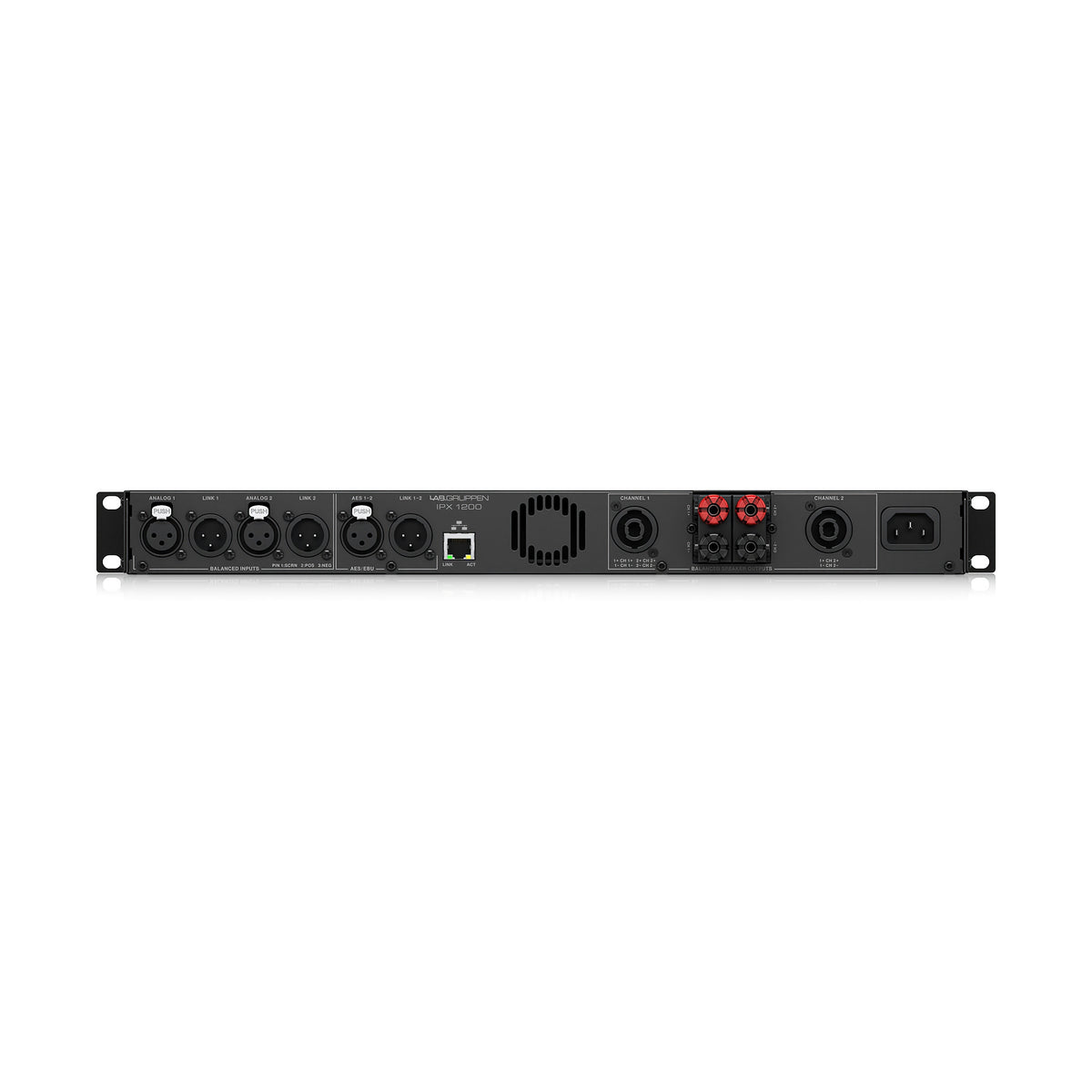

Two analogue XLR inputs and one AES3 digital input are accompanied by dedicated link outputs. speakON and binding-post outputs support practical integration into different rack and loudspeaker systems.

Main Features

• Two amplifier channels support stereo operation or two independent loudspeaker feeds.
• 600 W per channel into 4 Ω provides useful power for medium-sized passive PA loudspeakers.
• Integrated DSP manages equalisation, delay, crossover and loudspeaker protection.
• AES3 connectivity accepts a digital audio feed without an additional converter.
• Ethernet control enables remote setup and monitoring with IPX Controller.
• The front-panel display, encoder and channel mute buttons provide direct local control.
• speakON and binding-post outputs accommodate different loudspeaker wiring formats.
• The 1U chassis reduces rack space in portable and installed systems.

Technical Specifications

• Channels: 2
• Output power: 2 x 500 W at 2 Ω, 2 x 600 W at 4 Ω, 2 x 300 W at 8 Ω
• Amplifier class: Class D
• DSP functions: parametric EQ, high-pass and low-pass filters, crossover, delay, limiter
• Analogue inputs: 2 x XLR
• Digital input: 1 x XLR, AES3
• Loudspeaker outputs: 2 x speakON NLT4, 2 pairs of binding posts
• Network connection: RJ45 Ethernet
• Power supply: 100–240 V, 50/60 Hz
• Dimensions: 44 x 483 x 336 mm
• Weight: 5.3 kg

What’s Included

• 1 x Lab Gruppen IPX 1200 amplifier
• Rear rack support brackets
• Region-appropriate IEC power cable

Who Is It For

Suitable for concerts, conferences, portable PA systems, stage monitoring and fixed low-impedance sound systems.
