Lab Gruppen FA1202 2-Channel 100 V Power Amplifier

Lab Gruppen FA1202 2-Channel 100 V Power Amplifier

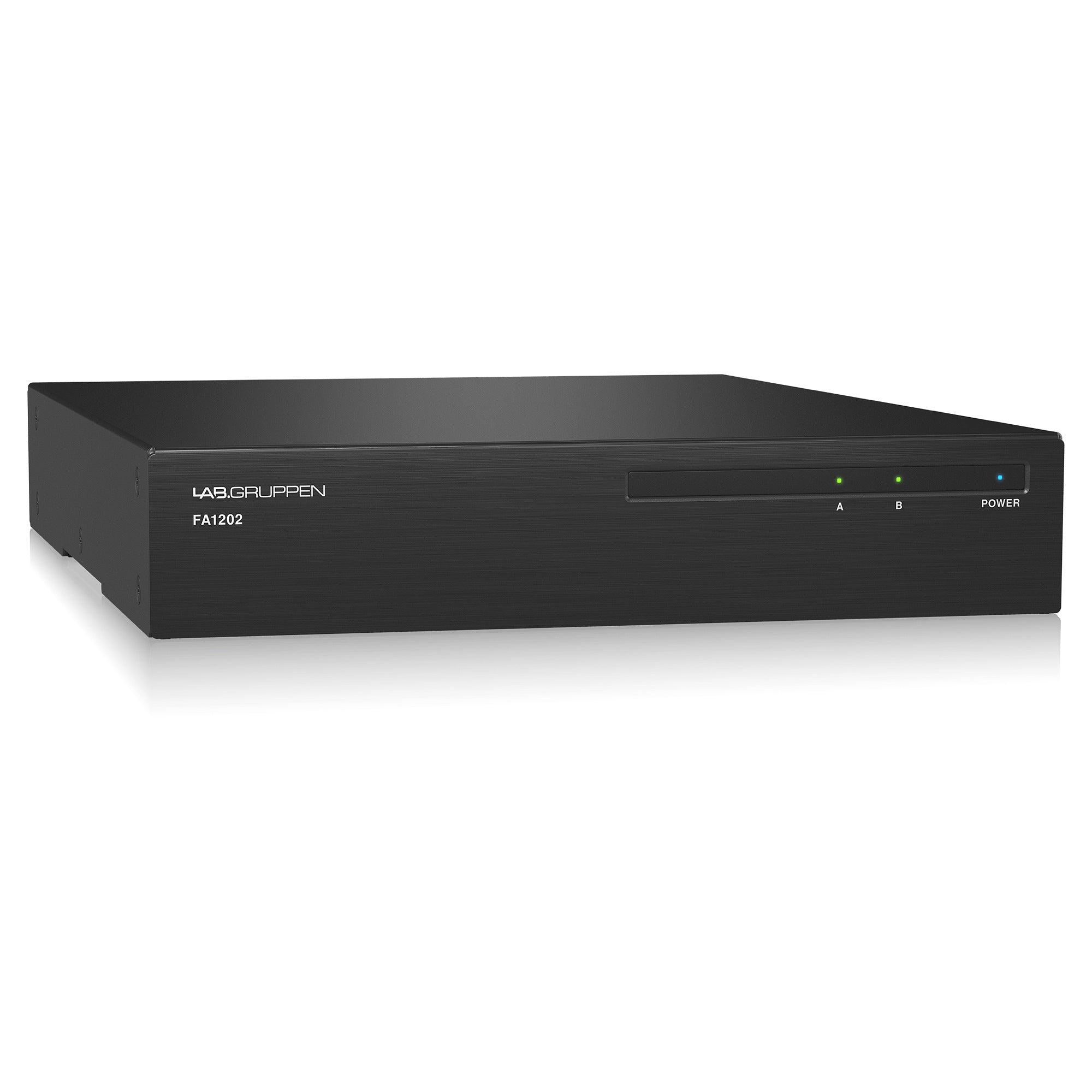

The Lab Gruppen FA1202 is a two-channel Class D power amplifier delivering 120 W per channel.

Each output can be configured independently for 4 Ω, 8 Ω, 70 V or 100 V operation. One unit can therefore power two distributed audio zones or two low-impedance loudspeaker circuits. The direct-drive design avoids a conventional output transformer and maintains the 120 W rating in every supported output mode.

Two balanced Euroblock inputs offer selectable +4 dBu or -10 dBV sensitivity, allowing the amplifier to work with sources operating at different levels. Each channel has its own gain control, load configuration switches and 80 Hz high-pass filter. Two RJ45 connections support independent zone volume control with compatible CRC-V or LAB.LEVEL controllers.

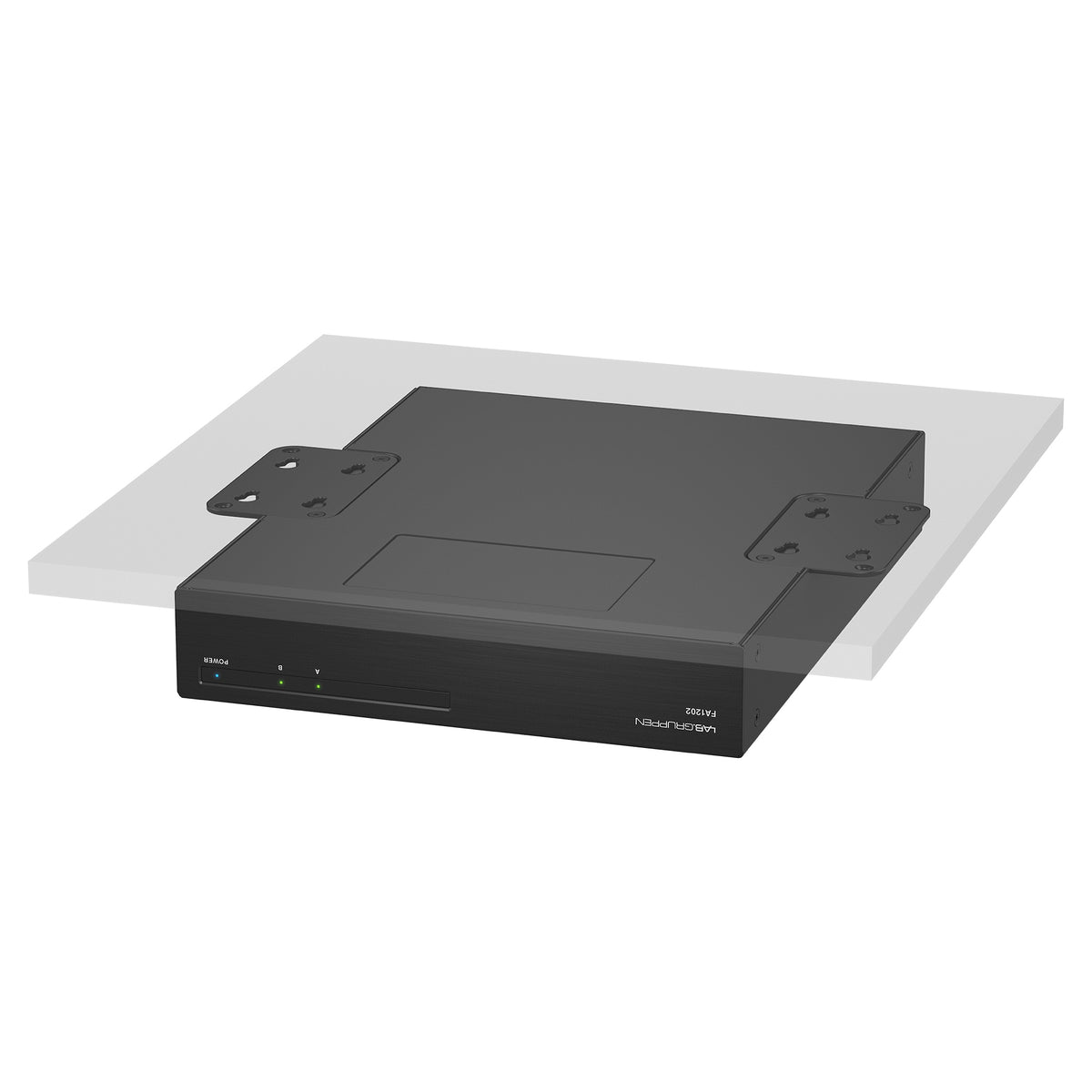

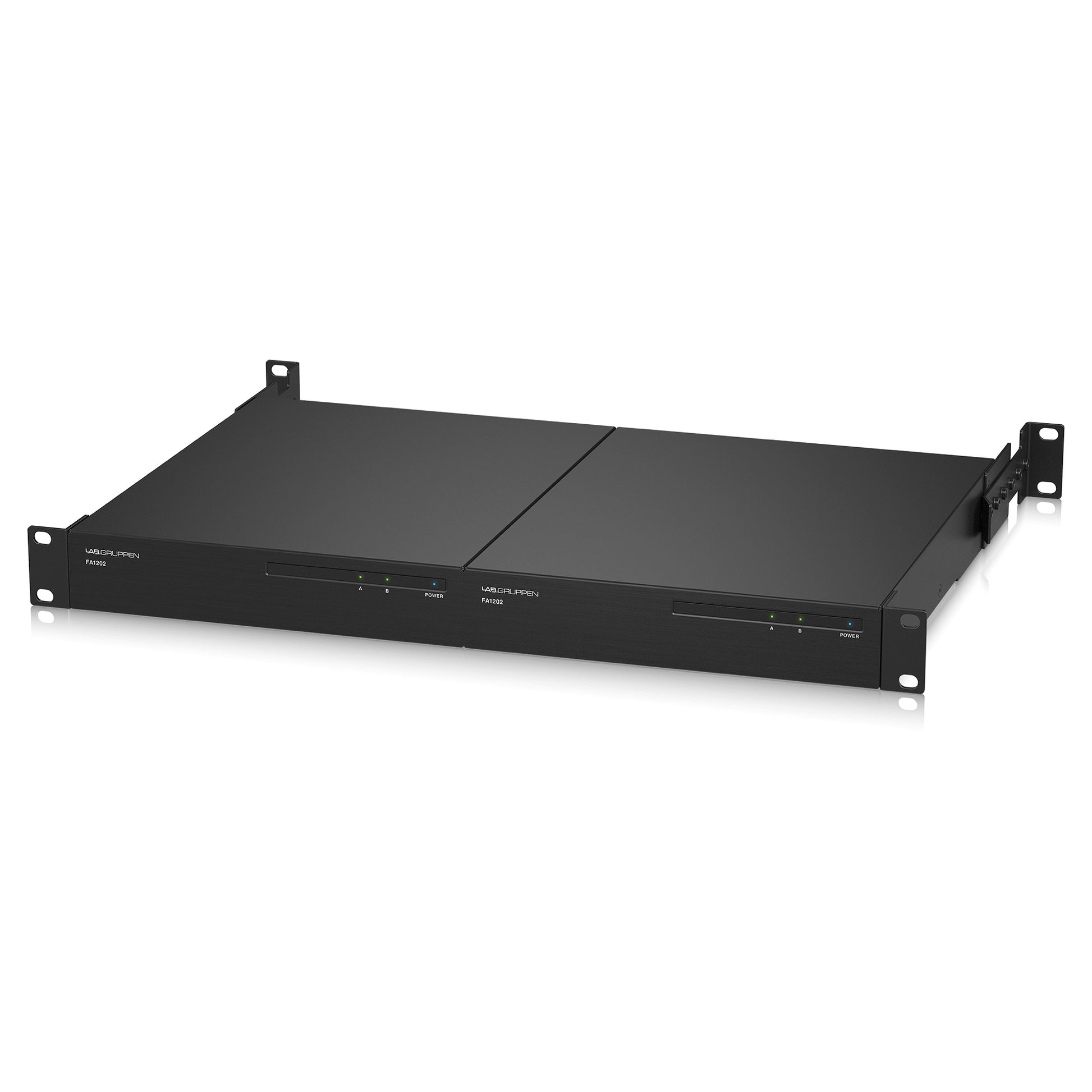

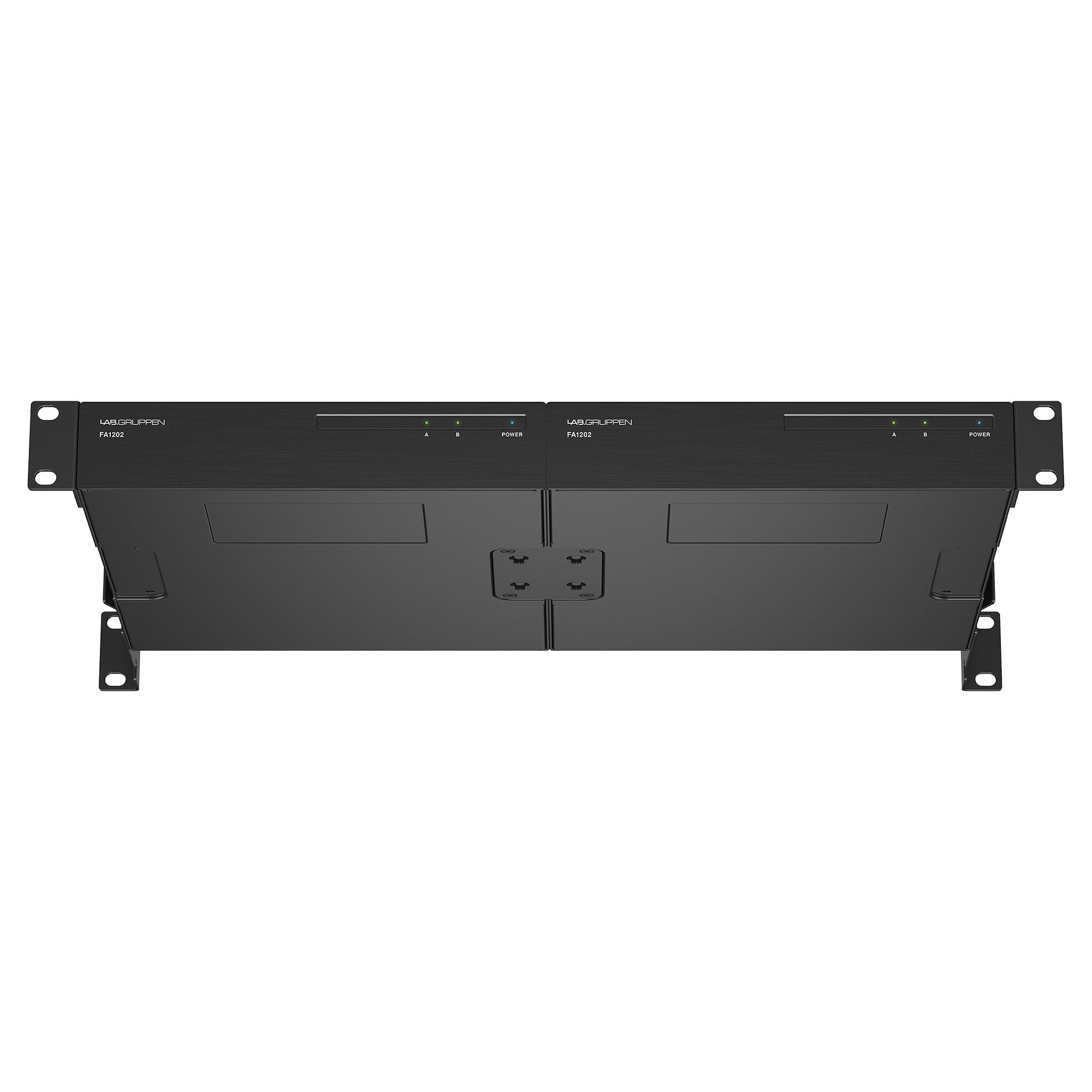

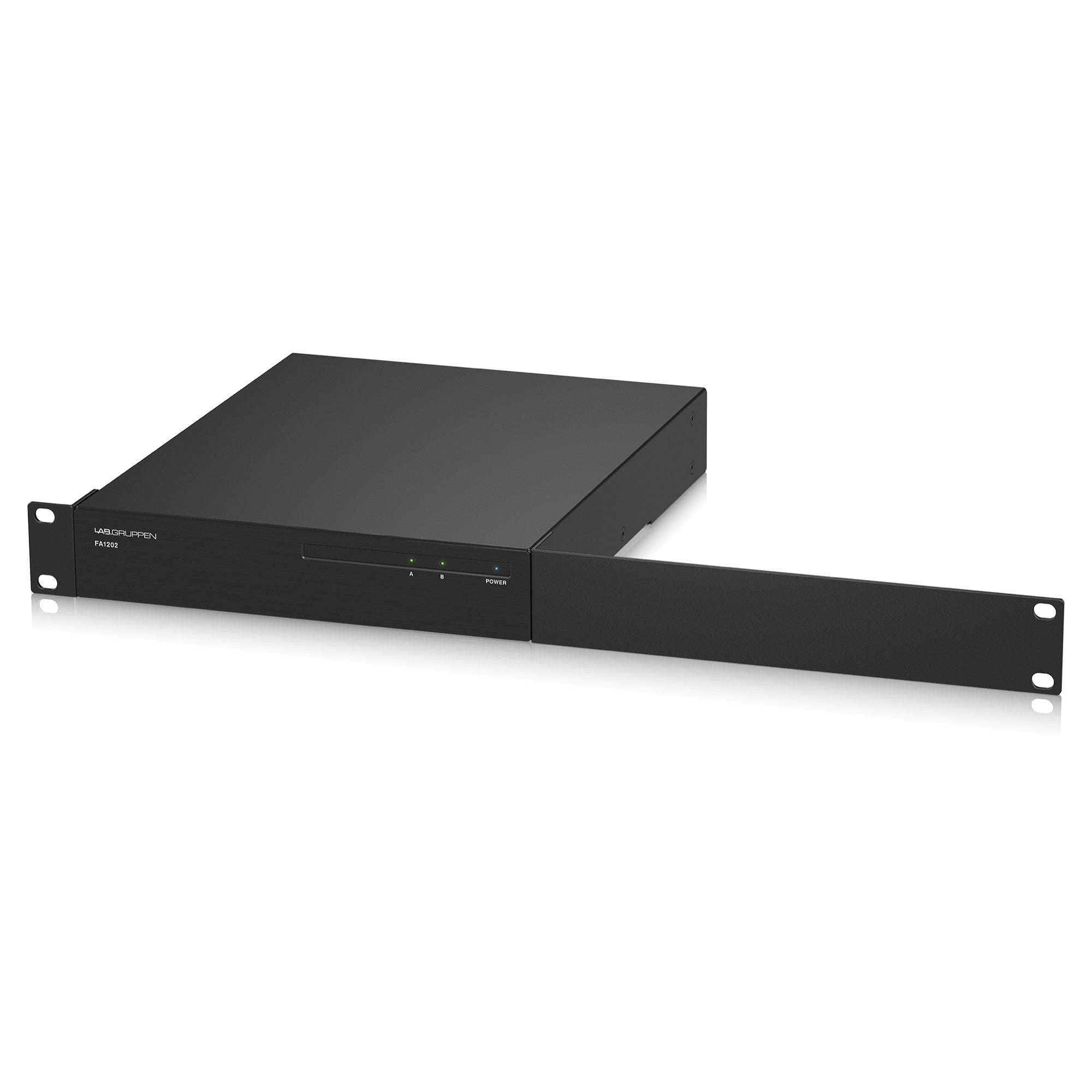

The FA1202 enters standby after 20 minutes without an input signal and resumes operation when a signal returns. Active power factor correction and Energy Star 3.0 certification identify its energy-conscious power supply design. The fanless half-rack-width 1U enclosure suits quiet fixed installations and supports several mounting arrangements.

Main Features

• Two independent 120 W channels suit two medium-sized audio zones.
• Each channel supports selectable 4 Ω, 8 Ω, 70 V and 100 V operation.
• Selectable +4 dBu and -10 dBV sensitivity helps match professional and consumer-level sources.
• Independent 80 Hz filters reduce low-frequency loading on 70/100 V loudspeaker transformers.
• Two RJ45 connections provide remote volume control for each zone.

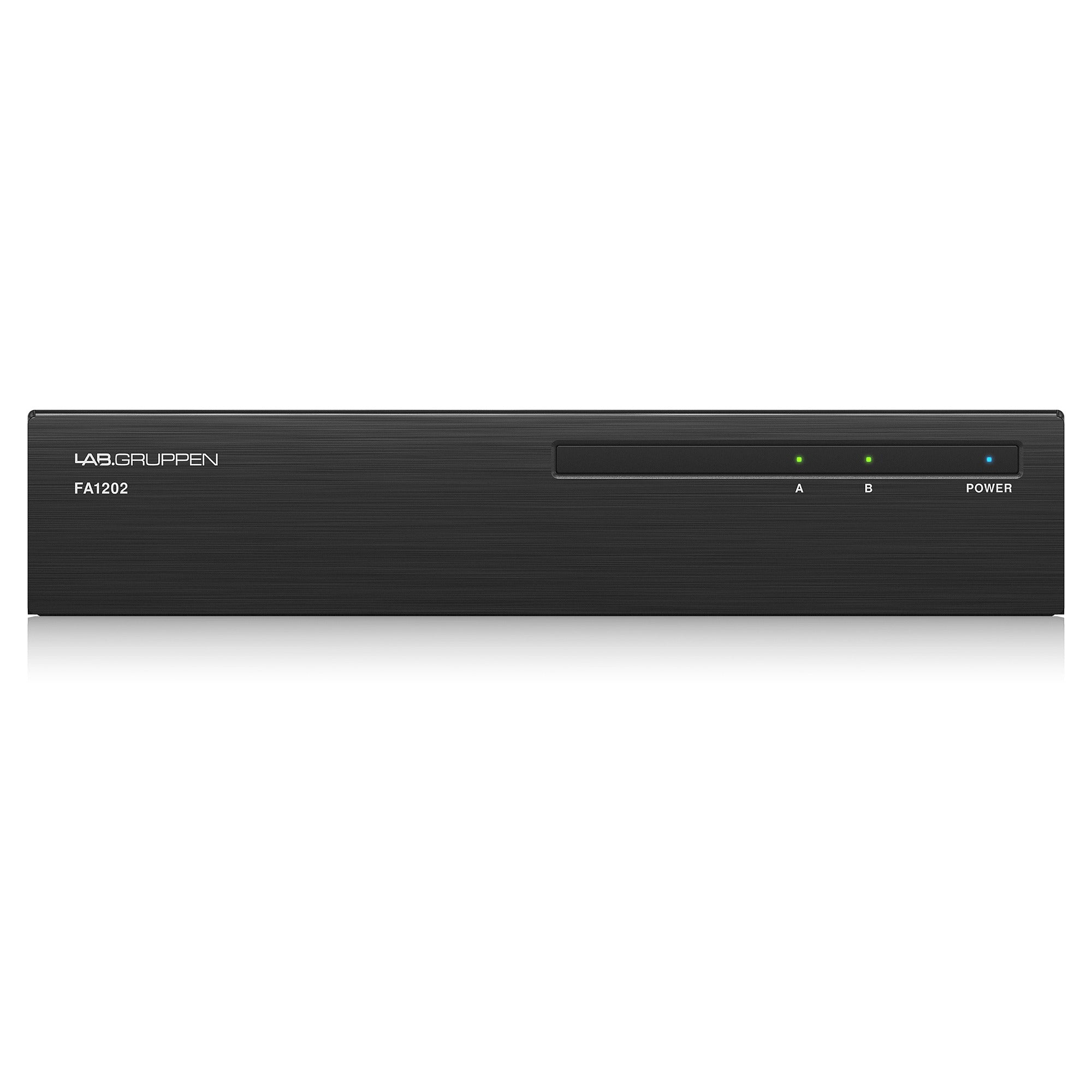

• Signal, limit and fault indicators show the operating state of both channels.
• Automatic standby reduces energy use while the system is idle.
• Fanless cooling avoids mechanical noise in quiet rooms.

Technical Specifications

• Channels: 2
• Output power: 2 x 120 W at 4 Ω, 8 Ω, 70 V or 100 V
• Amplifier class: Class D
• Minimum load: 4 Ω, 8 Ω, 41 Ω in 70 V mode or 82 Ω in 100 V mode
• Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
• Total harmonic distortion: less than 0.5% at 1/8 rated power
• Channel separation: greater than 65 dB
• Signal-to-noise ratio: greater than 100 dBA
• Inputs: 2 x 3-pin Euroblock
• Loudspeaker output: 1 x 4-pin Euroblock
• Remote control: 2 x RJ45
• Filters: selectable 80 Hz high-pass filter per channel
• Power supply: 100–240 V, 50/60 Hz with active power factor correction
• Dimensions: 44 x 218 x 280 mm
• Weight: 2.6 kg

What’s Included

• 1 x Lab Gruppen FA1202 amplifier
• Mounting brackets and screws
• Euroblock connectors
• Region-appropriate IEC power cable

Who Is It For

Suitable for two-zone background music and paging systems in bars, restaurants, hotels, retail, office and educational spaces where an external mixer or processor supplies the audio signal.
