Lab Gruppen CA602 2-Channel 100 V Power Amplifier

Lab Gruppen CA602 2-Channel 100 V Power Amplifier

The Lab Gruppen CA602 is a two-channel Class D power amplifier delivering 60 W per channel.

The channels operate independently, allowing one unit to power two separate audio zones. Each channel can be configured for 4 Ω, 8 Ω, 70 V or 100 V operation. A selectable 80 Hz high-pass filter reduces excessive low-frequency loading and helps protect transformer-coupled 70/100 V loudspeakers.

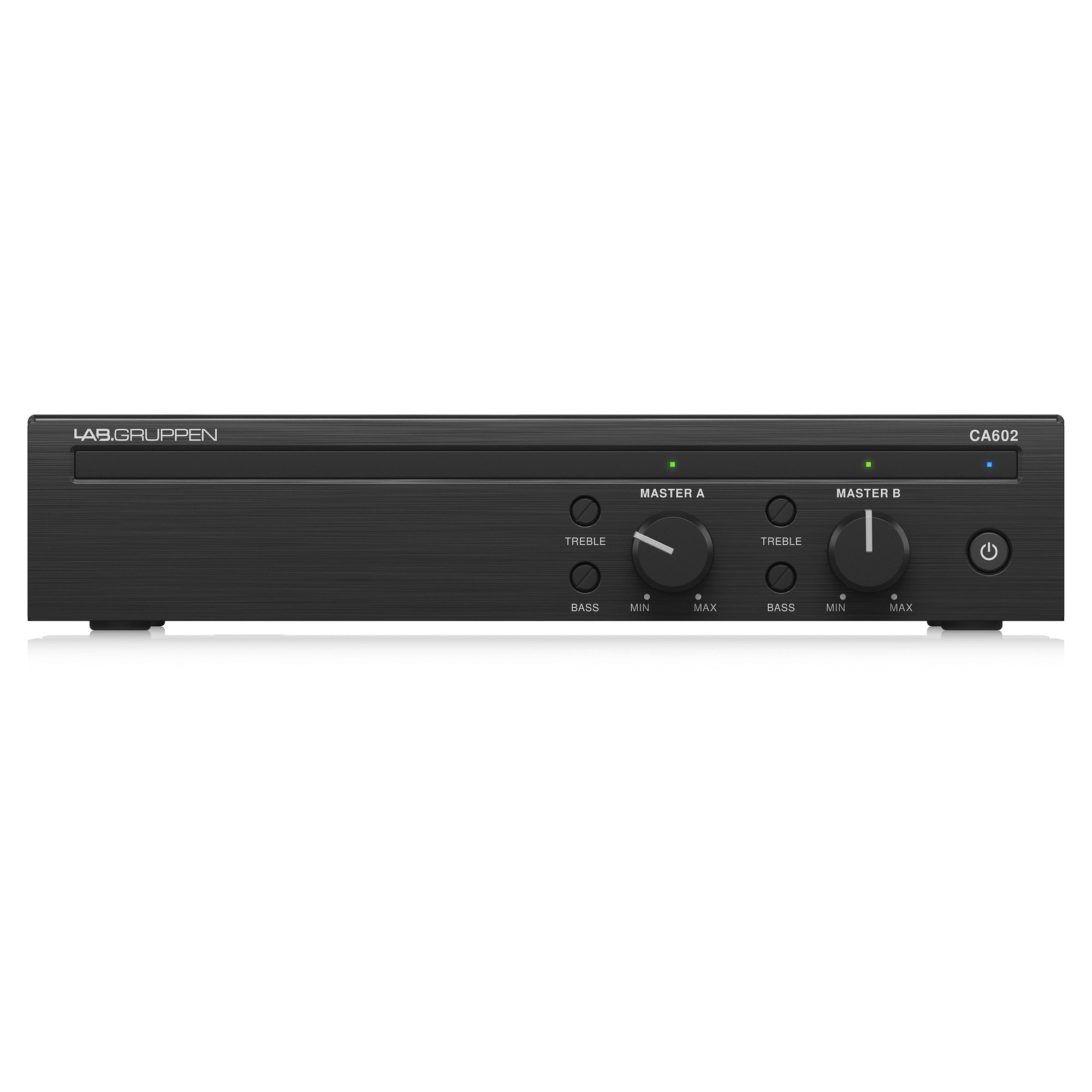

Each channel has separate volume, bass and treble controls. Two balanced Euroblock inputs accept professional audio sources, while two RCA pairs accept unbalanced stereo sources and sum them to mono. A four-pin Euroblock output carries both loudspeaker lines, and two RJ45 connections allow separate remote volume control for each zone.

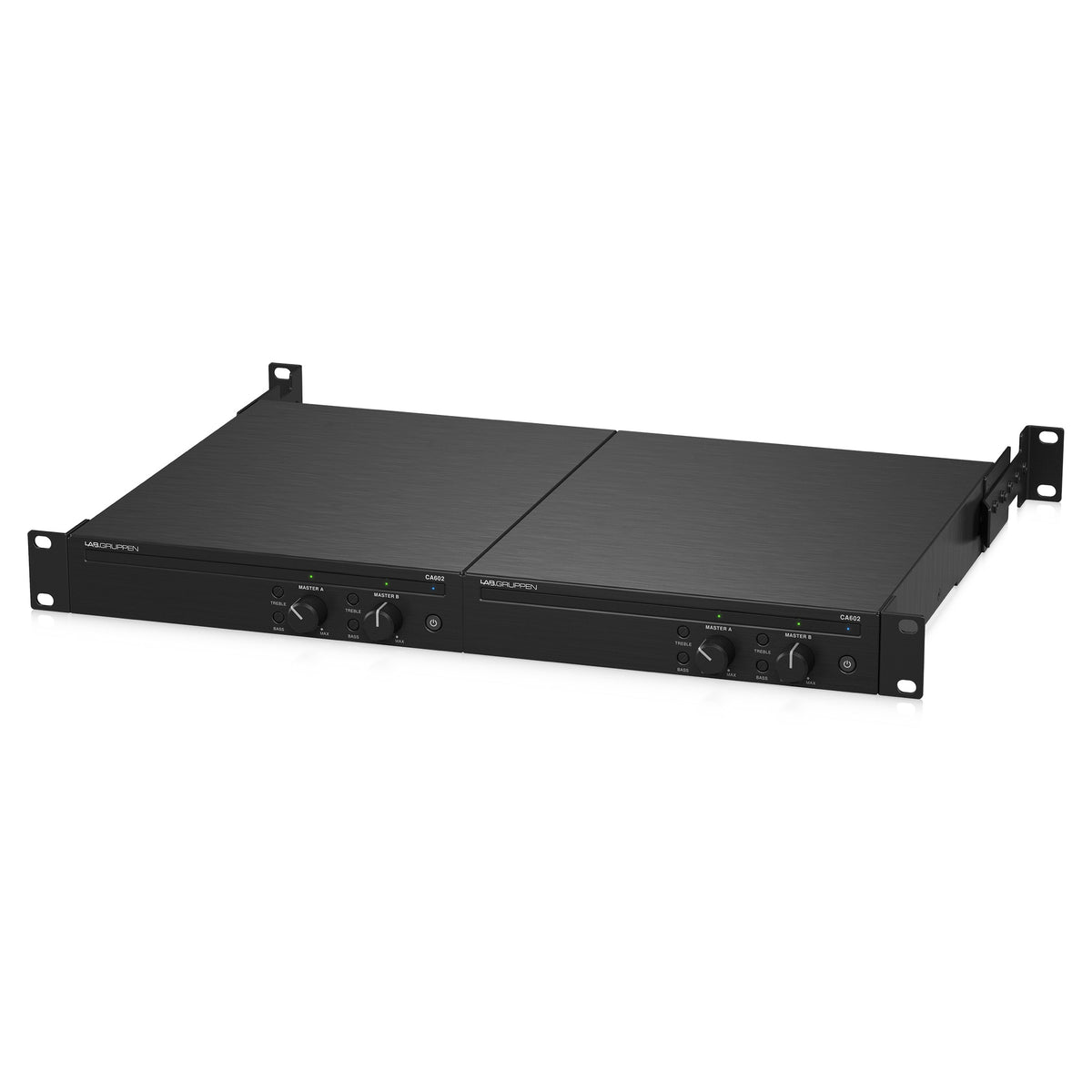

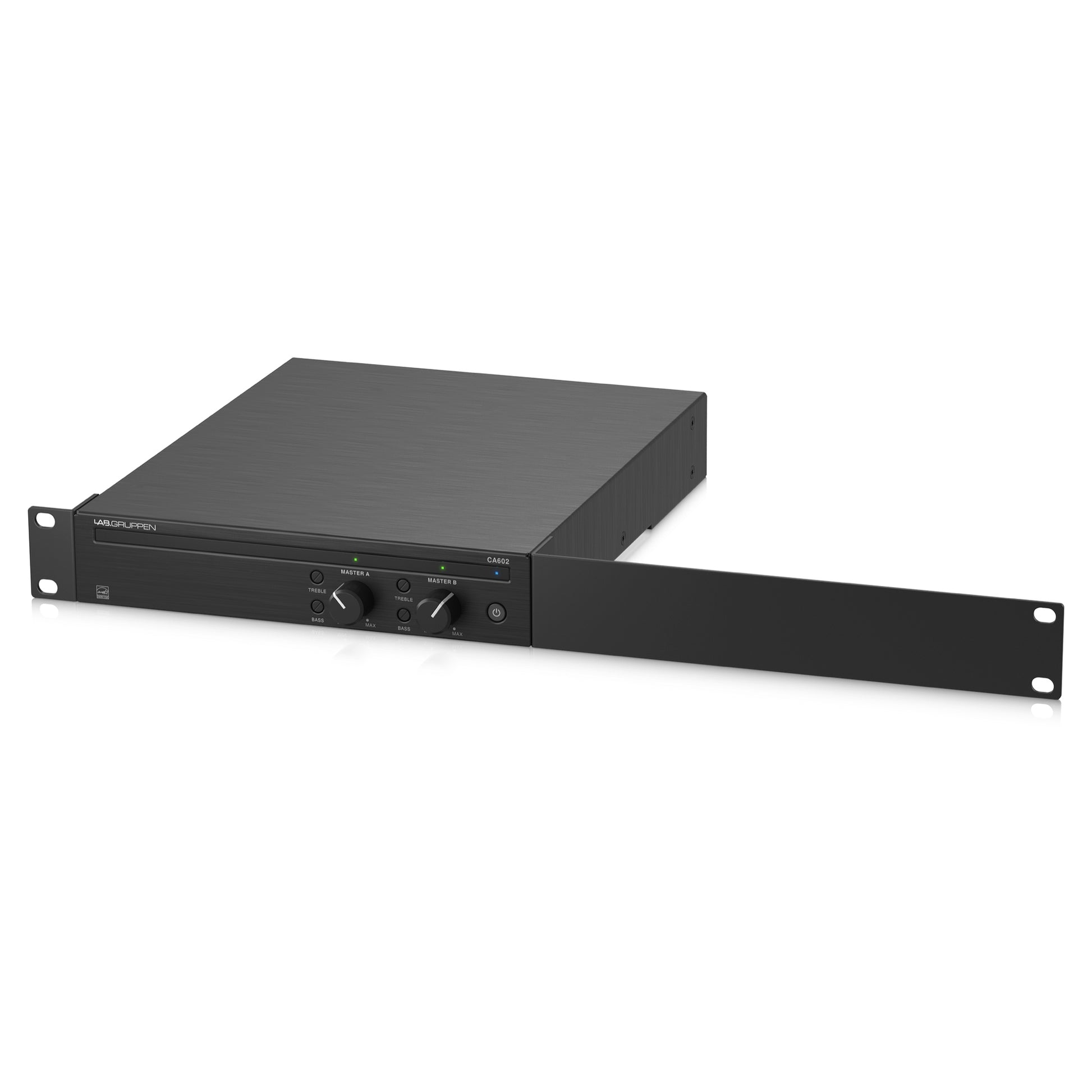

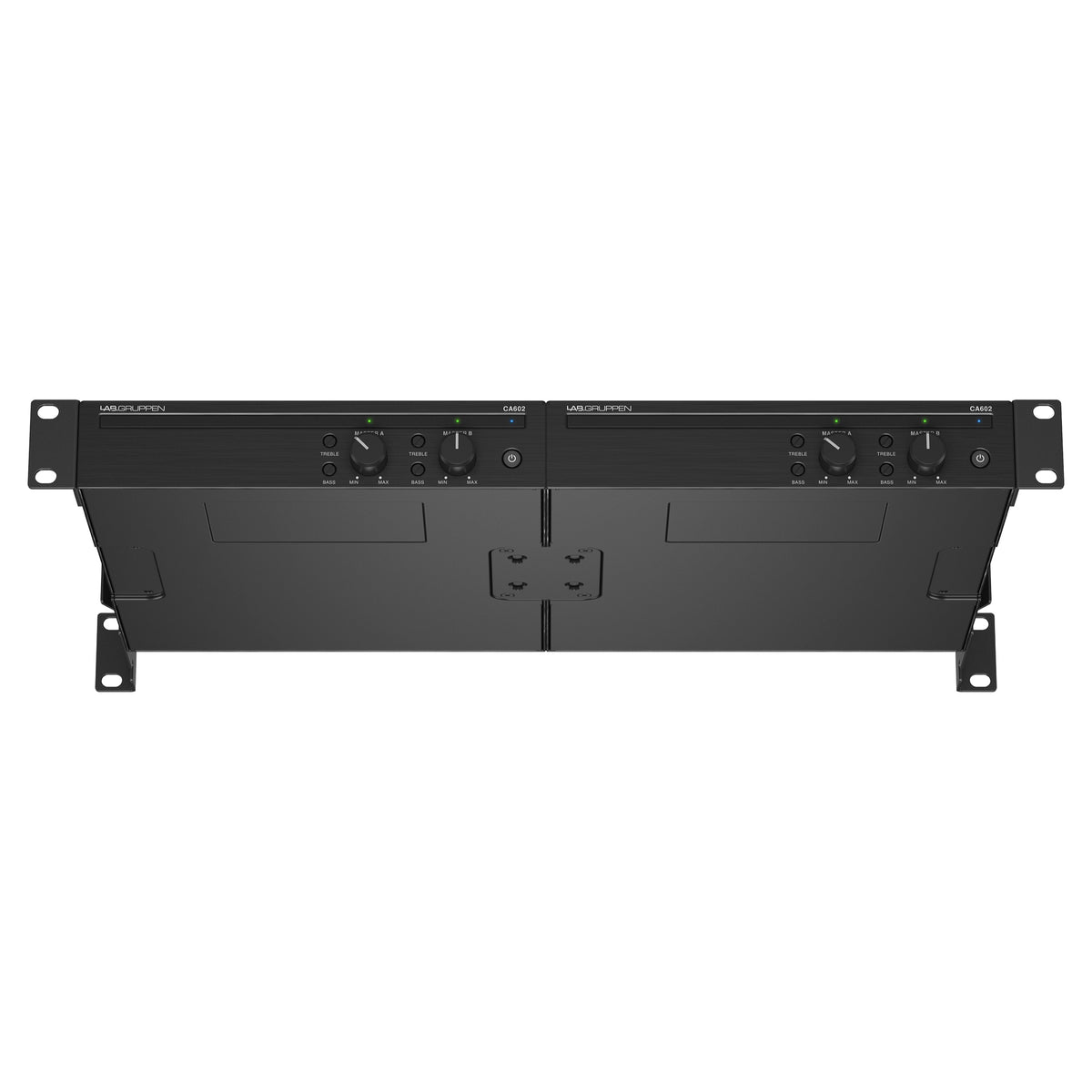

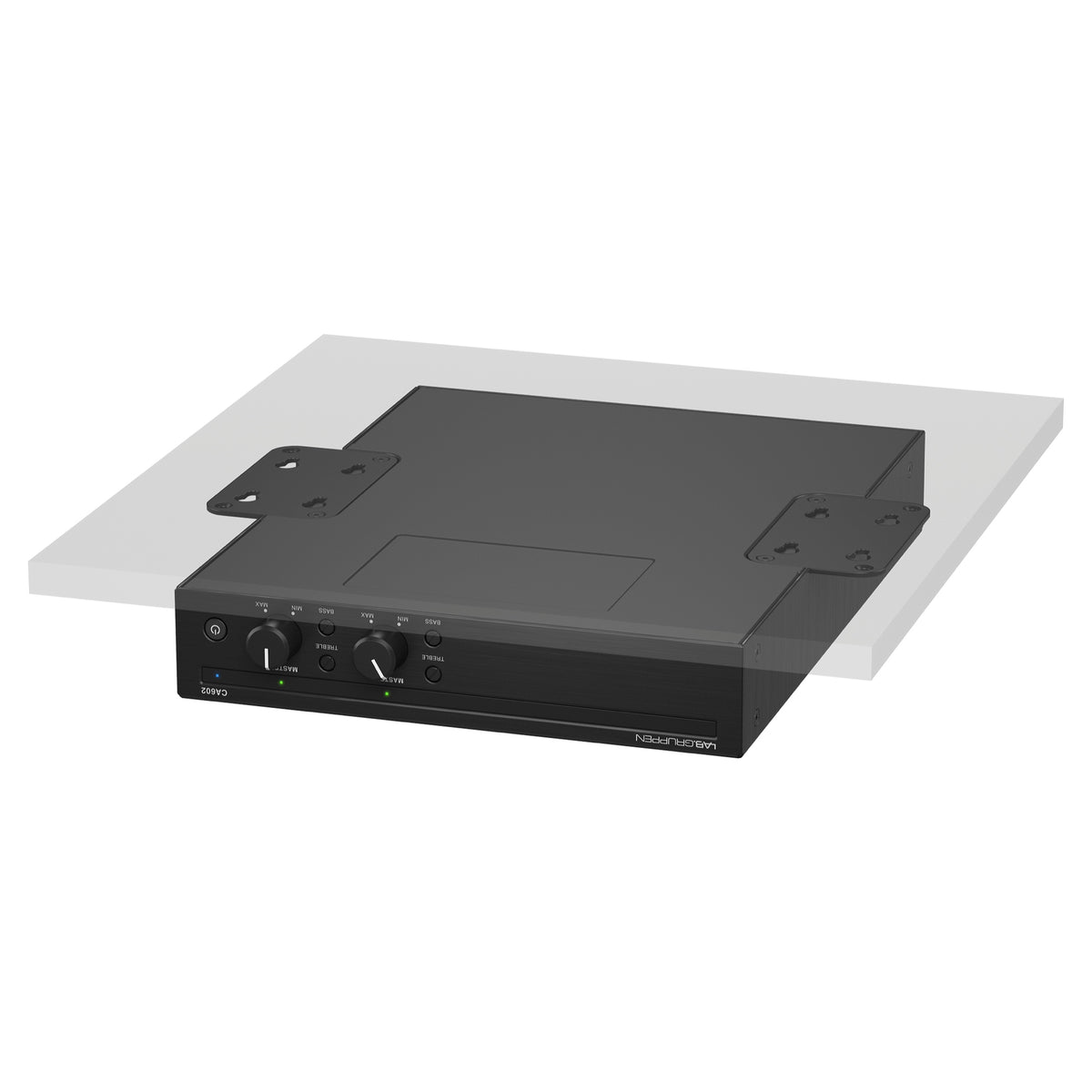

After 20 minutes without an input signal, the CA602 enters standby and resumes operation when a signal returns. Fanless convection cooling suits quiet environments. The half-rack-width 1U enclosure can sit on a surface or be installed in a rack, on a wall or underneath a shelf.

Main Features

• Two independent 60 W channels allow one amplifier to serve two audio zones.
• Each channel supports selectable 4 Ω, 8 Ω, 70 V and 100 V output modes.
• Independent 80 Hz filters prepare both channels for 70/100 V loudspeaker lines.
• Separate volume and tone controls simplify adjustment of each zone.
• Euroblock and RCA inputs accept balanced and unbalanced sources.
• Two RJ45 GPI connections support separate remote volume control for both zones.
• Automatic standby reduces energy use while no signal is present.
• Fanless construction suits installation close to working or guest areas.

Technical Specifications

• Channels: 2
• Output power: 2 x 60 W at 4 Ω, 8 Ω, 70 V or 100 V
• Amplifier class: Class D
• Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
• Total harmonic distortion: less than 0.05% at 1/8 rated power
• Channel separation: greater than 85 dB
• Signal-to-noise ratio: greater than 97 dBA
• Inputs: 2 x 3-pin Euroblock, 2 x stereo RCA pairs summed to mono
• Loudspeaker output: 1 x 4-pin Euroblock
• Remote control: 2 x RJ45 GPI
• Filters: selectable 80 Hz high-pass filter per channel
• Power supply: 100–240 V, 50/60 Hz
• Dimensions: 44 x 218 x 299 mm
• Weight: 2.4 kg

What’s Included

• 1 x Lab Gruppen CA602 amplifier
• Mounting brackets and screws
• Euroblock connectors
• Region-appropriate IEC power cable

Who Is It For

Suitable for two-zone background music and paging systems in cafés, shops, offices, hotels and other spaces where each zone requires independent volume control.
