Lab Gruppen CA601 100 V Power Amplifier

Lab Gruppen CA601 100 V Power Amplifier

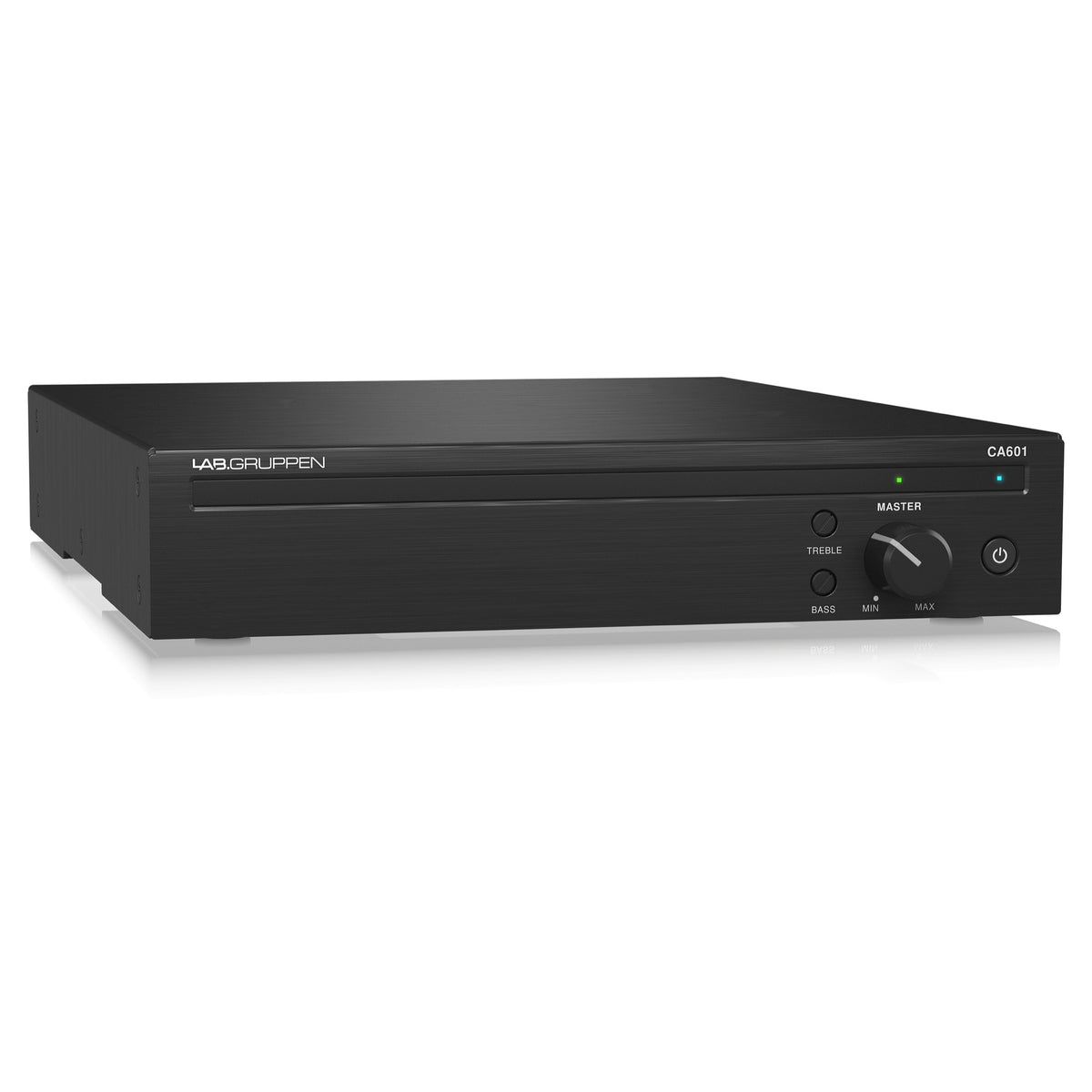

The Lab Gruppen CA601 is a single-channel Class D power amplifier delivering 60 W.

The output mode can be selected for 4 Ω or 8 Ω low-impedance loudspeakers and for 70 V or 100 V distributed lines. It is a practical choice for a compact single-zone installation with several ceiling or wall loudspeakers. A selectable 80 Hz high-pass filter reduces low-frequency loading on transformers used in 70/100 V loudspeakers.

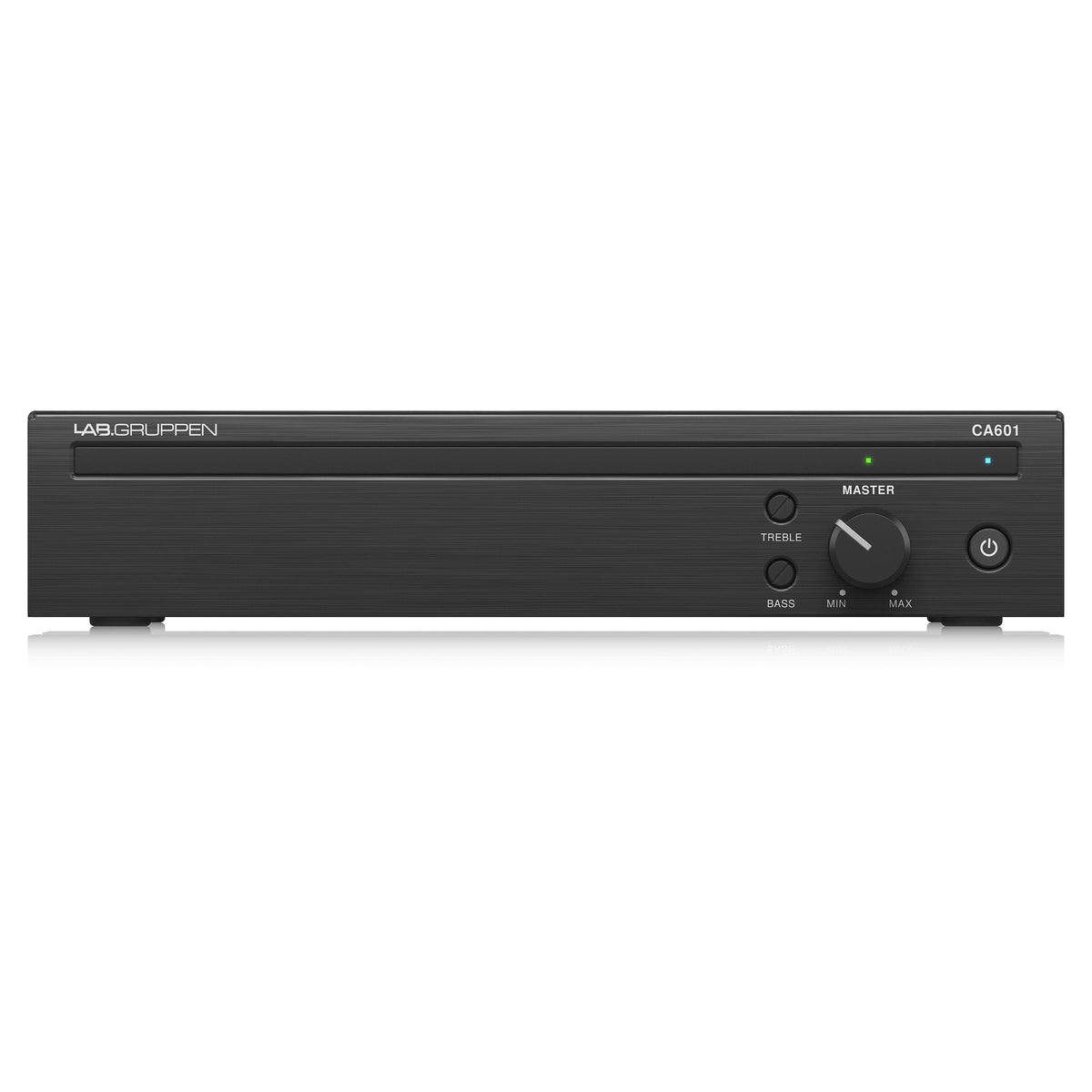

The front panel provides master volume, bass and treble controls together with a power button. A balanced Euroblock input accepts a professional audio source, while the RCA pair accepts an unbalanced stereo source and sums both channels to mono. The loudspeaker line uses a removable Euroblock connector, and an RJ45 socket supports a compatible external volume controller.

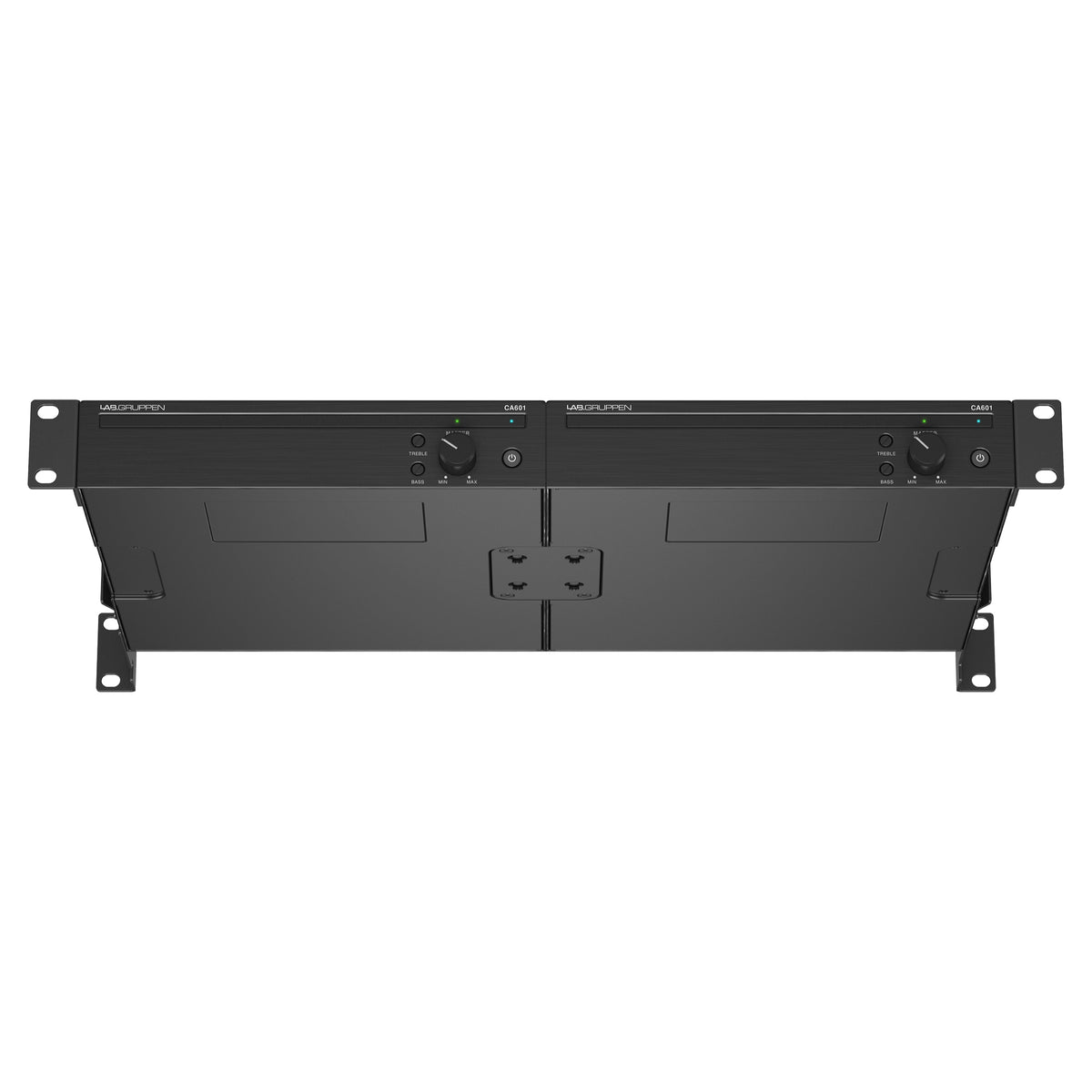

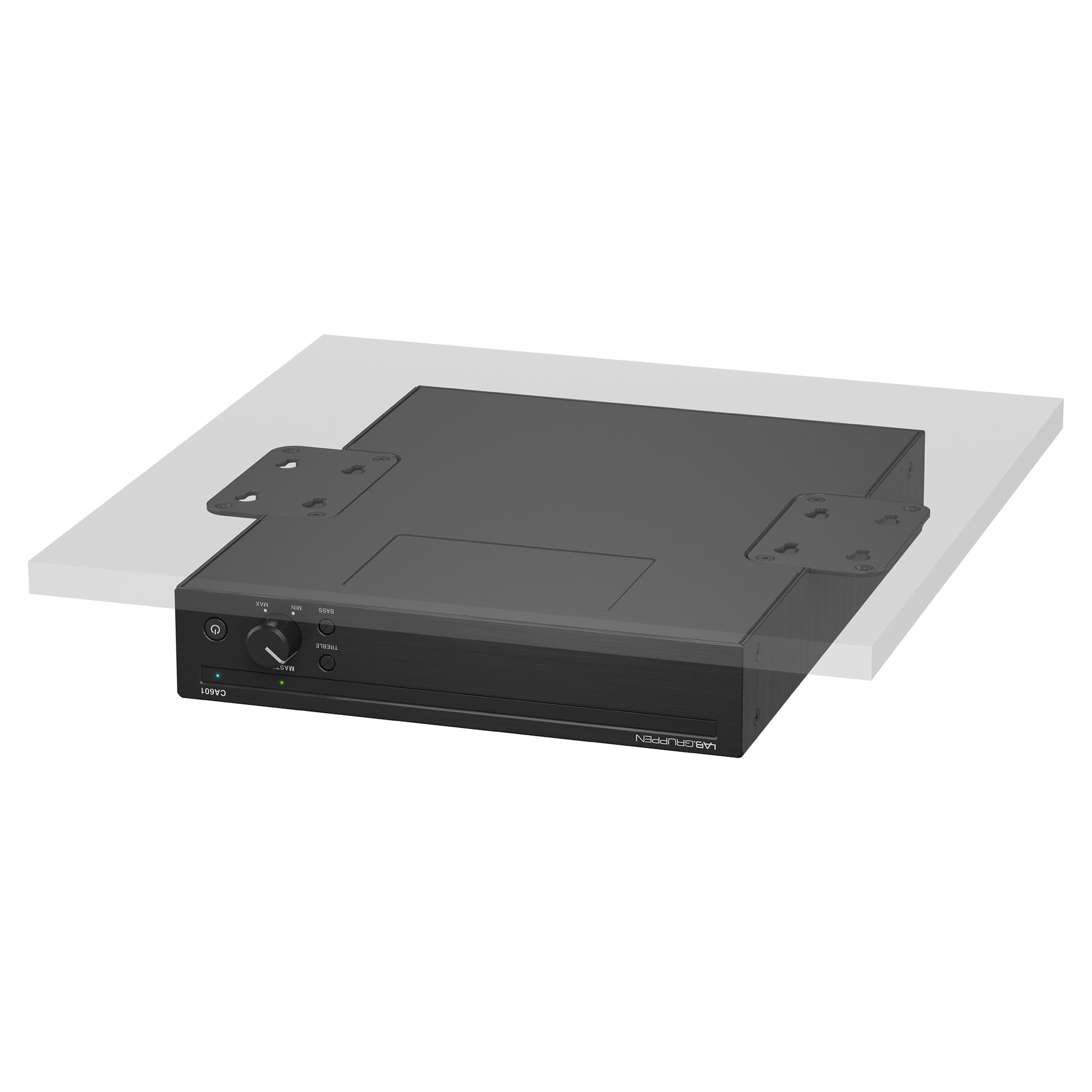

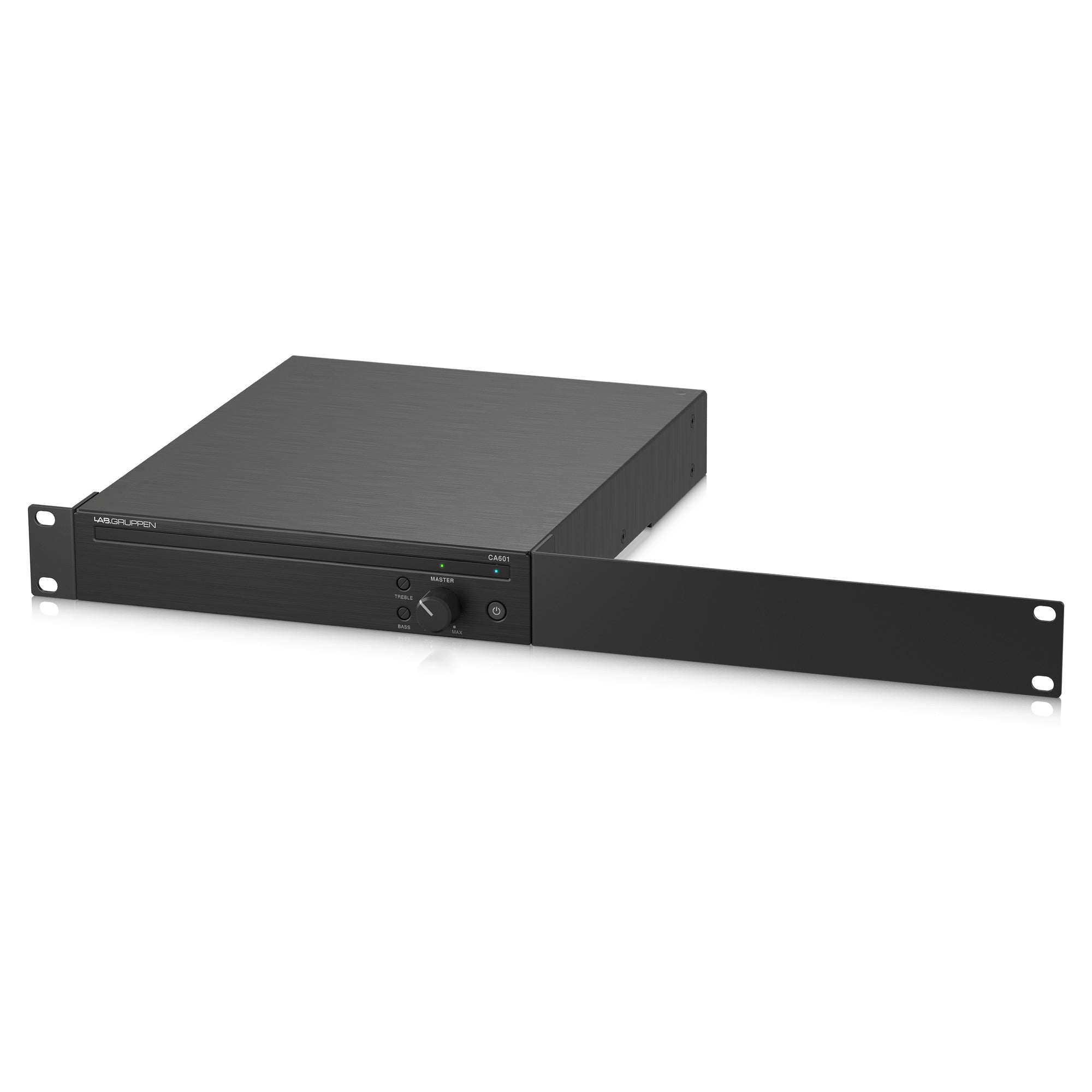

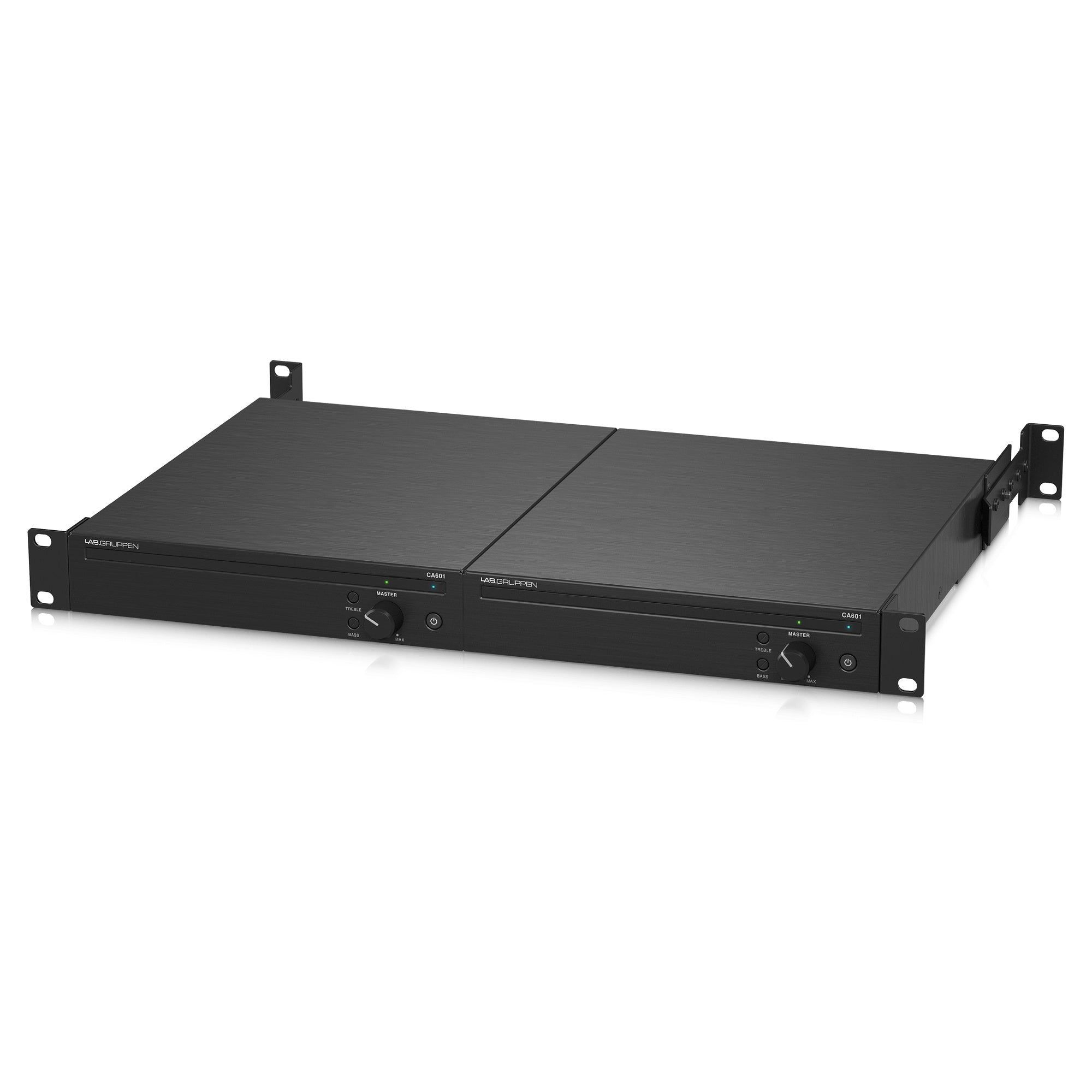

When no input signal is detected for 20 minutes, the CA601 enters standby and automatically resumes operation when a signal returns. Fanless convection cooling suits quiet environments. The half-rack-width 1U enclosure can sit on a shelf or be installed in a rack, on a wall or underneath furniture.

Main Features

• A 60 W single-channel output is designed for a compact audio zone.
• Selectable 4 Ω, 8 Ω, 70 V and 100 V modes support different loudspeaker systems.
• The 80 Hz filter prepares the amplifier for transformer-coupled 70/100 V loudspeakers.
• Euroblock and RCA inputs support professional and consumer audio sources.
• Front-panel volume and tone controls simplify system adjustment on site.
• An RJ45 connection supports compatible CRC-V and LAB.LEVEL volume controllers.
• Automatic standby reduces energy use when the system is idle.
• Fanless construction avoids mechanical cooling noise.

Technical Specifications

• Channels: 1
• Output power: 60 W at 4 Ω, 8 Ω, 70 V or 100 V
• Amplifier class: Class D
• Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
• Total harmonic distortion: less than 0.05% at 1/8 rated power
• Signal-to-noise ratio: greater than 97 dBA
• Inputs: 1 x 3-pin Euroblock, 1 x stereo RCA pair summed to mono
• Loudspeaker output: 1 x 2-pin Euroblock
• Remote control: 1 x RJ45 GPI
• Filter: selectable 80 Hz high-pass filter
• Power supply: 100–240 V, 50/60 Hz
• Power consumption: 40 W at 1/8 rated power into 4 Ω
• Dimensions: 44 x 218 x 299 mm
• Weight: 2.2 kg

What’s Included

• 1 x Lab Gruppen CA601 amplifier
• Mounting brackets and screws
• Euroblock connectors
• Region-appropriate IEC power cable

Who Is It For

Suitable for compact single-zone background music and paging systems in cafés, shops, offices, classrooms and waiting areas.
