Lab Gruppen CA1201 100 V Power Amplifier

Lab Gruppen CA1201 100 V Power Amplifier

The Lab Gruppen CA1201 is a single-channel Class D power amplifier delivering 120 W.

Its output can be configured for 4 Ω or 8 Ω loudspeakers and for 70 V or 100 V distributed lines. This allows the same amplifier to power either a low-impedance loudspeaker circuit or a distributed system of ceiling and wall loudspeakers. A selectable 80 Hz high-pass filter helps prevent low-frequency saturation in transformer-coupled 70/100 V loudspeakers.

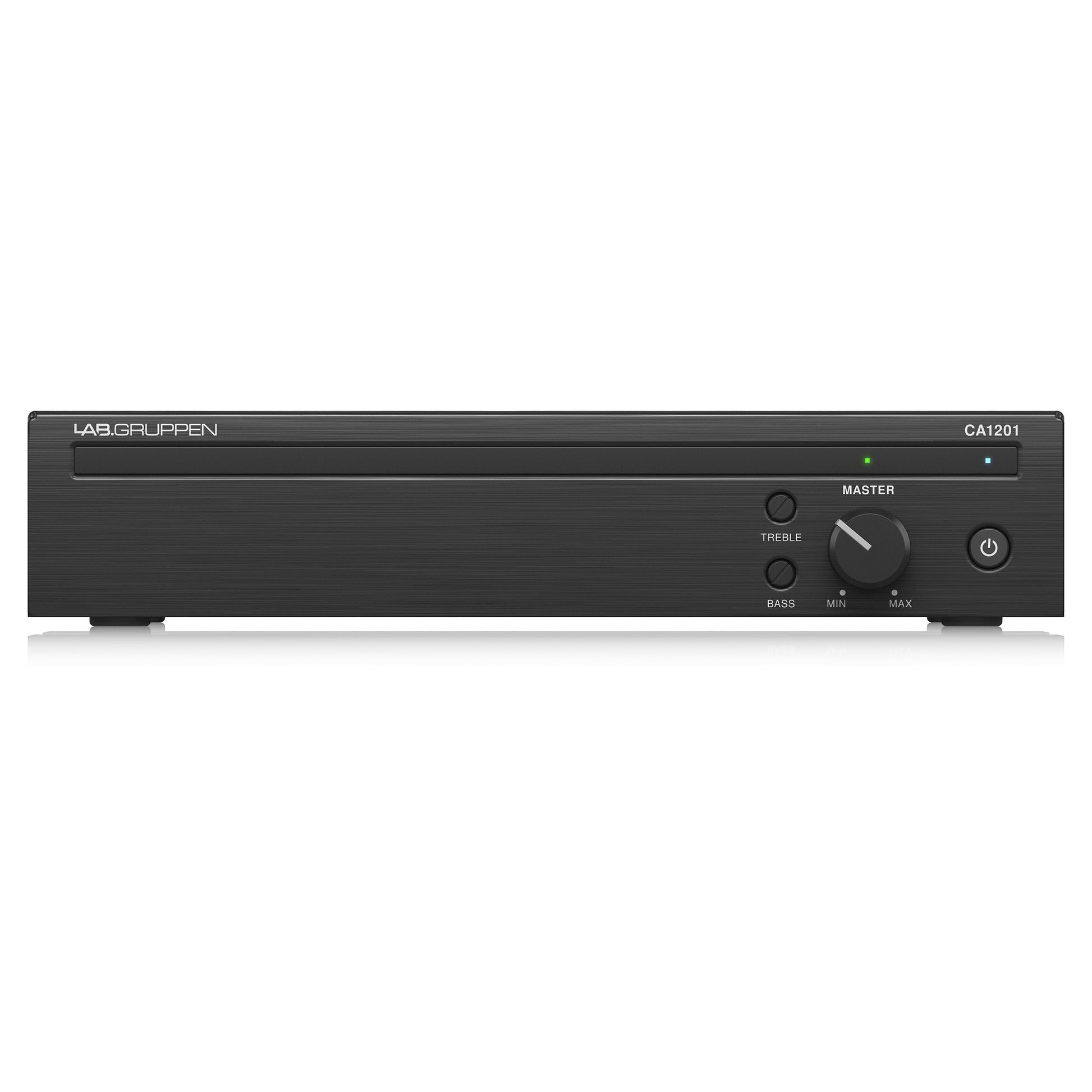

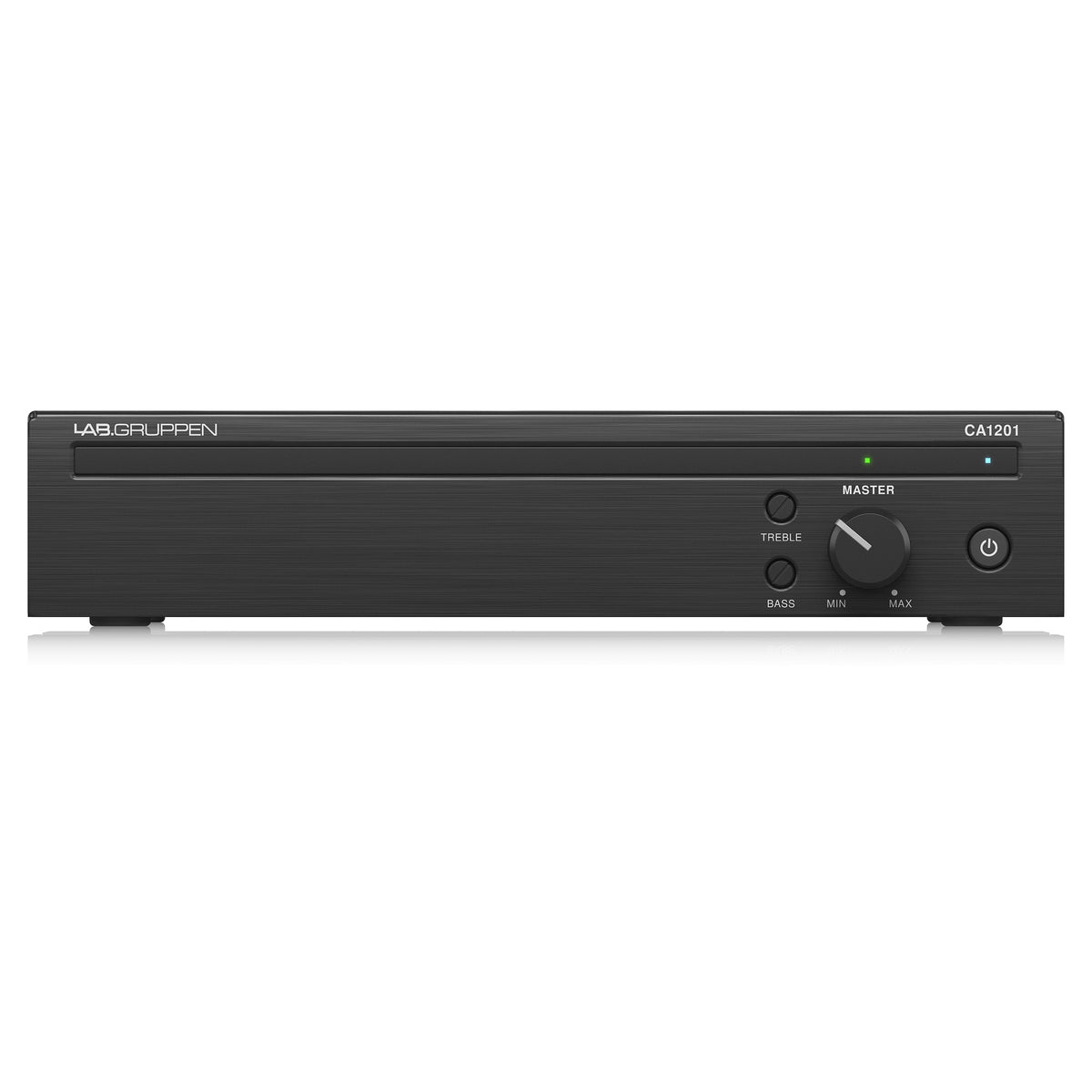

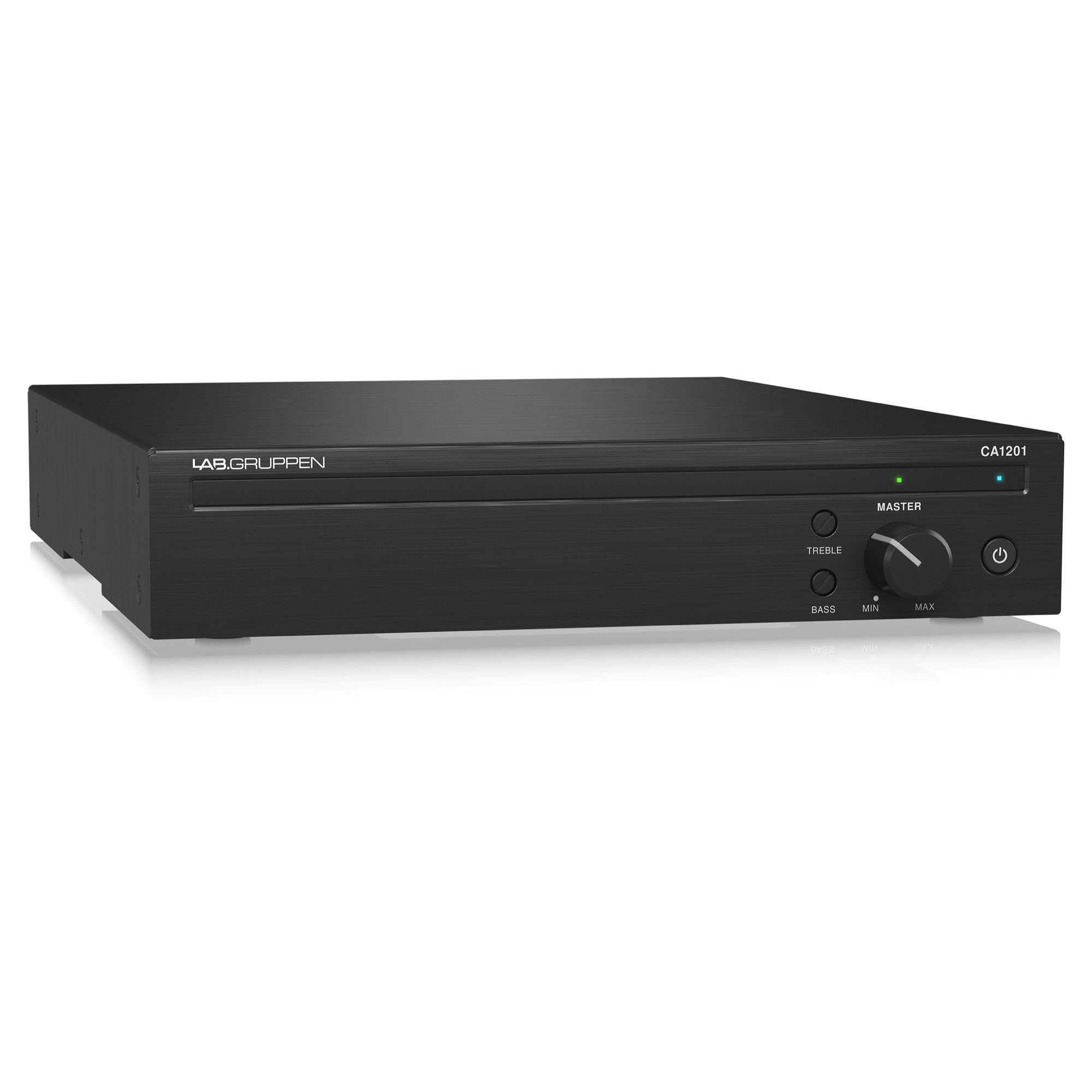

The front panel provides power, master volume, bass and treble controls. A balanced Euroblock input accepts professional audio sources, while the RCA pair accepts an unbalanced stereo source and sums it to mono. The loudspeaker line connects through a removable Euroblock output.

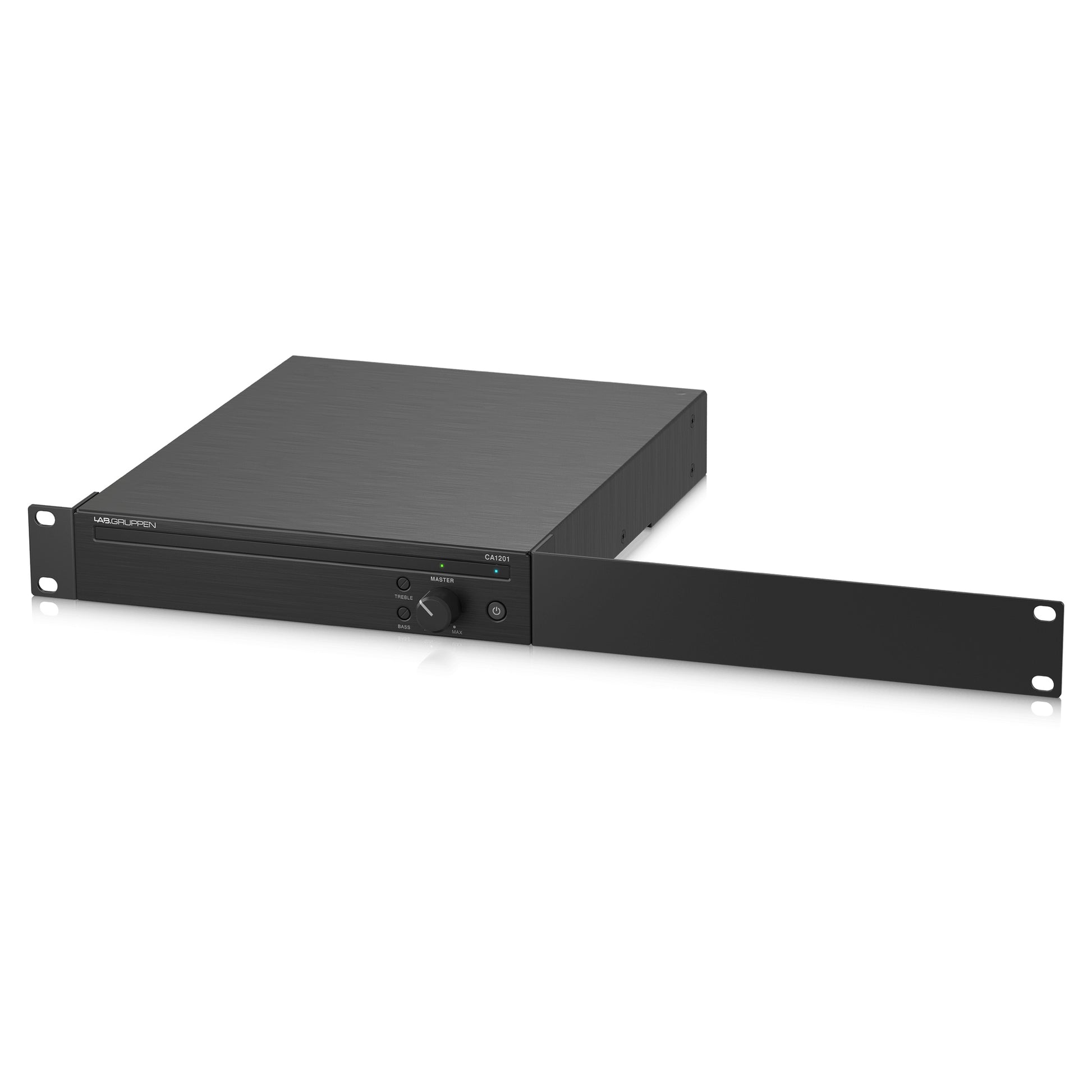

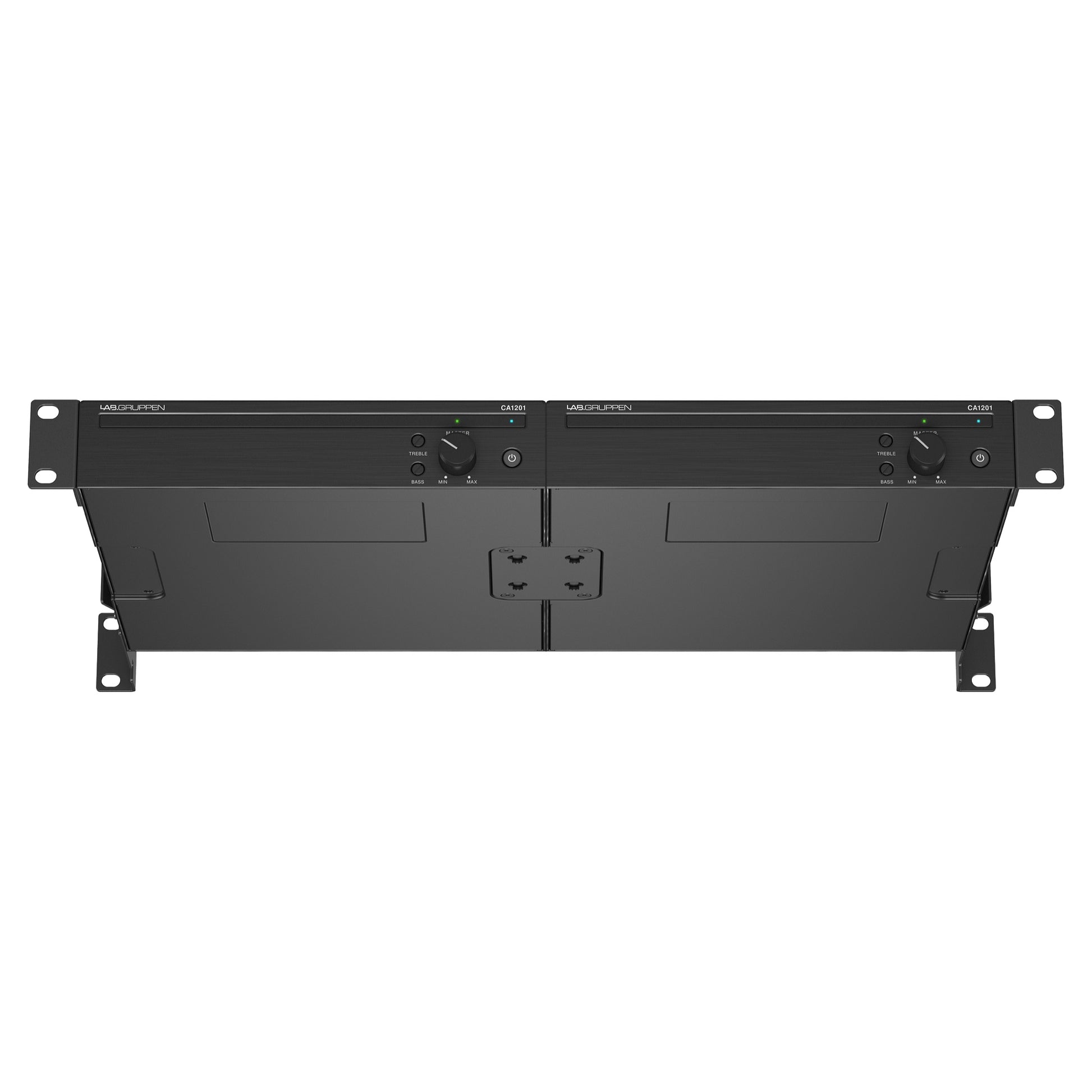

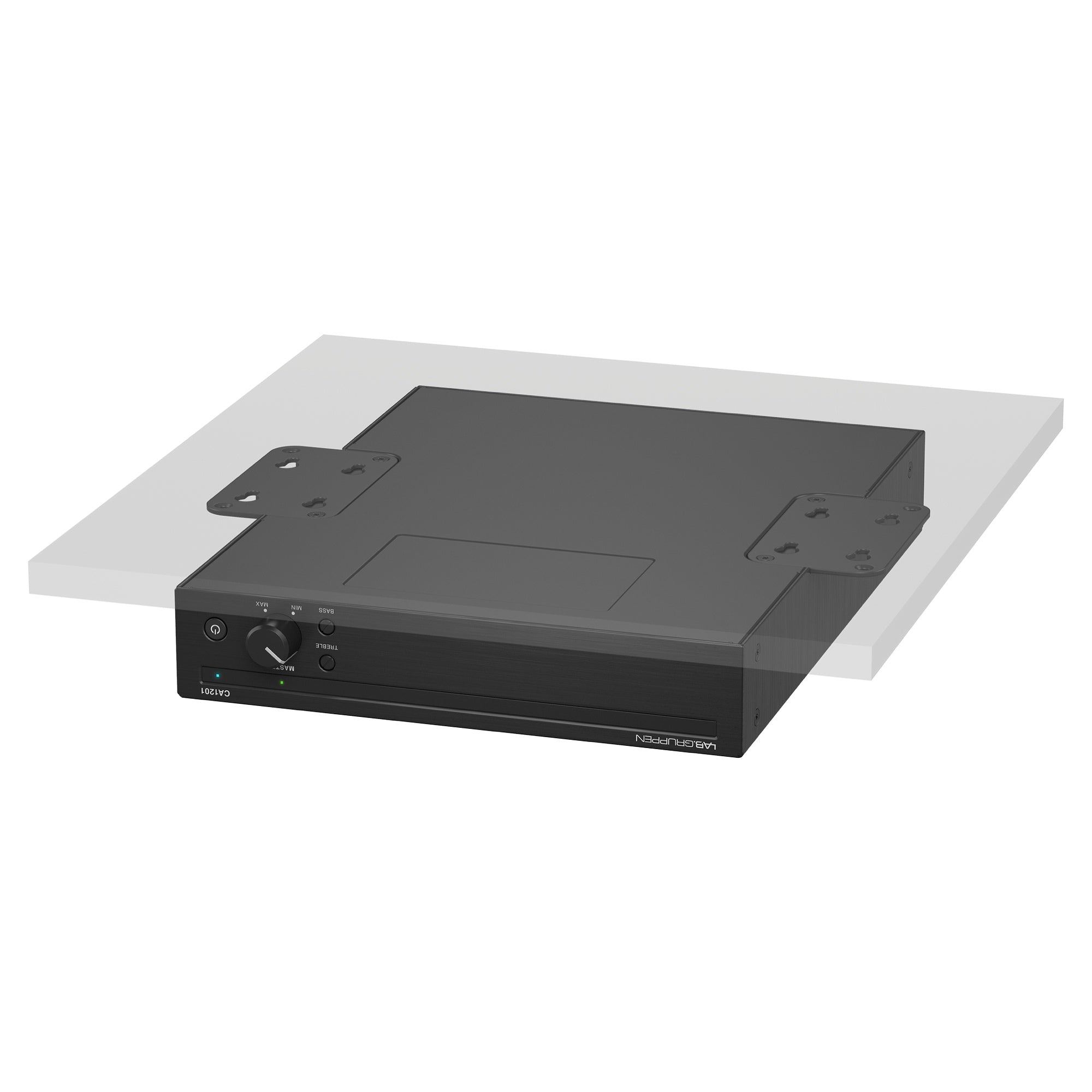

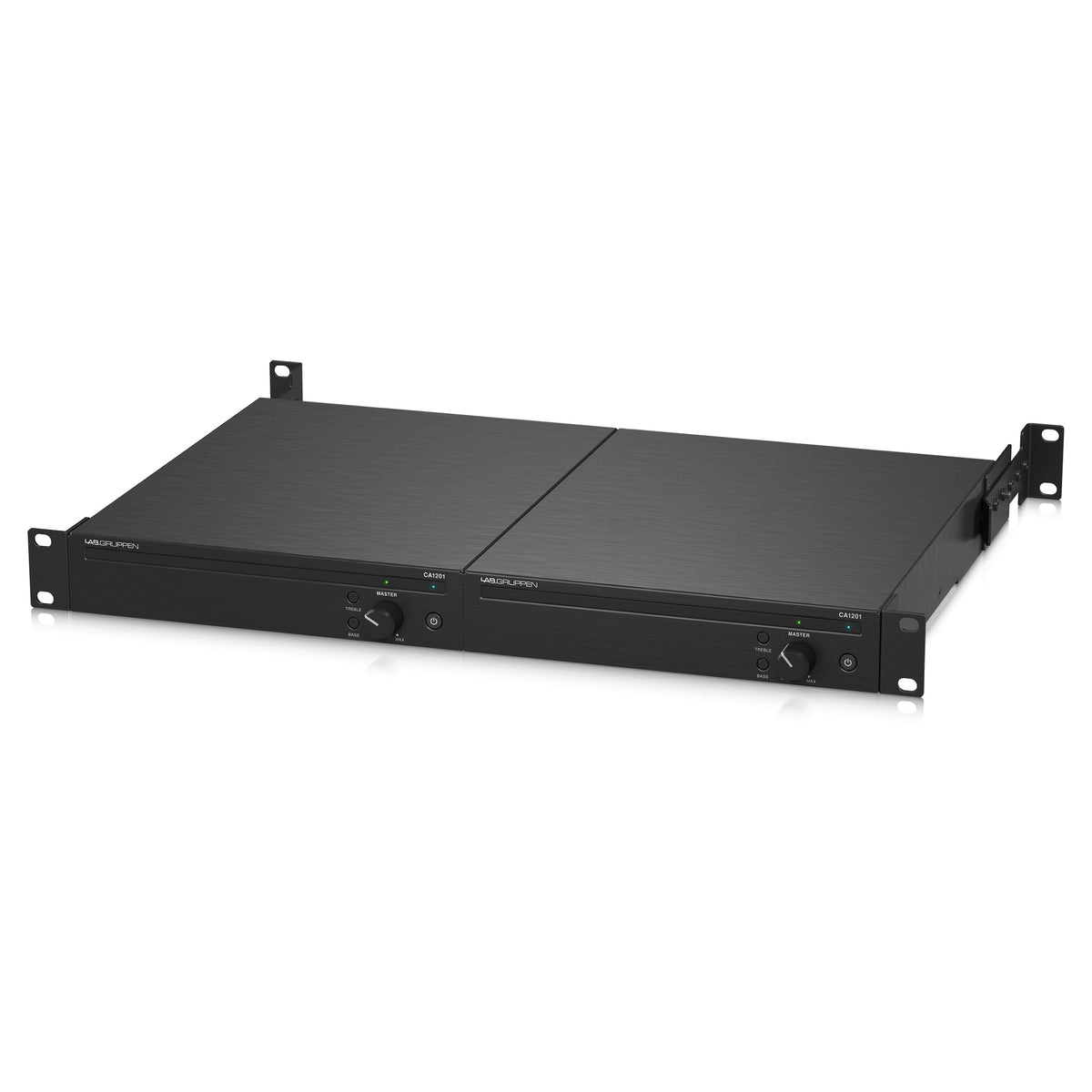

The CA1201 enters standby after 20 minutes without an input signal and resumes normal operation when a signal returns. Fanless convection cooling makes it suitable for quiet rooms. Its half-rack-width 1U enclosure can sit on a surface or be installed in a rack, on a wall or under a shelf with the supplied mounting hardware.

Main Features

• A 120 W single-channel output serves one audio zone.
• Selectable 4 Ω, 8 Ω, 70 V and 100 V modes support different loudspeaker systems.
• The 80 Hz high-pass filter reduces excessive low-frequency loading on 70/100 V lines.
• Euroblock and RCA inputs simplify connection of professional and consumer audio sources.
• An RJ45 connection supports compatible CRC-V or LAB.LEVEL remote volume controllers.
• Automatic standby reduces energy use while no signal is present.
• Fanless cooling avoids mechanical fan noise.
• The compact enclosure supports several fixed-installation mounting options.

Technical Specifications

• Channels: 1
• Output power: 120 W at 4 Ω, 8 Ω, 70 V or 100 V
• Amplifier class: Class D
• Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
• Total harmonic distortion: less than 0.05% at 1/8 rated power
• Signal-to-noise ratio: greater than 97 dBA
• Inputs: 1 x 3-pin Euroblock, 1 x stereo RCA pair summed to mono
• Loudspeaker output: 1 x 2-pin Euroblock
• Remote control: 1 x RJ45 GPI
• Filter: selectable 80 Hz high-pass filter
• Power supply: 100–240 V, 50/60 Hz
• Dimensions: 44 x 218 x 299 mm
• Weight: 2.3 kg

What’s Included

• 1 x Lab Gruppen CA1201 amplifier
• Mounting brackets and screws
• Euroblock connectors
• Region-appropriate IEC power cable

Who Is It For

Suitable for single-zone background music and paging systems in cafés, shops, hotels, offices, educational buildings and other public spaces.
