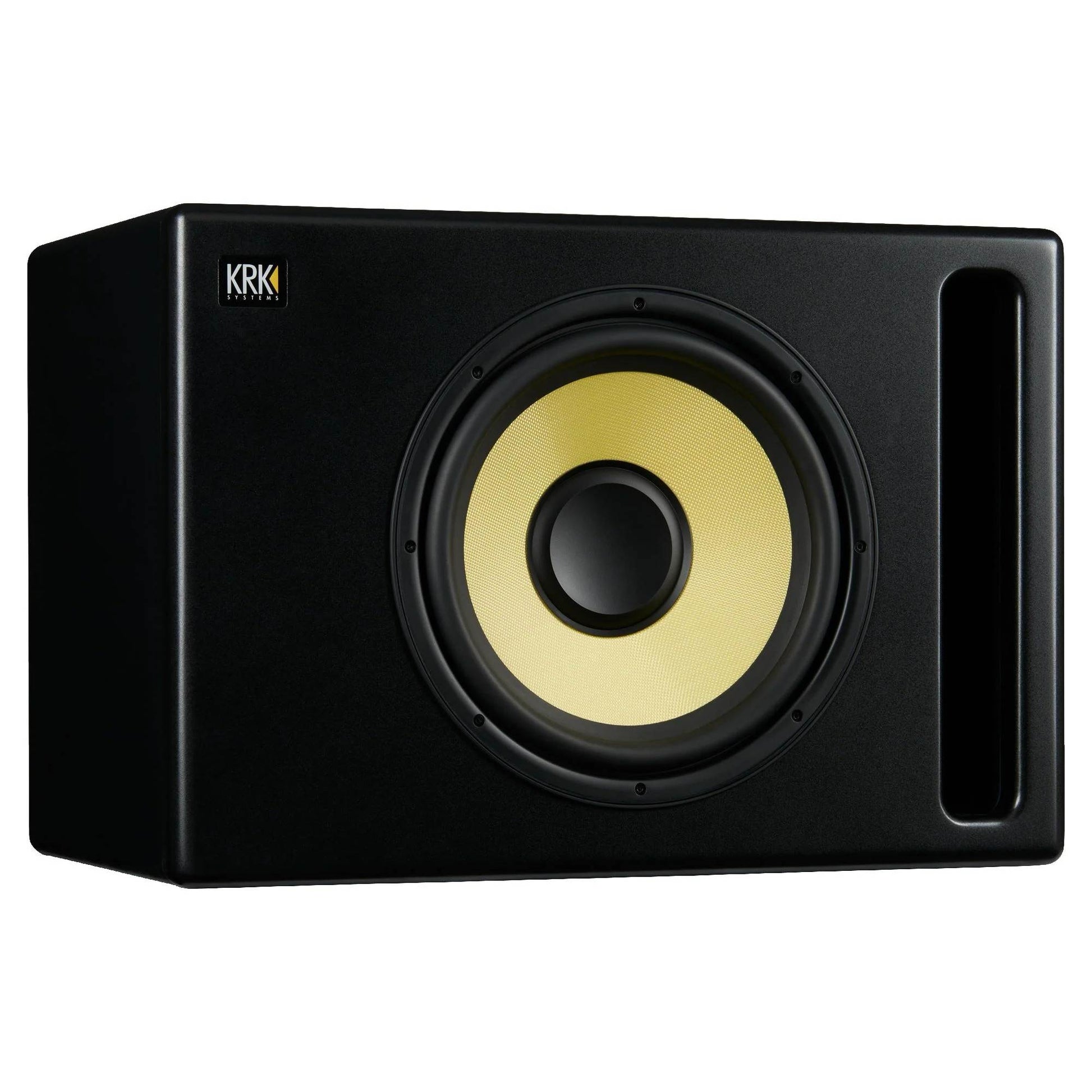

KRK S12.4 Powered Studio Subwoofer

KRK S12.4 Powered Studio Subwoofer

The KRK S12.4 is a powered studio subwoofer designed to extend the frequency range of studio monitors for mixing, mastering, music production, and detailed evaluation of low-frequency content.

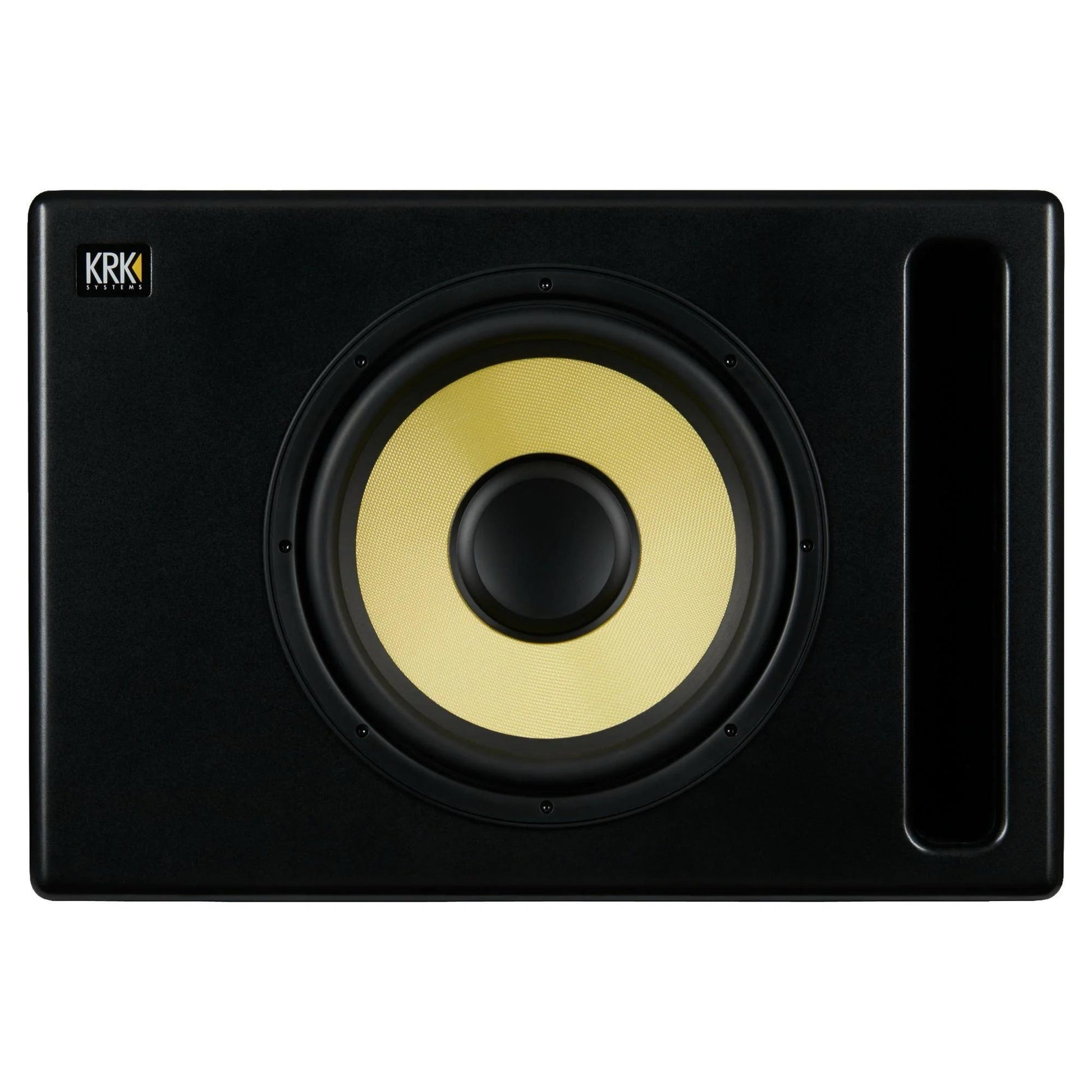

Its 12-inch low-frequency driver features a Kevlar® aramid-fibre composite cone and a 2.5-inch voice coil. The design provides controlled low-frequency reproduction, while the extended 23–130 Hz frequency range reveals information that smaller studio monitors cannot reproduce.

The integrated Class D amplifier delivers 220 W of continuous power and a maximum peak SPL of 119.9 dB. The front-firing bass reflex port extends low-frequency reproduction, reduces interaction with nearby room boundaries, and is shaped to minimise airflow noise.

A four-position crossover control allows the S12.4 to be matched with KRK or third-party studio monitors. The bypass function, operated using an optional footswitch, disables the subwoofer and high-pass filter while sending a full-range signal to the monitors. This allows quick comparisons with and without the subwoofer’s contribution.

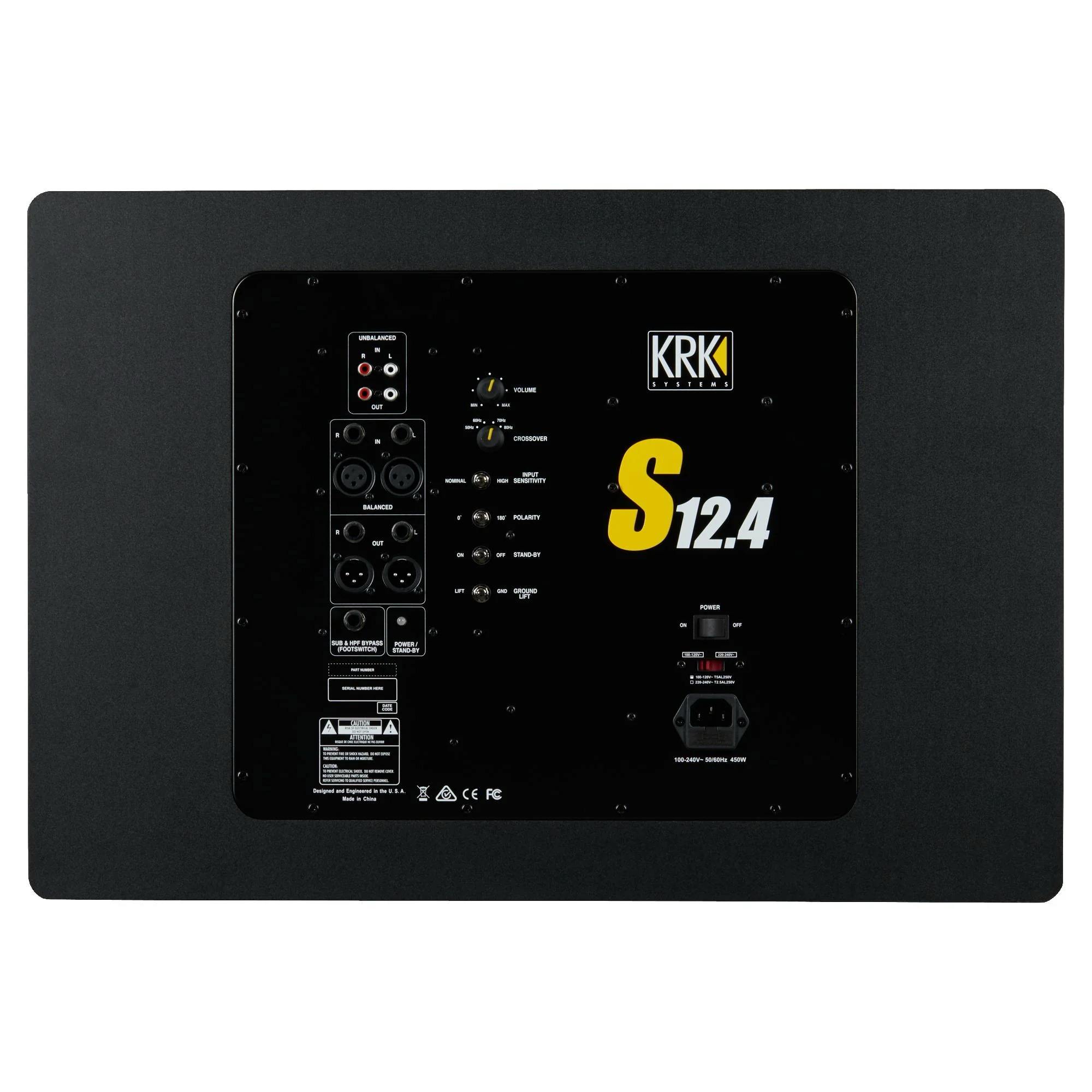

Left and right XLR, 1/4-inch TRS, and RCA inputs and outputs allow the subwoofer to be integrated into different studio systems. A dedicated balanced 1/4-inch TRS LFE input is also provided, while volume, input sensitivity, polarity, and ground-lift controls support accurate system setup.

Main Features

• 12-inch woofer with a Kevlar® aramid-fibre composite cone provides controlled low-frequency reproduction
• Low-frequency extension down to 23 Hz supports evaluation of deep musical and LFE content
• 220 W Class D amplifier delivers efficient operation and accurate transient reproduction
• Maximum peak SPL of 119.9 dB supports demanding studio monitoring environments
• Four-position crossover control helps match the subwoofer to existing studio monitors
• Optional footswitch control allows quick comparisons with and without the subwoofer
• Front-firing bass reflex port reduces interaction with nearby room boundaries and provides greater placement flexibility
• XLR, 1/4-inch TRS, and RCA inputs and outputs support a wide range of studio systems
• Dedicated balanced LFE input supports connection of a separate low-frequency effects channel
• Polarity, input-sensitivity, and ground-lift controls help integrate the subwoofer with the complete monitoring system
• Reinforced 18 mm MDF enclosure provides structural strength and durability
• EVA isolation pad reduces vibration transfer to the floor or supporting surface

Technical Specifications

• Product type: powered studio subwoofer
• Configuration: front-loaded, vented enclosure
• Low-frequency driver: 12-inch Kevlar® aramid-fibre composite woofer
• Voice coil: 2.5 inches
• Frequency response: 26–97 Hz (±3 dB)
• Frequency range: 23–130 Hz (–10 dB)
• Maximum peak SPL: 119.9 dB
• Amplifier type: Class D
• Continuous power: 220 W at 1% THD+N and 44 Hz
• Signal-to-noise ratio: 92 dB
• Amplifier distortion: no more than 0.3% THD+N at –3 dB of maximum power output, 29–97 Hz
• Input impedance: 9.4 kΩ balanced, 9.2 kΩ unbalanced
• Crossover control: four-position LPF / HPF
• Polarity: 0° or 180°
• Input sensitivity: standard or high
• Ground lift: on or off
• Standby mode: on or off
• Bypass control: optional footswitch
• Inputs: 2 × XLR, 2 × 1/4-inch TRS, 2 × RCA
• LFE input: balanced 1/4-inch TRS
• Outputs: 2 × XLR, 2 × 1/4-inch TRS, 2 × RCA
• Footswitch connector: 1/4-inch
• Indicators: power and standby
• Power requirements: selectable 110–120 V or 220–240 V AC
• Enclosure: reinforced 18 mm MDF
• Finish: black vinyl wrap with a black-painted baffle
• Isolation: EVA pad
• Dimensions: 416 × 606 × 365 mm
• Weight: 28.3 kg

What’s Included

• KRK S12.4 powered studio subwoofer
• Power cable

The bypass footswitch and protective woofer grille are not included and are available separately.

Who Is It For

The KRK S12.4 is designed for music producers, audio engineers, mastering engineers, sound designers, and broadcast studios. It suits monitoring systems where accurate evaluation of deep musical frequencies, electronic bass, cinematic sound effects, and LFE-channel content is required.
