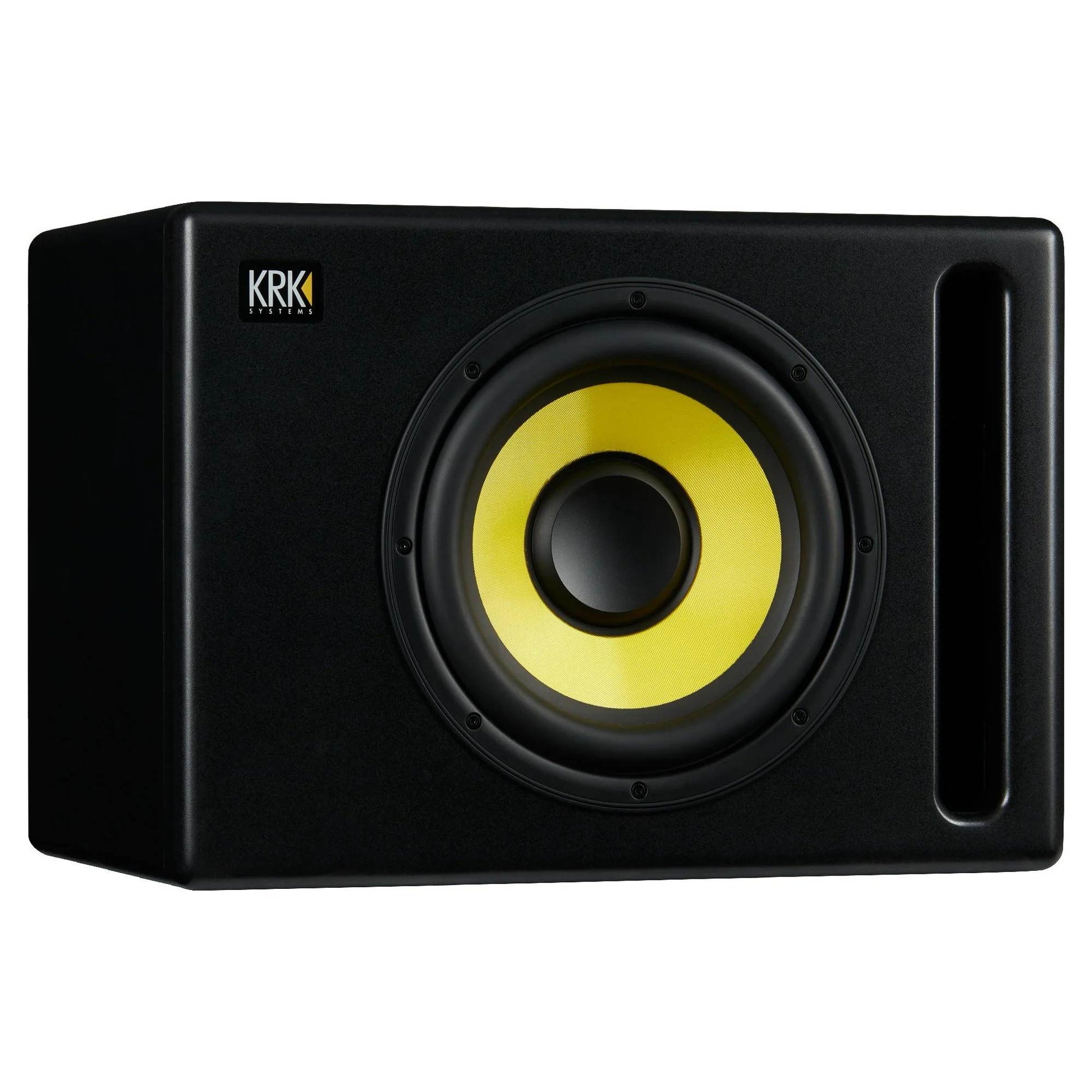

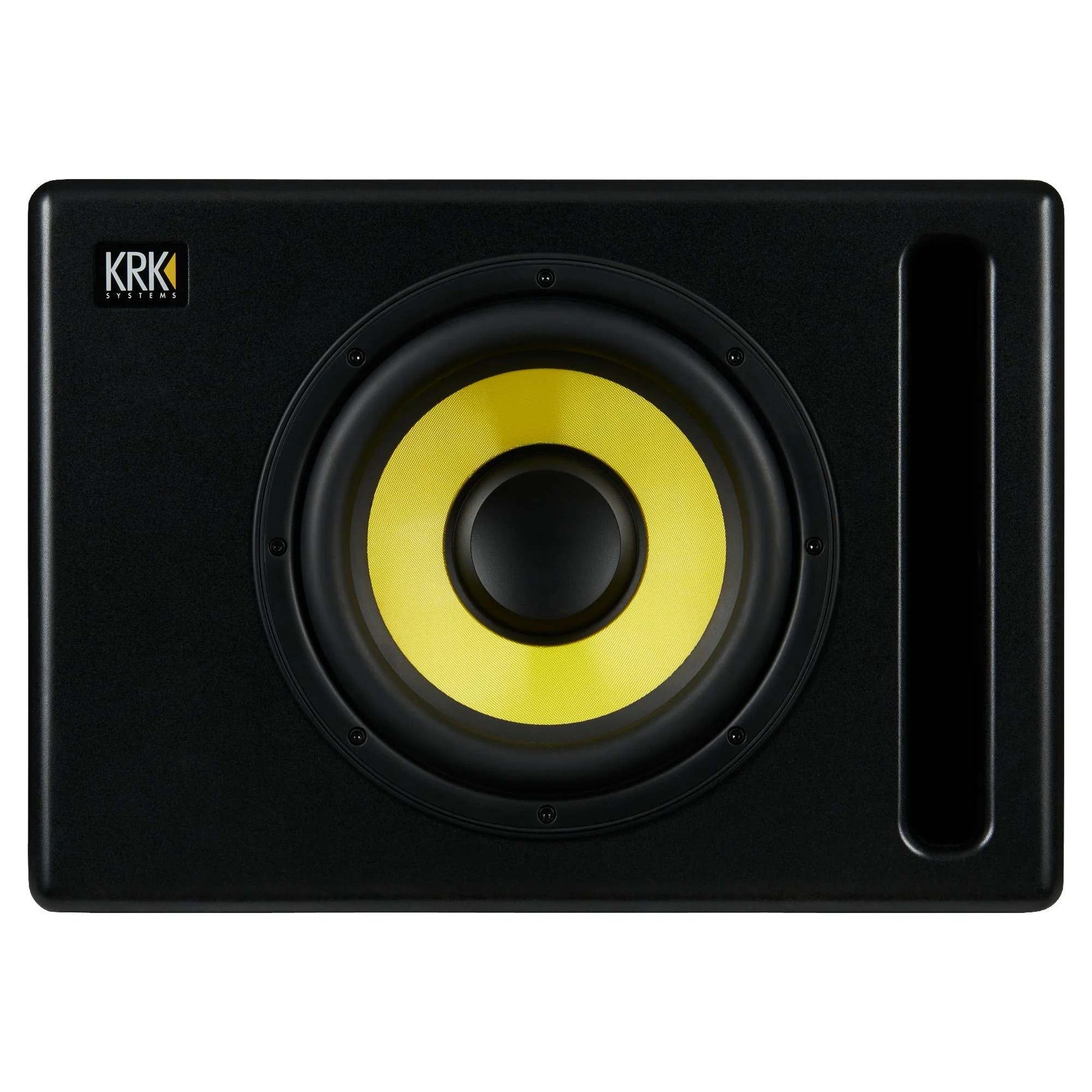

KRK S10.4 Powered Studio Subwoofer

KRK S10.4 Powered Studio Subwoofer

The KRK S10.4 is a powered studio subwoofer designed to extend the frequency range of studio monitors for mixing, mastering, music production, and detailed evaluation of low-frequency content.

Its 10-inch low-frequency driver features a glass-aramid composite cone and a 2-inch voice coil. The design provides controlled bass reproduction, while the extended 27–156 Hz frequency range reveals information that smaller studio monitors cannot reproduce.

The integrated Class D amplifier delivers 160 W of continuous power and a maximum peak SPL of 117.2 dB. The front-firing bass reflex port extends low-frequency reproduction, reduces interaction with nearby room boundaries, and is shaped to minimise airflow noise.

A four-position crossover control allows the S10.4 to be matched with KRK or third-party studio monitors. The bypass function, operated using an optional footswitch, disables the subwoofer and high-pass filter while sending a full-range signal to the monitors. This allows quick comparisons with and without the subwoofer’s contribution.

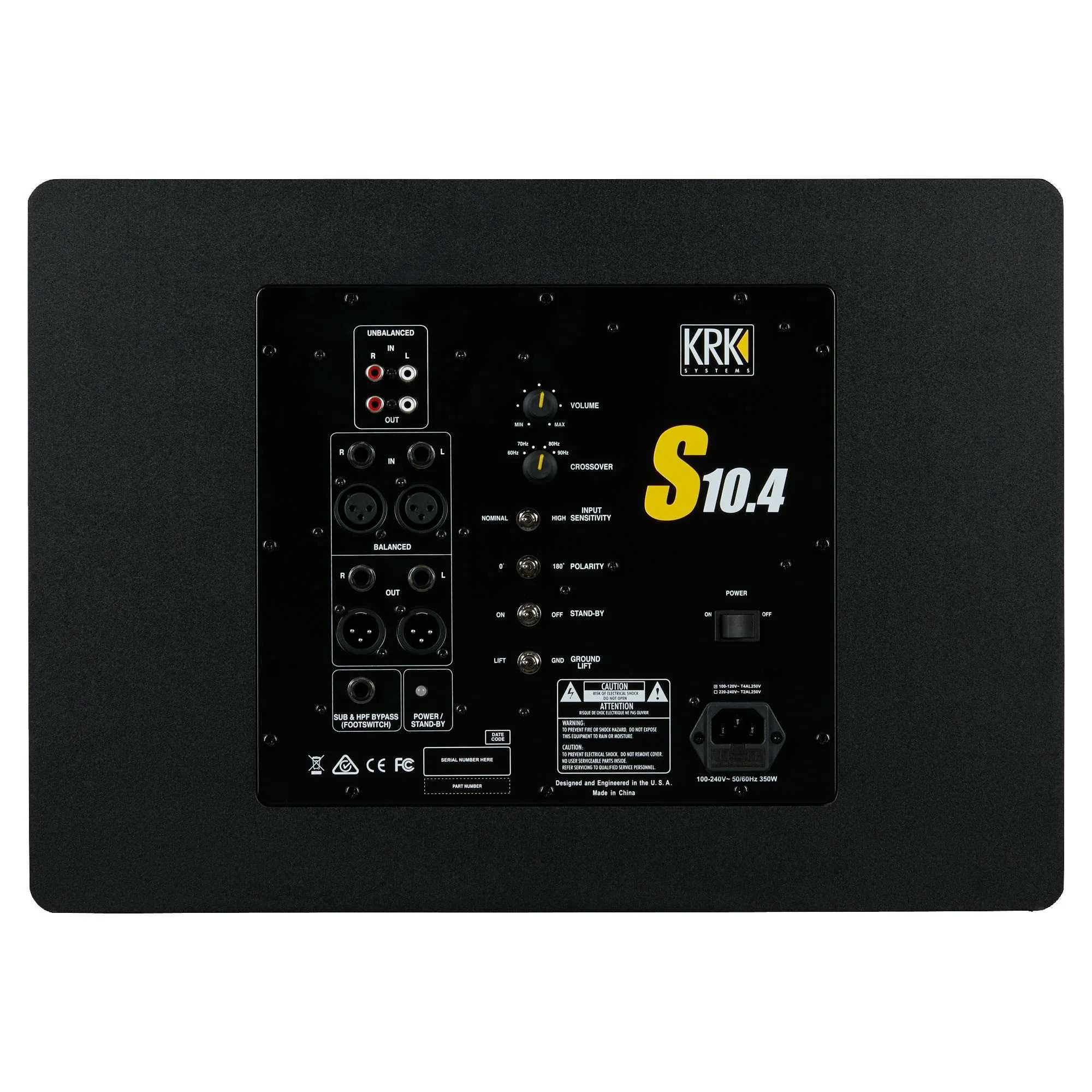

Left and right XLR, 1/4-inch TRS, and RCA inputs and outputs allow the subwoofer to be integrated into different studio systems. Volume, input-sensitivity, polarity, standby, and ground-lift controls support accurate setup of the complete monitoring system.

Main Features

• 10-inch woofer with a glass-aramid composite cone provides controlled low-frequency reproduction
• Low-frequency extension down to 27 Hz supports evaluation of deep musical content
• 160 W Class D amplifier delivers efficient operation and accurate transient reproduction
• Maximum peak SPL of 117.2 dB supports demanding studio monitoring environments
• Four-position crossover control helps match the subwoofer to existing studio monitors
• Optional footswitch control allows quick comparisons with and without the subwoofer
• Front-firing bass reflex port reduces interaction with nearby room boundaries and provides greater placement flexibility
• XLR, 1/4-inch TRS, and RCA inputs and outputs support a wide range of studio systems
• Polarity control provides 0° and 180° settings for system and placement alignment
• Standard and high input-sensitivity settings support audio sources with different signal levels
• Ground-lift function helps address hum caused by ground loops
• EVA isolation pad reduces vibration transfer to the floor or supporting surface

Technical Specifications

• Product type: powered studio subwoofer
• Configuration: front-loaded, vented enclosure
• Low-frequency driver: 10-inch glass-aramid composite woofer
• Voice coil: 2 inches
• Frequency response: 30–110 Hz (±3 dB)
• Frequency range: 27–156 Hz (–10 dB)
• Maximum peak SPL: 117.2 dB
• Amplifier type: Class D
• Continuous power: 160 W at 1% THD+N and 44 Hz
• Signal-to-noise ratio: 92 dB
• Amplifier distortion: no more than 0.12% THD+N at –3 dB of maximum power output, 31–110 Hz
• Input impedance: 9.4 kΩ balanced, 9.2 kΩ unbalanced
• Crossover control: four-position LPF / HPF
• Polarity: 0° or 180°
• Input sensitivity: standard or high
• Ground lift: on or off
• Standby mode: on or off
• Bypass control: optional footswitch
• Inputs: 2 × XLR, 2 × 1/4-inch TRS, 2 × RCA
• Outputs: 2 × XLR, 2 × 1/4-inch TRS, 2 × RCA
• Footswitch connector: 1/4-inch
• LFE input: none
• Indicators: power and standby
• Power requirements: 100–240 V AC
• Enclosure: reinforced 15 and 18 mm MDF
• Finish: black vinyl wrap with a black-painted baffle
• Isolation: EVA pad
• Dimensions: 341 × 479 × 310 mm
• Weight: 15.88 kg

What’s Included

• KRK S10.4 powered studio subwoofer
• Power cable

The bypass footswitch and protective woofer grille are not included and are available separately.

Who Is It For

The KRK S10.4 is designed for music producers, audio engineers, mastering engineers, sound designers, and broadcast studios. It suits monitoring systems where accurate evaluation of electronic music, bass instruments, percussion, and other low-frequency content is required.
