Description
Description

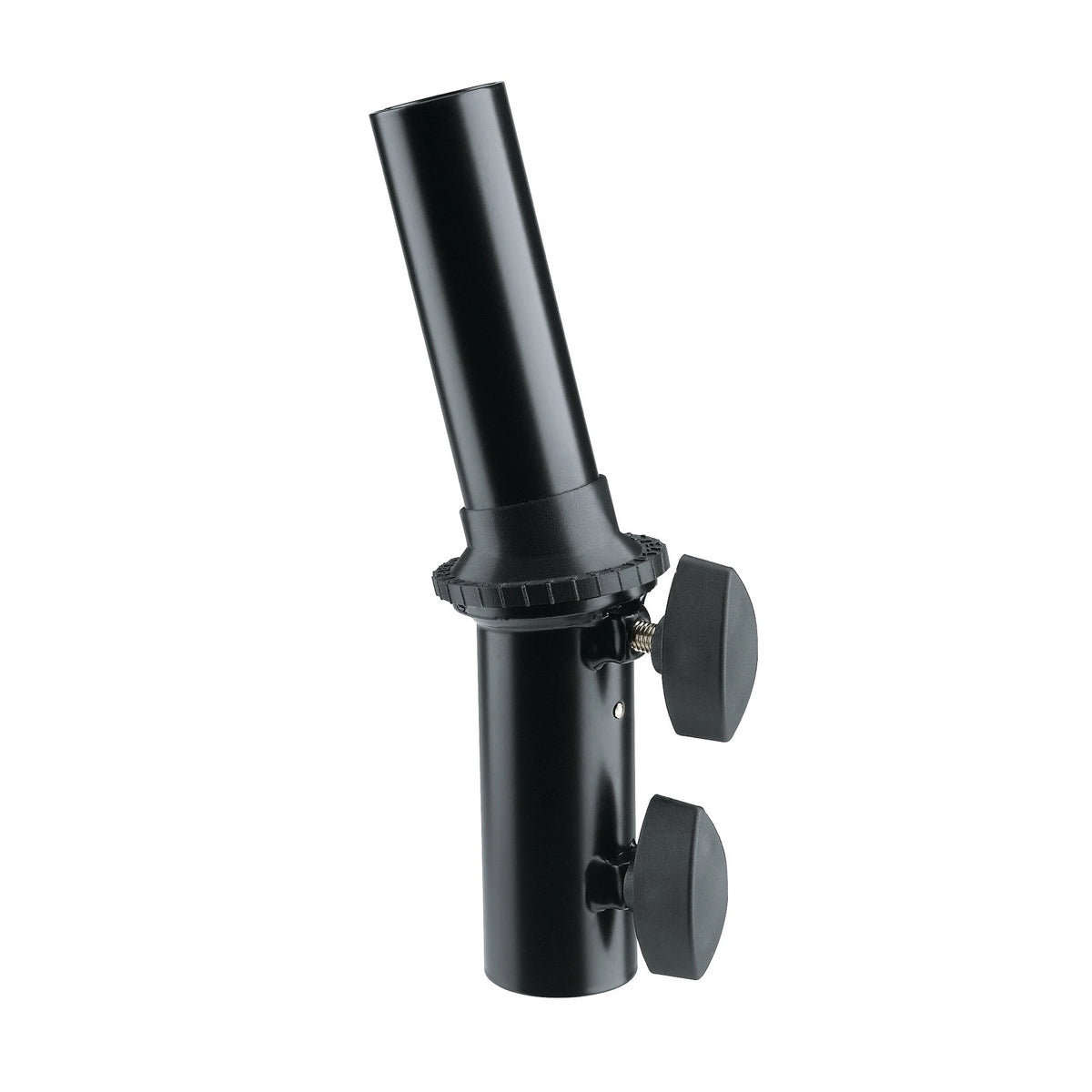

K&M 19670 Speaker Tilt Connector
The K&M 19670 is an adjustable speaker tilt connector.
The connector slips over a speaker stand tube, while its upper section inserts into the speaker socket. Rotating the upper tube changes the speaker's angle of inclination.
Separate locking screws secure the connection to the stand and the chosen tilt setting. A scale indicates the selected angle.
Use a suitably rated stand on a level surface. The manufacturer specifies a stand capacity of at least 26 kg; the connector itself has a maximum load capacity of 25 kg.
Main Features
- Continuous tilt adjustment allows a speaker mounted on a stand to be angled as required.
- Two locking screws separately secure the stand connection and the tilt mechanism.
- Steel construction connects the speaker stand tube to the mounting socket in the speaker.
Technical Specifications
- Manufacturer Code: 19670-000-55
- Angle of Inclination: 0–15°
- Stand Tube Diameter: 35 mm
- Maximum Load: 25 kg
- Height: 230 mm
- Material: Steel
- Finish: Black
- Weight: 0.59 kg
- EAN: 4016842106905
What’s Included
- K&M 19670 speaker tilt connector, 1 piece
Who Is It For
For tilting a speaker on a stand with a 35 mm tube. The speaker socket must have an internal diameter of at least 35 mm and should not exceed 36 mm. A 38 mm socket requires the optional K&M 21326 adapter sleeve.
Adjustment is easier with the speaker removed. If it remains on the connector, the manufacturer recommends assistance from another person.
