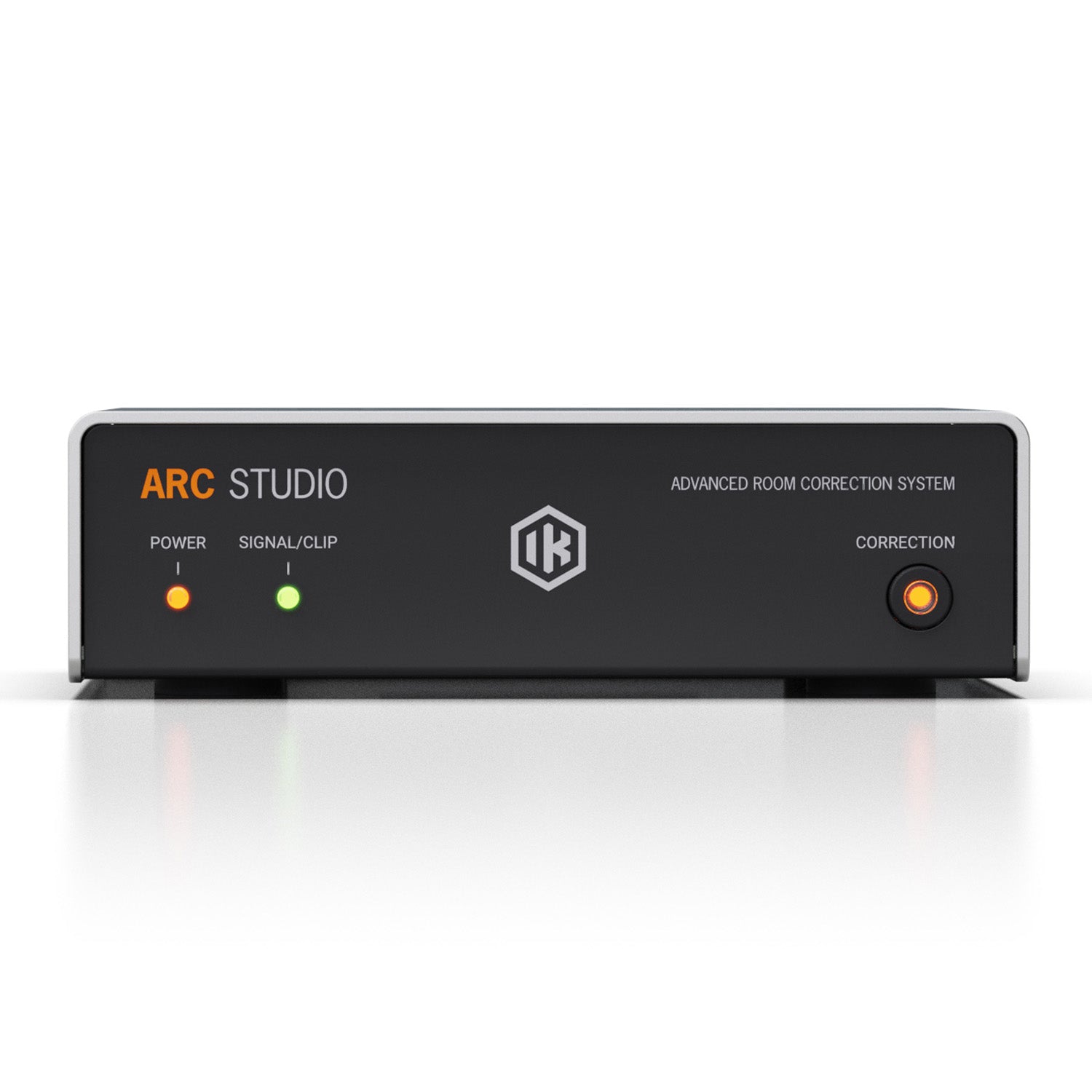

IK Multimedia ARC Studio Acoustic Correction Processor

IK Multimedia ARC Studio Acoustic Correction Processor

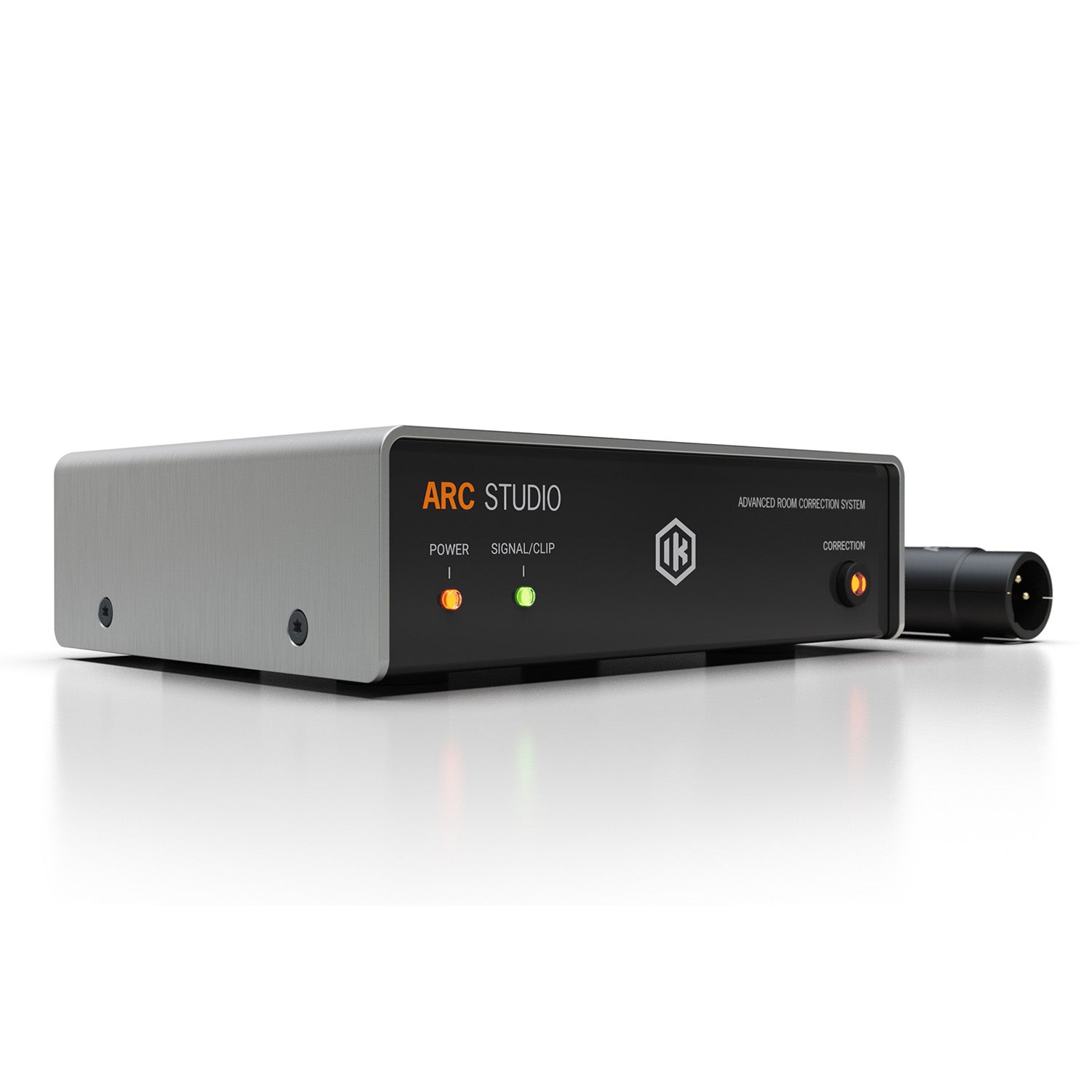

The IK Multimedia ARC Studio is a revolutionary, standalone external acoustic correction processor designed to optimize the sound of studio monitors in any room. This device transfers the entire burden of room calibration algorithm calculations from the computer to an external processor. This means that you no longer need to use any software plugins on your Master Bus, and the calibrated sound remains consistent regardless of the software or audio source used.

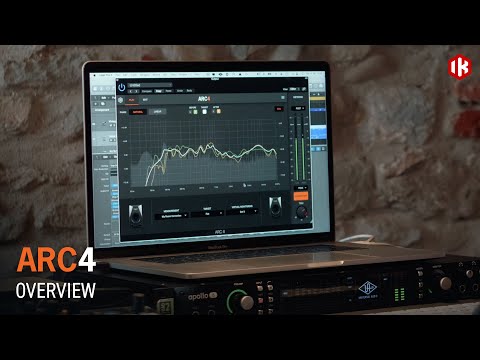

The system incorporates advanced "ARC 4" measurement technology, which, together with the included MEMS microphone, allows for precise measurement of room acoustic imperfections and the creation of a correction profile in minutes. This profile is stored directly in the ARC Studio's memory. The device features top-class AKM Velvet Sound™ converters, ensuring complete signal transparency, ultra-low distortion, and a professional dynamic range.

Key Features

• External DSP processing: Correction takes place within the device itself, eliminating the need for plugins on the Master channel and keeping the computer's processor unburdened.
• Ultra-low latency: In Natural Phase mode, latency is just 1.4 ms, ensuring impeccable real-time monitoring.
• Mastering-level conversion: 24-bit / 96 kHz converters and a 120 dB dynamic range preserve every audio detail.
• Virtual monitoring (X-Monitor): Allows emulation of the sound of over 20 of the world's best studio monitors and various playback systems.
• Standalone operation: Once configured, the device operates autonomously, allowing you to calibrate any analog signal even without a computer.

Technical Specifications

• Manufacturer: IK Multimedia.
• Model: ARC Studio.
• Type: External acoustic correction processor.
• AD/DA Conversion: 24-bit / 96 kHz (AKM Velvet Sound™).
• Internal Processing: 32-bit float.
• Dynamic Range: 120 dB (A-weighted).
• Frequency Response: 2 Hz – 45 kHz (-2.0 dB).
• THD (20 Hz - 20 kHz): 0.00035%.
• Latency: 1.4 ms (Natural Phase) / 42 ms (Linear Phase).

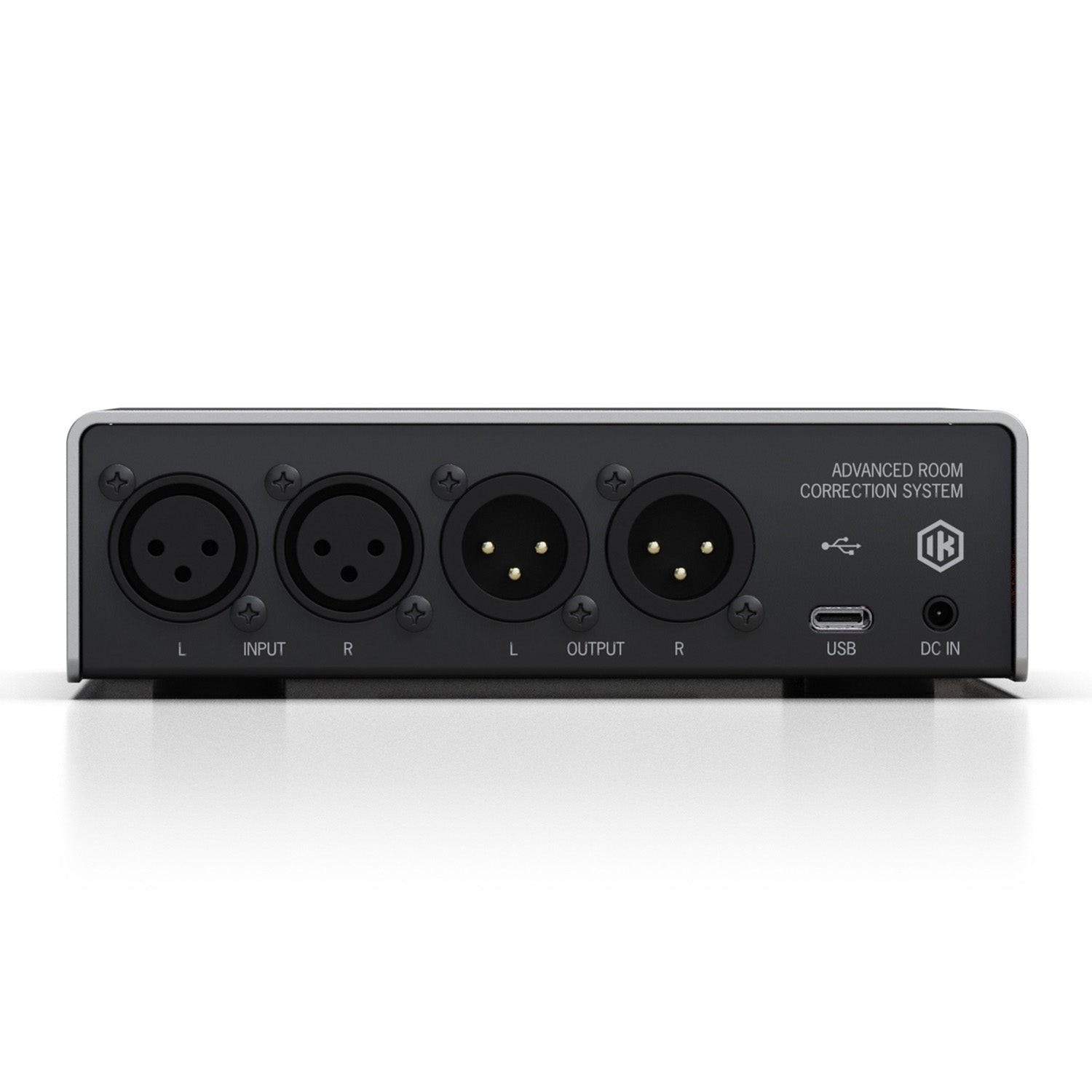

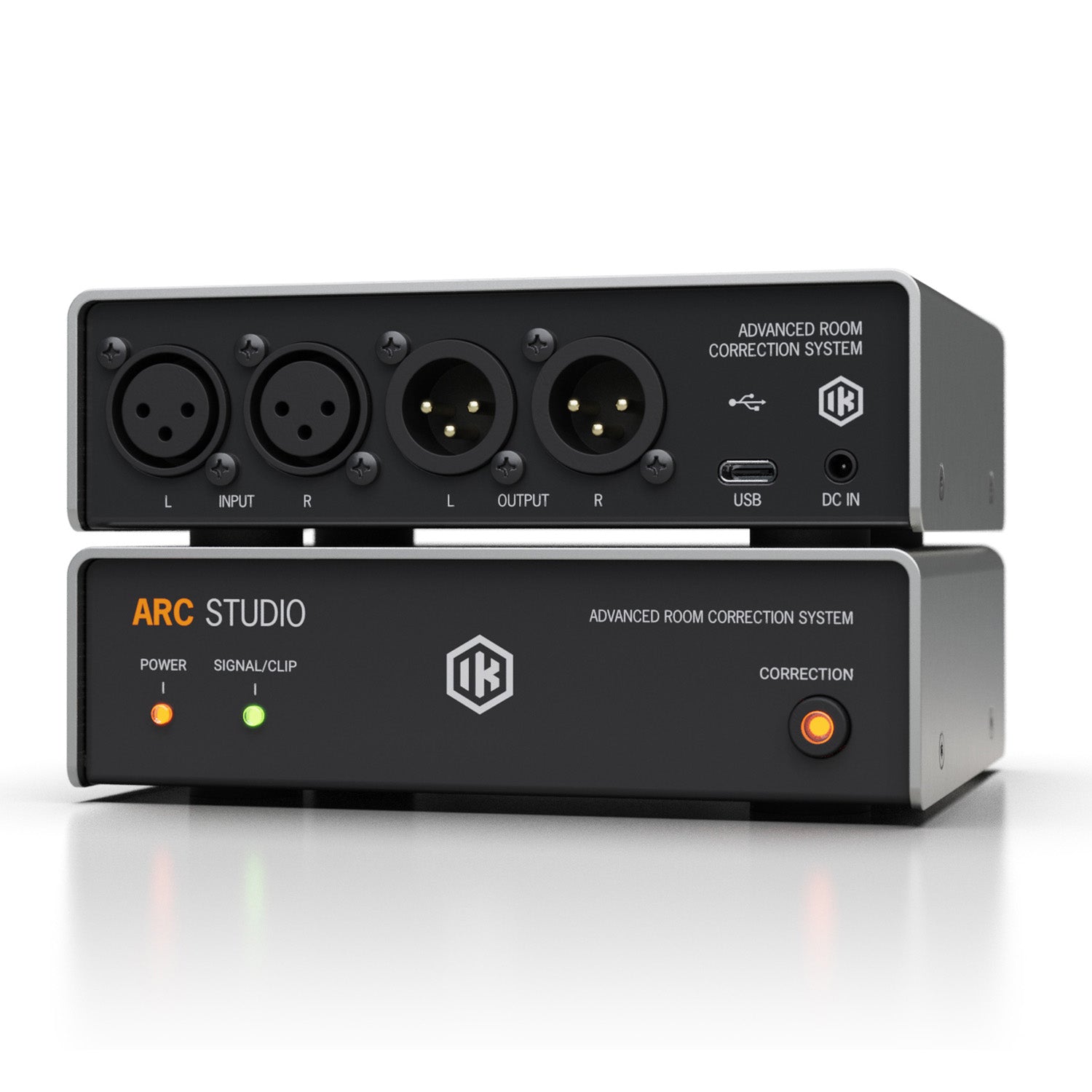

• Inputs: 2 x balanced XLR.
• Outputs: 2 x balanced XLR.
• Connectivity: USB-C (for configuration).
• Dimensions: 14.4 x 12.0 x 4.5 cm.
• Weight: 465 g.
• Product Code: ARC-STUDIO-HW

What's Included

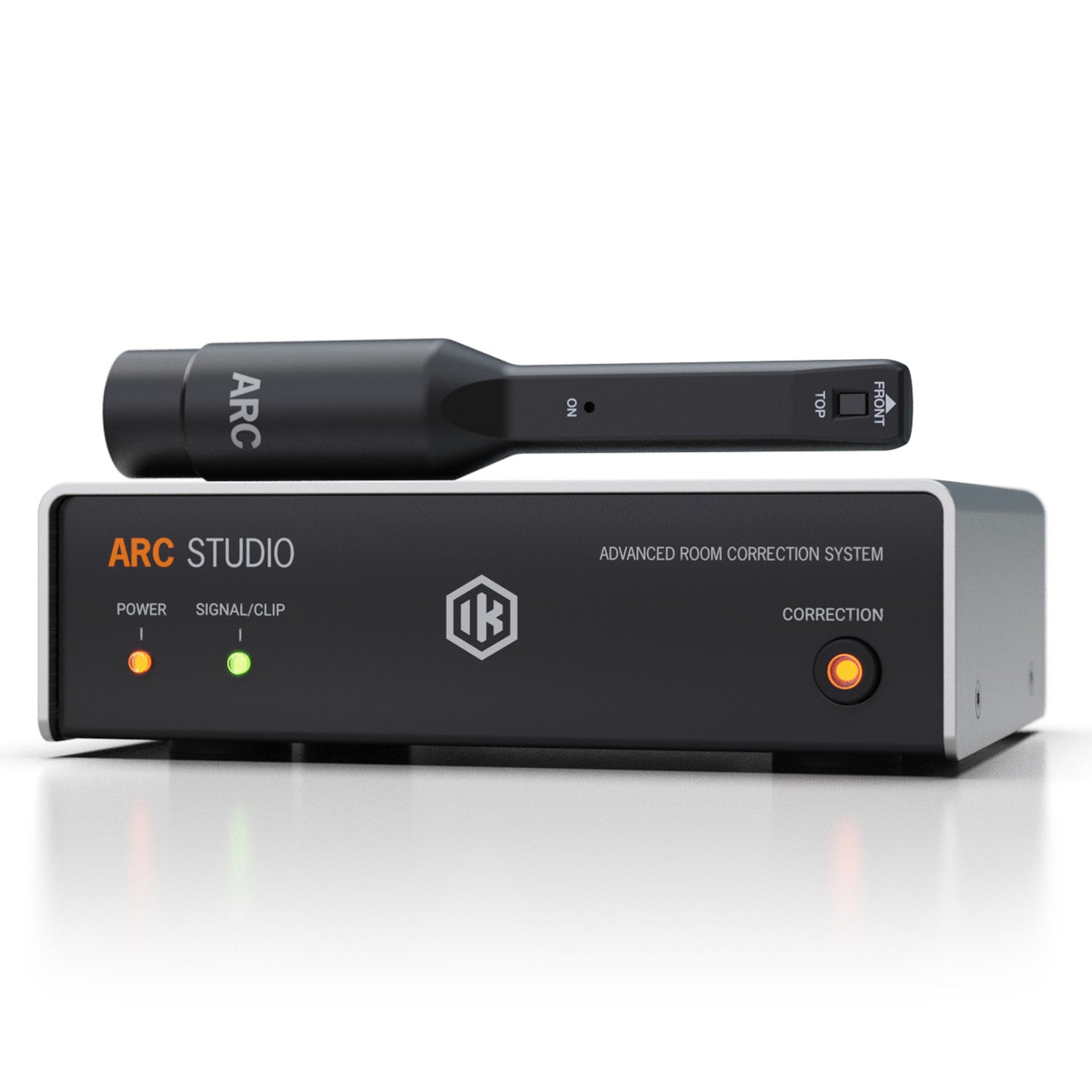

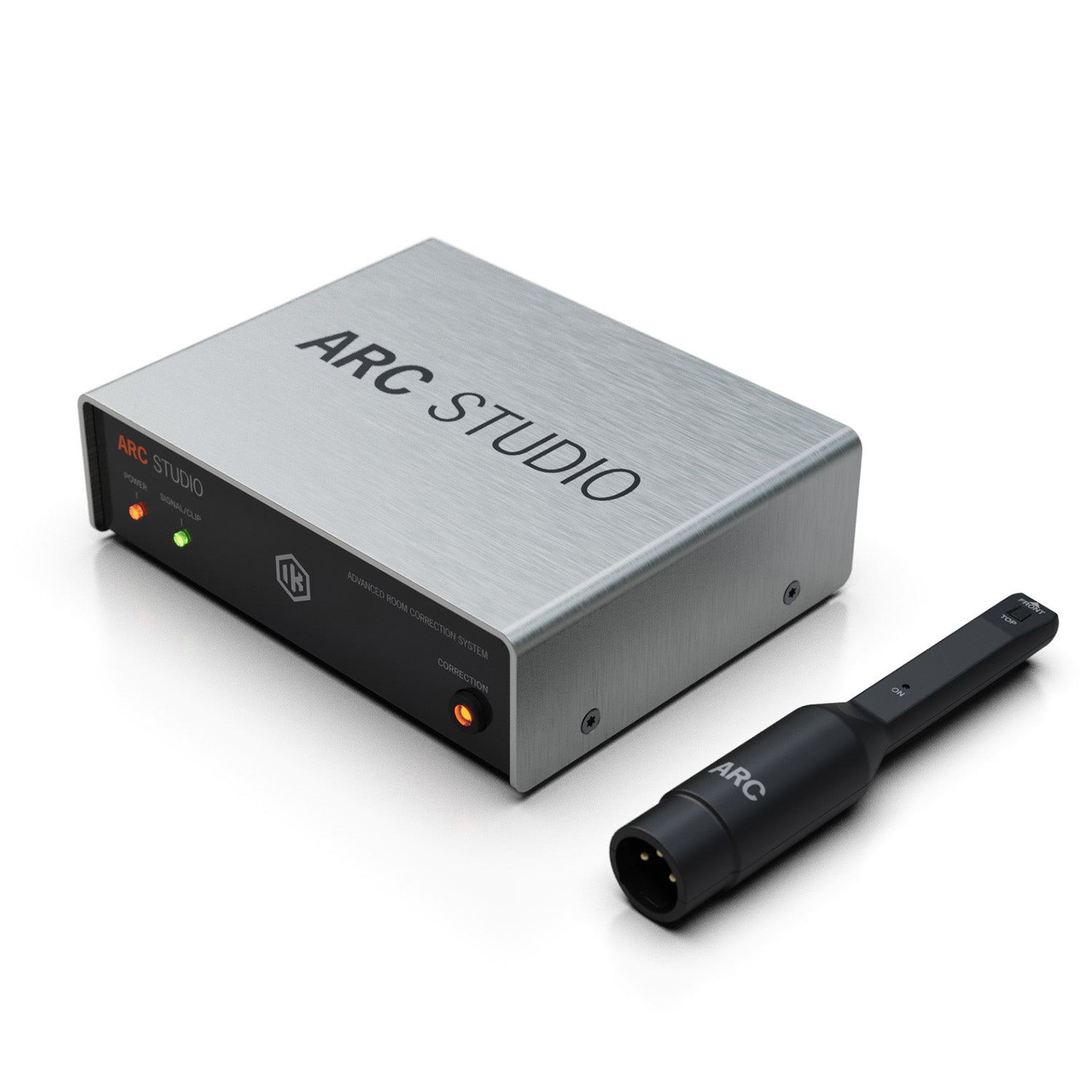

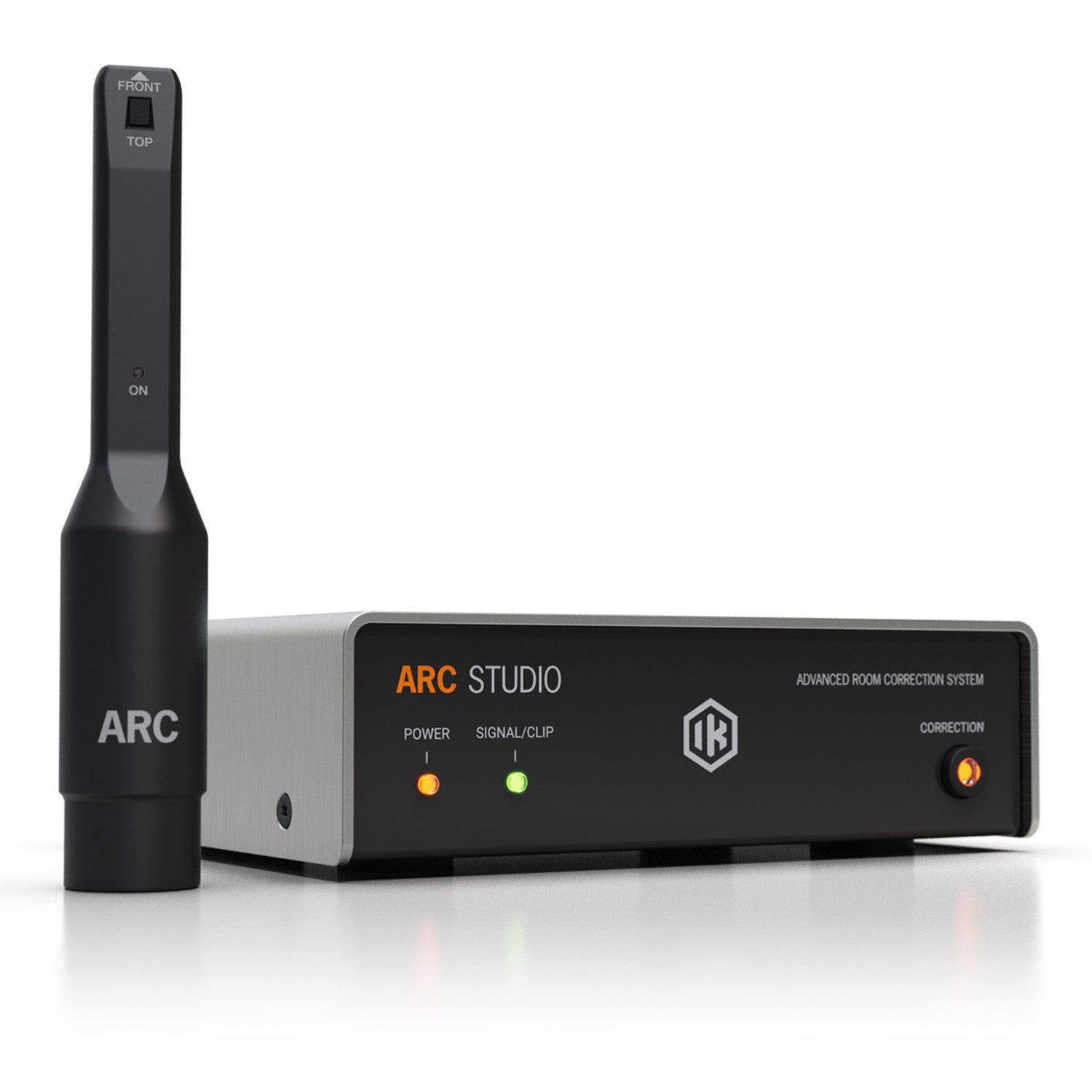

• 1 x ARC Studio processor.

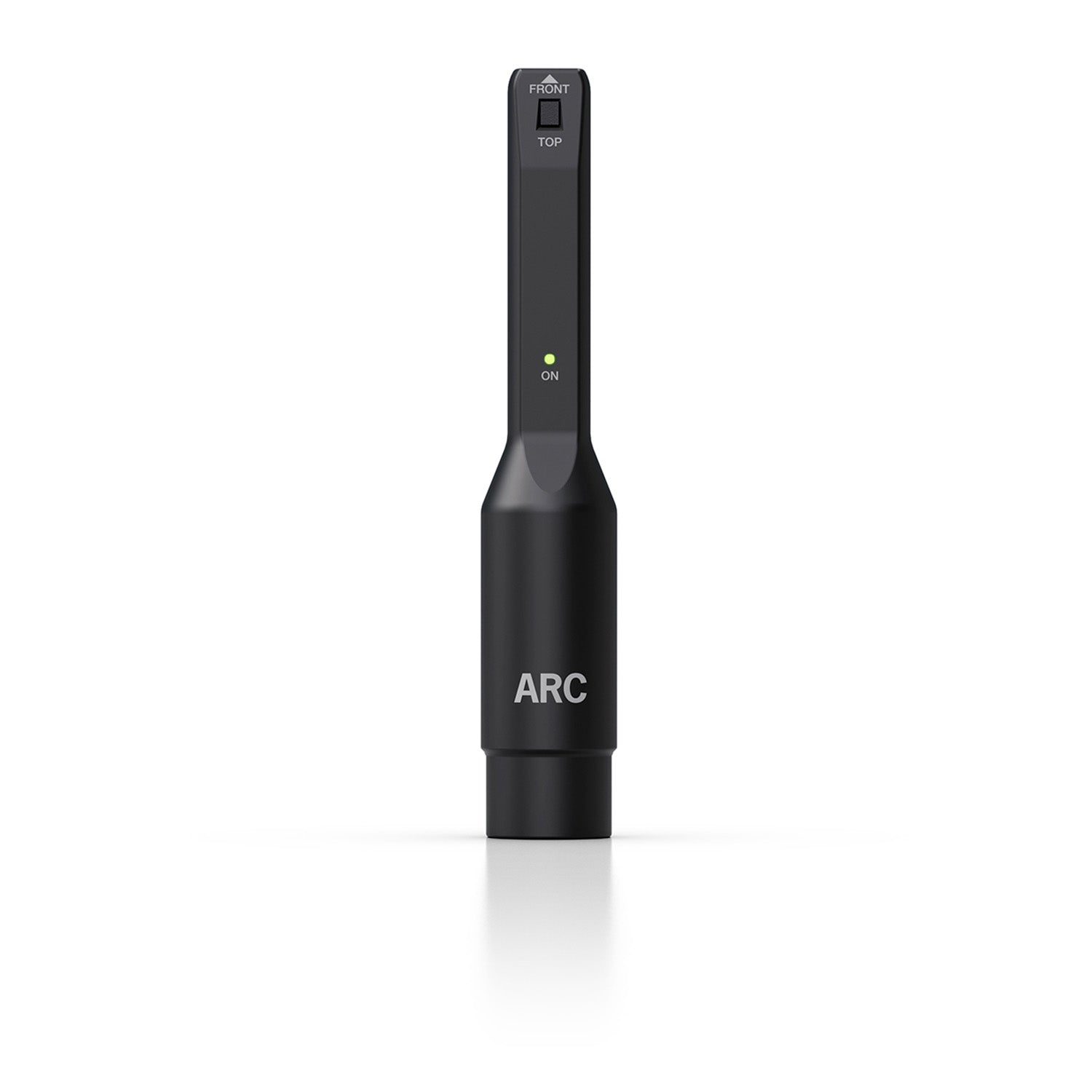

• 1 x ARC MEMS measurement microphone.
• 1 x Microphone clip.
• 1 x USB-C to USB-A cable (1.5 m).
• 1 x Power adapter.
• 1 x "ARC 4" software license (downloadable).

Intended for:

• Audio engineers and producers seeking absolute monitor accuracy without DAW software limitations.
• Home and hybrid studio owners looking to correct room acoustic problems without changing monitors or room structure.
• Professionals using external analog mixing consoles or processors where independent calibration is required.

Can't find the IK Multimedia product you're looking for or another acoustic solution? Contact us: info@stageiq.lt or +370 636 55536
