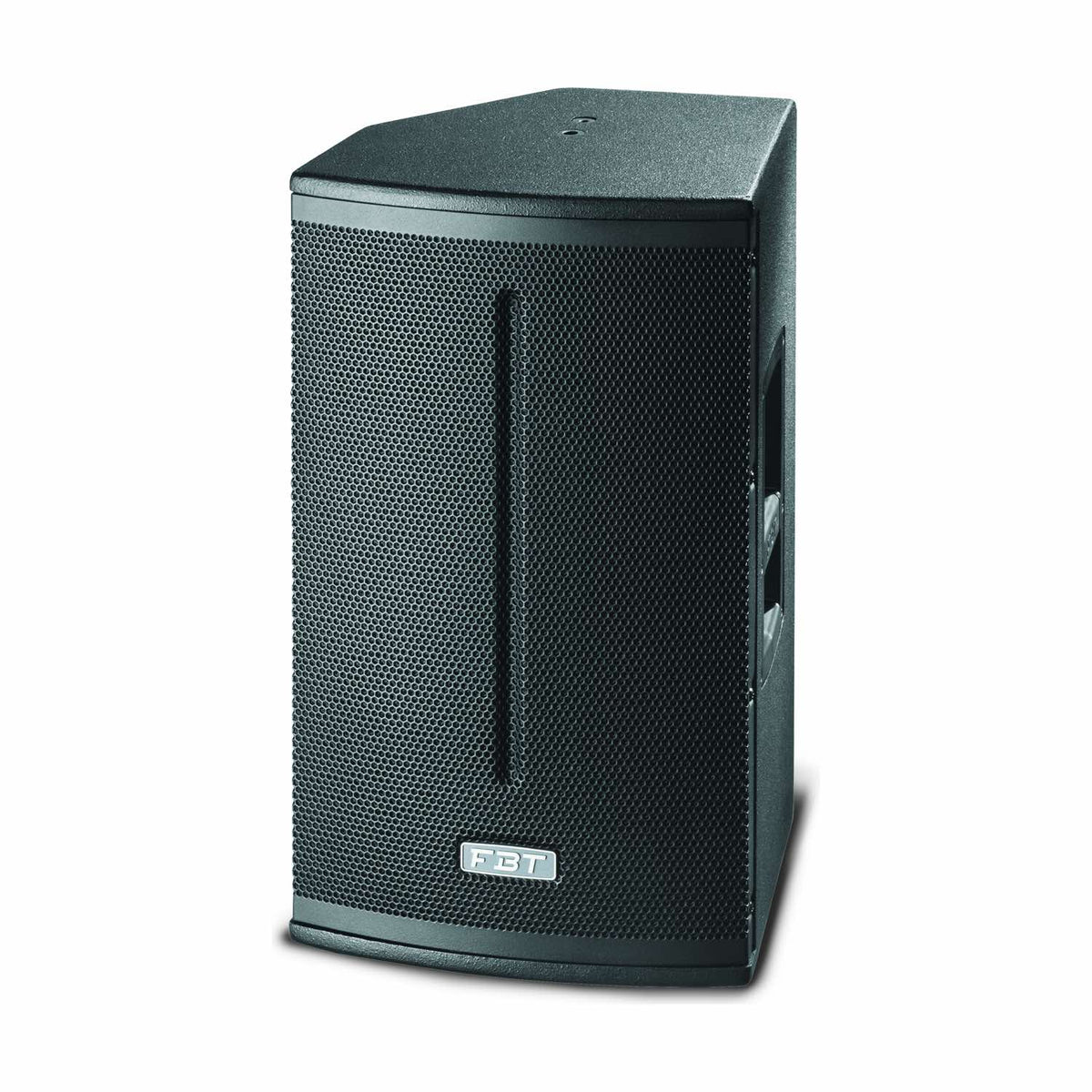

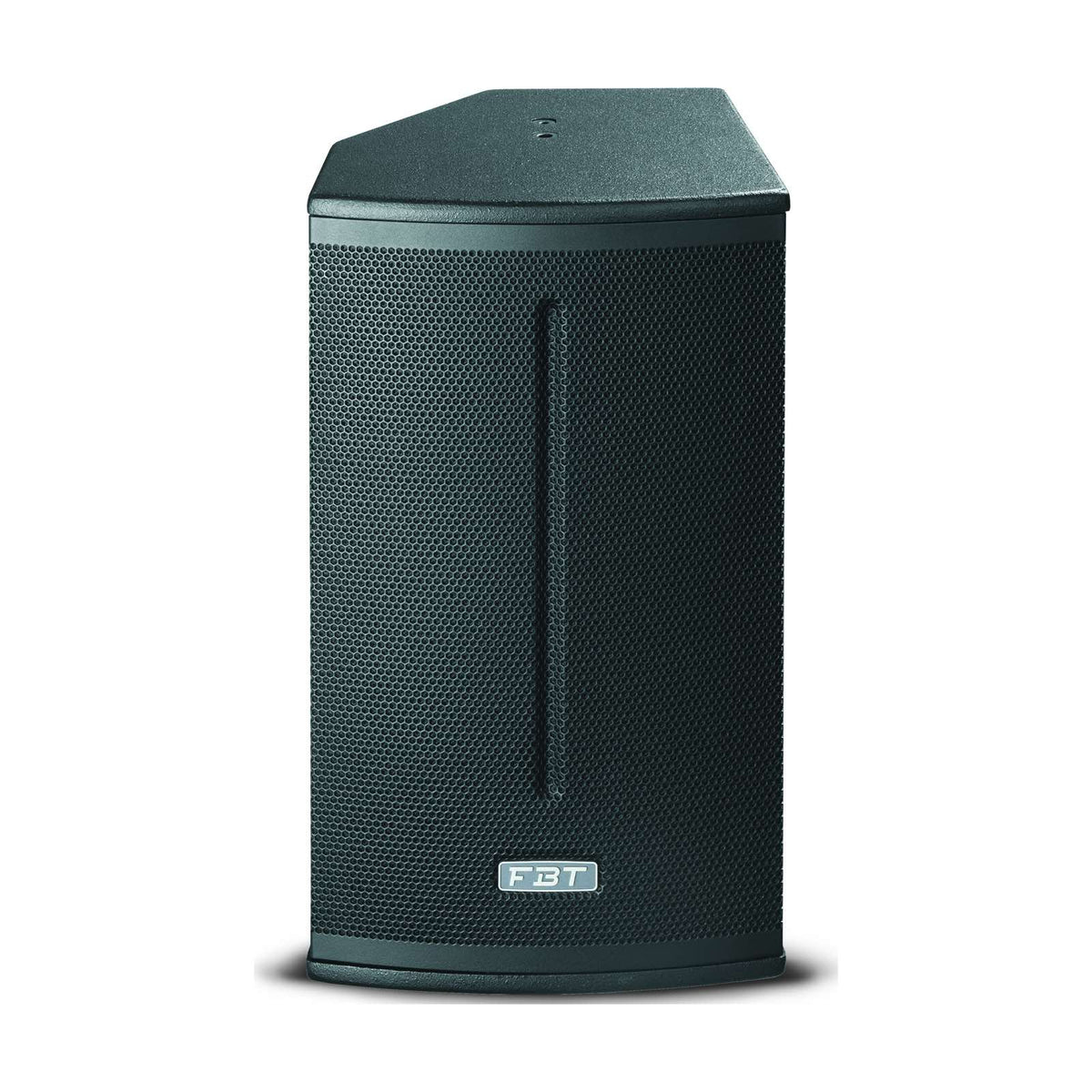

FBT X-PRO 115A Active Speaker

FBT X-PRO 115A Active Speaker

FBT X-PRO 115A is a 2-way active loudspeaker with separate Class D amplifiers for the low- and high-frequency drivers.

A birch plywood cabinet with internal reinforcement and a scratch-resistant coating suits portable and installed sound. Steel front grilles protect the drivers, and the finish is black.

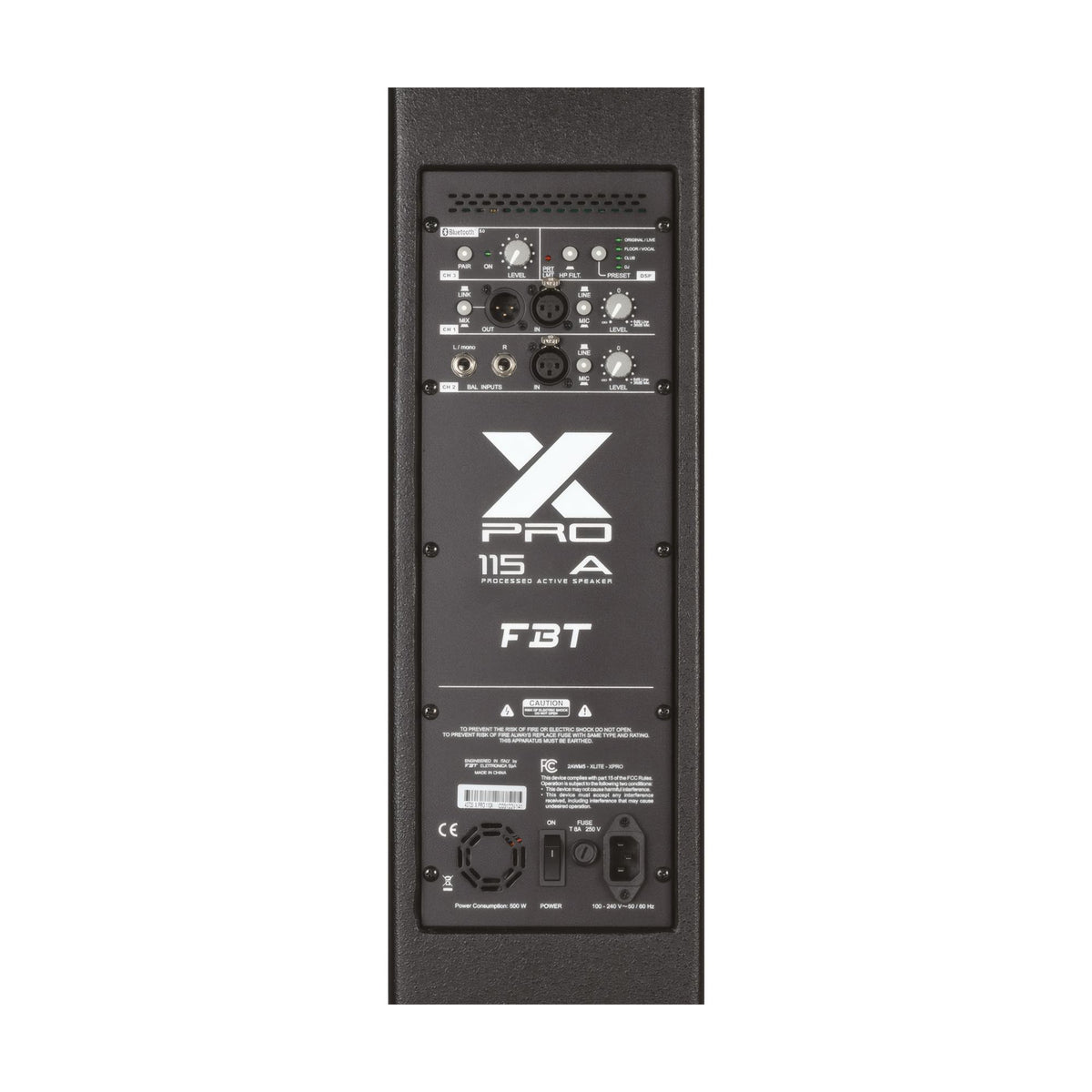

The built-in 3-channel mixer provides independent source level controls. CH1 and CH2 have XLR inputs with MIC/LINE switches for microphones or line-level signals. CH2 also provides two 6.3 mm L/mono and R sockets for a keyboard or another stereo source.

The third channel receives Bluetooth 5.0 audio from a phone or tablet, with volume also controllable from the source device. A single speaker also works with older Bluetooth devices.

Main Features

• 4 DSP presets: ORIGINAL / LIVE for live sound, FLOOR / VOCAL for monitoring and speech, and CLUB or DJ for music playback.
• DSP adjusts the frequency response and dynamic processing; low-frequency dynamic EQ and energy control vary with the selected preset.
• The HPF attenuates signals below approximately 100 Hz at 18 dB/oct, for use with a separate subwoofer.
• Balanced XLR OUT: MIX carries the sum of channels 1, 2 and 3; LINK passes the direct CH1 input signal to another speaker or device.
• An 80° × 50° rotatable constant-directivity horn allows coverage to be adapted when using the speaker in a horizontal position.
• The cabinet can be placed on the floor as a stage monitor at 35° or 45°.
• 4 M10 rigging points and a 35 mm stand socket support suspended or stand-mounted installations. Built-in handles assist transport.
• A variable-speed fan cools the amplifier. The PRT/LMT indicator shows limiter activity and protection against overheating or overload.

Two speakers can connect simultaneously to a Bluetooth 5.0 source. Both reproduce the same summed L+R mono signal rather than separate stereo channels. Pair them again after each power-off.

Technical Specifications

• Drivers: 1 × 15-inch LF with a 2.5-inch voice coil; 1 × 1-inch HF compression driver with a 1.4-inch voice coil
• Maximum Amplifier Power (LF / HF): 1200 / 300 W
• Frequency Response: 42 Hz - 20 kHz (−6 dB)
• Maximum SPL, Continuous / Peak: 125 / 130 dB
• Input Impedance: 22 kΩ
• Power Supply: 100–240 V AC, 50/60 Hz; switch-mode supply, IEC mains inlet
• Power Consumption: 500 W
• Power Cable Length: 5 m
• Dimensions (W × H × D): 436 × 735 × 440 mm
• Weight: 21.8 kg

What’s Included

• 1 × FBT X-PRO 115A active speaker
• Region-appropriate 5 m power cable

The XP-UH 15 horizontal wall bracket and XP-C 15 protective cover are optional accessories, sold separately.

Suspended installation must be carried out by qualified personnel using original FBT accessories. Do not suspend the speaker by its handles.

Who Is It For

For live music and speech, mobile DJs, small stages and fixed installations. It can serve as a main loudspeaker or a floor stage monitor.
