FBT X-PRO 112MA Active Speaker

FBT X-PRO 112MA Active Speaker

FBT X-PRO 112MA is a 2-way active loudspeaker with a Bass Reflex cabinet.

Separate Class D amplifiers power the low- and high-frequency drivers. Designed as a floor stage monitor, the speaker can also serve front-of-house applications on a stand.

The birch plywood cabinet has a scratch-resistant coating. Steel front grilles protect the drivers. The finish is black.

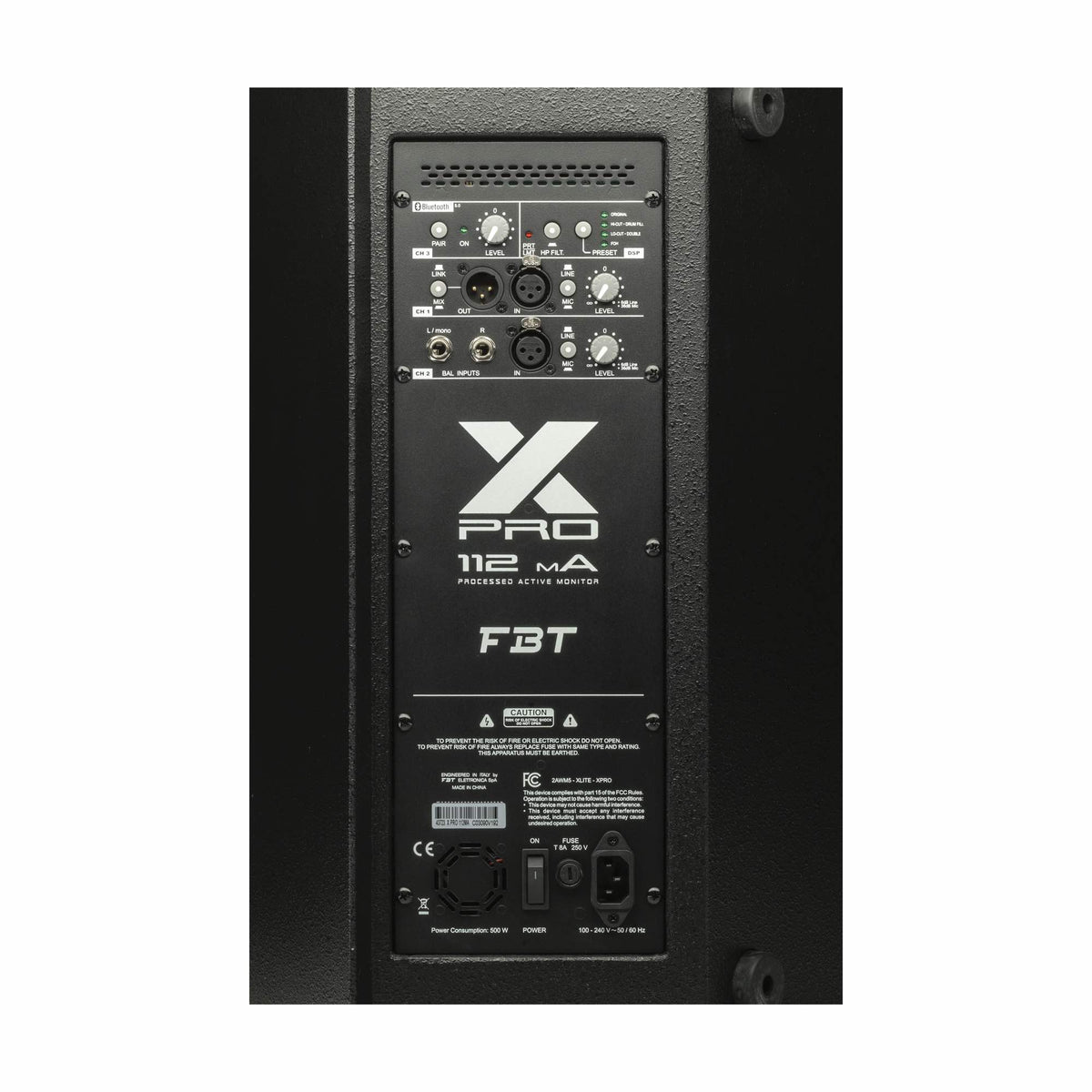

The built-in 3-channel mixer provides independent source level controls. CH1 and CH2 have XLR inputs with MIC/LINE switches for microphones or line-level signals. CH2 also provides two 6.3 mm L/mono and R sockets for a keyboard or another stereo source.

The third channel receives Bluetooth 5.0 audio from a phone or tablet, with volume also controllable from the source device. A single speaker also works with older Bluetooth devices.

Main Features

• 4 DSP presets: ORIGINAL balances bass when the monitor is placed on the floor. HI-CUT / DRUM FILL reduces prominent mid/high frequencies at close range and suits drum monitoring with a subwoofer.
• LO-CUT / DOUBLE reduces excess bass and balances two monitors in a wired stereo system. FOH suits main sound reinforcement on a stand or wall bracket. DSP adjusts frequency response and dynamic processing.
• The HPF attenuates signals below approximately 100 Hz at 18 dB/oct, for use with a separate subwoofer.
• Balanced XLR OUT: MIX carries the sum of channels 1, 2 and 3; LINK passes the direct CH1 input signal to another speaker or device.
• The monitor cabinet provides 35° and 55° support angles for different floor positions.
• A 35 mm stand socket allows raised installation. Two integrated handles assist transport.
• A variable-speed fan cools the amplifier. The PRT/LMT indicator shows limiter activity and protection against overheating or overload.

Simultaneous playback through two speakers requires an Android source with Bluetooth 5.0 or later and simultaneous audio streaming to two devices. Bluetooth version alone is insufficient. Pair them again after power-off.

Technical Specifications

• Dispersion: 80°
• Drivers: 1 × 12-inch LF with a 2.5-inch voice coil; 1 × 1-inch HF compression driver with a 1.4-inch voice coil
• Maximum Amplifier Power (LF / HF): 1200 / 300 W
• Frequency Response: 54 Hz - 20 kHz (−6 dB)
• Maximum SPL, Continuous / Peak: 124 / 129 dB
• Input Impedance: 22 kΩ
• Power Supply: 100–240 V AC, 50/60 Hz; switch-mode supply, IEC mains inlet
• Power Consumption: 500 W
• Power Cable Length: 5 m
• Dimensions (W × H × D): 558 × 330 × 467 mm
• Weight: 16.2 kg

What’s Included

• 1 × FBT X-PRO 112MA active speaker
• Region-appropriate 5 m power cable

The XP-UH 112M horizontal wall bracket and XP-C 112M protective cover are optional accessories, sold separately.

Other compatible optional accessories are the WMA 560BK wall bracket and FMS 220BK, MSA 220BKS or MSA 300BK stands.

The stand must bear the speaker weight and remain stable on a flat, non-slip surface.

Who Is It For

For performer and DJ monitoring, concerts and clubs. It can also serve as a side-fill monitor or main sound reinforcement speaker.
