FBT VENTIS 115A Active Loudspeaker

FBT VENTIS 115A Active Loudspeaker

The FBT VENTIS 115A is a two-way active loudspeaker with a 15-inch woofer in a birch plywood enclosure.

FBT specifies 700 / 200 W RMS MAX amplifier power for a 2 ms burst. Frequency response is 42–20,000 Hz (-6 dB), with 133 dB peak SPL.

The rotatable horn provides 80° × 50° dispersion for horizontal or vertical orientation. DSP offers six factory presets and two user memories with five parametric EQ bands each.

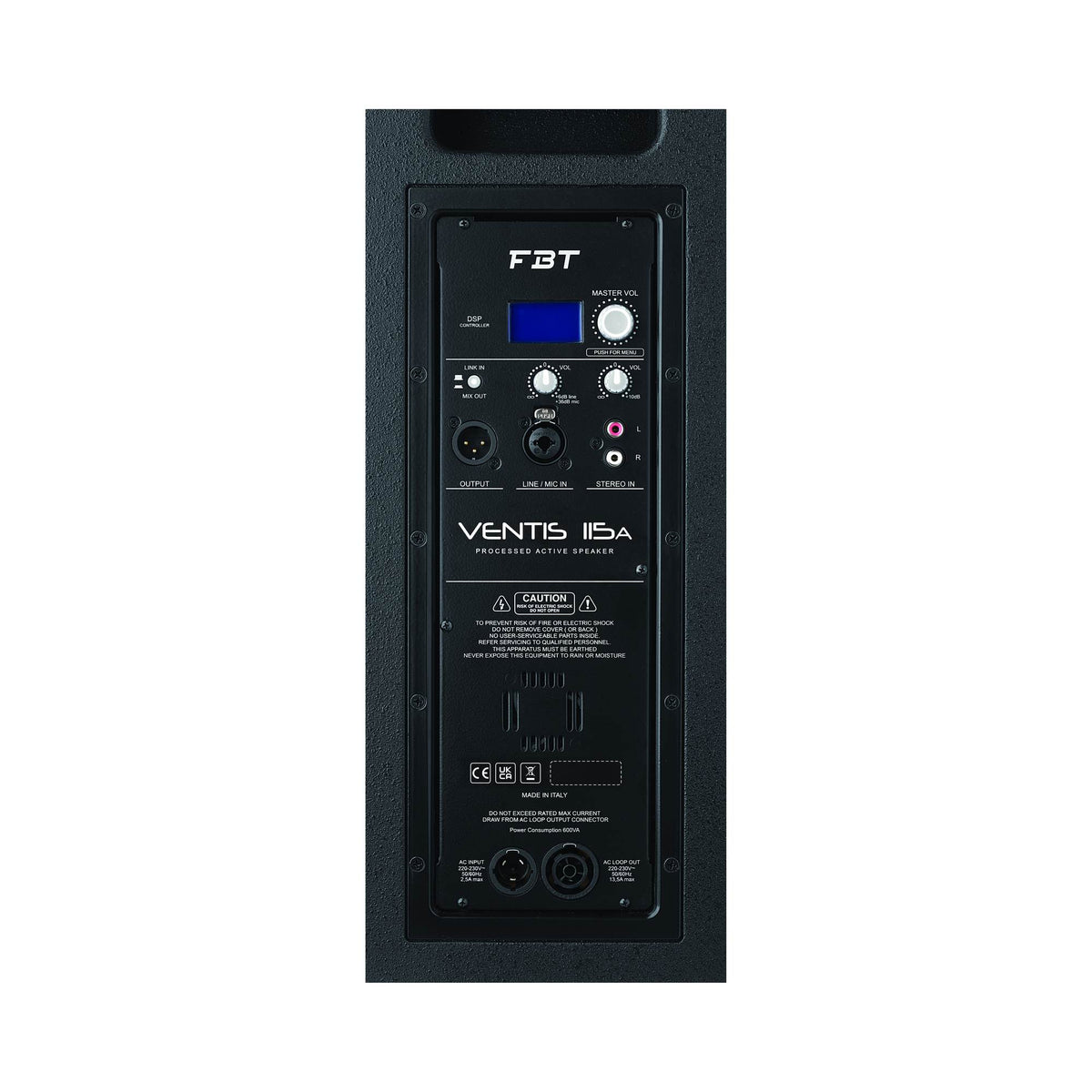

An XLR/Jack input, stereo RCA input and XLR link output support source connection and signal passing. A high-pass filter, three-band EQ and delay adjustable up to 10 m provide additional system tuning.

Main Features

• A 15-inch woofer reproduces the LF range.
• The 1-inch HF driver with a 1.7-inch voice coil reproduces the HF range.
• Six DSP factory presets and two user memories provide selectable and saved system tuning.
• Five parametric EQ bands in each user memory support detailed tuning.
• A high-pass filter and delay adjustable up to 10 m help align the speaker with the rest of the system.
• XLR/Jack and stereo RCA inputs accept different audio sources.
• An XLR link output passes the signal to another loudspeaker.
• The rotatable 80° × 50° horn allows coverage to follow the speaker orientation.
• The 35 mm pole socket accepts a suitable speaker stand.

Technical Specifications

• Manufacturer code: 40642
• System: two-way active bass-reflex loudspeaker
• LF woofer: 15 in, 2.5 in voice coil
• HF driver: 1 in exit, 1.7 in voice coil
• MAX amplifier power: 700 / 200 W RMS (2 ms burst)
• Peak amplifier power: 1400 / 400 W
• Frequency response: 42–20,000 Hz (-6 dB)
• Maximum SPL: 127 dB continuous / 133 dB peak
• Dispersion: 80° × 50°
• Connections: XLR/Jack input, stereo RCA input, XLR link output
• Input impedance: 22 kΩ
• DSP: 6 factory presets, 2 user memories
• Controls: high-pass filter, 3-band EQ, delay up to 10 m
• Mounting: 6 M10 suspension points, 35 mm pole socket
• AC power requirement: 600 VA
• Power cord length: 5 m
• Enclosure: 15 mm birch plywood
• Dimensions (W × H × D): 427 × 765 × 420 mm
• Product net weight: 26.5 kg

What’s Included

• 1 × FBT VENTIS 115A active loudspeaker

Who Is It For

Suitable for mobile live sound and DJ events, conferences and fixed sound systems. Placement depends on the venue and required coverage.
