FBT STAGEMAXX 12MA Active Stage Monitor
Couldn't load pickup availability
Description
Description
FBT STAGEMAXX 12MA Active Stage Monitor
The FBT STAGEMAXX 12MA is a processed active stage monitor engineered specifically for professional live sound reinforcement. Built around a coaxial driver configuration, it integrates a custom 12" B&C woofer with a 64 mm (2.5") voice coil and a B&C 1" compression driver with 44 mm (1.7") voice coil, aligned on the same acoustic axis for precise phase coherence and uniform 90° conical dispersion. The bi-amplified Class D amplifier section delivers 400W + 100W RMS, backed by a switch mode power supply and onboard DSP with four factory EQ presets.

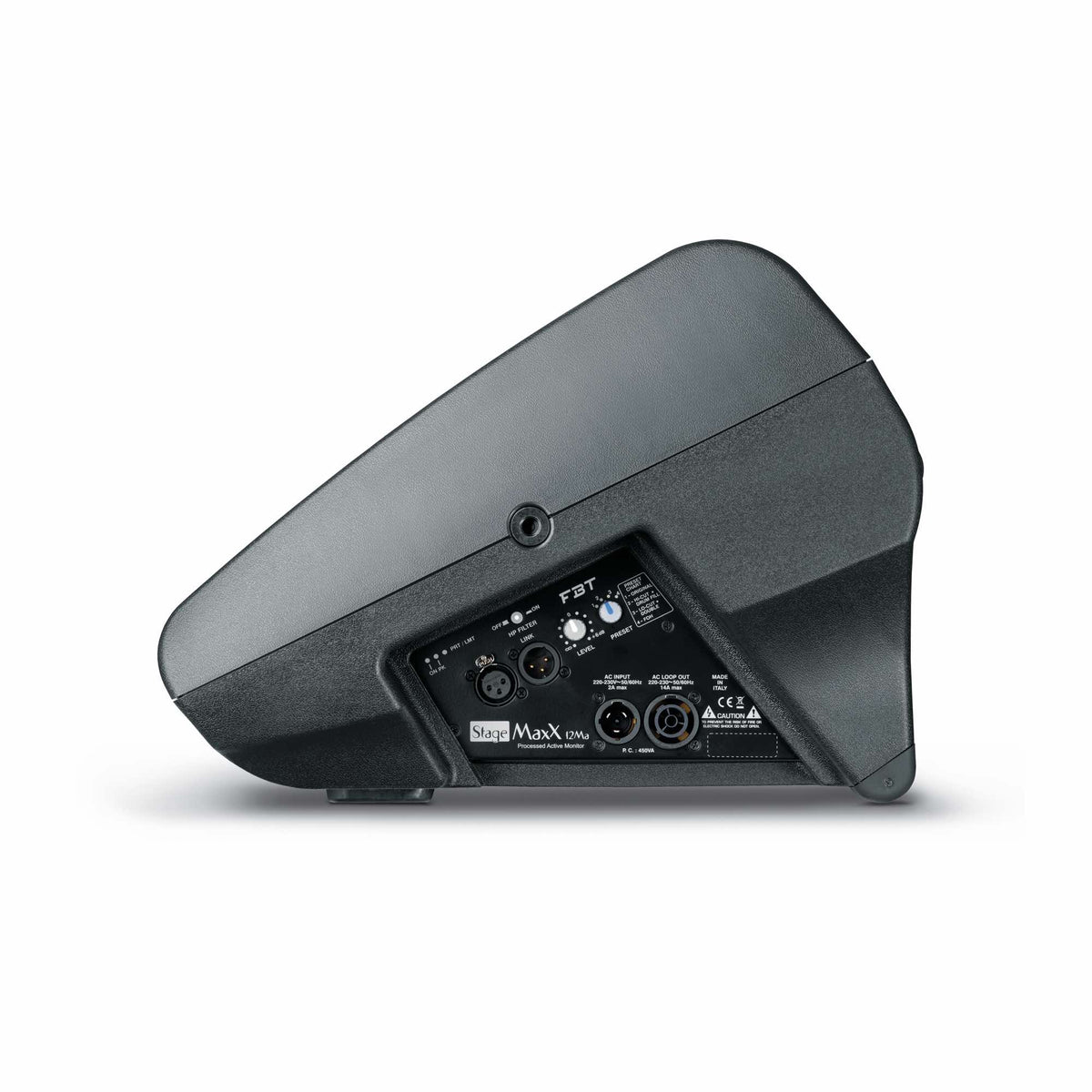

The gas-injected polypropylene cabinet is designed to minimize unwanted resonance while maintaining low profile and compact dimensions. A dual-angle front panel design allows setup at either 35° (for single user near-field) or 55° (for multiple users), and the unit features two M10 rigging points for suspended installation or wall mounting. Three integrated handles and replaceable Teflon feet facilitate stage transport and positioning. The rear control panel houses XLR/Jack input with XLR link output, volume control, four-way preset selector, high-pass filter switch, and three status LEDs (power, signal/peak, protection/limiter). Connectivity includes Neutrik PowerCon True1 input and loop output for daisy-chaining additional units.
Key Features
- Coaxial B&C Drivers: 12" custom woofer (64 mm voice coil) and 1" compression driver (44 mm voice coil) mounted coaxially for aligned acoustic centers and uniform 90° dispersion.
- Bi-Amplified Class D Power: 400W RMS low frequency and 100W RMS high frequency (800W + 200W peak), driven by switch mode power supply for 130 dB peak SPL.
- Integrated DSP with Four Presets: Factory EQ modes optimized for different applications, including Original (general floor monitor), FOH (fuller sound for suspended or pole-mount use), Hi-Cut/Drum Fill, and additional preset for specific applications.
- Dual-Angle Front Panel: Selectable 35° or 55° tilt for optimal listening distance, single user or multiple performers.
- Bass Reflex Design: Two-way configuration with crossover at 1.8 kHz and frequency response of 60 Hz to 20 kHz (-6 dB).
- Gas-Injected Polypropylene Enclosure: Resonance-free construction with weather-resistant coating behind steel grille, three ergonomic handles, and replaceable Teflon feet.
- Flexible Installation: Two lateral M10 rigging points for wall/ceiling mounting or suspended installation, optional wall bracket available separately.
Technical Specifications
- Manufacturer: FBT
- Model: STAGEMAXX 12MA (Processed Active Reinforcement Monitor)
- Product Code: STAGEMAXX 12 MA
- Configuration: 2-way, bi-amplified, bass reflex
- Low Frequency Driver: 12" B&C custom woofer with 64 mm (2.5") voice coil
- High Frequency Driver: B&C 1" exit throat compression driver with 44 mm (1.7") voice coil
- Amplifier Type: Class D
- Power Output (RMS): 400W LF + 100W HF
- Power Output (Peak): 800W LF + 200W HF
- Frequency Response (-6 dB): 60 Hz – 20 kHz
- Maximum SPL (Continuous/Peak): 124 dB / 130 dB
- Dispersion: 90° conical
- Crossover Frequency: 1.8 kHz
- DSP: 4 factory EQ presets
- Input Impedance: 22 kΩ
- Input Connectors: XLR/Jack combo with XLR link output
- Controls: Volume, 4-way preset selector, high-pass filter switch
- LED Indicators: 3 (Power On, Signal/Peak, Protection/Limiter)
- AC Power Connector: Neutrik PowerCon True1 with input and loop output
- AC Power Requirements: 450 VA
- Power Cord Length: 5 m
- Rigging Points: 2 × M10 (lateral)
- Tilt Angles: 35° or 55°
- Dimensions (W × H × D): 550 × 289 × 392 mm
- Weight: 13.6 kg
- Cabinet Material: Gas-injected polypropylene
- Grille: Perforated steel with weather-resistant coating
- Handles: 3 integrated ergonomic
- Feet: Replaceable Teflon
Who Is It For?
- Live Sound Engineers: Stage monitoring for vocalists and musicians requiring high SPL, low feedback susceptibility, and uniform coverage across the performance area.
- Touring Musicians and Bands: Compact, lightweight monitor with multiple EQ presets for different venues and applications, robust construction for frequent transport.
- Theaters and Houses of Worship: Dual-purpose use as floor monitor or FOH speaker (via suspended/wall mounting) with DSP presets to adapt to room acoustics.
- Fixed Installation Contractors: Wall or ceiling mounting via M10 rigging points and optional bracket, suitable for rehearsal spaces, conference rooms, and performance venues.
