FBT PROMAXX 114A Active Loudspeaker

FBT PROMAXX 114A Active Loudspeaker

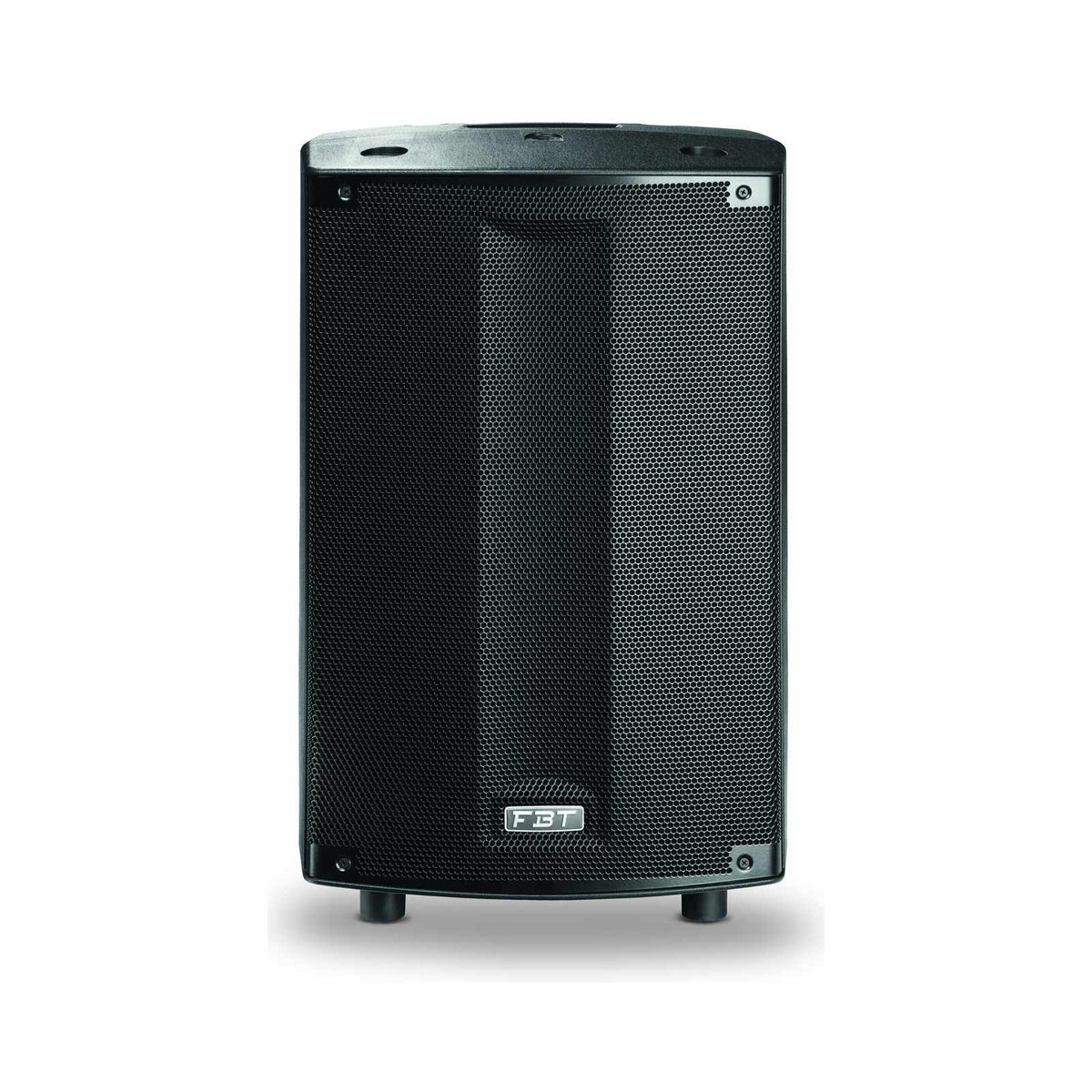

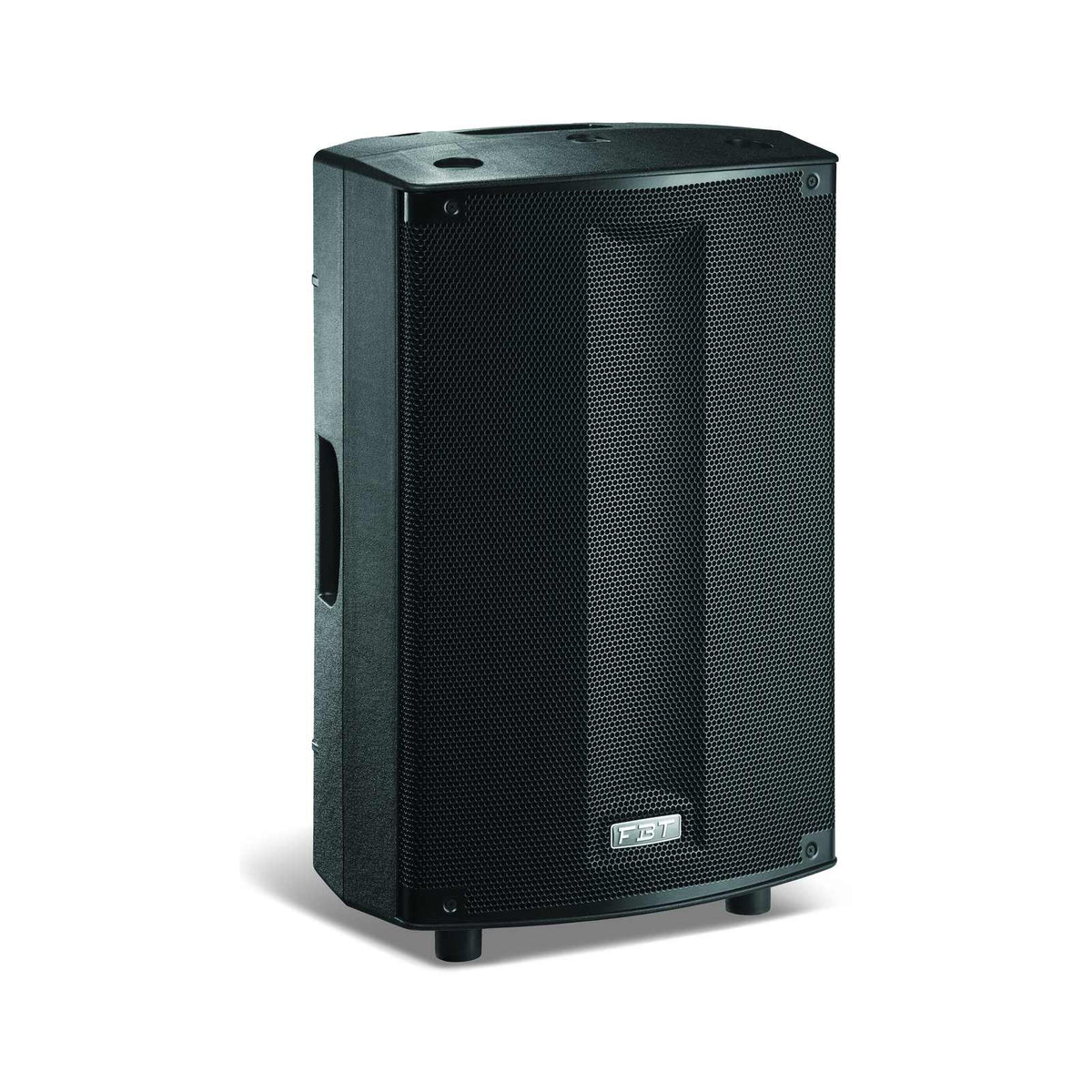

The FBT PROMAXX 114A is a two-way active loudspeaker with a 14-inch low-frequency driver in a bass-reflex enclosure.

It can serve as a main PA speaker or a floor monitor. Its 90° horizontal by 60° vertical dispersion defines the coverage area, while three cabinet angles support monitor placement.

Separate amplifiers drive the low- and high-frequency sections. The DSP provides six factory presets and two user memories, each with five bands of parametric EQ.

A balanced XLR/Jack input and stereo RCA input accept different sources; an XLR output passes the signal to another speaker. Installation options include a 35 mm pole socket and two M10 suspension points for use with suitable mounting hardware.

Main Features

• A 14-inch LF driver and 1.4-inch HF driver reproduce separately amplified frequency bands.
• Six DSP factory presets provide starting points for different uses.
• Two user memories with five parametric EQ bands each allow custom settings to be saved.
• A high-pass filter, three-band EQ, delay adjustable up to 10 m and selectable limiter modes add tuning options.
• The XLR/Jack input supports line or microphone sources, and stereo RCA accepts an additional source.
• An XLR output passes the signal to another speaker.
• The 90° × 60° dispersion and 12°, 40° and 55° monitor angles provide placement choices.
• A 35 mm pole socket and two M10 points support pole mounting or suitable suspension hardware.
• A polypropylene enclosure with a full front grille suits portable sound reinforcement.

Technical Specifications

• Manufacturer code: 40603
• System: two-way active, bass reflex
• LF driver: 14 in, 3 in voice coil
• HF driver: 1.4 in exit, 2.5 in voice coil
• Amplifiers: 700 / 200 W RMS (FBT MAX, 2 ms burst)
• Frequency response: 45–20,000 Hz (-6 dB)
• Maximum SPL: 127.5 dB continuous / 135.5 dB peak
• Dispersion: 90° horizontal × 60° vertical
• Inputs and outputs: XLR/Jack combo input, stereo RCA input, XLR output
• Input impedance: 22 kΩ
• DSP: 6 factory presets, 2 user memories, 5 parametric EQ bands per memory
• Floor monitor angles: 12°, 40° and 55°
• Mounting: 35 mm pole socket, 2 M10 suspension points
• AC power requirement: 600 VA
• Dimensions (W × H × D): 402 × 644 × 345 mm
• Product net weight: 18.8 kg

What’s Included

• 1 × FBT PROMAXX 114A active loudspeaker

Who Is It For

Suitable for mobile live sound and DJ systems, stage monitoring, conferences and fixed installations that reproduce speech or music.
