FBT PROMAXX 112A Active Loudspeaker

FBT PROMAXX 112A Active Loudspeaker

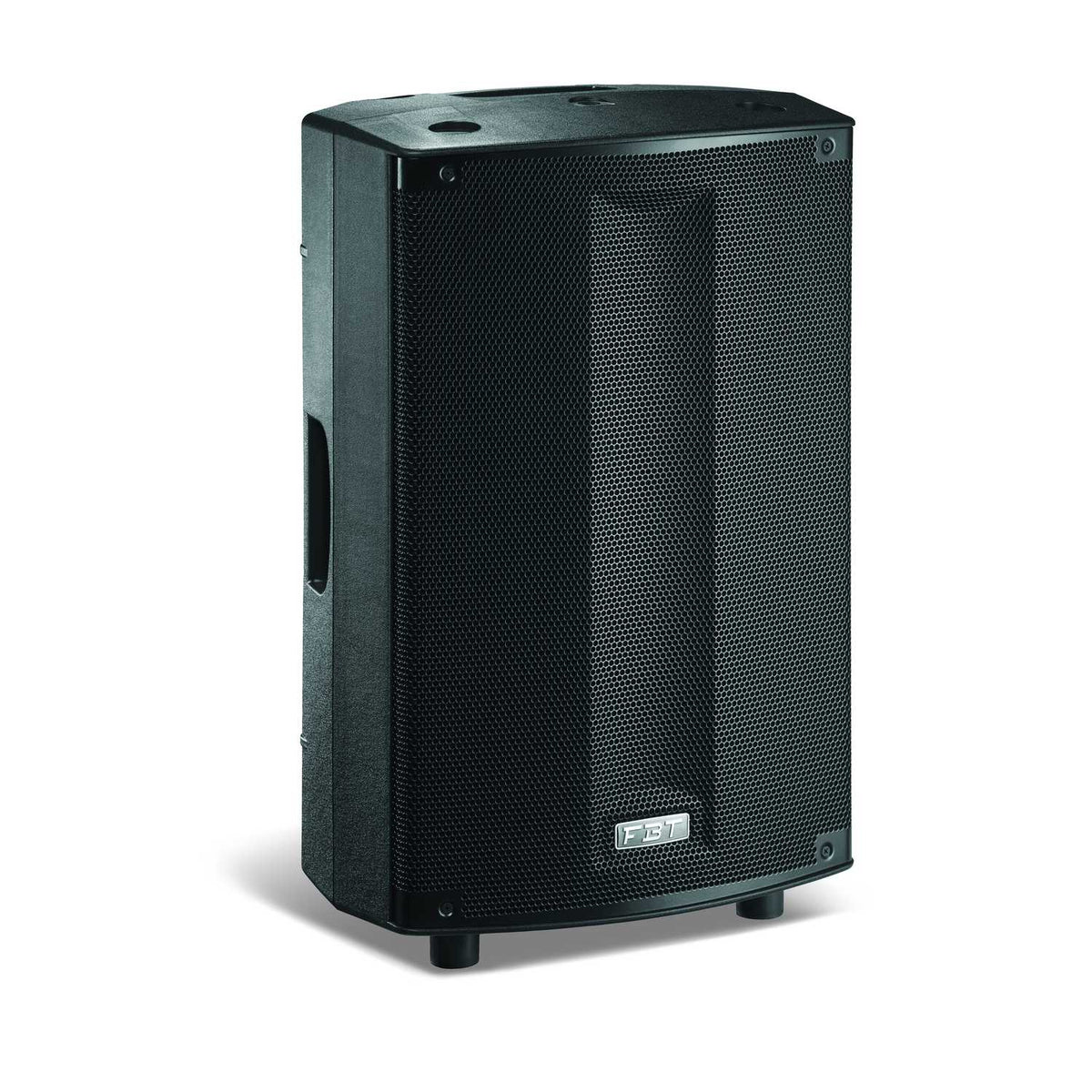

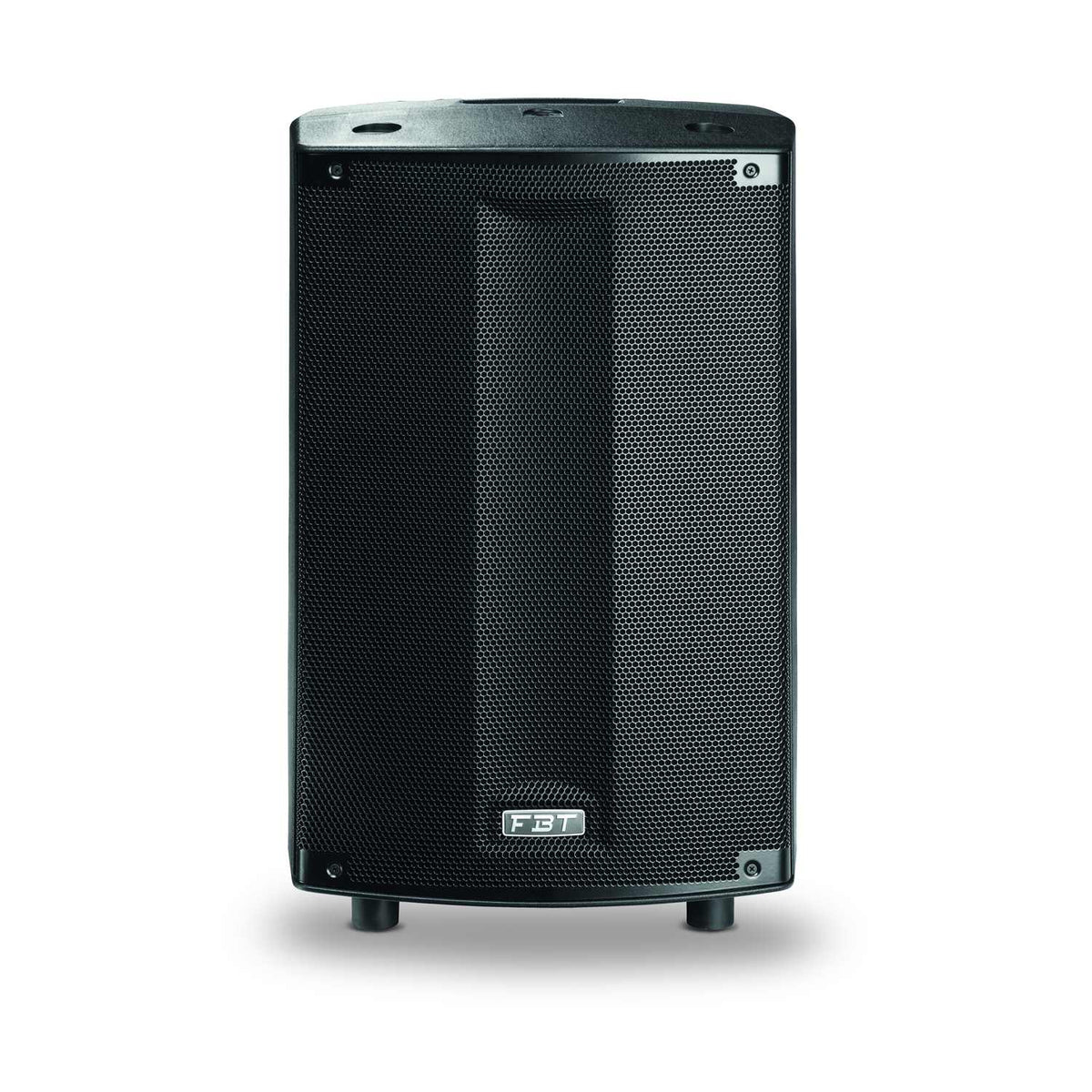

The FBT PROMAXX 112A is a two-way active loudspeaker with a 12-inch low-frequency driver in a bass-reflex enclosure.

It can serve as a main PA speaker or a floor monitor. Its 90° horizontal by 60° vertical dispersion helps define coverage, while the cabinet supports 12°, 40° and 55° monitor angles.

Separate amplifiers drive the LF and HF sections. The DSP provides six factory presets and two user memories, each with five bands of parametric EQ.

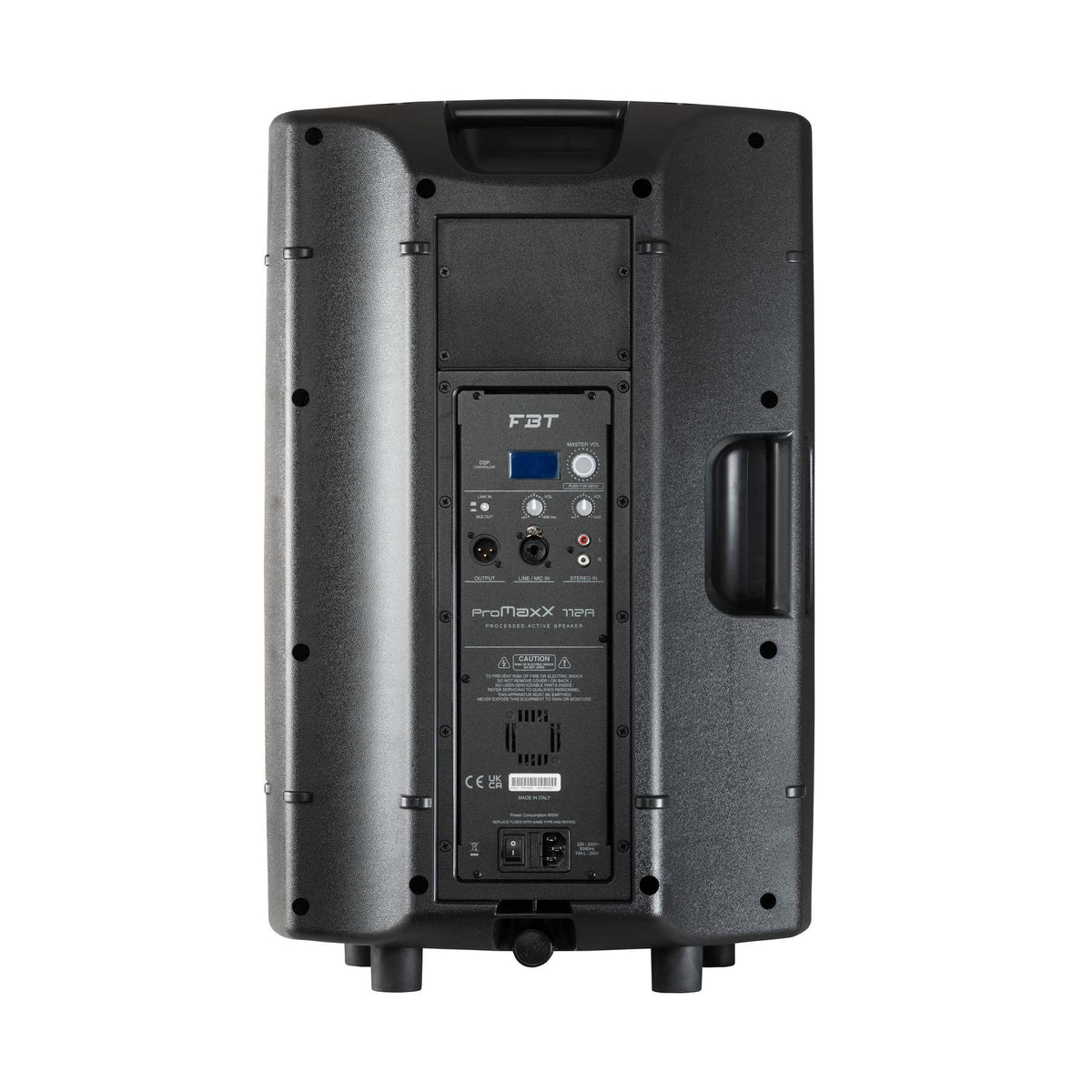

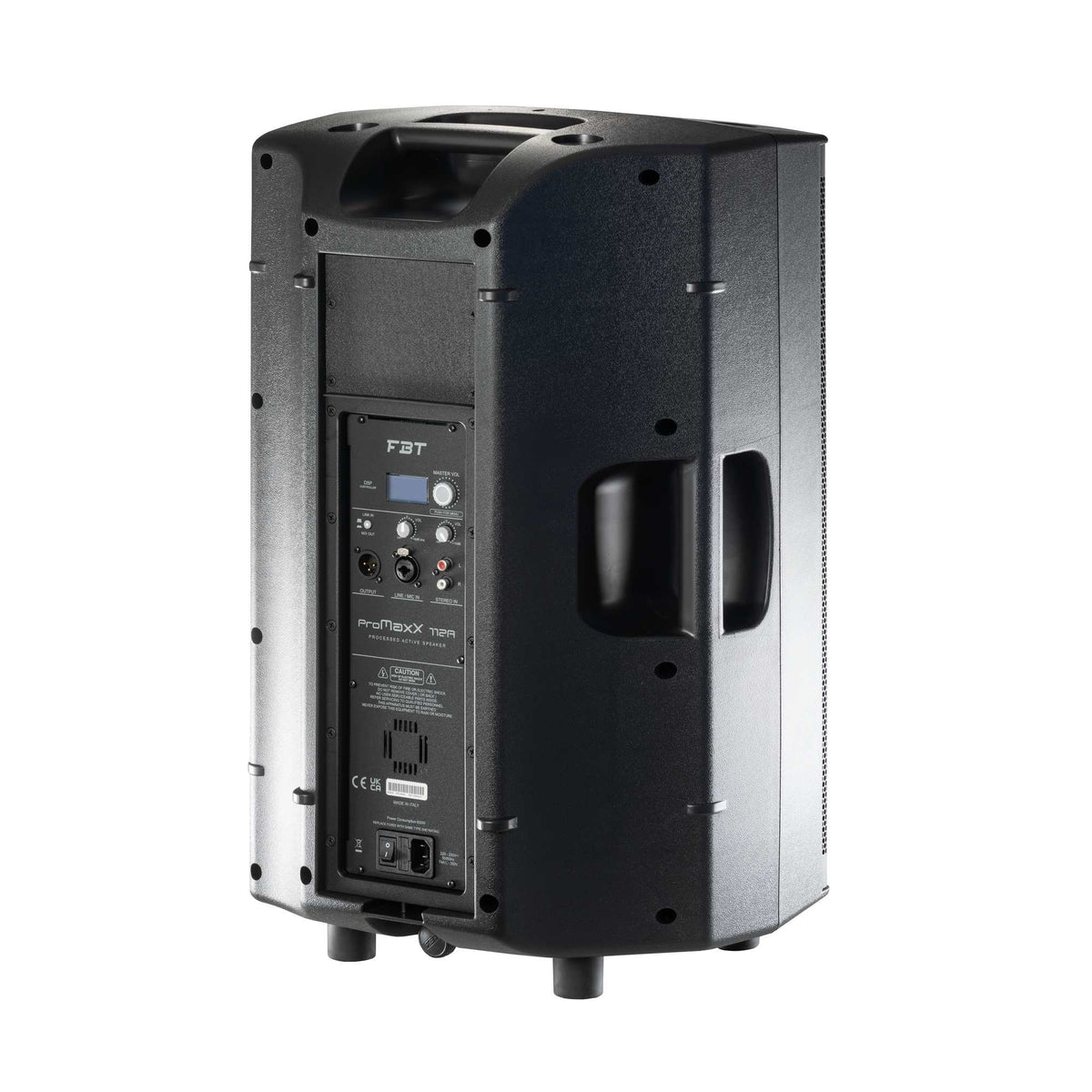

The rear panel has a balanced XLR/Jack input, stereo RCA input and XLR output for passing the signal to another speaker. A 35 mm pole socket and two M10 suspension points offer mounting options with suitable hardware.

Main Features

• A 12-inch LF driver and 1-inch HF driver reproduce separately amplified frequency bands.
• Six DSP factory presets offer quick starting settings.
• Two user memories with five parametric EQ bands each store custom tuning.
• A high-pass filter, three-band EQ, delay adjustable up to 10 m and three limiter modes allow further system tuning.
• The XLR/Jack input accepts line or microphone signals, while stereo RCA adds another input option.
• An XLR output passes the signal to another speaker.
• The 90° × 60° dispersion and three monitor angles support different placements.
• A 35 mm pole socket and two M10 points support pole mounting or suitable suspension hardware.
• A polypropylene enclosure with a full front grille suits portable sound systems.

Technical Specifications

• Manufacturer code: 40604
• System: two-way active, bass reflex
• LF driver: 12 in, 2.5 in voice coil
• HF driver: 1 in exit, 1.4 in voice coil
• Amplifiers: 700 / 200 W RMS (FBT MAX, 2 ms burst)
• Frequency response: 48–20,000 Hz (-6 dB)
• Maximum SPL: 126 dB continuous / 133 dB peak
• Dispersion: 90° horizontal × 60° vertical
• Inputs and outputs: XLR/Jack combo input, stereo RCA input, XLR output
• Input impedance: 22 kΩ
• DSP: 6 factory presets, 2 user memories, 5 parametric EQ bands per memory
• Floor monitor angles: 12°, 40° and 55°
• Mounting: 35 mm pole socket, 2 M10 suspension points
• AC power requirement: 600 VA
• Dimensions (W × H × D): 402 × 644 × 345 mm
• Product net weight: 18.1 kg

What’s Included

• 1 × FBT PROMAXX 112A active loudspeaker

Who Is It For

Suitable for live sound and DJ systems, stage monitoring, conferences and fixed installations for speech or music.
