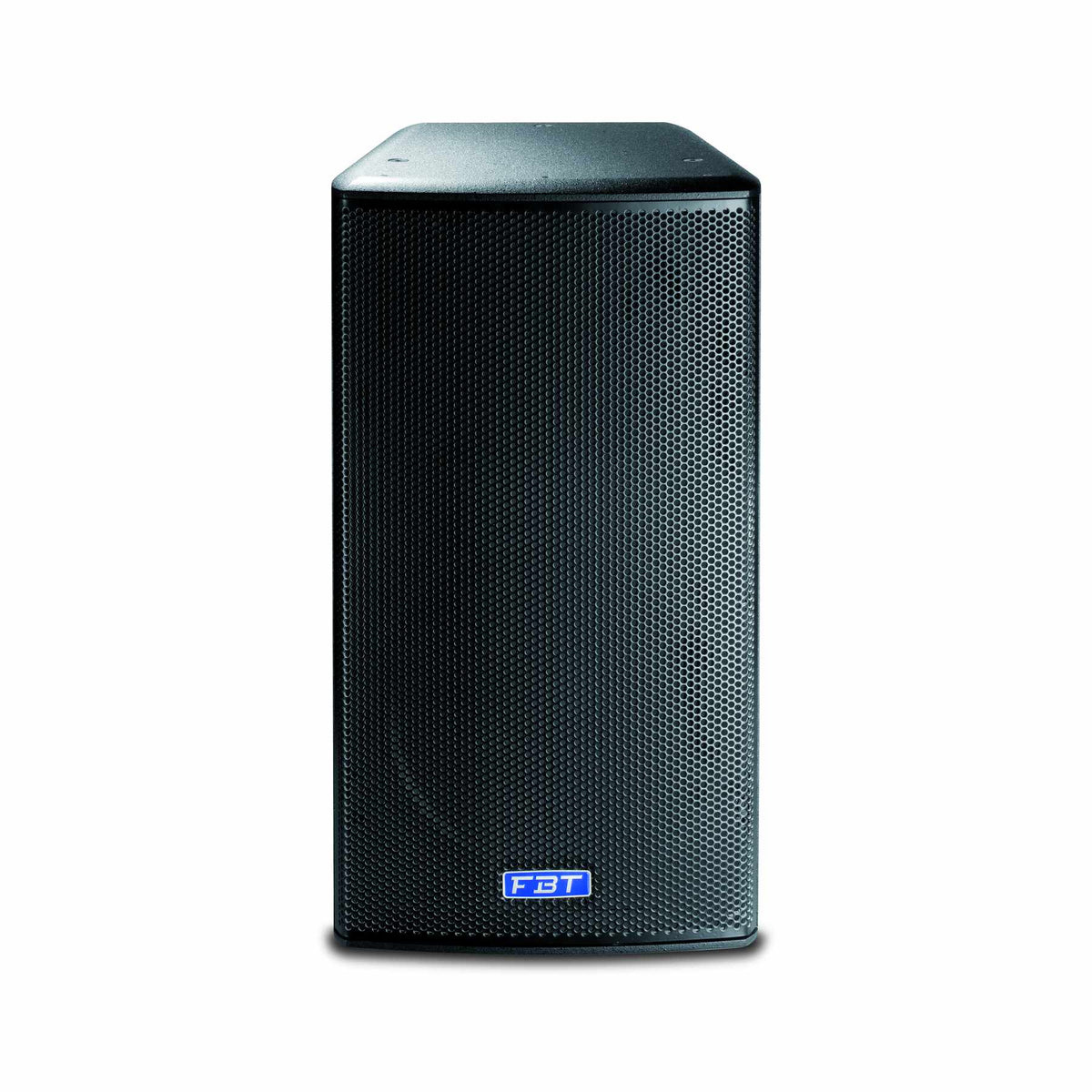

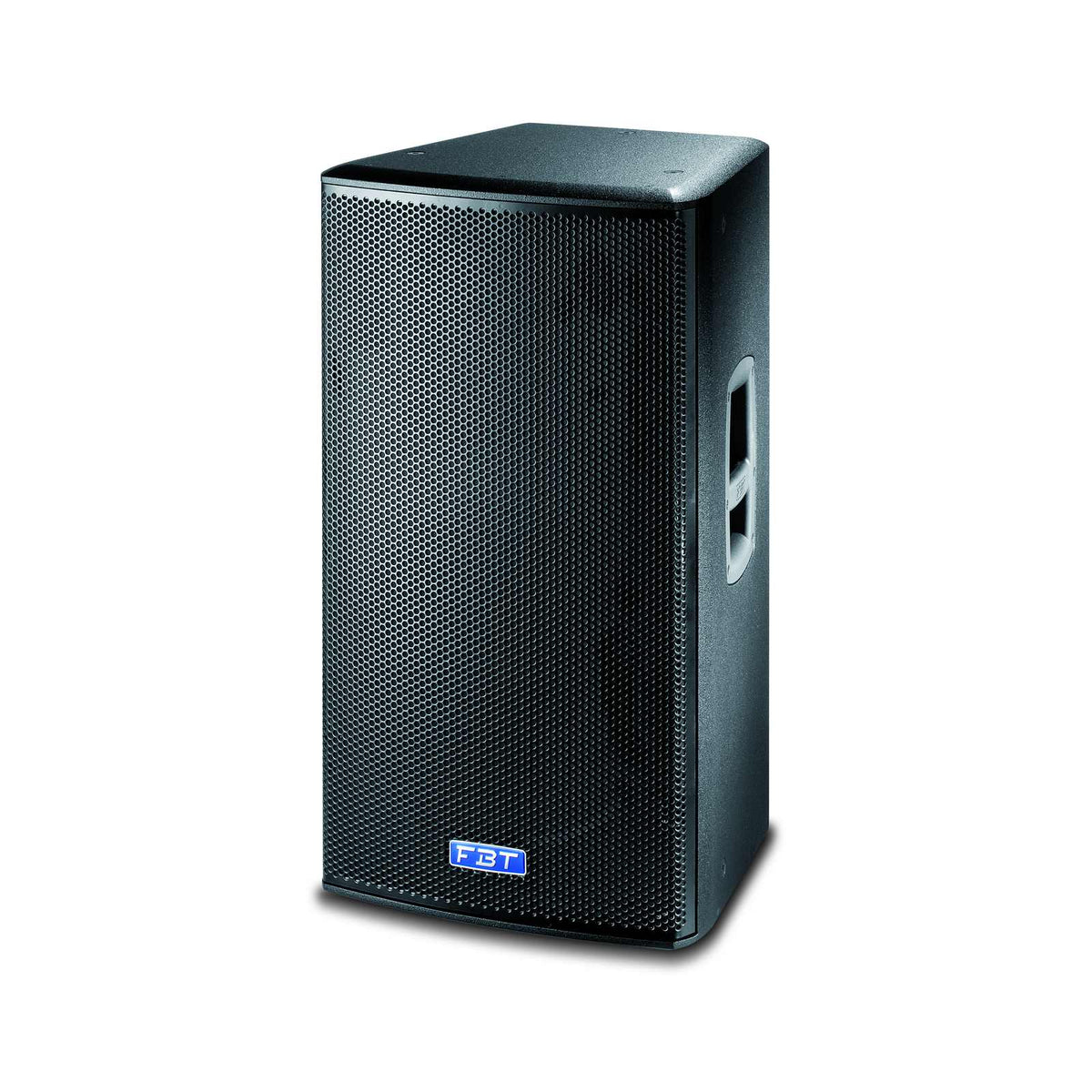

FBT MITUS 152A Active Loudspeaker

FBT MITUS 152A Active Loudspeaker

The FBT MITUS 152A is a two-way active loudspeaker with a 15-inch woofer in a birch plywood enclosure.

Separate amplifiers drive its LF and HF sections. FBT specifies 700 / 200 W RMS continuous and 1100 / 250 W RMS MAX power measured with a 2 ms burst. Frequency response is 45–20,000 Hz (-6 dB), and peak SPL reaches 136 dB.

The rotatable HF horn provides 60° × 40° dispersion and can be oriented to suit the speaker layout. Onboard DSP offers 6 EQ presets, while the rear panel provides an XLR input and XLR link output.

The 15 mm birch plywood cabinet has a protective metal grille and twelve M10 suspension points plus a 35 mm pole socket. The controls also include adjustable delay and a high-pass filter.

Main Features

• A 15-inch woofer with a 3-inch voice coil reproduces the LF range.
• The 2-inch HF driver with a 2.5-inch voice coil uses a rotatable horn.
• 6 DSP EQ presets provide starting points for different sound reinforcement uses.
• The rotatable 60° × 40° horn supports horizontal or vertical speaker orientation.
• The XLR link output passes the signal to another loudspeaker in the system.
• Delay and high-pass filter controls help align the speaker with the rest of the system.
• Twelve M10 points allow installation with appropriate professional suspension hardware.
• The 35 mm socket accepts a suitable speaker stand.

Technical Specifications

• Manufacturer code: 35959
• System: two-way active loudspeaker
• LF woofer: 15 in, 3 in voice coil
• HF driver: 2 in exit, 2.5 in voice coil
• Continuous amplifier power: 700 / 200 W RMS
• MAX amplifier power: 1100 / 250 W RMS (2 ms burst)
• Peak amplifier power: 2200 / 500 W
• Frequency response: 45–20,000 Hz (-6 dB)
• Maximum SPL: 129 dB continuous / 136 dB peak (free space)
• Dispersion: 60° × 40°
• Crossover frequency: 1.2 kHz
• Input impedance: 22 kΩ
• Connections: XLR input and XLR link output
• Controls: level, 6 DSP presets, delay, high-pass filter
• Mounting: 12 M10 suspension points, 35 mm pole socket
• AC power requirement: 800 VA
• Power cord length: 5 m
• Enclosure: 15 mm birch plywood, metal front grille
• Dimensions (W × H × D): 425 × 805 × 421 mm
• Product net weight: 36.6 kg

What’s Included

• 1 × FBT MITUS 152A active loudspeaker

Who Is It For

Suitable for main live sound and DJ systems, as well as fixed installation in halls and clubs requiring controlled coverage and high sound levels.
