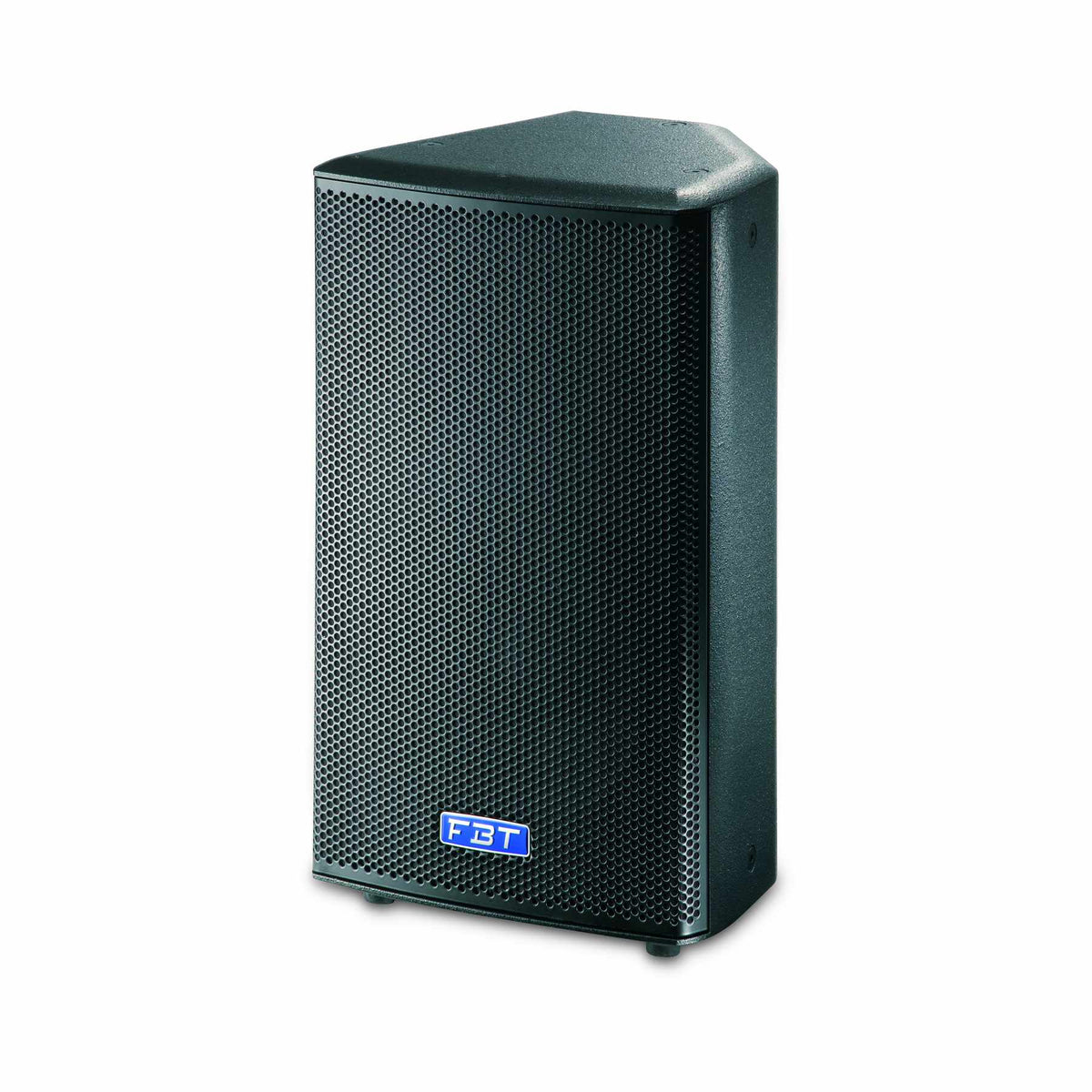

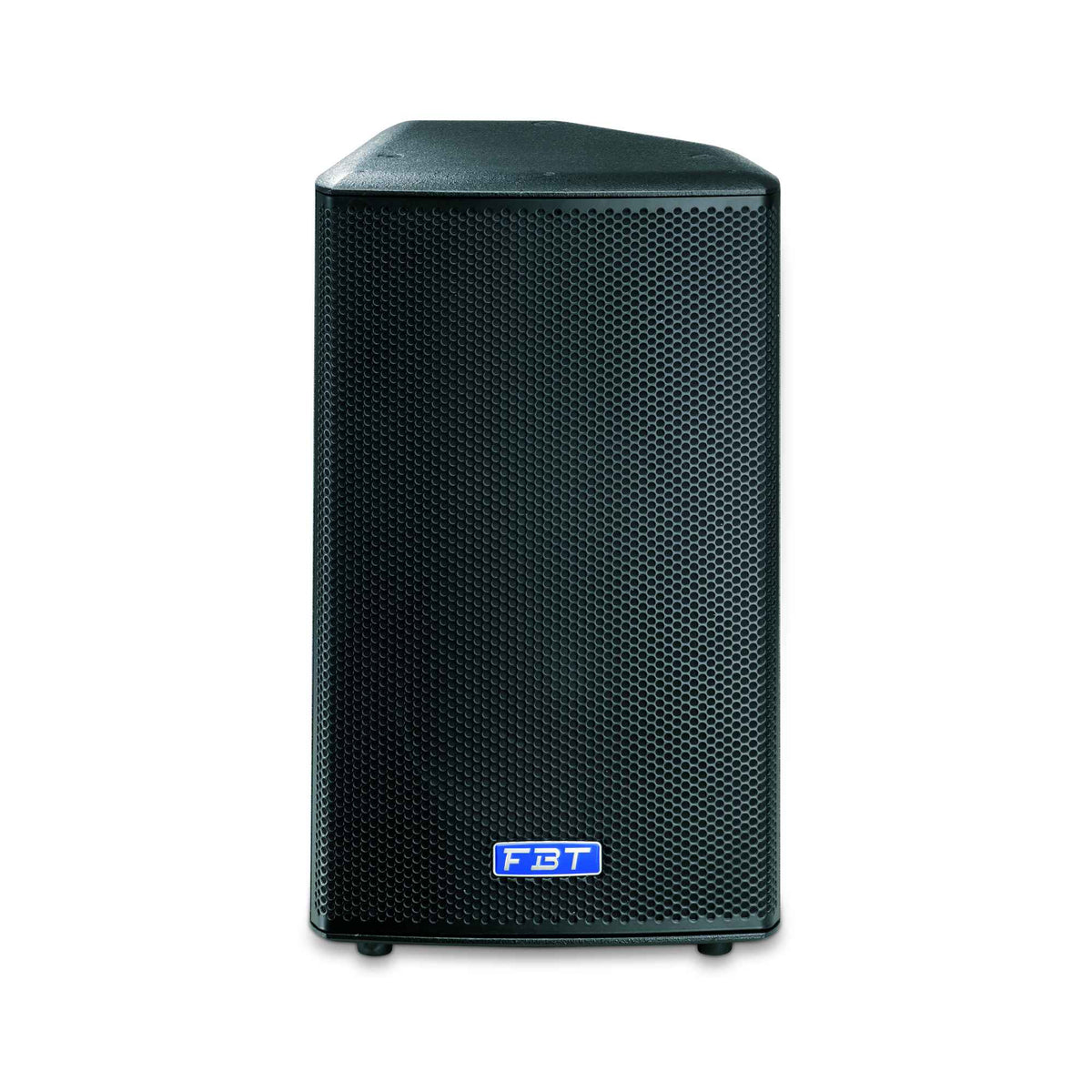

FBT MITUS 112A Active Loudspeaker

FBT MITUS 112A Active Loudspeaker

The FBT MITUS 112A is a two-way active loudspeaker with a 12-inch woofer in a birch plywood enclosure.

Separate amplifiers drive its LF and HF sections. FBT specifies 400 / 200 W RMS continuous and 600 / 300 W RMS MAX power measured with a 2 ms burst. Frequency response is 50–20,000 Hz (-6 dB), and peak SPL reaches 133 dB.

The rotatable HF horn provides 80° × 50° dispersion and can be oriented to suit the speaker layout. Onboard DSP offers 8 EQ presets, while the rear panel provides an XLR input and XLR link output.

The 15 mm birch plywood cabinet has a protective metal grille and twelve M10 suspension points plus a 35 mm pole socket. A high-pass filter and ground-lift switch are provided.

Main Features

• A 12-inch woofer with a 3-inch voice coil reproduces the LF range.
• The 1-inch HF driver with a 1.7-inch voice coil uses a rotatable horn.
• 8 DSP EQ presets provide starting points for different sound reinforcement uses.
• The rotatable 80° × 50° horn supports horizontal or vertical speaker orientation.
• The XLR link output passes the signal to another loudspeaker in the system.
• The high-pass filter supports subwoofer integration, while ground lift can address ground-loop hum.
• Twelve M10 points allow installation with appropriate professional suspension hardware.
• The 35 mm socket accepts a suitable speaker stand.

Technical Specifications

• Manufacturer code: 31759
• System: two-way active loudspeaker
• LF woofer: 12 in, 3 in voice coil
• HF driver: 1 in exit, 1.7 in voice coil
• Continuous amplifier power: 400 / 200 W RMS
• MAX amplifier power: 600 / 300 W RMS (2 ms burst)
• Peak amplifier power: 1200 / 600 W
• Frequency response: 50–20,000 Hz (-6 dB)
• Maximum SPL: 126 dB continuous / 133 dB peak (free space)
• Dispersion: 80° × 50°
• Crossover frequency: 1.5 kHz
• Input impedance: 22 kΩ
• Connections: XLR input and XLR link output
• Controls: level, 8 DSP presets, high-pass filter, ground lift
• Mounting: 12 M10 suspension points, 35 mm pole socket
• AC power requirement: 640 VA
• Power cord length: 5 m
• Enclosure: 15 mm birch plywood, metal front grille
• Dimensions (W × H × D): 380 × 655 × 380 mm
• Product net weight: 21 kg

What’s Included

• 1 × FBT MITUS 112A active loudspeaker

Who Is It For

Suitable for main live sound and DJ systems, as well as fixed installation in halls and clubs requiring controlled coverage and high sound levels.
