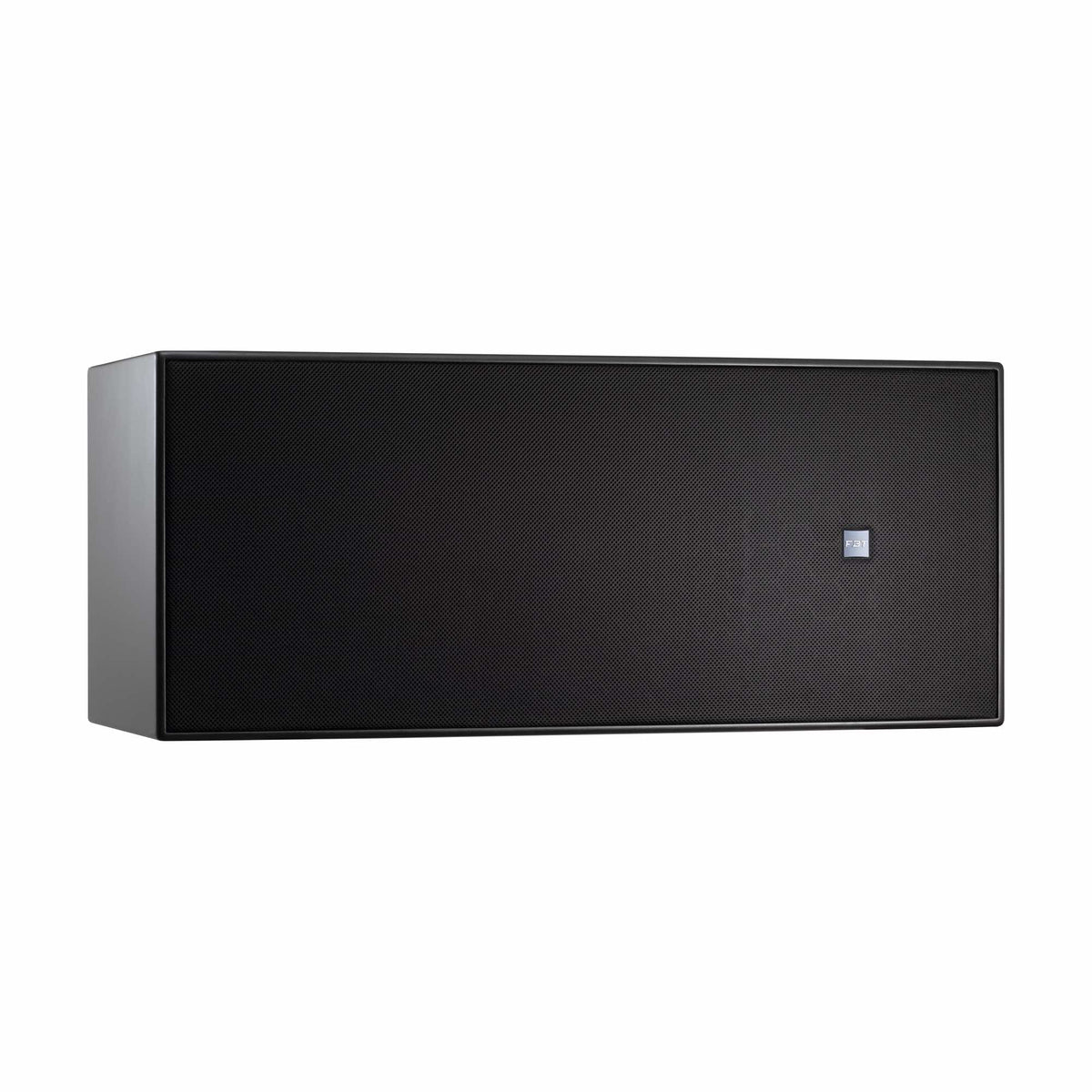

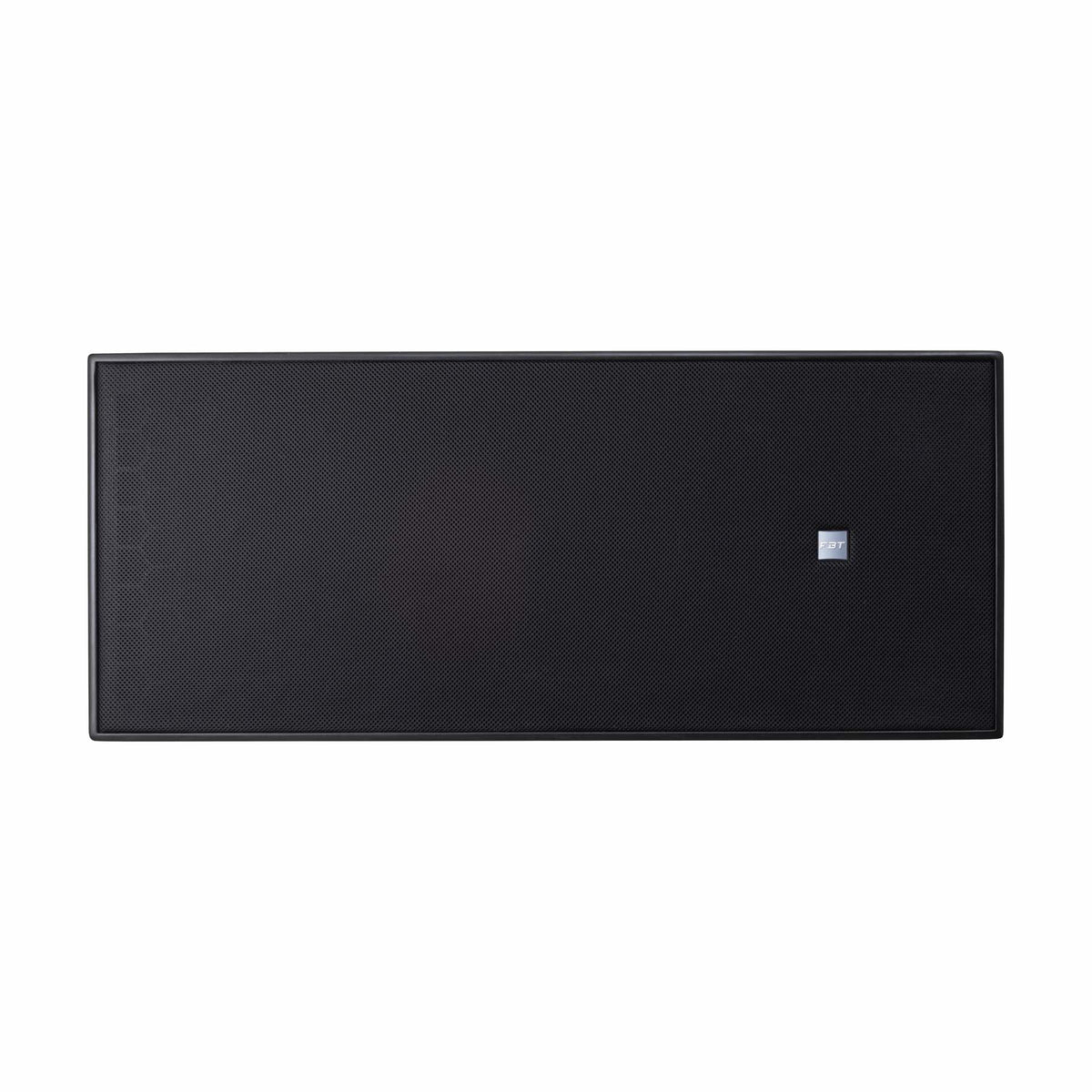

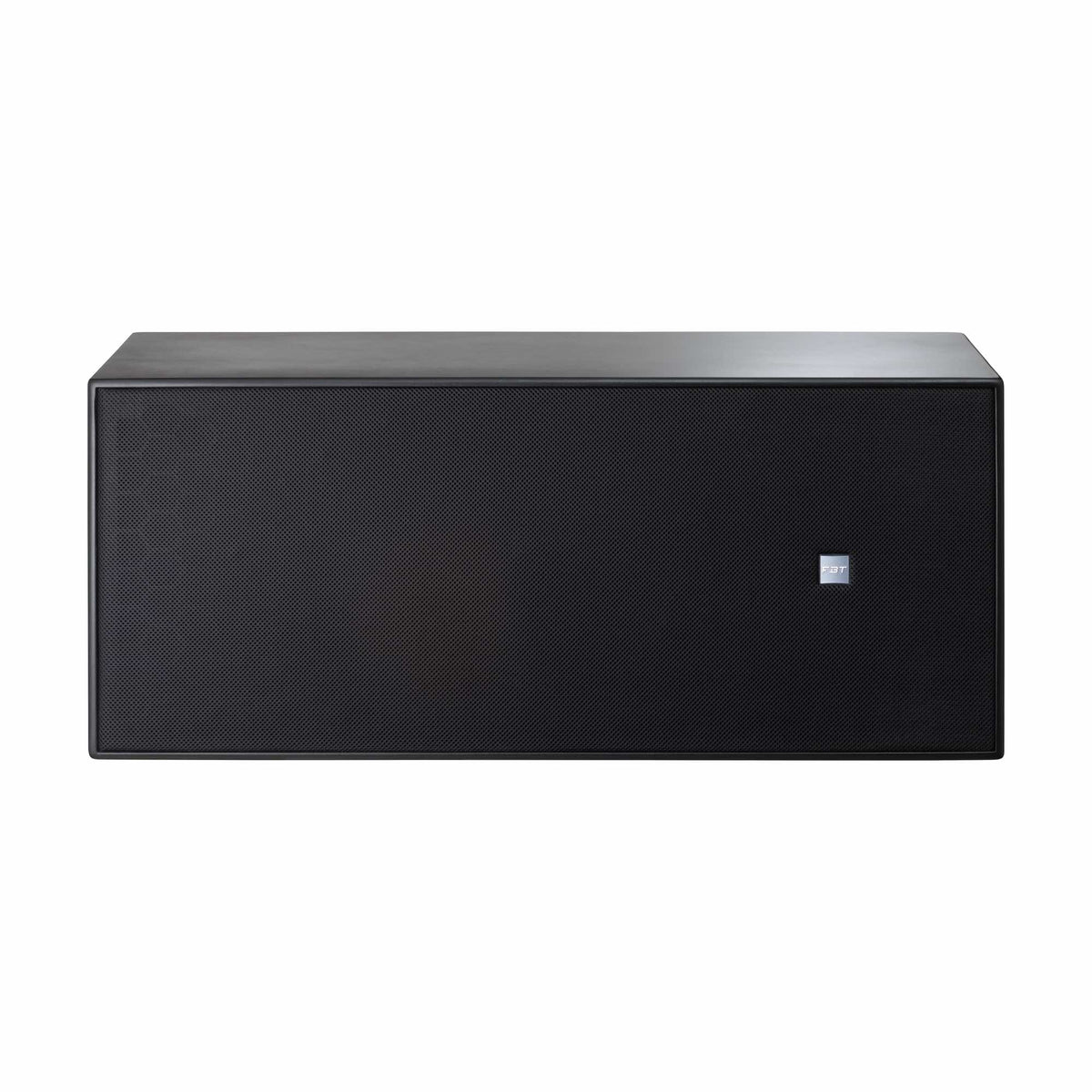

FBT KEIRON 12S Passive Subwoofer

FBT KEIRON 12S Passive Subwoofer

FBT KEIRON 12S is a passive bass-reflex subwoofer.

It extends the low-frequency response of a KEIRON sound system in fixed music and live-program installations. Its compact enclosure supports discreet integration into the room.

An external power amplifier suitable for a 8 Ω load and an external crossover are required. There is no internal passive crossover. An external digital processor is necessary for correct performance and woofer protection.

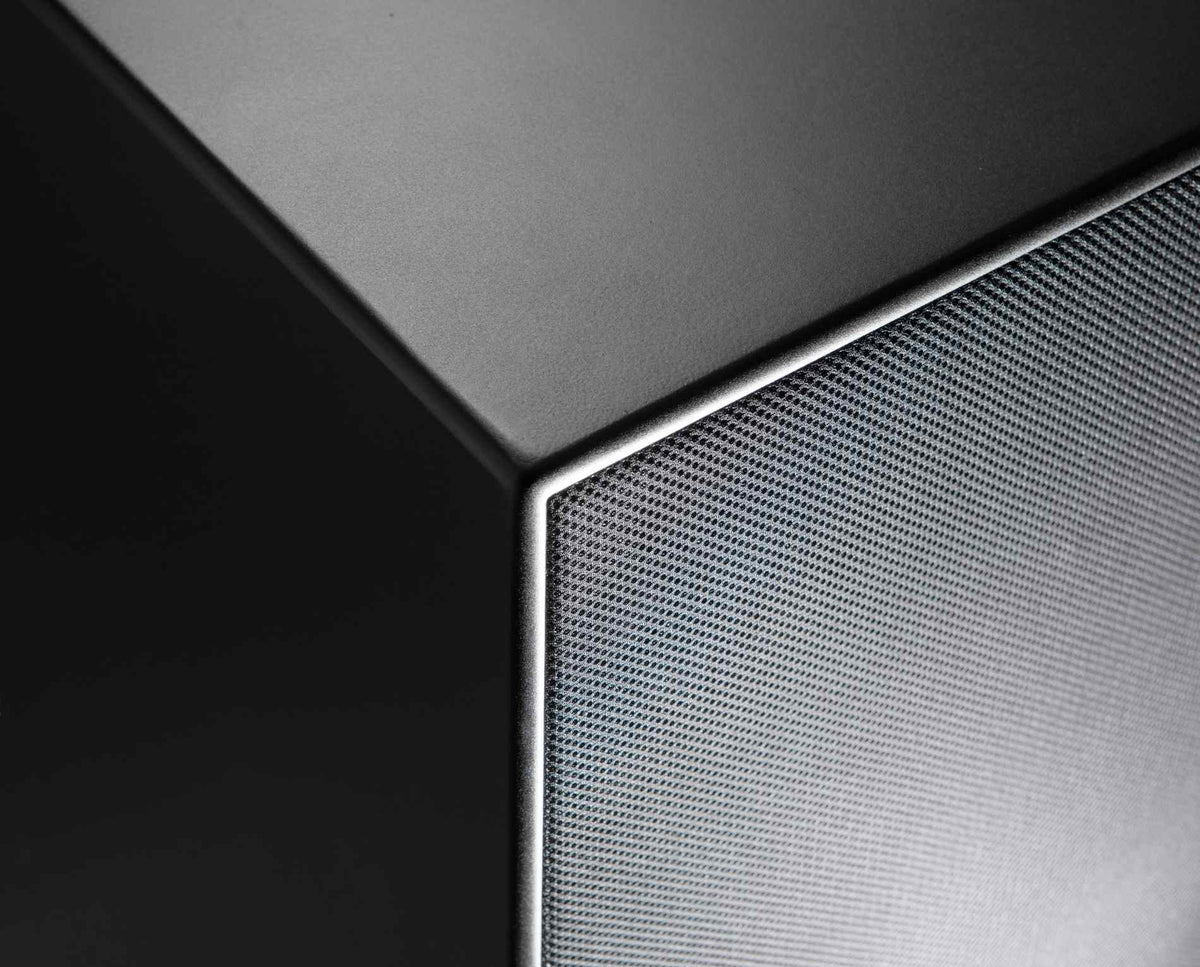

The enclosure uses approximately 15 mm (0.59-inch) birch plywood with a metal front grille and a scratch-resistant finish. Black and white versions are available.

Main Features

• The Neutrik speakON NL4 connector accepts a speaker cable from the external amplifier.

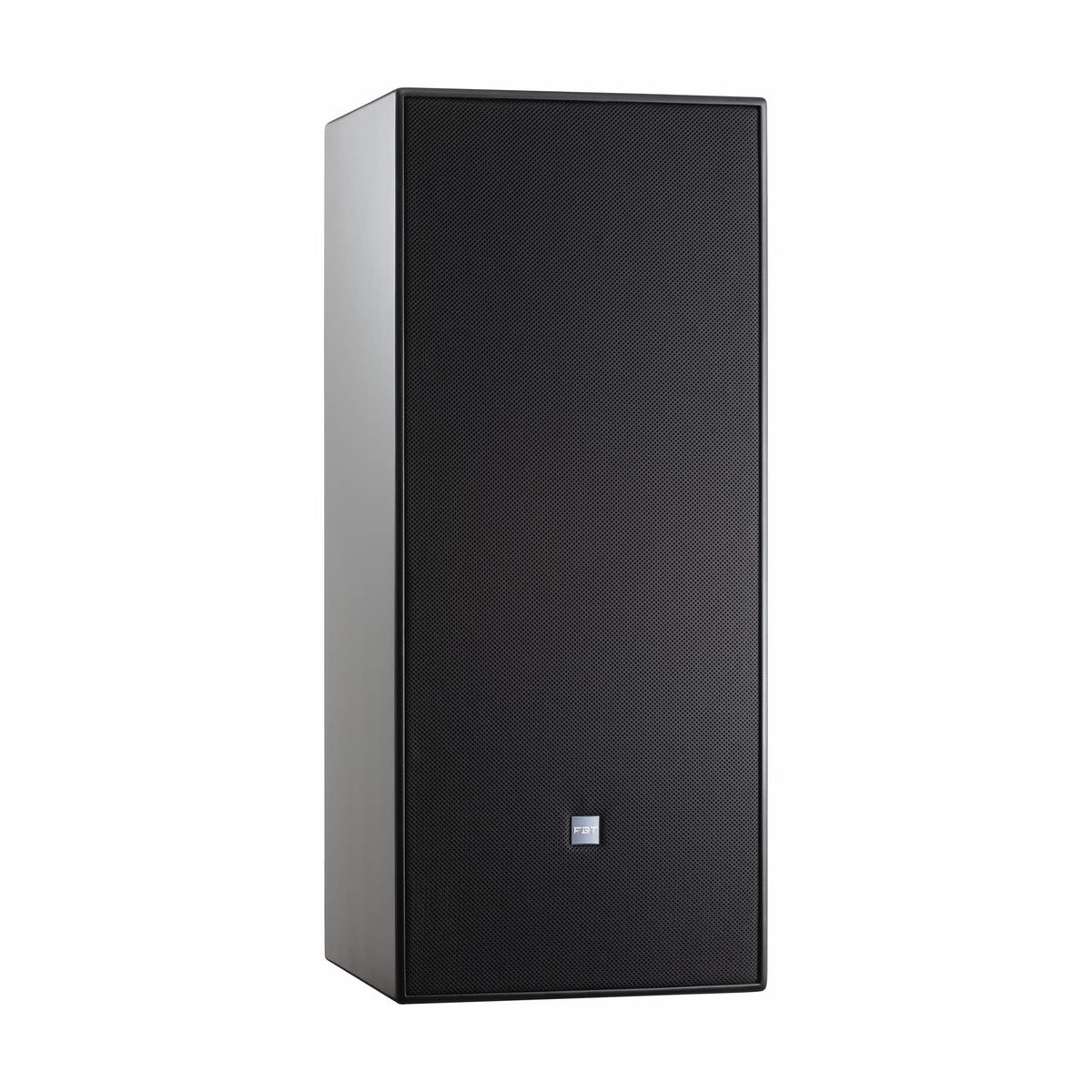

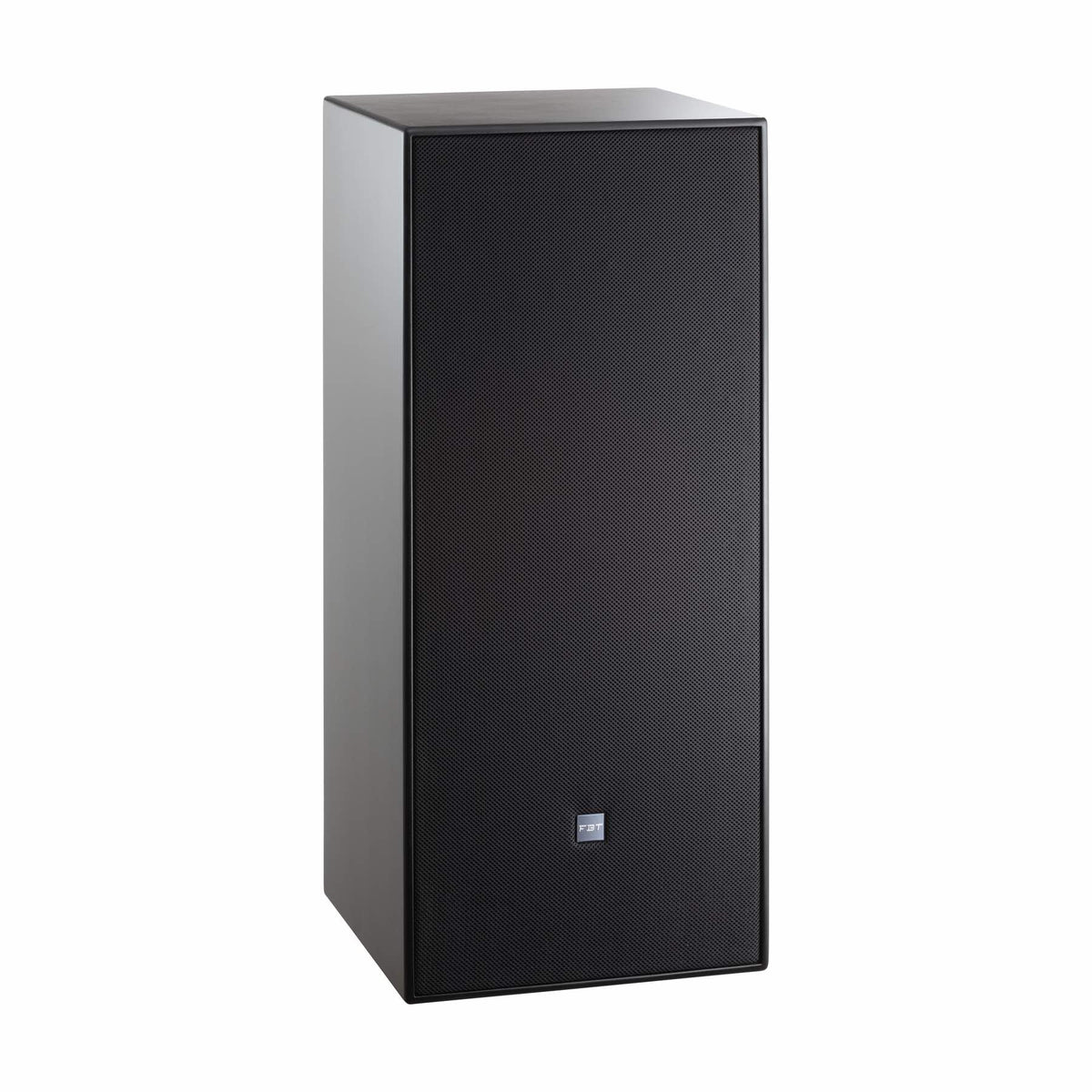

• Approved for ground-stack only use. 4 anchoring points accept optional feet or a metal base for appropriately supported horizontal or vertical placement.
• The recommended external high-pass filter is 38 Hz at 24 dB/oct to limit very low-frequency loading.
• Low-frequency dispersion is omnidirectional.

Technical Specifications

• Drivers: 1 × 12-inch LF driver with a 3-inch voice coil
• Recommended Amplifier Power: 700 W RMS
• Long-term Power: 350 W
• Short-term Power (IEC 268-5): 1400 W
• Nominal Impedance: 8 Ω
• Frequency Response: 45 Hz - 300 Hz (−6 dB)
• Sensitivity (1 W / 1 m): 97 dB
• Maximum SPL, Continuous / Peak: 130 / 133 dB
• Dimensions (W × H × D): 800 × 340 × 340 mm
• Weight: 26 kg

What’s Included

• 1 × FBT KEIRON 12S Passive Subwoofer

Feet and the metal base are optional accessories. The subwoofer is not approved for suspended installation.

Who Is It For

For fixed music systems in bars, conference rooms and other public spaces. It complements the main KEIRON speakers where additional low-frequency extension is needed.
