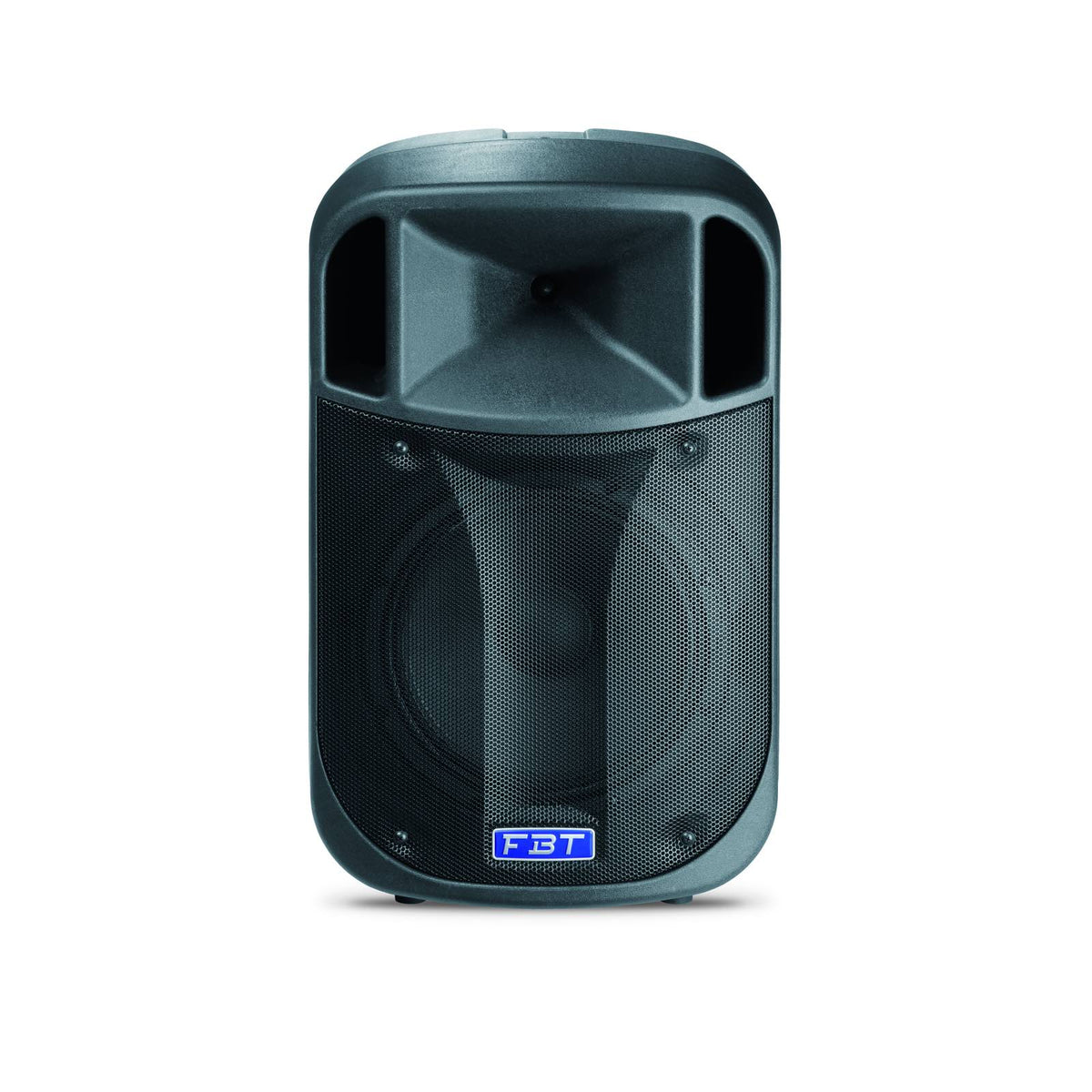

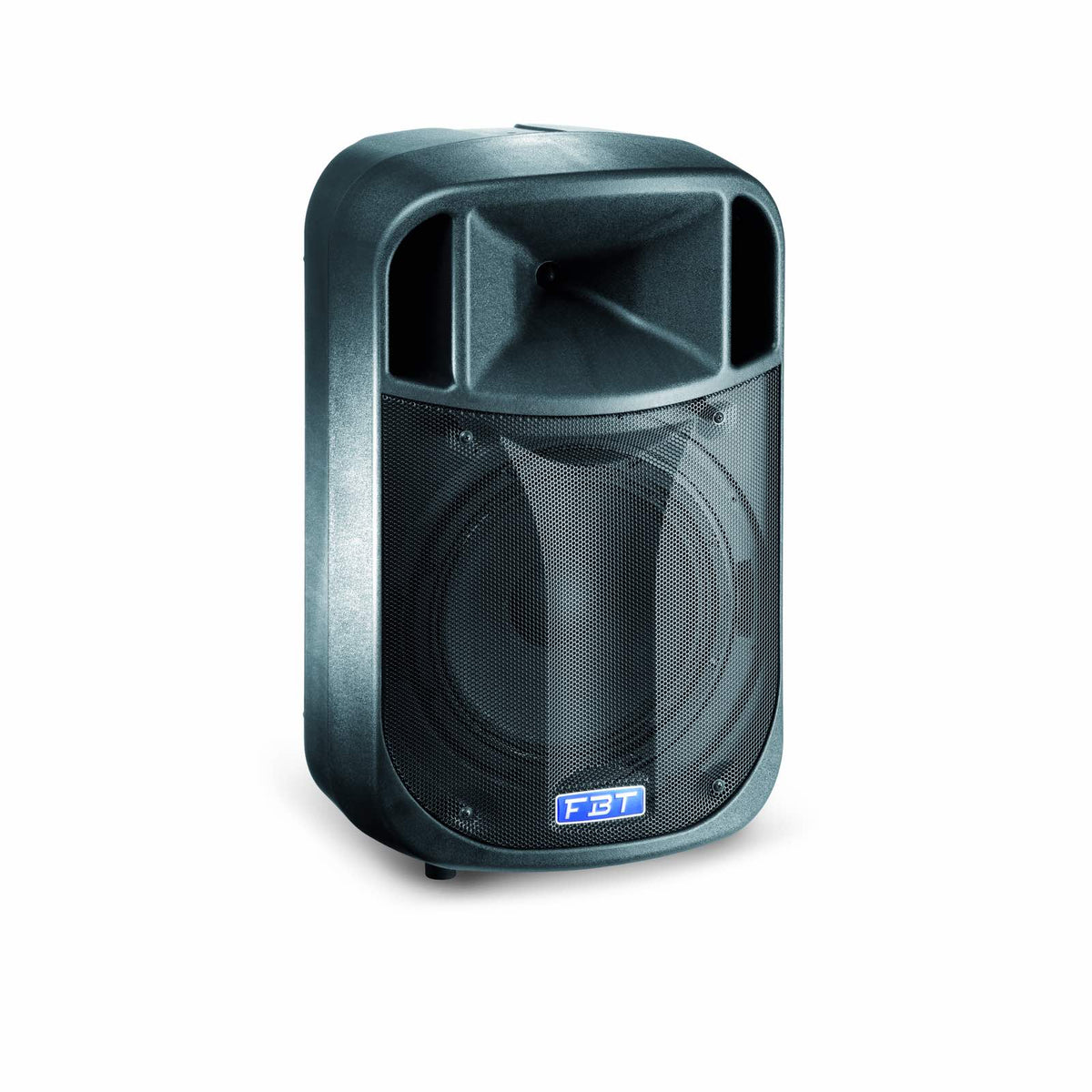

FBT J 12A Active Loudspeaker

FBT J 12A Active Loudspeaker

FBT J 12A is an active two-way loudspeaker with a 12-inch low-frequency driver and a 1-inch high-frequency driver.

Separate built-in 350 W / 100 W maximum RMS amplifiers drive the two frequency bands. FBT specifies a 50–20,000 Hz response at -6 dB and 90° × 60° coverage.

The asymmetrical polypropylene cabinet works upright or on its side as a floor monitor. A steel grille protects the front.

The rear panel offers level, high-pass filter and mic/line controls, four factory sound presets, an XLR / 6.3 mm input and an XLR link output.

Main Features

• The 12-inch low-frequency and 1-inch high-frequency drivers form a two-way system for speech and music.
• Built-in 350 W / 100 W maximum RMS amplification eliminates the need for an external power amplifier.
• The 90° × 60° dispersion pattern helps cover the listening area and guides speaker positioning.
• Level, high-pass filter and input sensitivity controls let the operator adapt the speaker to the signal source.
• The angled enclosure works on a stand or laid down as a floor monitor.
• Two M10 points and a stand socket support stand use or installation with optional mounting brackets.
• A steel front grille protects the drivers from physical contact.

Technical Specifications

• Product Type: active two-way loudspeaker
• Low-Frequency Driver: 12 in, 2 in voice coil
• High-Frequency Driver: 1 in, 1 in voice coil
• Built-In Amplifier Maximum RMS Power (LF/HF): 350 / 100 W
• Frequency Response: 50–20,000 Hz (-6 dB)
• Dispersion (H × V): 90° × 60°
• Cabinet: moulded polypropylene
• Presets: 4 factory profiles
• Signal Connections: XLR / 6.3 mm combo input and XLR link output
• Dimensions (W × H × D): 410 × 663 × 387 mm
• Product Weight: 14.9 kg

What’s Included

• 1 × FBT J 12A active loudspeaker

Who Is It For

Suited to smaller stages, events and fixed sound systems that need the same cabinet for main sound reinforcement or floor monitoring.
