FBT VERTUS CS 1000 Active Modular Sound System

FBT VERTUS CS 1000 Active Modular Sound System

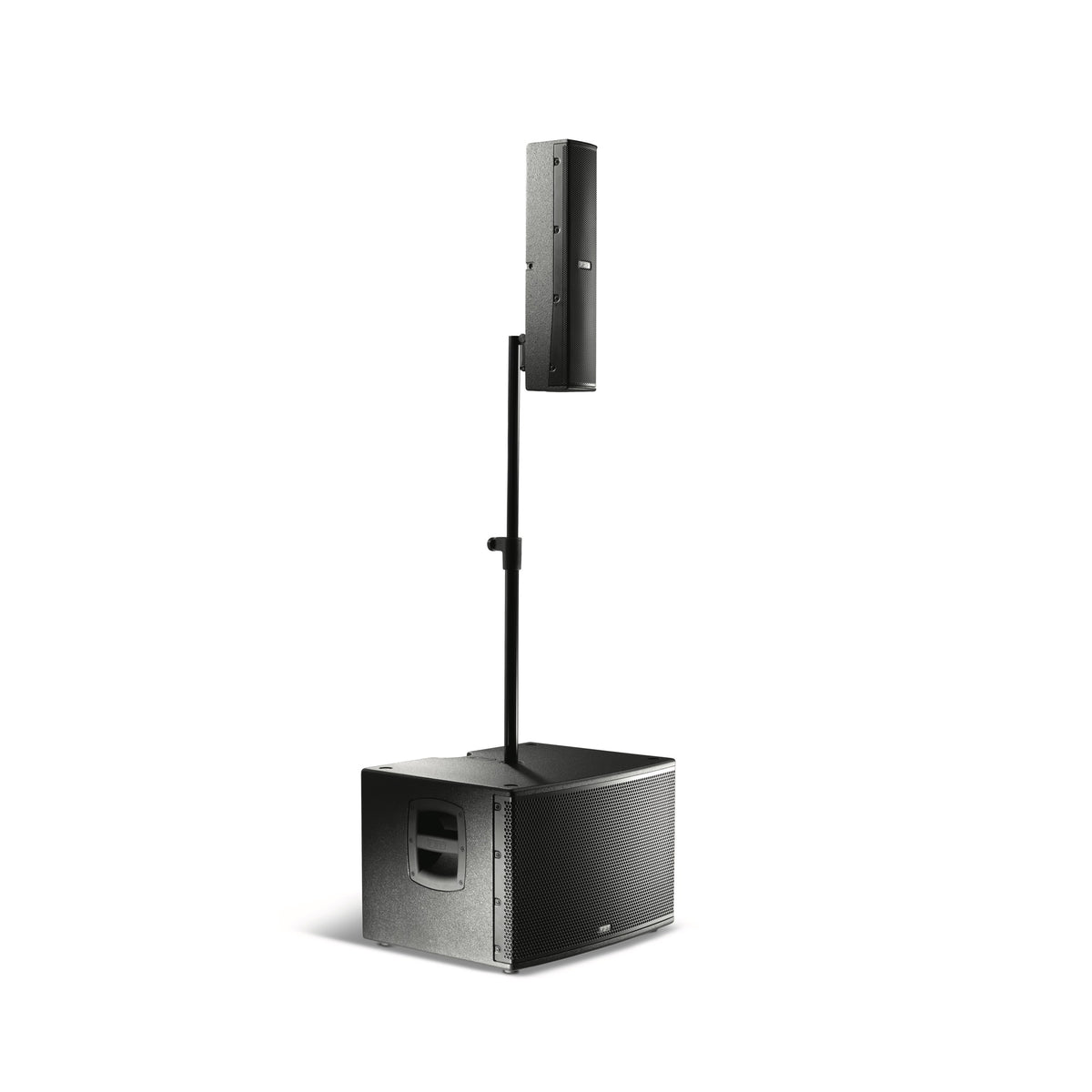

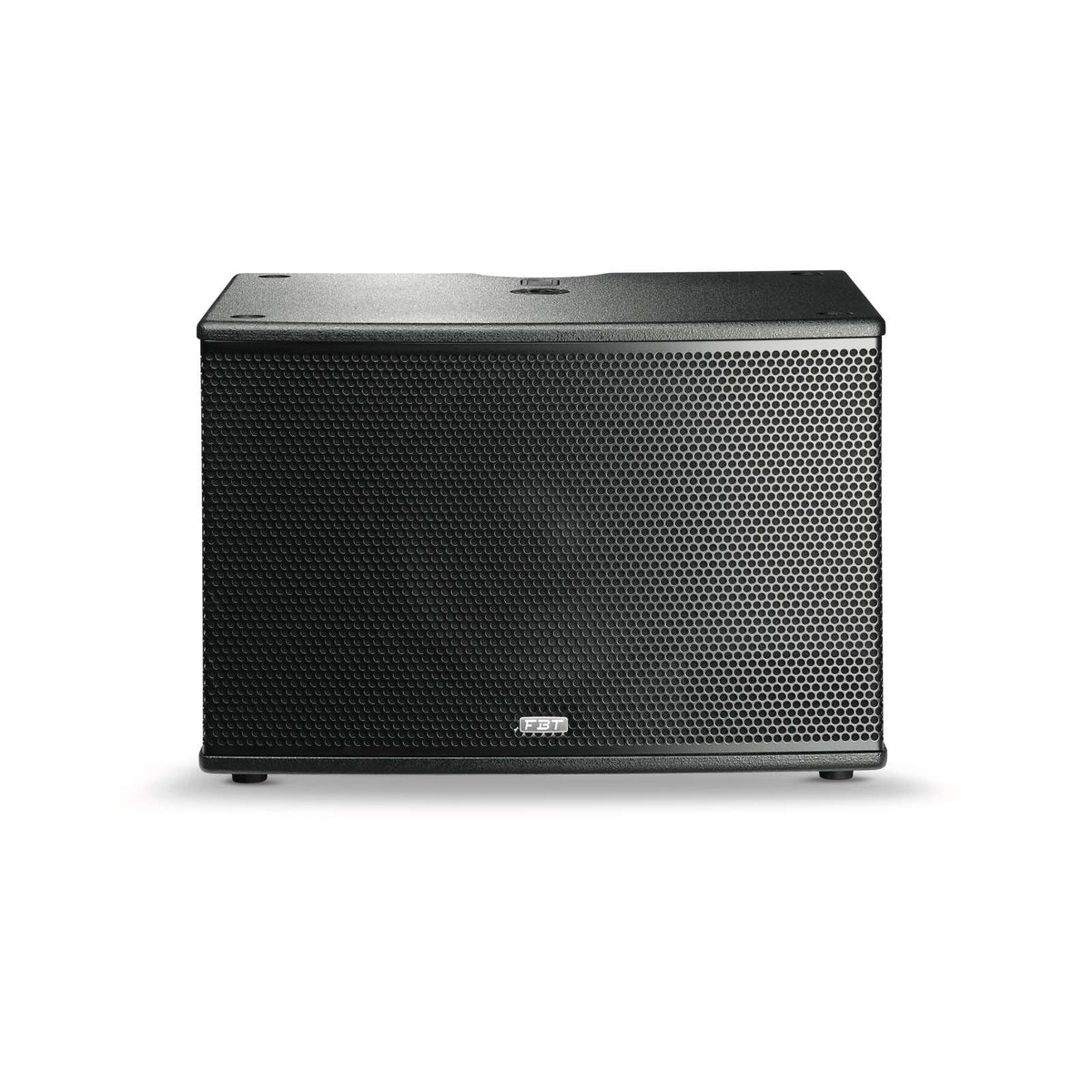

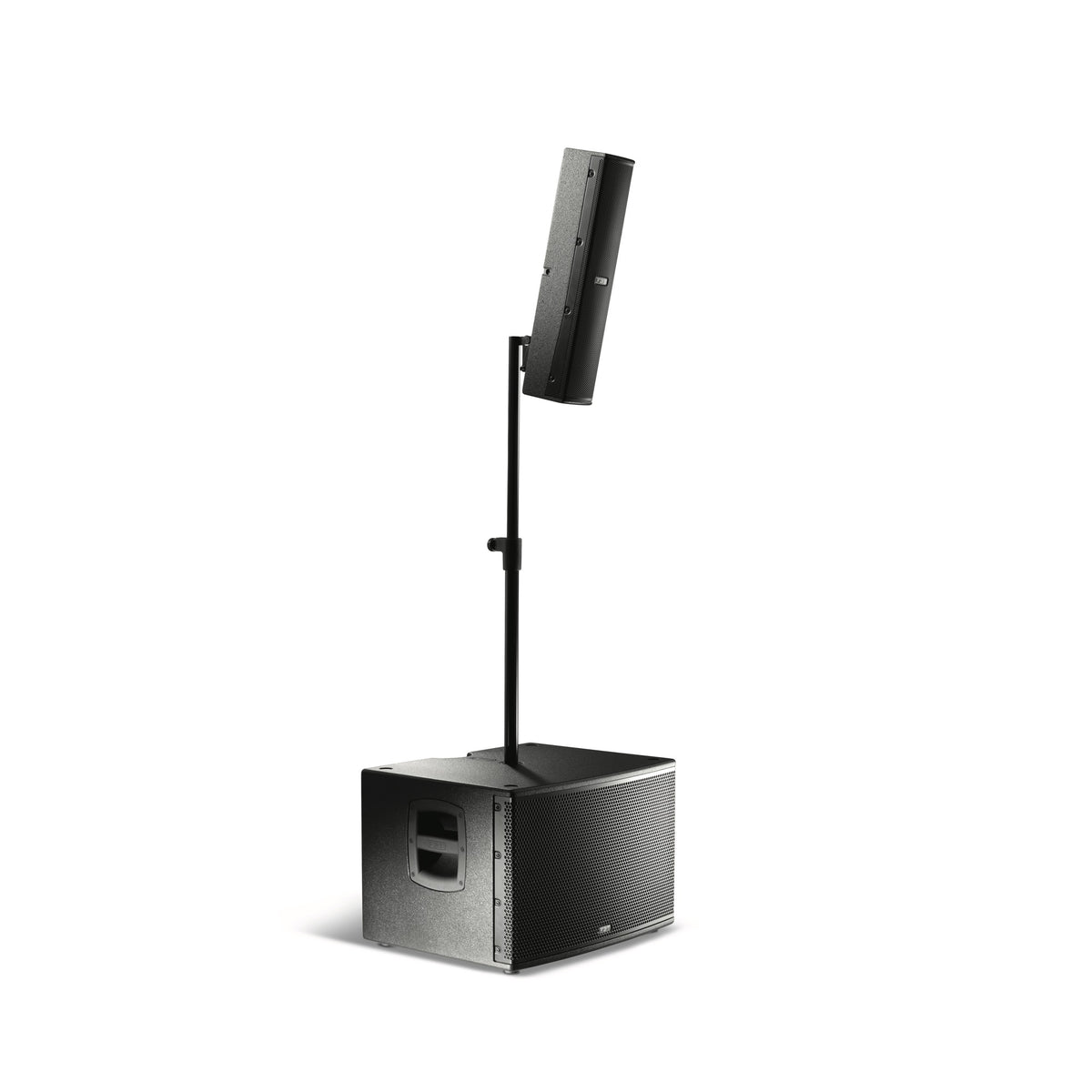

The FBT VERTUS CS 1000 is an active modular sound system comprising a 12-inch subwoofer and a vertical satellite with six 3-inch full-range drivers.

The subwoofer cabinet houses two Class D amplifier channels: 600 W RMS for the LF section and 400 W RMS for the satellite. The passive upper module connects through Speakon, and its height is adjustable with the supplied mounting pole.

Coverage measures 110° horizontally by 30° vertically. The DSP offers eight presets, with separate overall and subwoofer level controls and a high-pass filter.

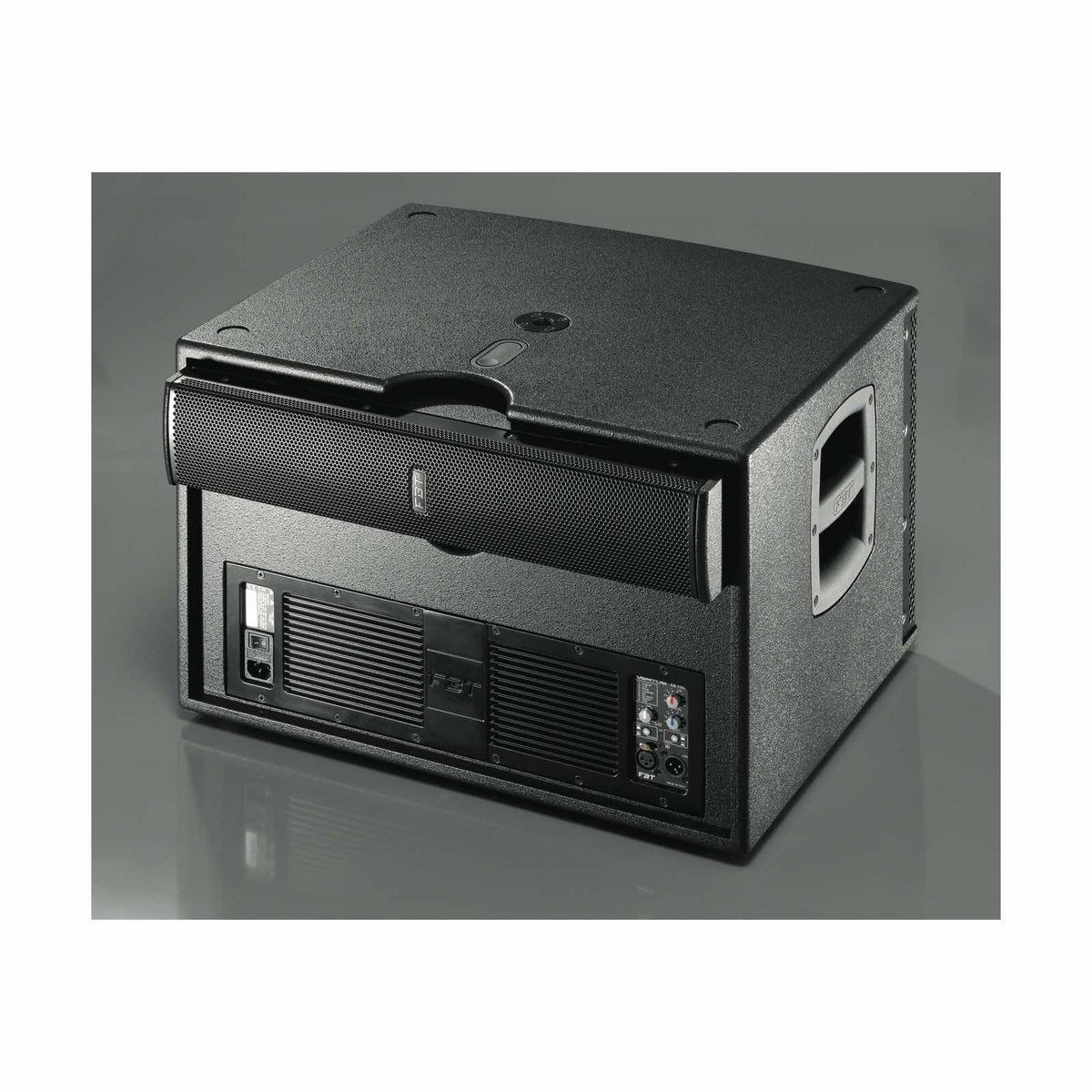

The subwoofer cabinet stores the satellite and pole sections during transport. Further CS 1000 systems can be combined using separately available FBT mounting accessories.

Main Features

• A 12-inch subwoofer and six 3-inch full-range drivers form one integrated sound system.
• Separate amplifier channels power the subwoofer and vertical satellite.
• 110° × 30° dispersion directs sound across a wide audience area.
• Eight DSP presets provide starting points for different uses.
• Separate subwoofer level control allows the system balance to be adjusted.
• The adjustable-height pole sets the satellite at a suitable height.
• A Speakon connection carries amplified signal to the passive satellite.
• The subwoofer stores the satellite and pole sections for compact transport.

Technical Specifications

• Manufacturer code: 40621
• Colour: black
• System: active modular two-way sound system
• LF driver: 12 in, 2.5 in voice coil
• Satellite drivers: 6 × 3 in, 0.8 in voice coils
• Continuous amplifier power: 600 / 400 W RMS
• Peak amplifier power: 1200 / 800 W
• Frequency response: 40–20,000 Hz (-6 dB)
• Maximum SPL: 125 dB continuous / 129 dB peak
• Dispersion: 110° horizontal × 30° vertical
• Crossover frequency: 180 Hz
• DSP: 8 presets
• Connections: XLR input and link output, Speakon satellite connection
• Input impedance: 22 kΩ
• AC power requirement: 640 VA
• Satellite dimensions (W × H × D): 104 × 530 × 116 mm
• Subwoofer dimensions (W × H × D): 565 × 388 × 450 mm
• Product net weight: 31 kg, complete system

What’s Included

• 1 × FBT VERTUS CS 1000 sound system (subwoofer and satellite)
• 1 × adjustable mounting pole

Who Is It For

Suitable for portable live sound, DJ events, conferences and smaller venues. It can also be installed as part of a fixed sound system.
