FBT VERTUS CLA 406.2 Passive Loudspeaker

FBT VERTUS CLA 406.2 Passive Loudspeaker

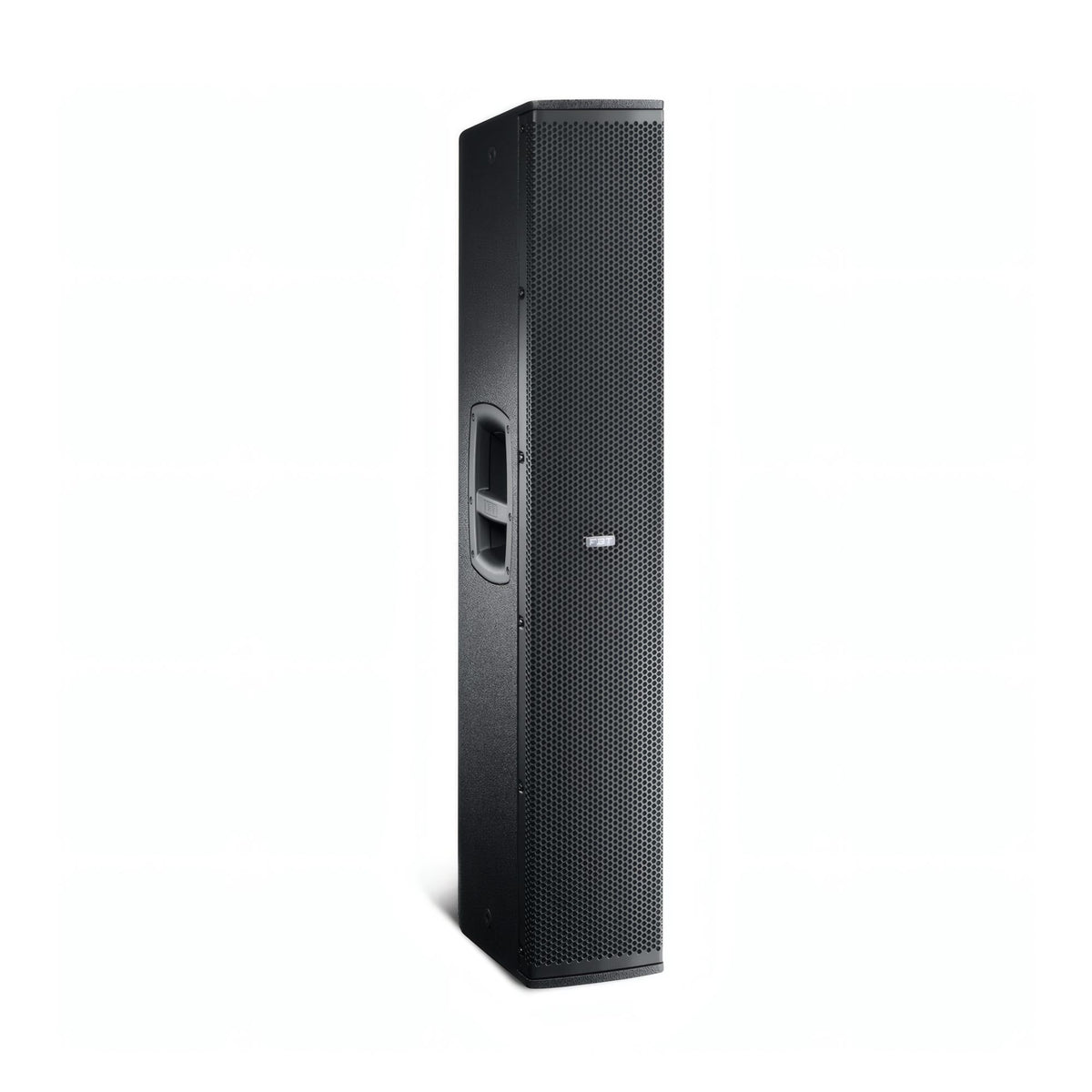

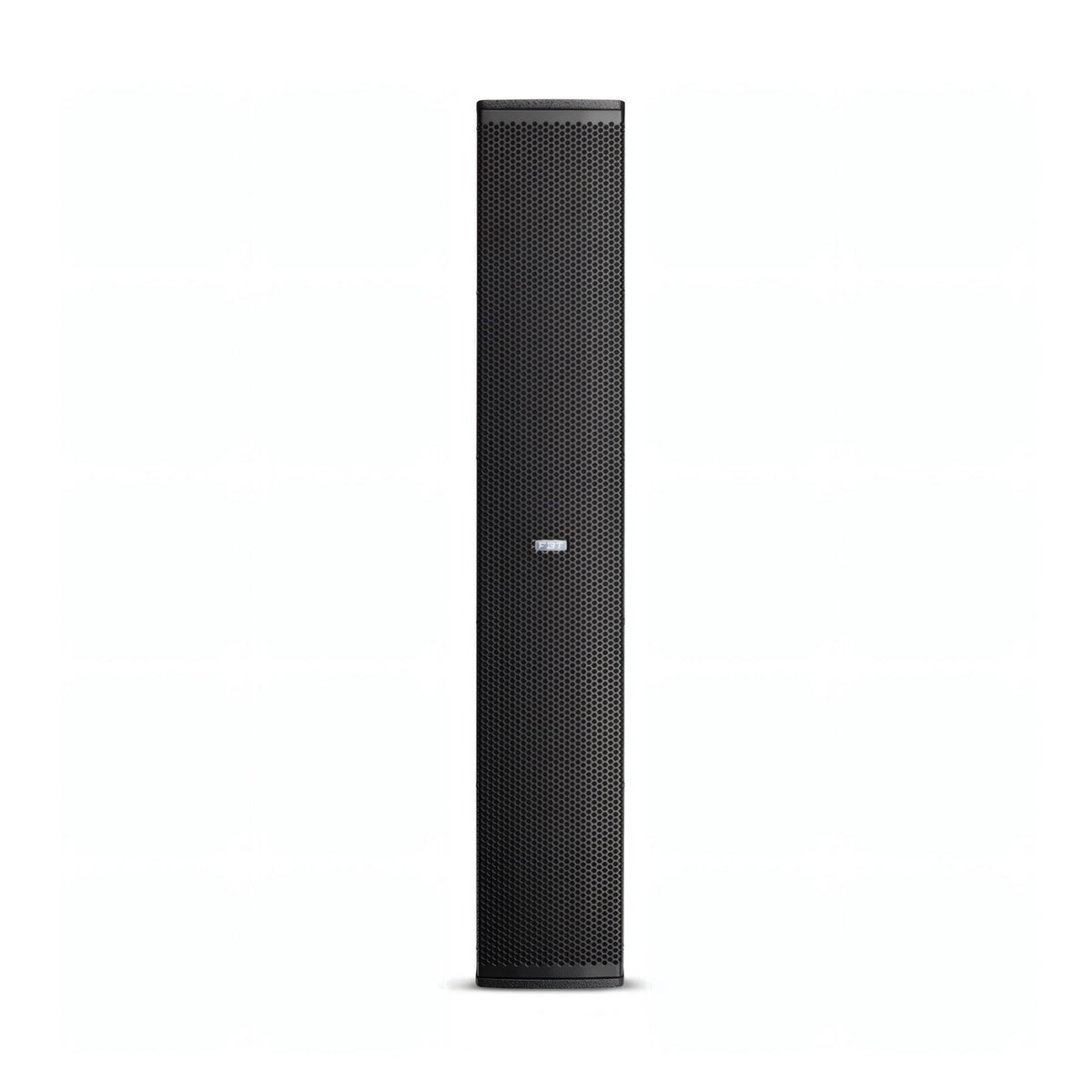

FBT VERTUS CLA 406.2 is a passive two-way line-array loudspeaker with 4 × 6.5-inch woofers and a 1.4-inch high-frequency driver.

FBT recommends an external 800 W RMS amplifier into 8 Ω. The loudspeaker's long-term power rating is 400 W; the 800 W figure describes the recommended amplifier, not built-in electronics.

Operation requires a processed amplifier with an authorised FBT DSP preset or an external DSP processor using that preset. The rear panel has Speakon input and link connectors.

The birch-plywood cabinet has handles and mounting points. FBT documents use as a main module with CLA 206 and CLA 118S; rigging hardware is selected separately for the installation.

Main Features

• Four 6.5-inch woofers distribute sound along the vertical module.
• The 1.4-inch high-frequency driver and FBT waveguide form the specified coverage pattern.
• The recommended 800 W RMS amplifier is external; the loudspeaker has no built-in amplifier.
• An FBT DSP preset is required for alignment and driver protection.
• Two Speakon sockets accept the amplifier feed and link it to another module.
• The 100° × 25° coverage depends on the number of modules in the array.
• Mounting points support FBT-approved ground and flown configurations.
• The 10° angled top supports the specified module-coupling arrangements.

Technical Specifications

• Product Type: passive two-way line-array loudspeaker
• FBT Product Code: 46252
• Low-Frequency Drivers: 4 × 6.5 in, 1.5 in coils
• High-Frequency Driver: 1 × 1.4 in, 2.5 in coil
• Recommended External Amplifier: 800 W RMS
• Long-Term Power: 400 W
• Short-Term Power: 1600 W (IEC 268-5)
• Impedance: 8 Ω
• Frequency Response: 65–20,000 Hz (-6 dB)
• Sensitivity: 100 dB (1 W / 1 m)
• Maximum SPL: 129 / 134 dB (continuous / peak)
• Dispersion (H × V): 100° × 25°, depends on module count
• Recommended High-Pass Filter: 60 Hz, 24 dB/oct
• Required DSP: FBT-authorised processor preset
• Connectors: 2 × Neutrik NL4M Speakon (input / link)
• Pole Socket: 35 mm
• Cabinet: 12 mm birch plywood
• Dimensions (W × H × D): 190 × 1140 × 290 mm
• Product Weight: 26.1 kg

What’s Included

• 1 × FBT VERTUS CLA 406.2 passive loudspeaker

Who Is It For

For concerts and installed sound systems using FBT CLA array modules. An external power amplifier and FBT-authorised DSP preset are required; mounting follows FBT's configuration guidance.
