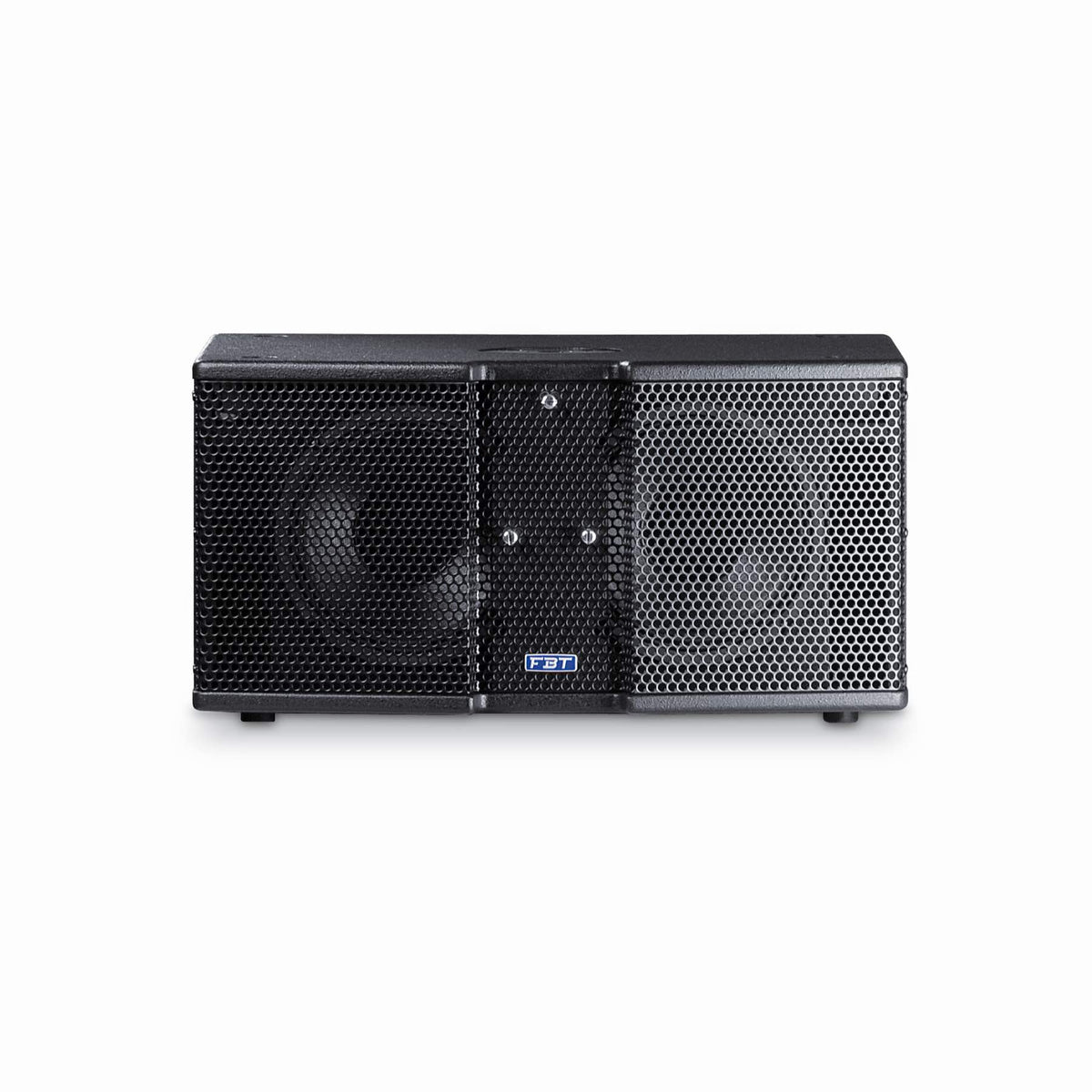

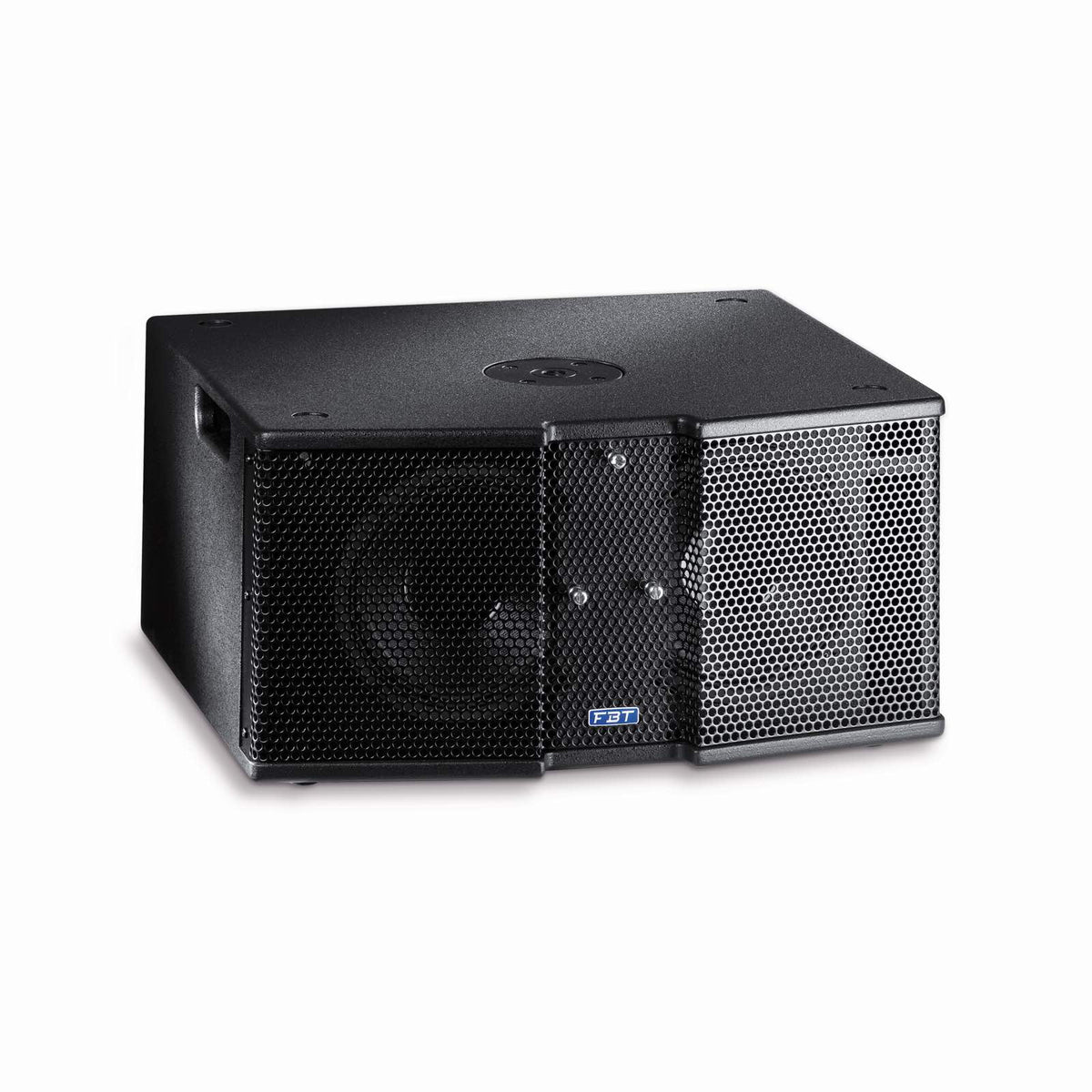

FBT CLA 208SA Active Subwoofer
The FBT CLA 208SA is an active subwoofer with two 8-inch high-excursion drivers in a bass-reflex cabinet. It extends the low-frequency range of a CLA 604A column array.
Its Class D amplifier and four DSP presets allow the low-frequency response to be adapted to the system. Phase can be switched between 0° and 180°, with selectable crossover settings.

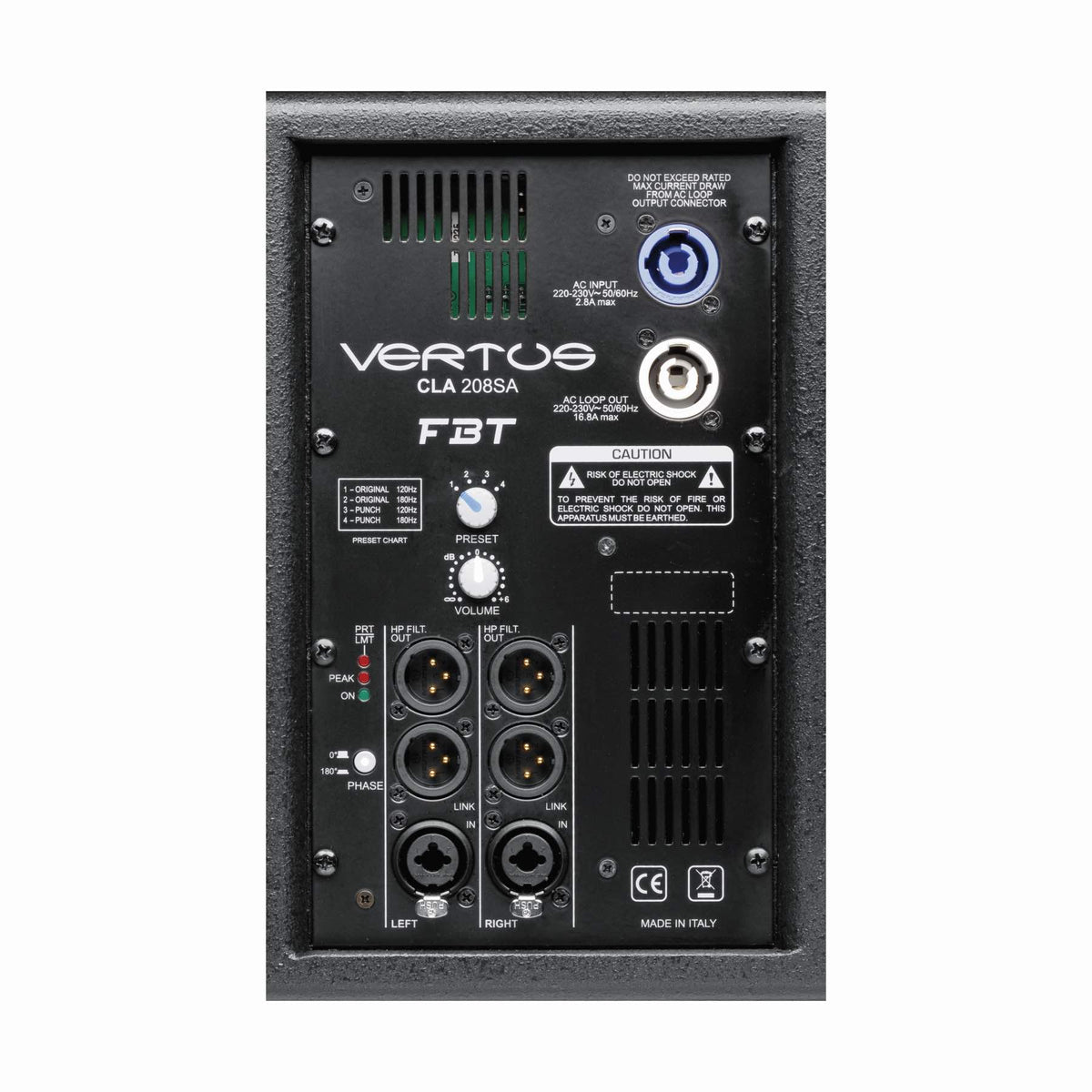

The rear panel provides stereo XLR/Jack inputs, link connections and filtered stereo XLR outputs. PowerCon input and link connectors support power distribution.
The 15 mm birch-plywood cabinet has two handles, an M20 pole socket and front latching points for CLA 604A modules. It can serve as the base of a compact expandable sound system.
Main Features
- Two 8-inch drivers reinforce the low-frequency output of a CLA 604A system.
- Four DSP presets offer settings for different system configurations.
- A 0° / 180° phase switch helps align the subwoofer with other speakers.
- Filtered stereo XLR outputs feed other loudspeakers.
- The PowerCon link output can feed another compatible device.
- Front latches support the CLA 604A line-array module.
- The M20 socket accepts a suitable speaker pole.
- Two integrated handles make the cabinet easier to lift and transport.
Technical Specifications
- Manufacturer code: 34548
- Colour: black
- System: active bass-reflex subwoofer
- LF drivers: 2 × 8 in, 2 in voice coils
- Continuous amplifier power: 400 W RMS
- MAX amplifier power: 600 W RMS
- Peak amplifier power: 1200 W
- Frequency response: 50–180 Hz (-6 dB)
- Maximum SPL: 125 dB continuous / 129 dB peak, half-space
- Dispersion: omnidirectional
- Crossover frequency: 120–180 Hz, preset-dependent
- DSP: 4 presets
- Connections: stereo XLR/Jack input and link, filtered stereo XLR outputs, PowerCon input and link
- Phase: 0° / 180°
- Input impedance: 22 kΩ
- Mounting: M20 pole socket and CLA 604A latches
- AC power requirement: 450 VA
- Cabinet: 15 mm birch plywood, metal grille
- Dimensions (W × H × D): 550 × 283 × 500 mm
- Product net weight: 20.8 kg
What’s Included
- 1 × FBT CLA 208SA active subwoofer
Who Is It For
Designed for low-frequency reinforcement of CLA 604A column arrays in live sound, theatres and fixed installations.
