Description
Description

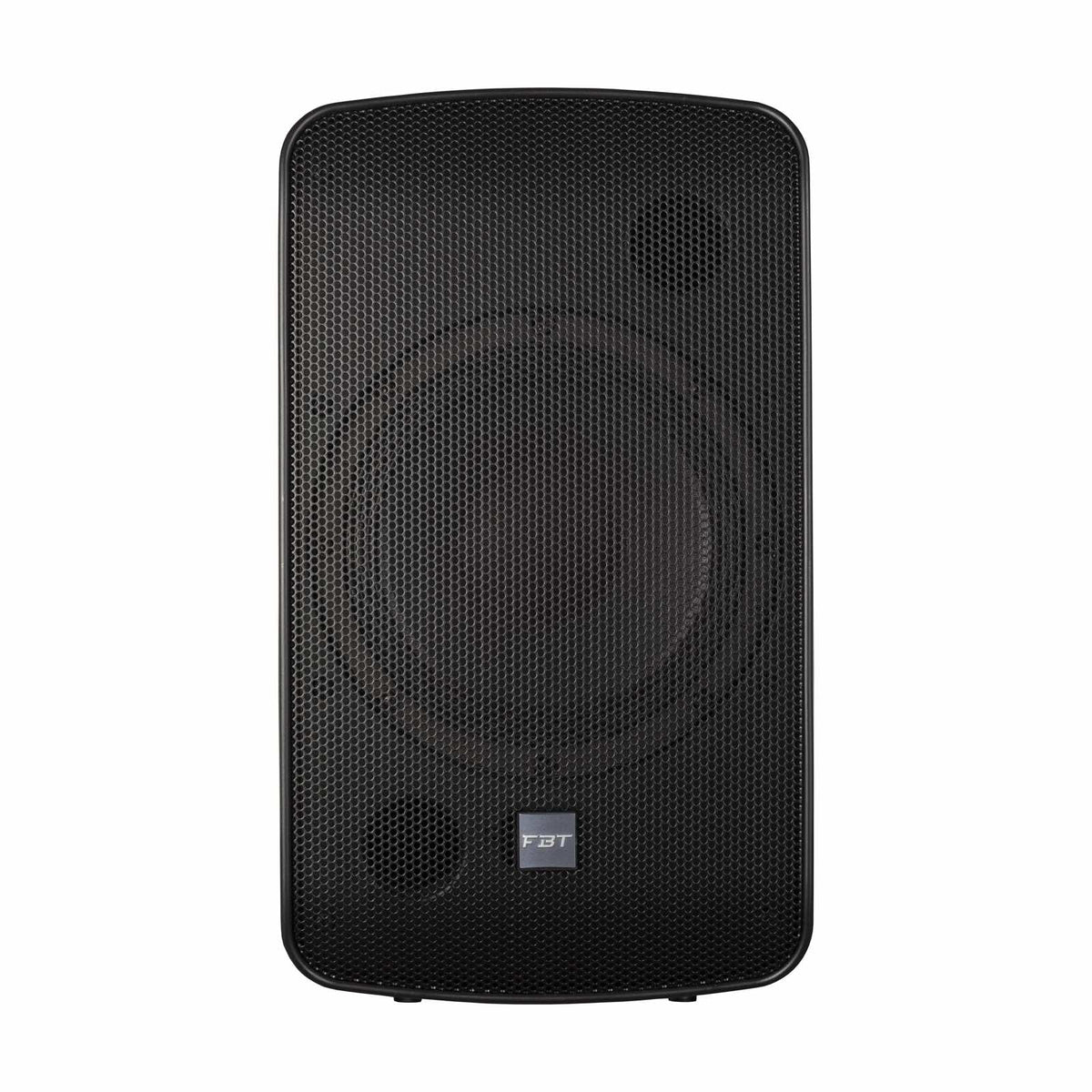

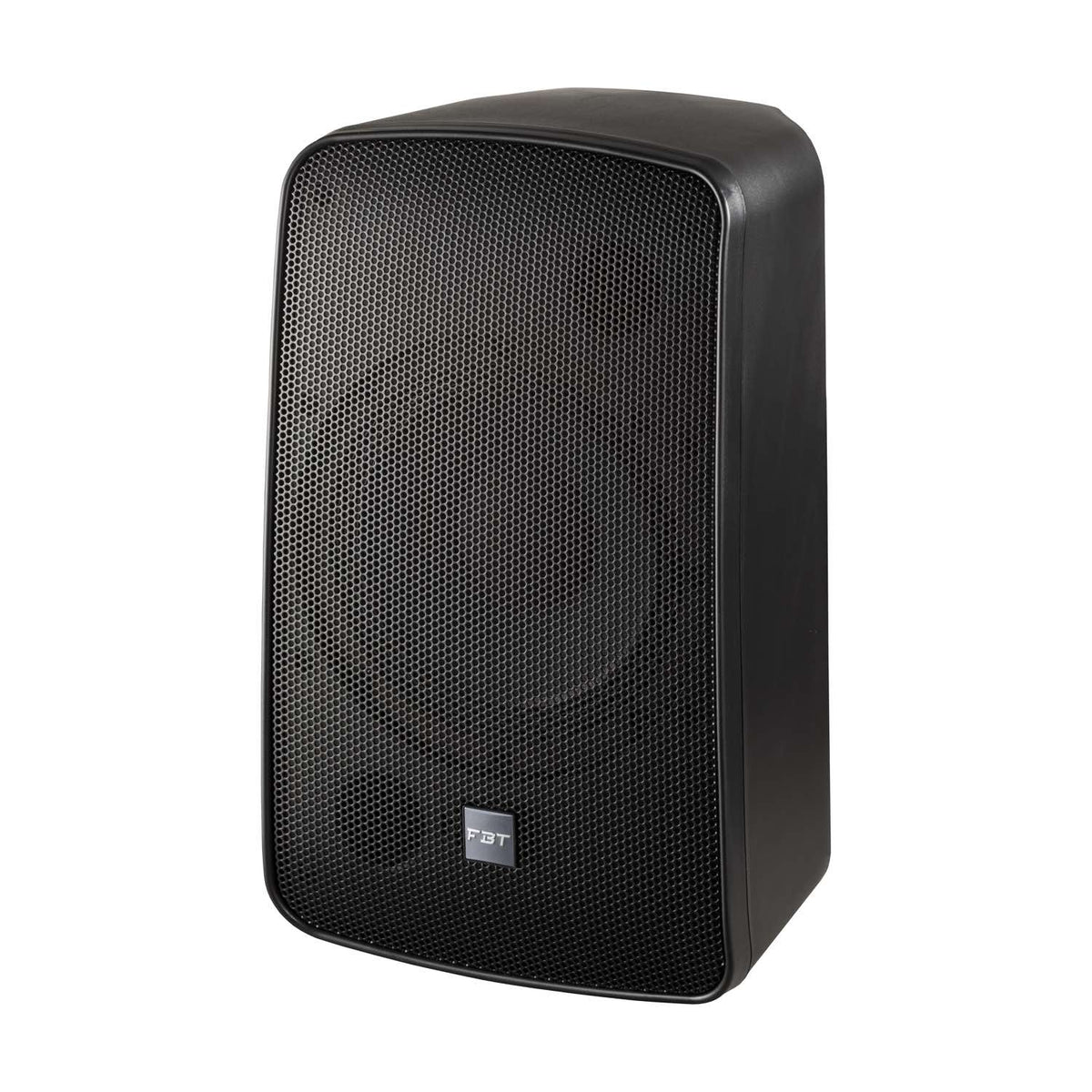

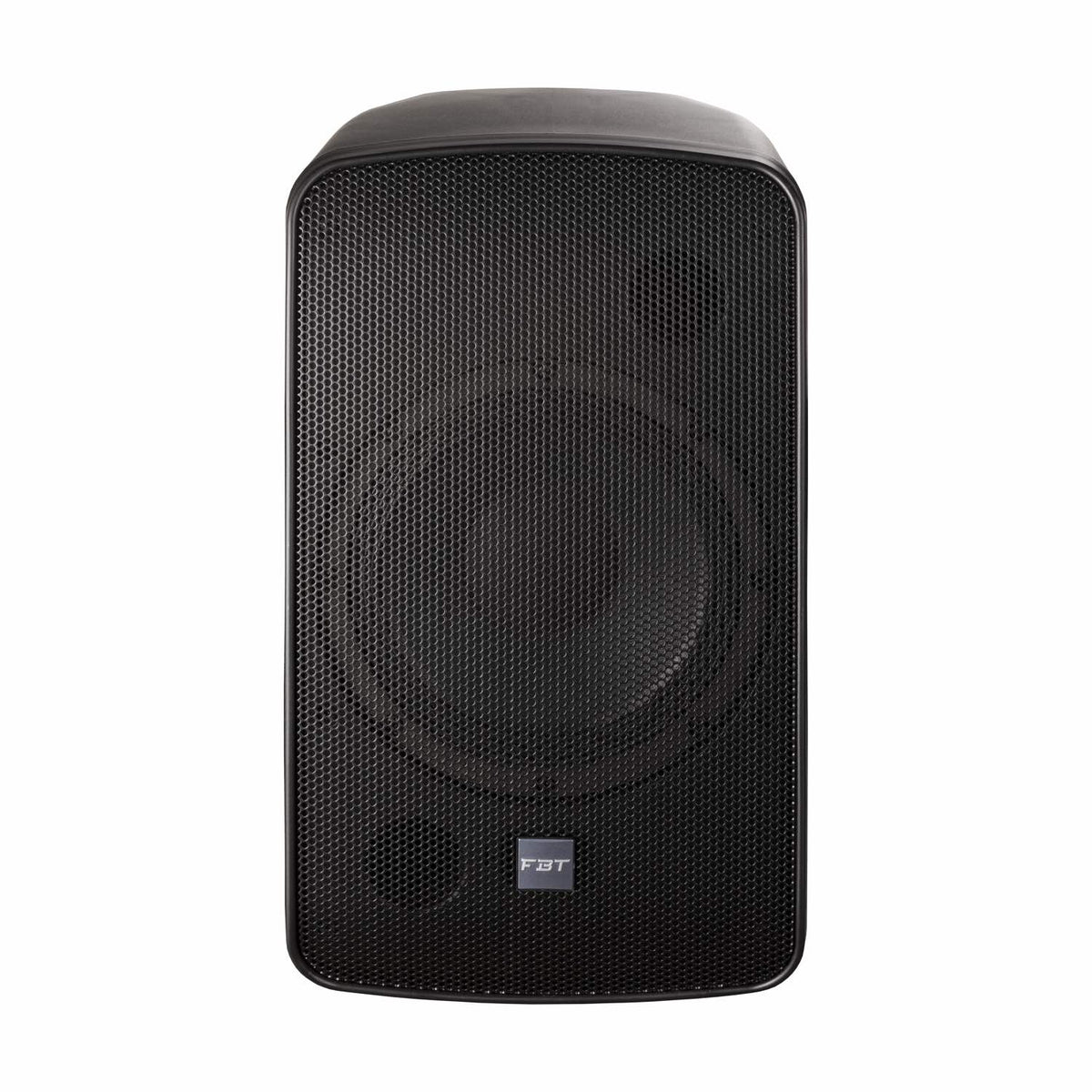

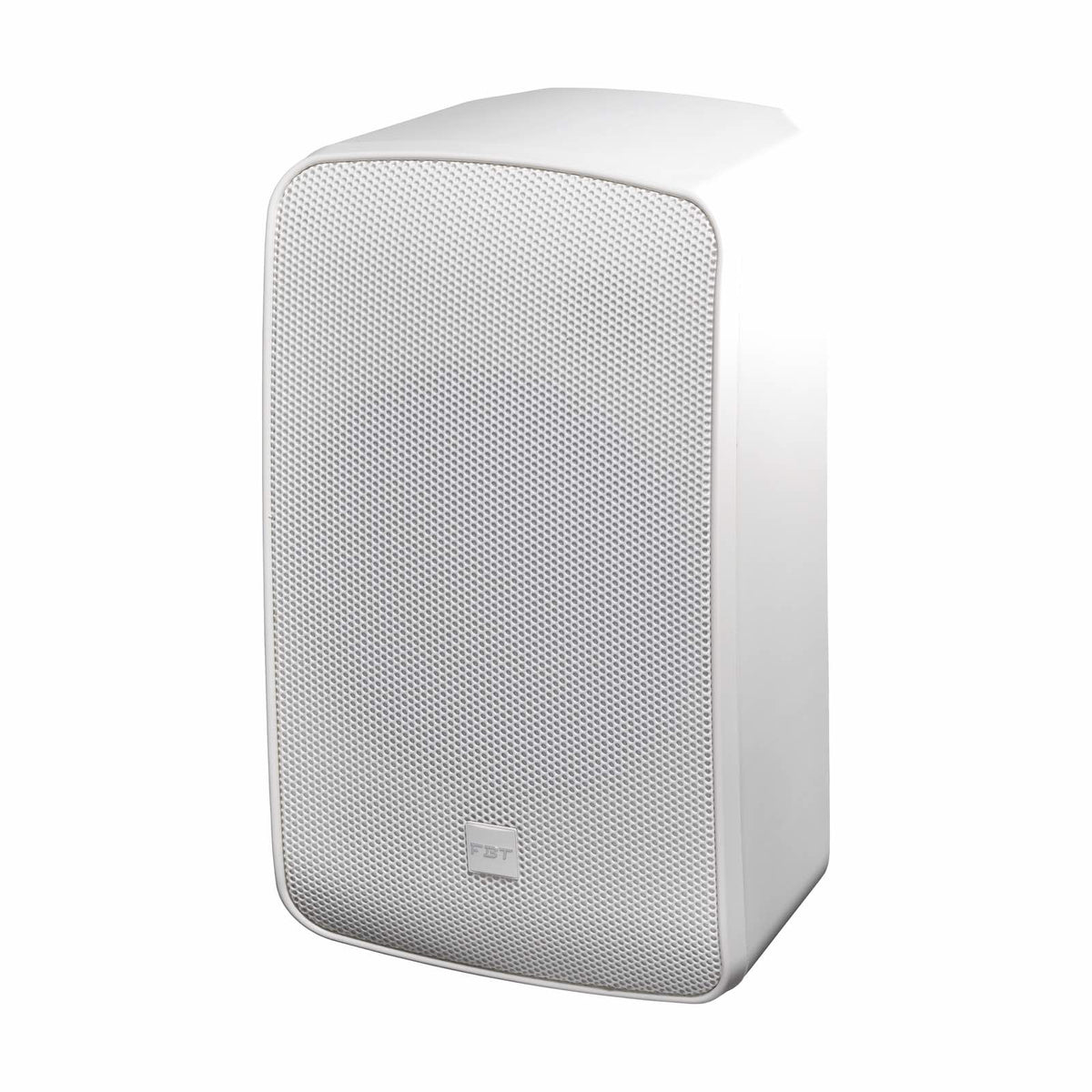

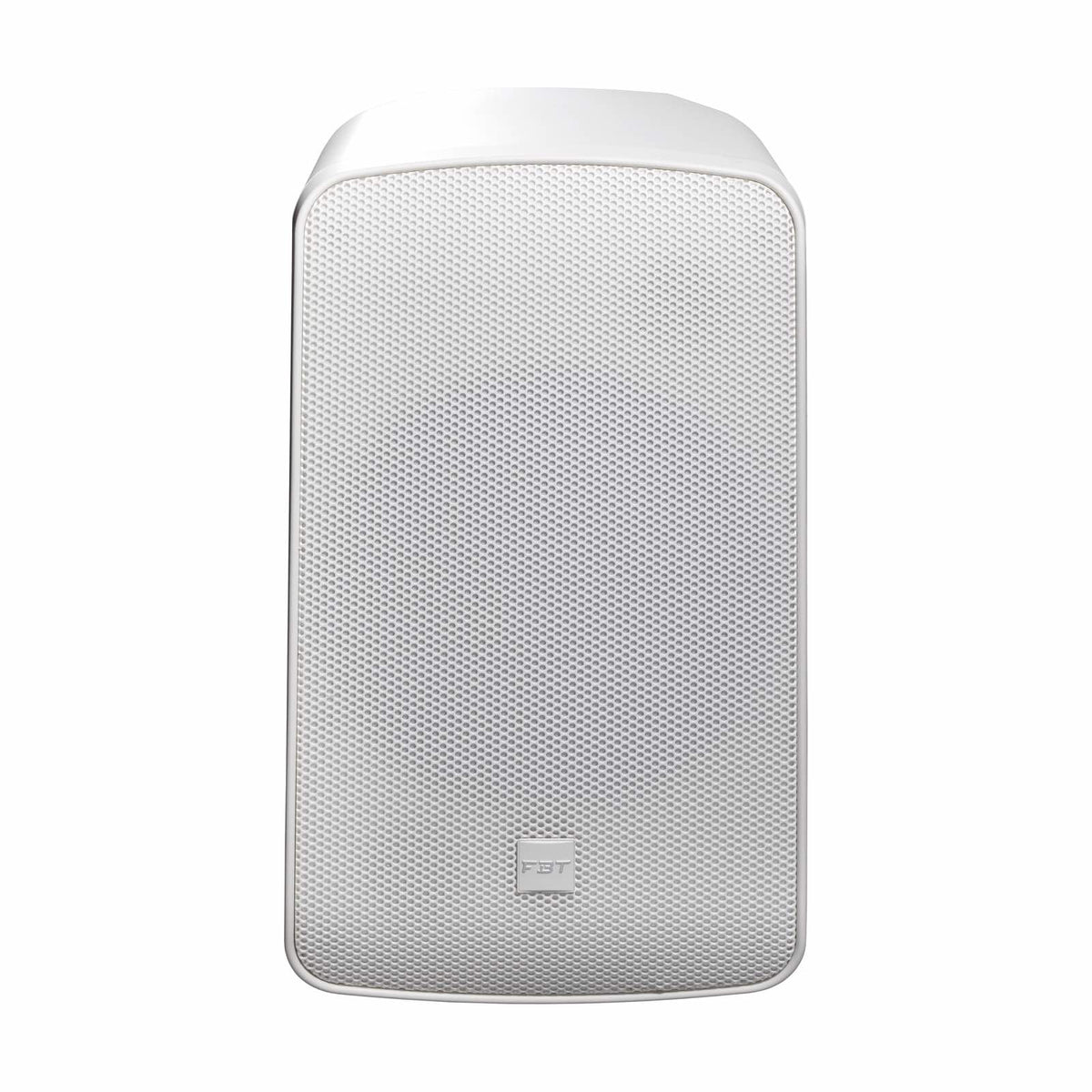

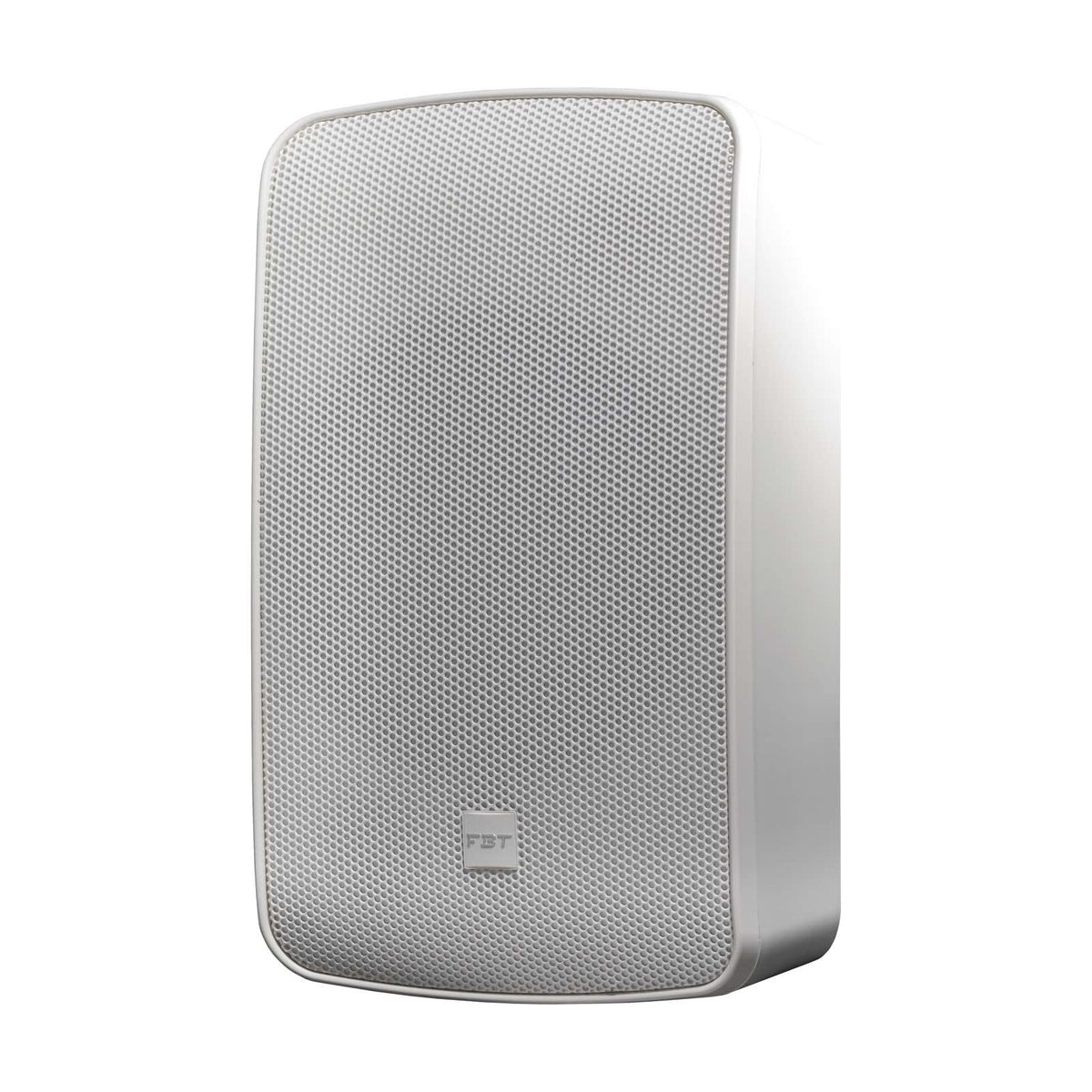

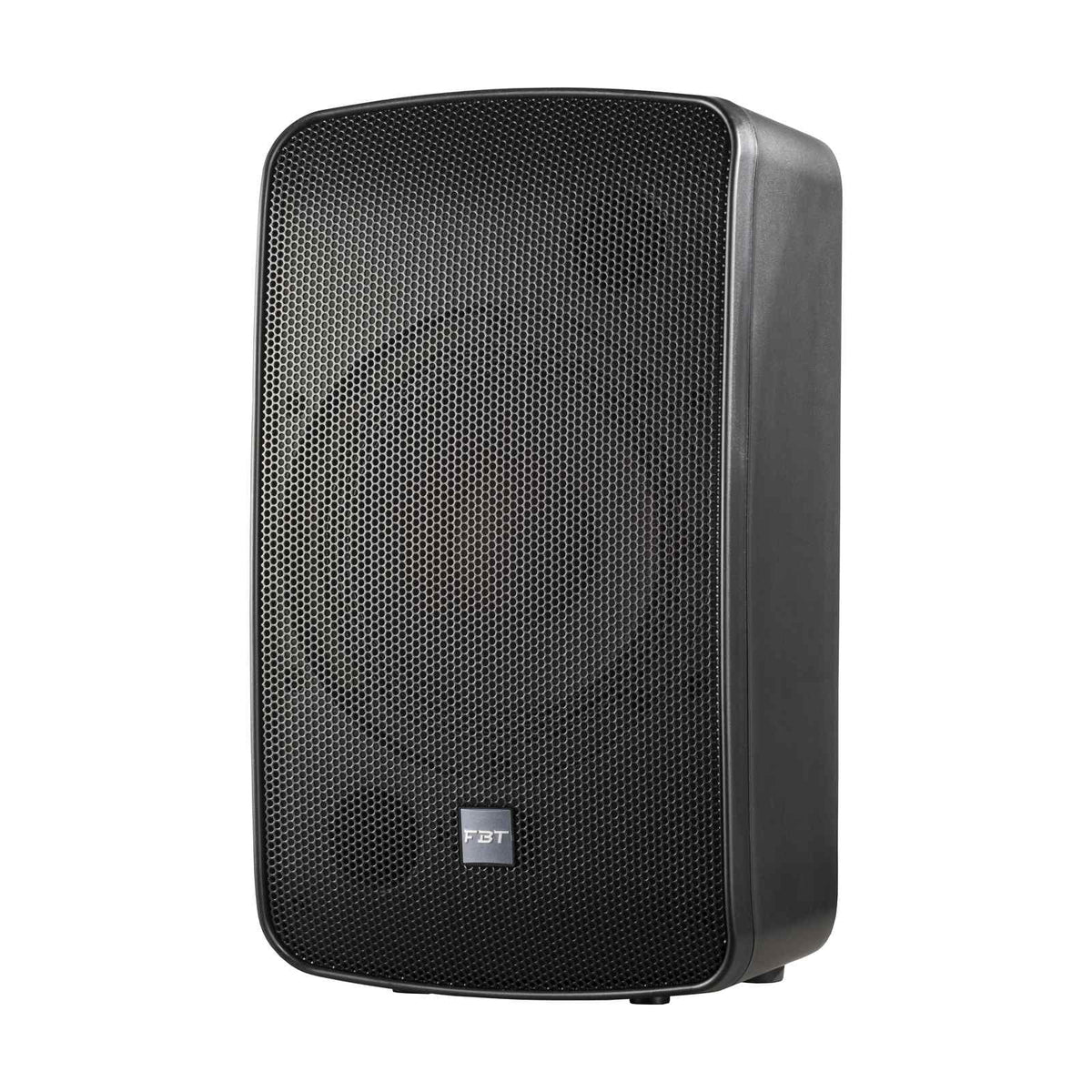

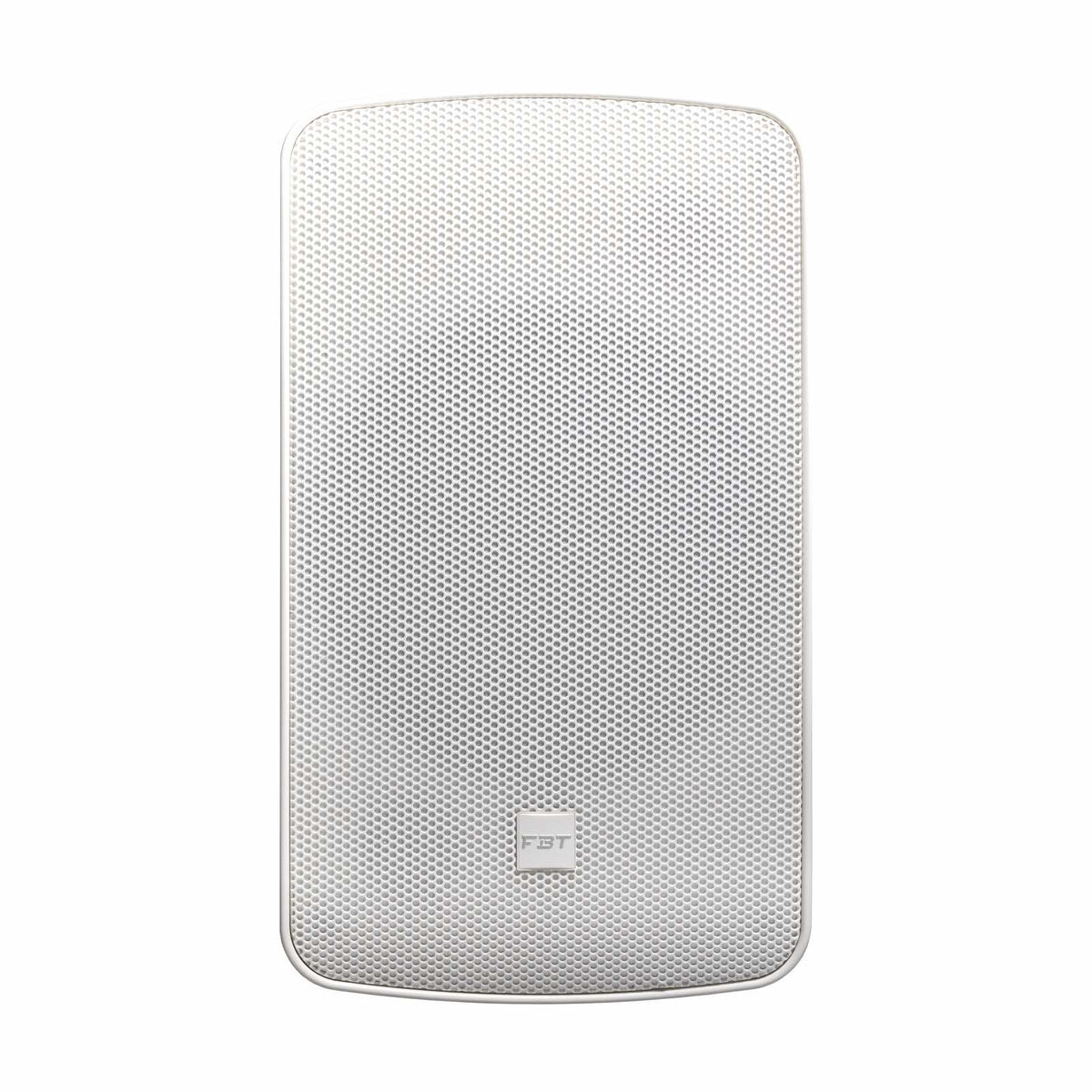

FBT CANTO 8C Passive Speaker
FBT CANTO 8C is a 2-way passive loudspeaker with a coaxial driver arrangement.
The polypropylene cabinet is designed for fixed sound installations. Black and white finishes are available to suit the room interior.
An external power amplifier is required. The 4-pin Euroblock connector provides an IN input and LINK terminals for a parallel connection to another speaker. Match the system load to the amplifier capabilities.
Recommended external high-pass filter: 50 Hz at 24 dB/oct. FBT recommends an FBT DSP Processor for signal processing.
Main Features
- The 8 Ω nominal impedance helps determine a suitable external amplifier and speaker wiring arrangement.
- An internal 2 kHz passive crossover divides the signal between the low- and high-frequency drivers.
- 80° conical dispersion covers a broad listening area. The coaxial arrangement places both drivers on the same axis.
- The optional WM-68 wall bracket allows horizontal and vertical adjustment of the speaker position.
Technical Specifications
- Drivers: 1 × 8-inch LF with a 2-inch voice coil; 1 × 1-inch HF compression driver with a 1.4-inch voice coil
- Recommended Amplifier Power: 250 W RMS
- Long-term Power: 125 W
- Short-term Power (IEC 268-5): 500 W
- Sensitivity (1 W / 1 m): 96 dB
- Frequency Response: 60 Hz - 20 kHz (−6 dB)
- Maximum SPL, Continuous / Peak: 120 / 125 dB
- Dimensions (W × H × D): 240 × 416 × 240 mm
- Weight: 6.1 kg
What’s Included
- 1 × FBT CANTO 8C Passive Speaker
Other compatible accessories are the CN-U 8 wall bracket and V 37 cover. Accessories and the WM-68 bracket are sold separately.
Suspended installation must be carried out by qualified personnel using original FBT supports and an independent secondary safety system.
Who Is It For
For background music and announcements, meeting and teaching rooms, bars and other fixed sound systems. The coaxial design supports indoor speech and music reproduction.
