FBT CANTO 5CA Active Speaker

FBT CANTO 5CA Active Speaker

FBT CANTO 5CA is a 2-way active loudspeaker with a coaxial driver arrangement.

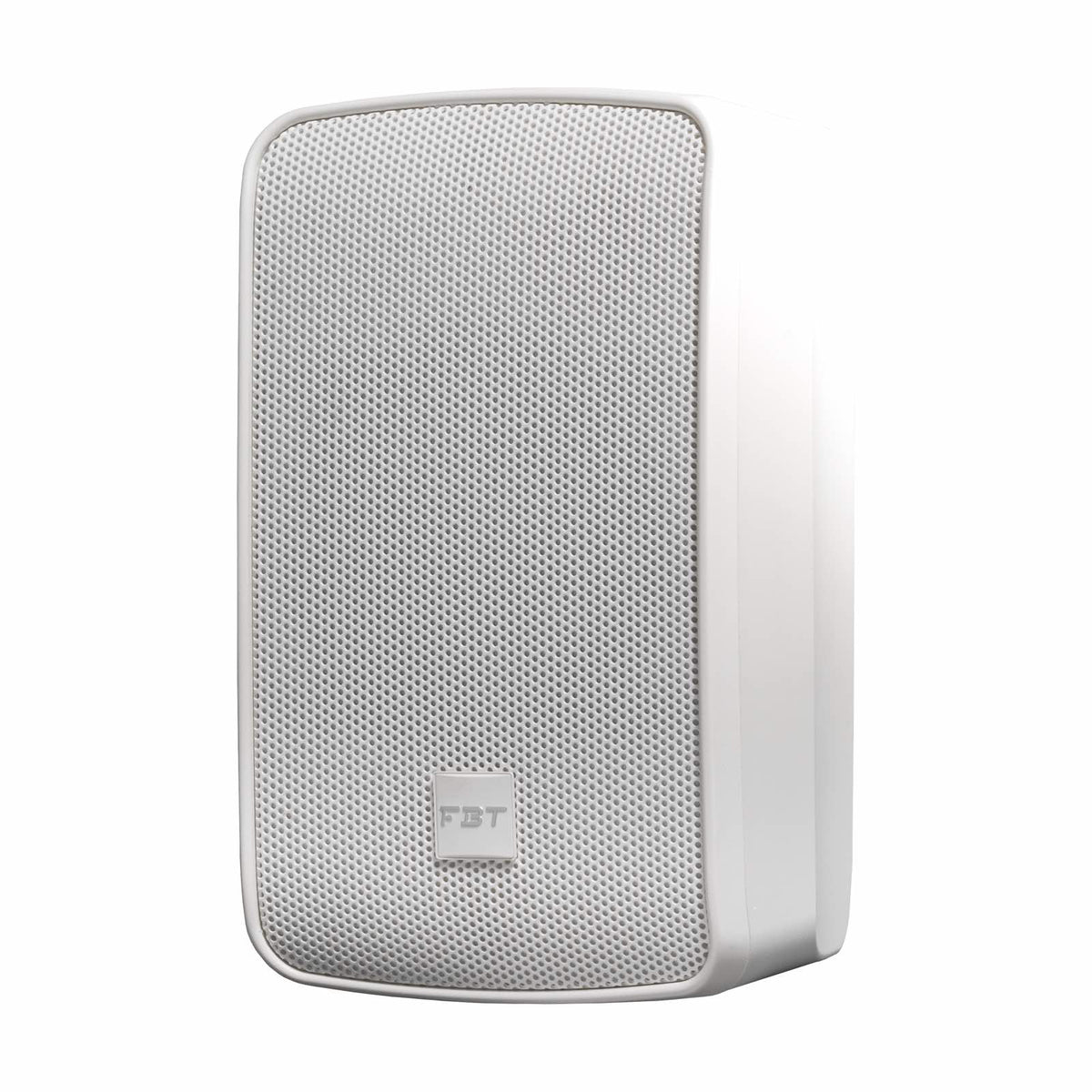

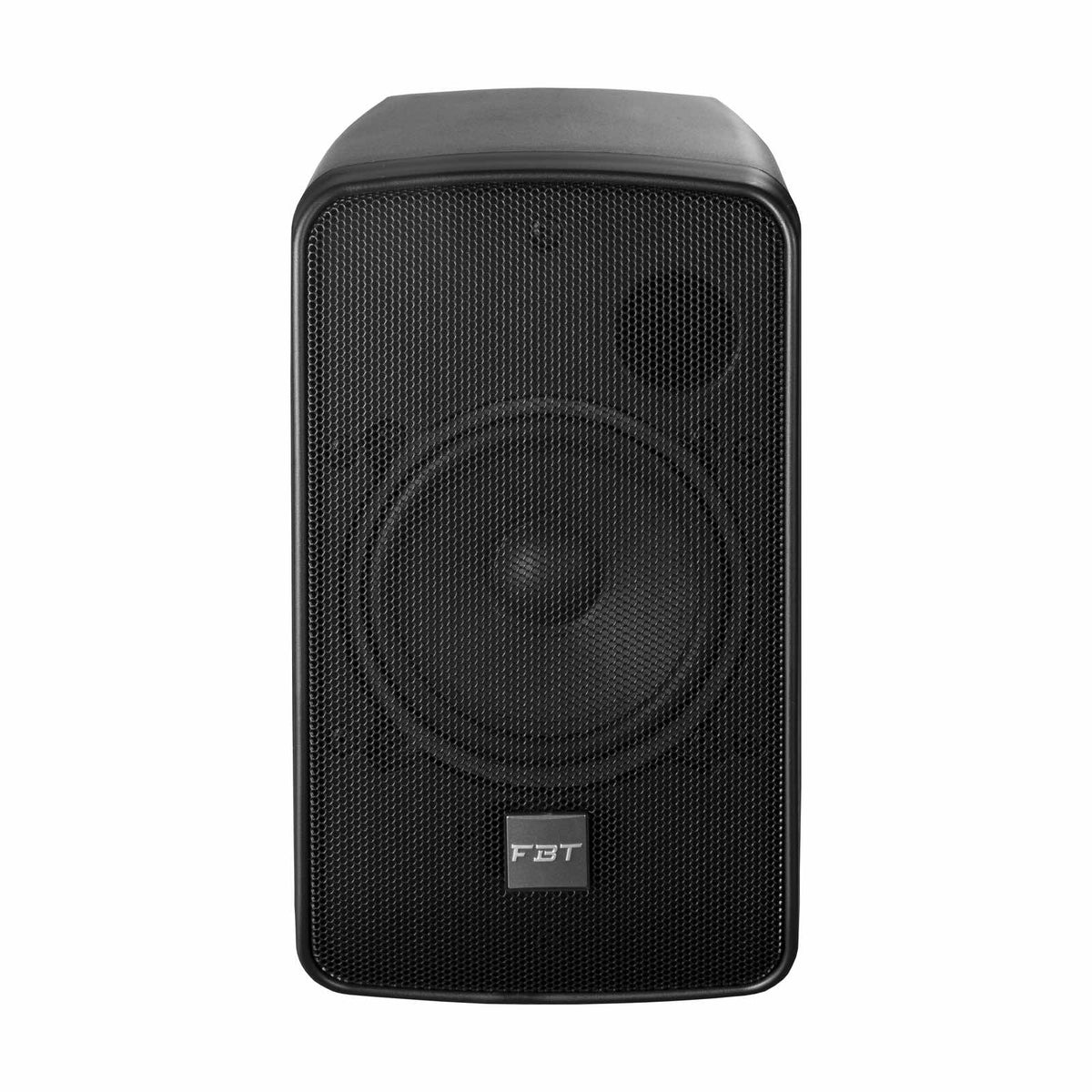

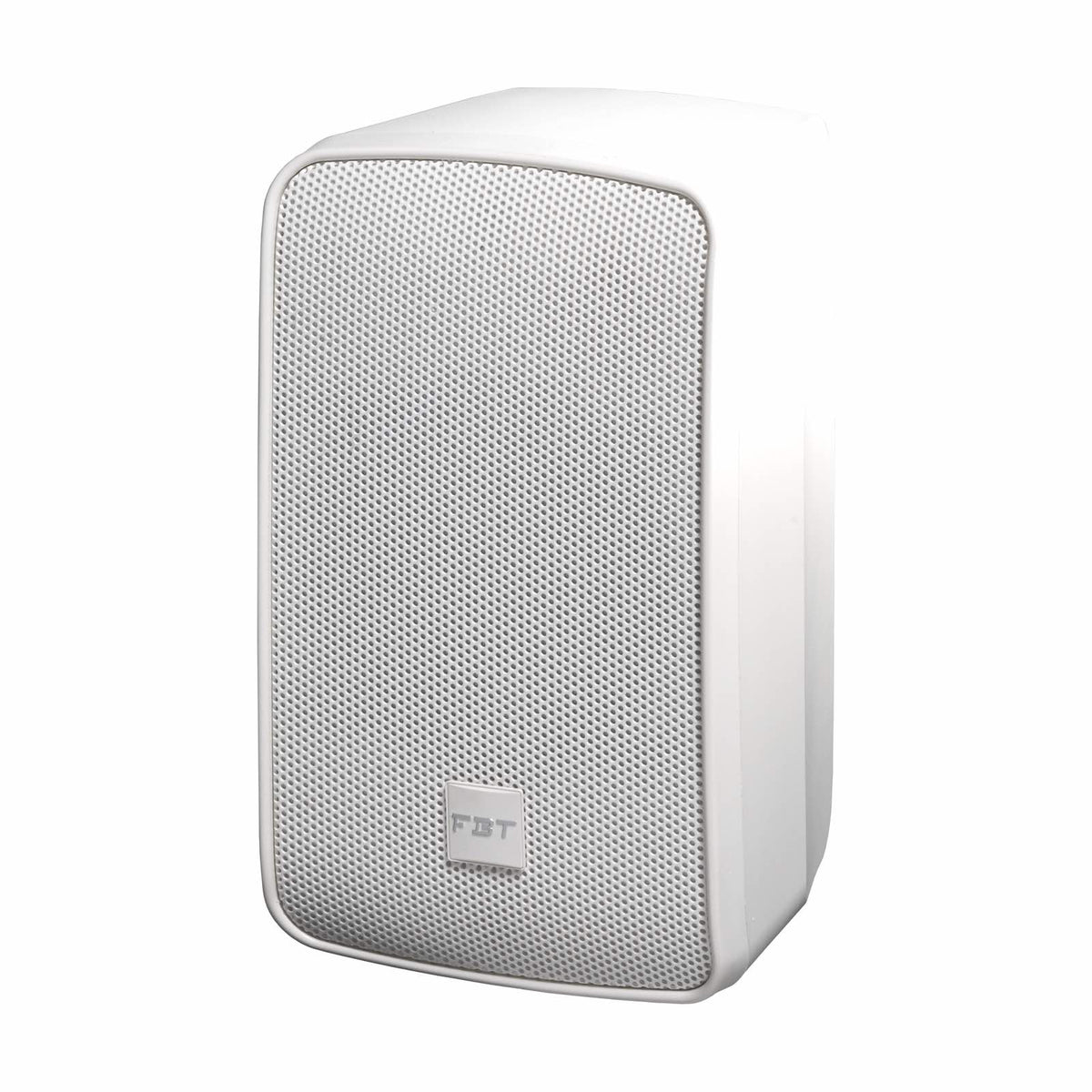

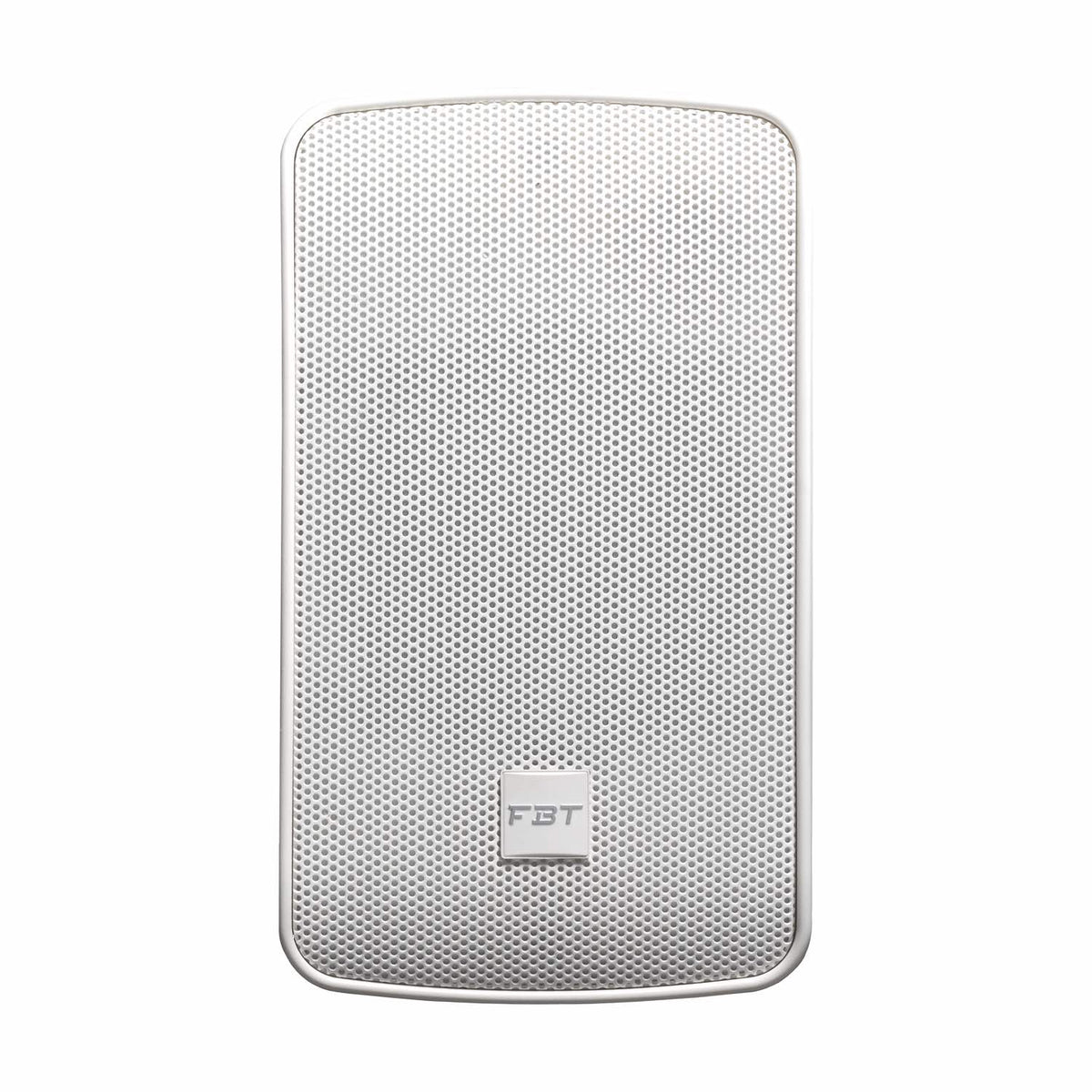

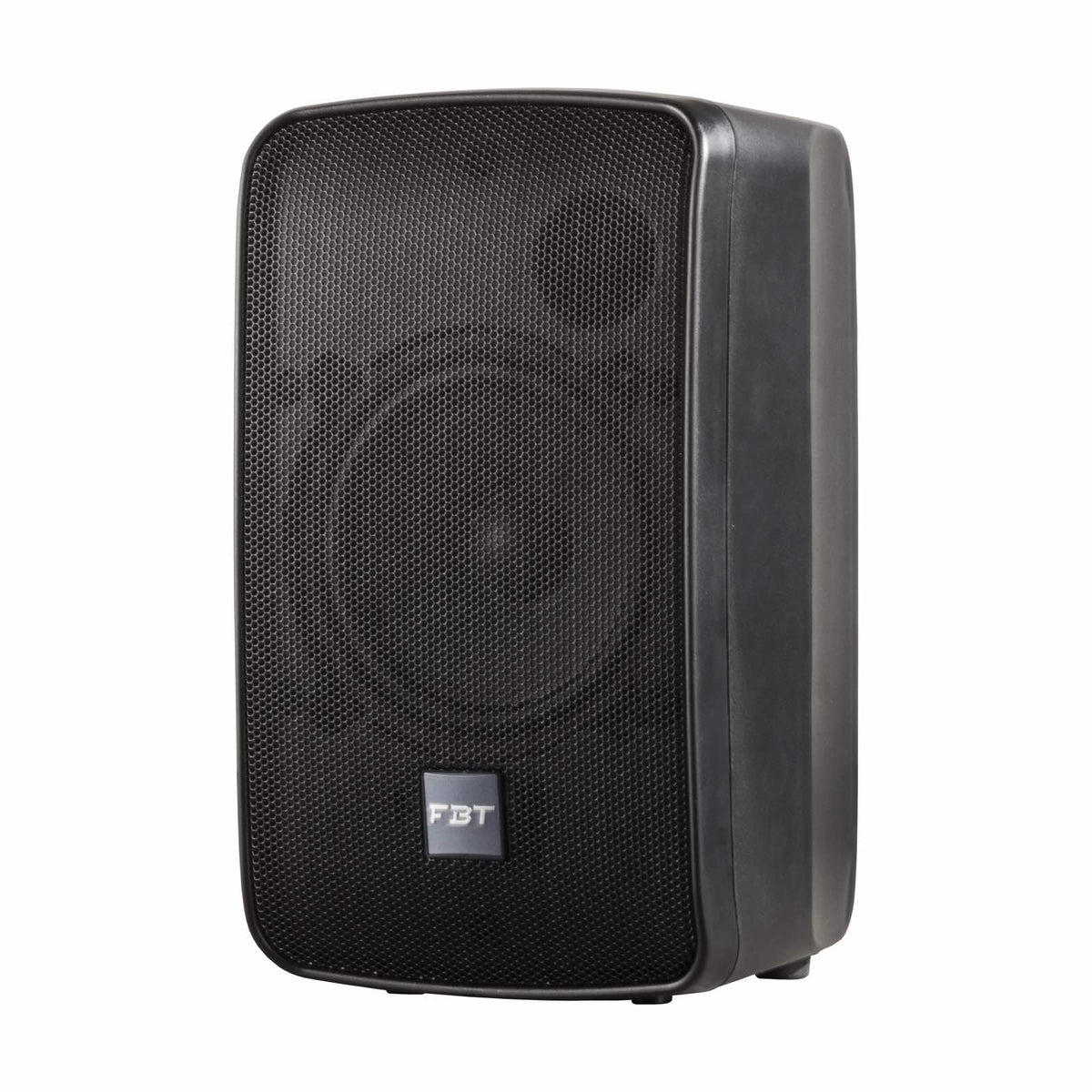

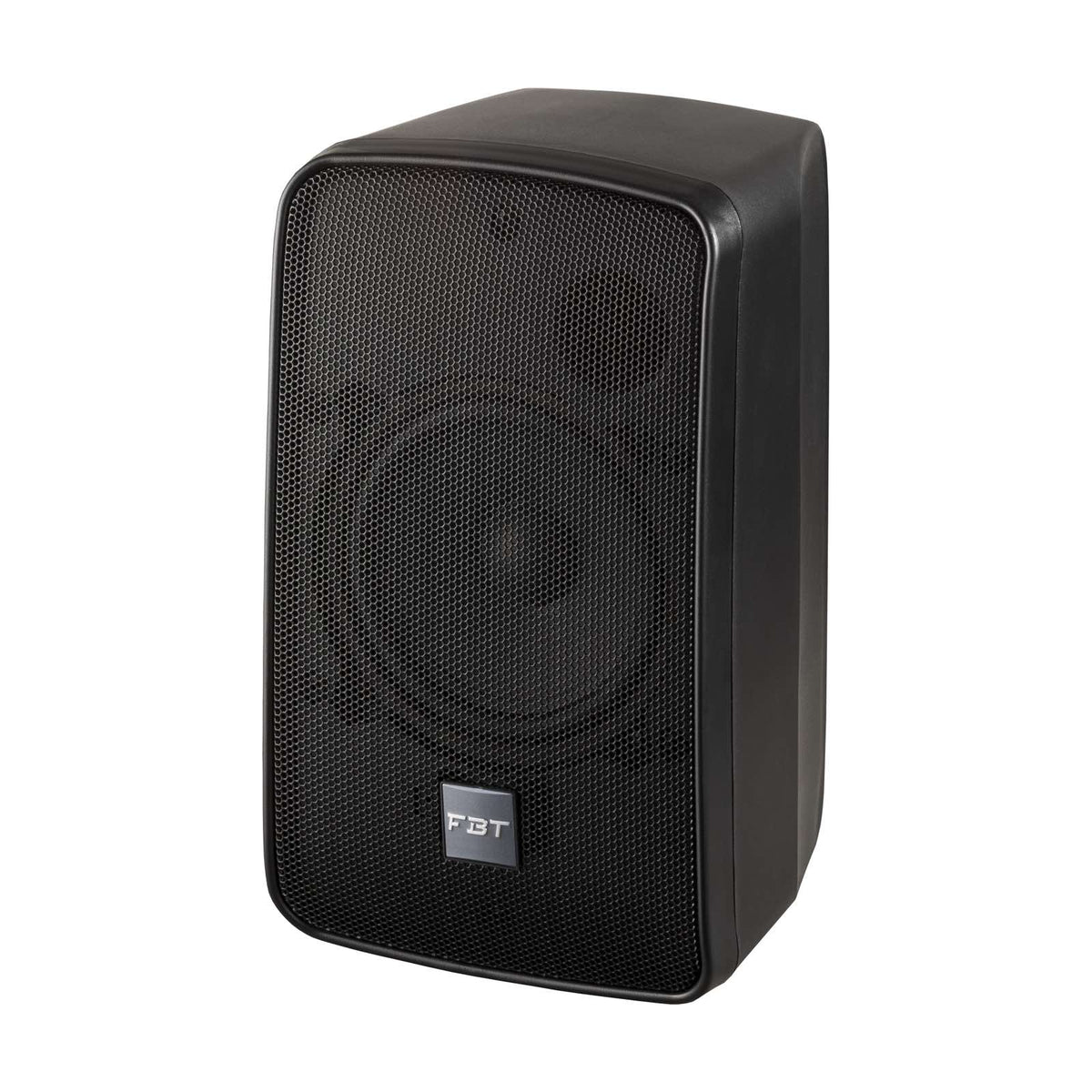

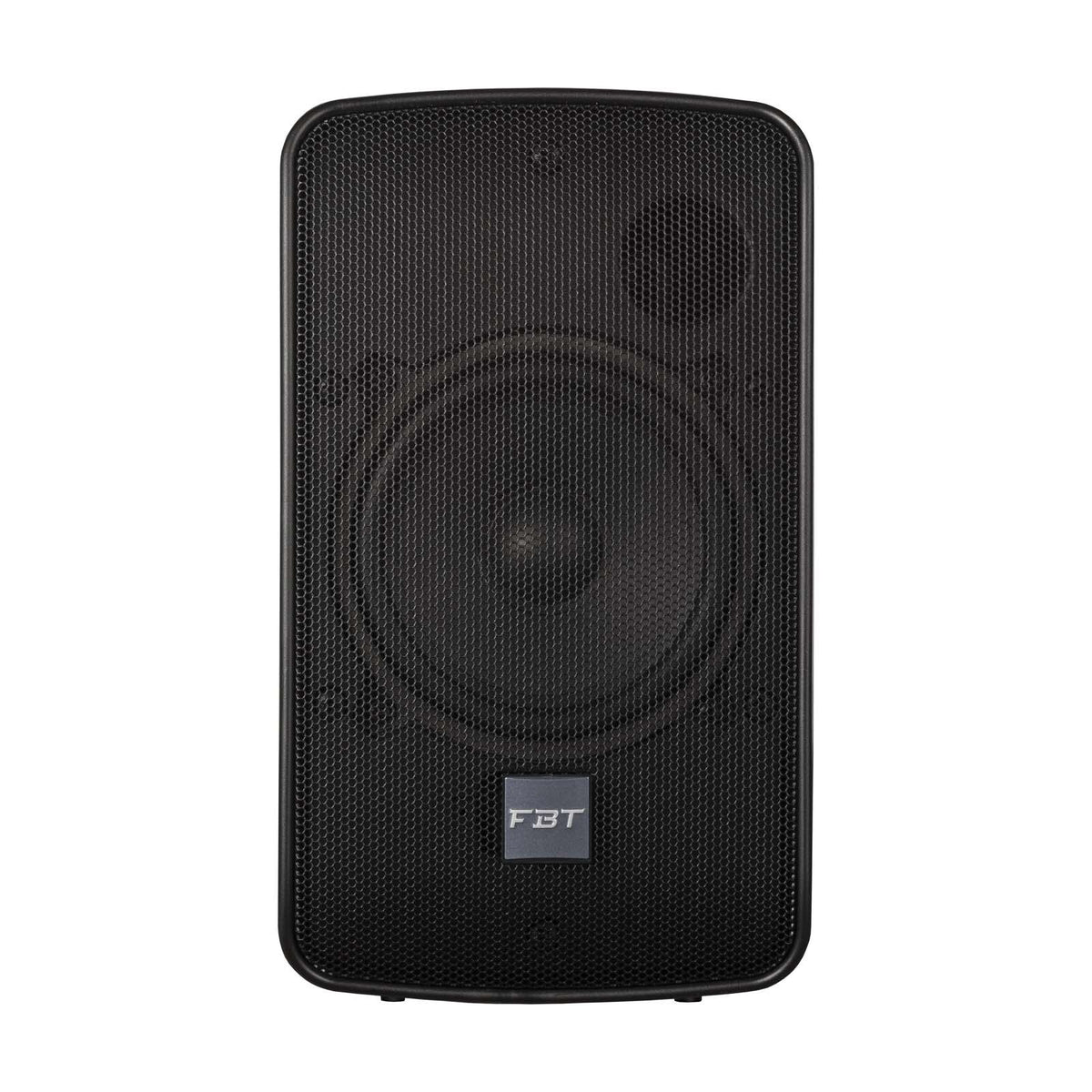

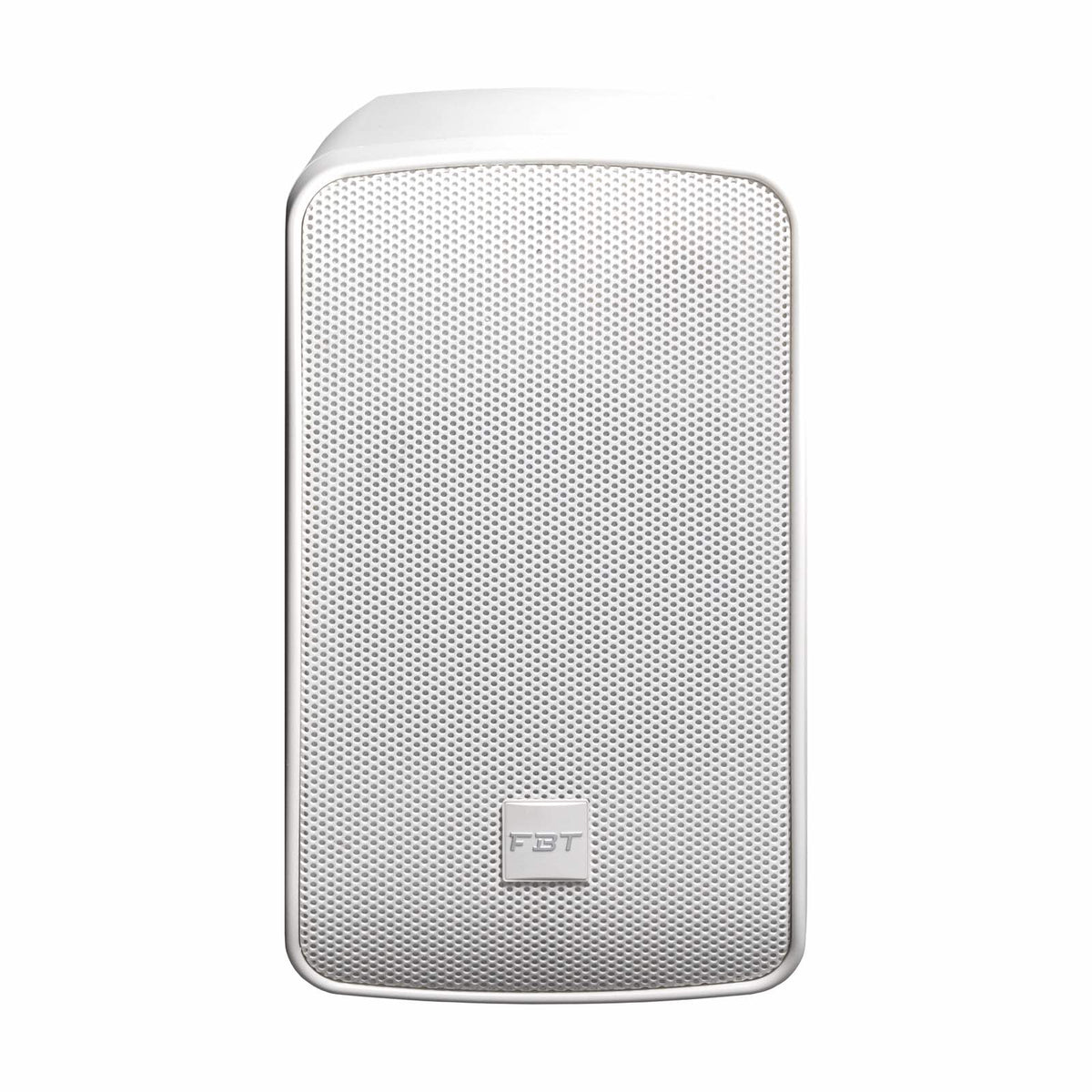

The polypropylene cabinet is designed for fixed sound installations. Black and white finishes are available to suit the room interior.

Separate Class D amplifiers power the low- and high-frequency drivers. A switch-mode power supply and built-in DSP support speech, music playback and close listening applications.

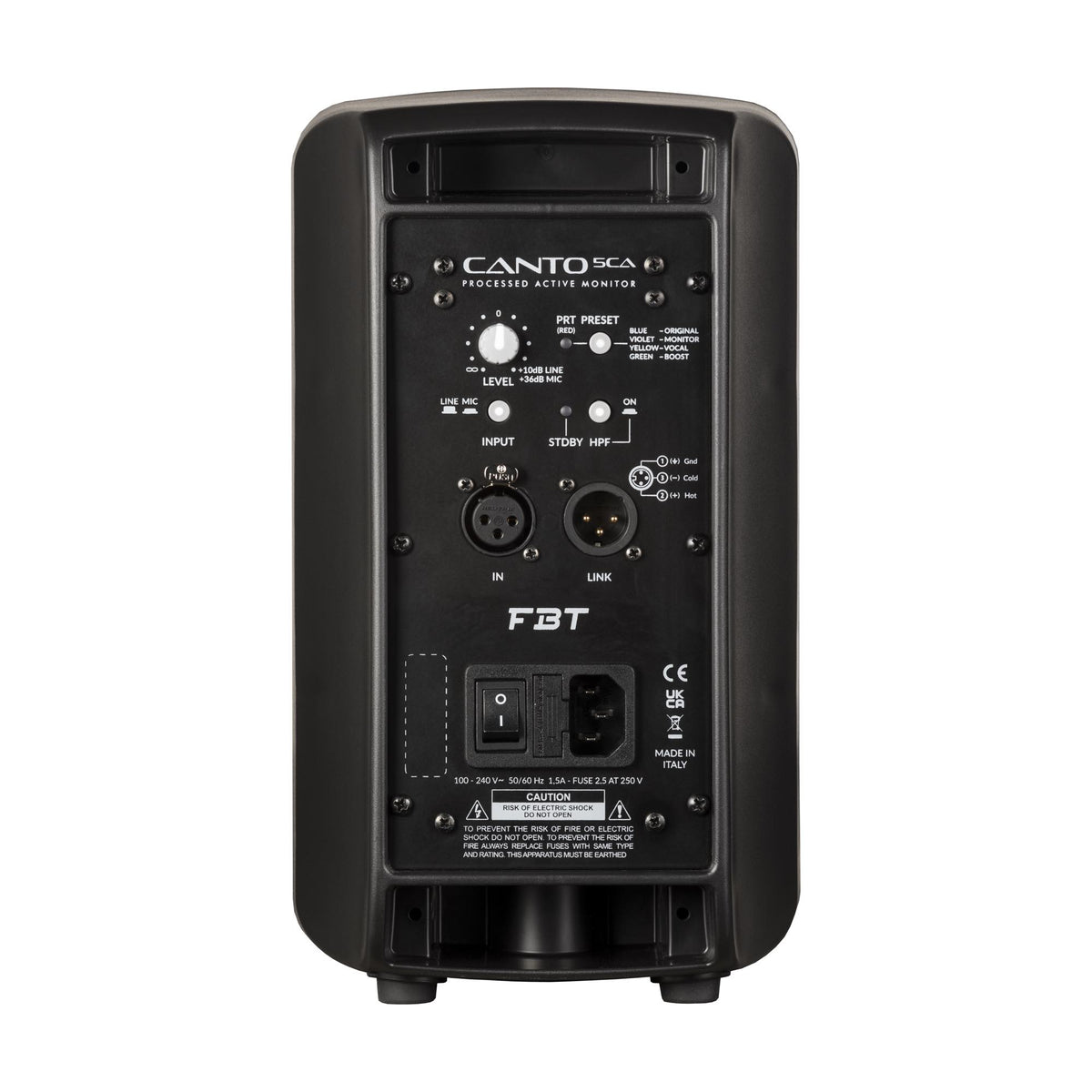

Balanced XLR IN accepts a microphone or line-level signal, while XLR LINK passes the same signal to another speaker. MIC mode is intended for a low-impedance dynamic microphone; use LINE for a mixer or another line-level source.

Main Features

• 4 DSP presets: Original for live sound, Monitor for close listening, Vocal for speech intelligibility and Boost for stronger bass. Presets adjust EQ and dynamic processing. DSP also provides protection circuits.
• LEVEL adjusts the overall signal level. The PRT/LMT indicator shows limiter activity or a system fault.
• Automatic standby reduces power consumption when no input signal is present. The speaker returns to normal operation when a signal is detected.
• The switchable HPF high-pass filter supports use with a separate subwoofer.
• The asymmetric cabinet can be laid on the floor for use as a floor stage monitor.
• A 25 mm pole socket allows mounting on a suitable speaker stand.
• 90° conical dispersion covers a broad listening area. The coaxial arrangement places both drivers on the same axis.
• The optional WM-45 wall bracket allows horizontal and vertical adjustment of the speaker position.

Technical Specifications

• Drivers: 1 × 5-inch LF with a 1.5-inch voice coil; 1 × 1-inch HF compression driver with a 1-inch voice coil
• Built-in Amplifier Maximum RMS Power (LF / HF): 100 / 50 W
• Built-in Amplifier Peak Power (LF / HF): 200 / 100 W
• Frequency Response: 70 Hz - 20 kHz (−6 dB)
• Maximum SPL, Continuous / Peak: 114 / 117 dB
• Input Impedance: 22 kΩ
• Power Supply: 100–240 V AC, 50/60 Hz; IEC mains inlet
• Power Consumption: 100 W
• Power Cable Length: 5 m
• Dimensions (W × H × D): 160 × 276 × 170 mm
• Weight: 3.2 kg

What’s Included

• 1 × FBT CANTO 5CA Active Speaker
• Region-appropriate 5 m power cable

Other compatible accessories are the WMA 560BK wall bracket, FMS 220BK, MSA 220BKS and MSA 300BK stands, and V 36 cover. Accessories and the WM-45 bracket are sold separately.

The AJ-8 adapter connects a 35 mm stand pole to the speaker’s 25 mm socket.

Suspended installation must be carried out by qualified personnel using original FBT supports and an independent secondary safety system.

Who Is It For

For background music and announcements, meeting and teaching rooms, bars and other fixed sound systems. The coaxial design supports indoor speech and music reproduction.
