FBT CANTO 3CT Passive Speaker
FBT CANTO 3CT is a 2-way passive loudspeaker with a coaxial driver arrangement.

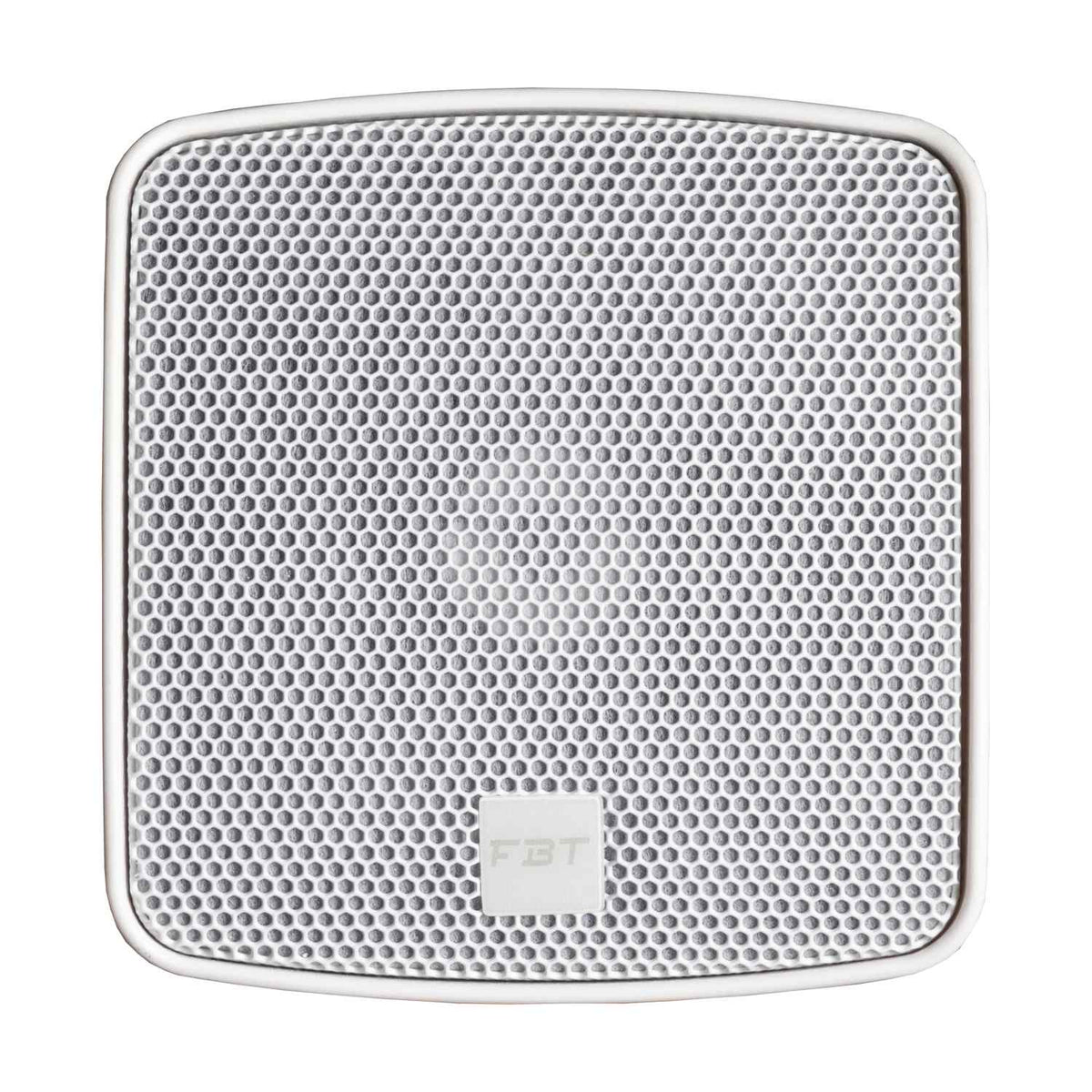

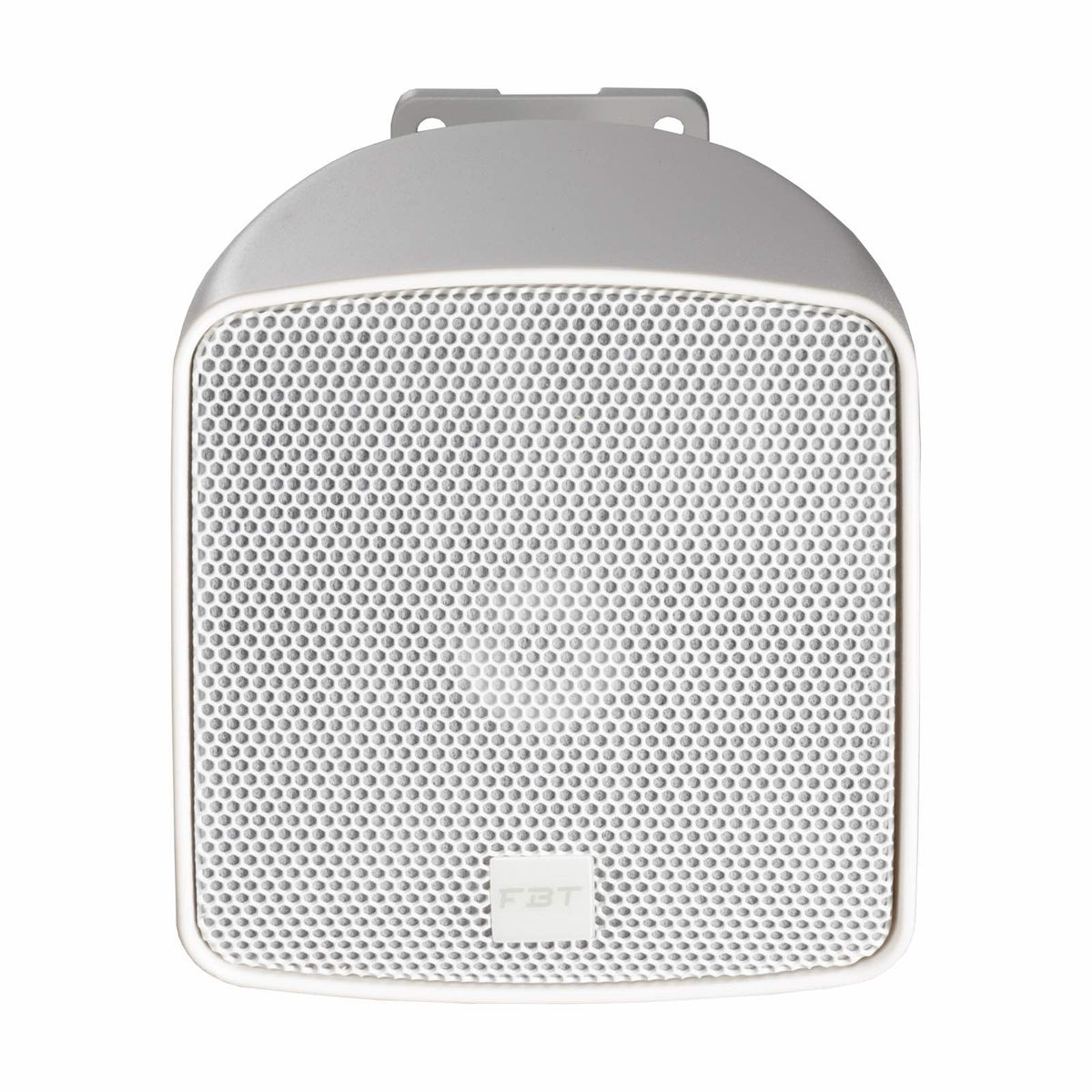

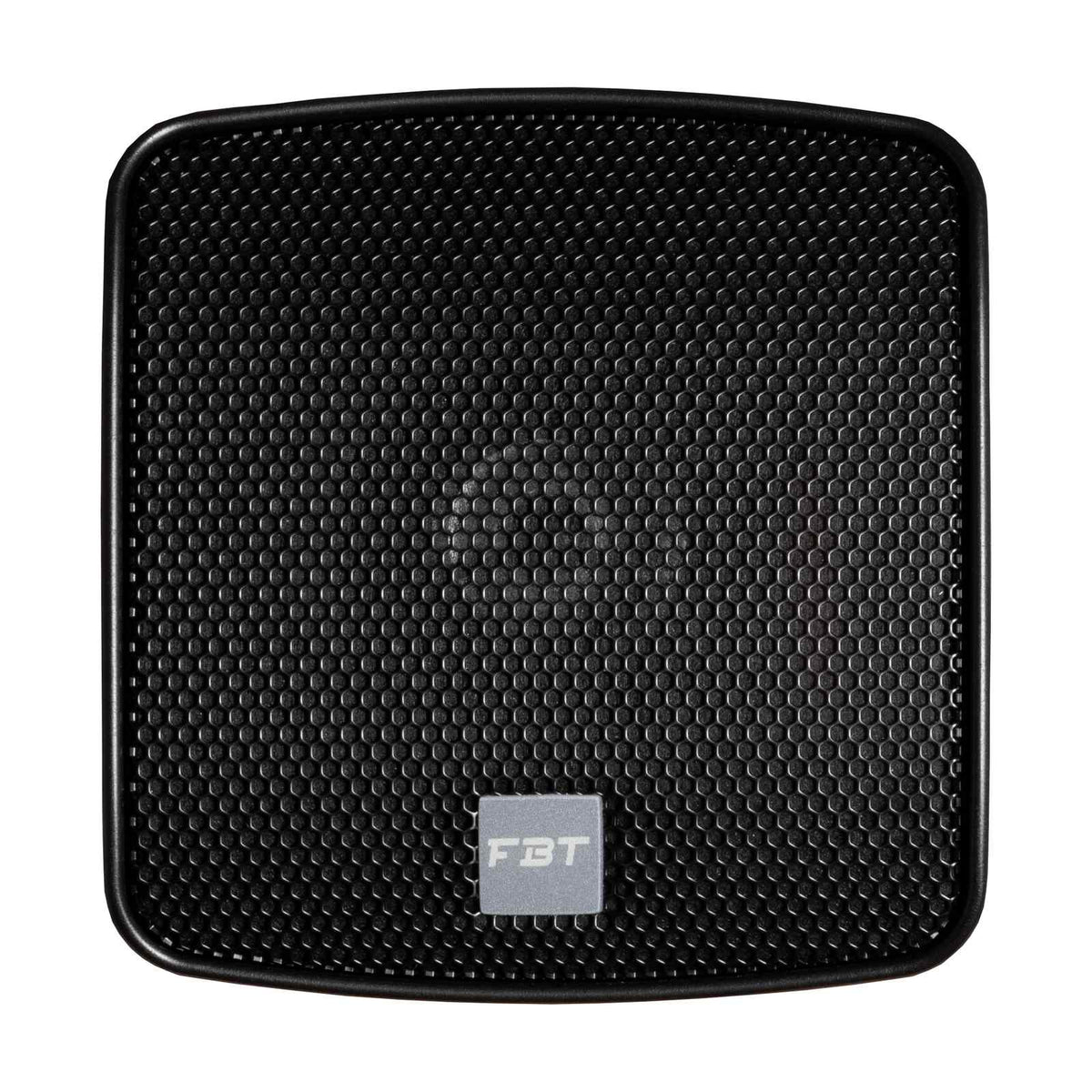

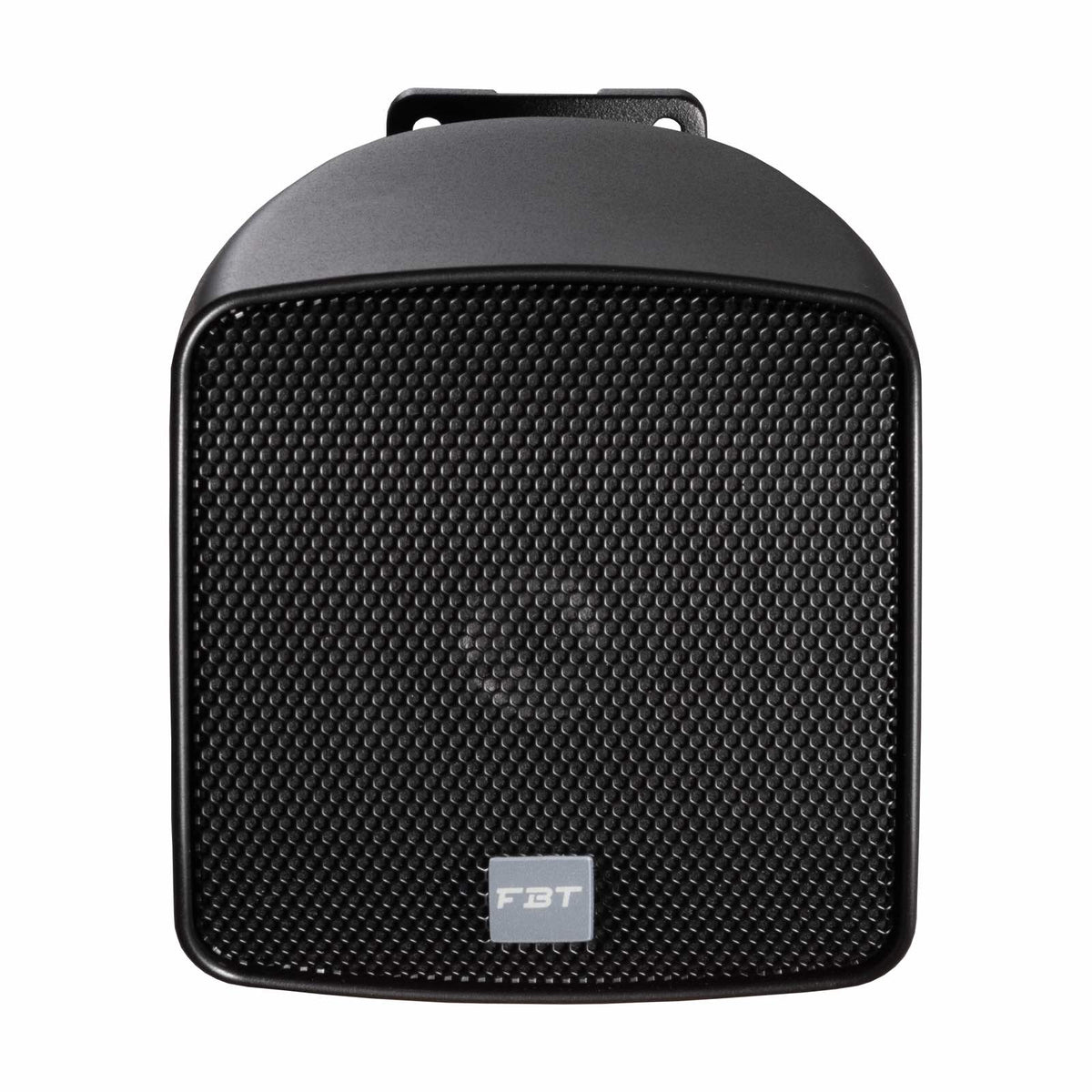

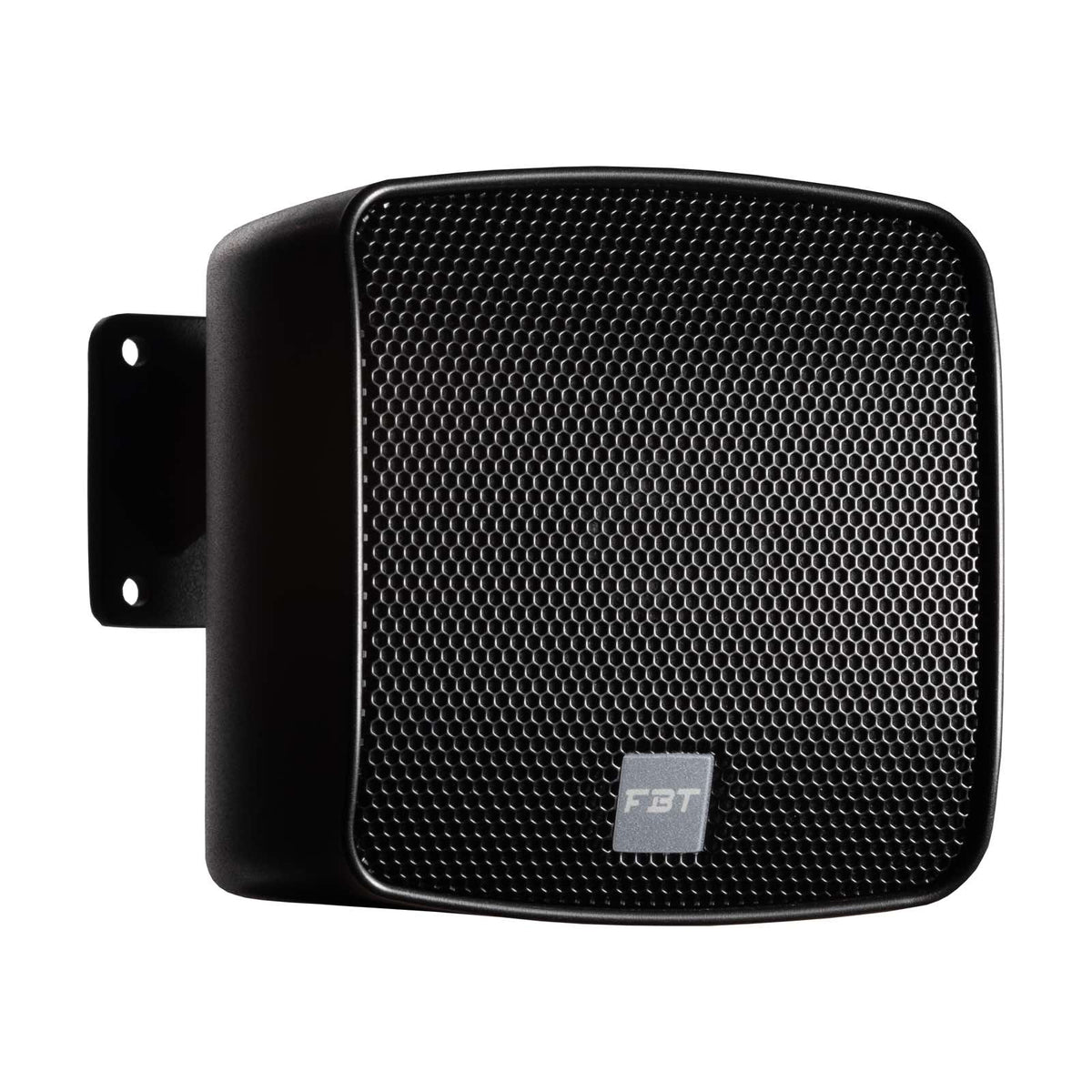

The ABS cabinet is designed for fixed sound installations. Black and white finishes are available to suit the room interior.
An external power amplifier is required. The 4-pin Euroblock connector provides an IN input and LINK terminals for a parallel connection to another speaker. Match the system load to the amplifier capabilities.
The built-in transformer supports a 100 V line with selectable 7.5 W or 15 W taps. A 16 Ω low-impedance operating mode is also available.
Main Features
- Recommended external high-pass filter: 130 Hz at 24 dB/oct. FBT recommends an FBT DSP Processor for signal processing.
- An internal 5 kHz passive crossover divides the signal between the low- and high-frequency drivers.

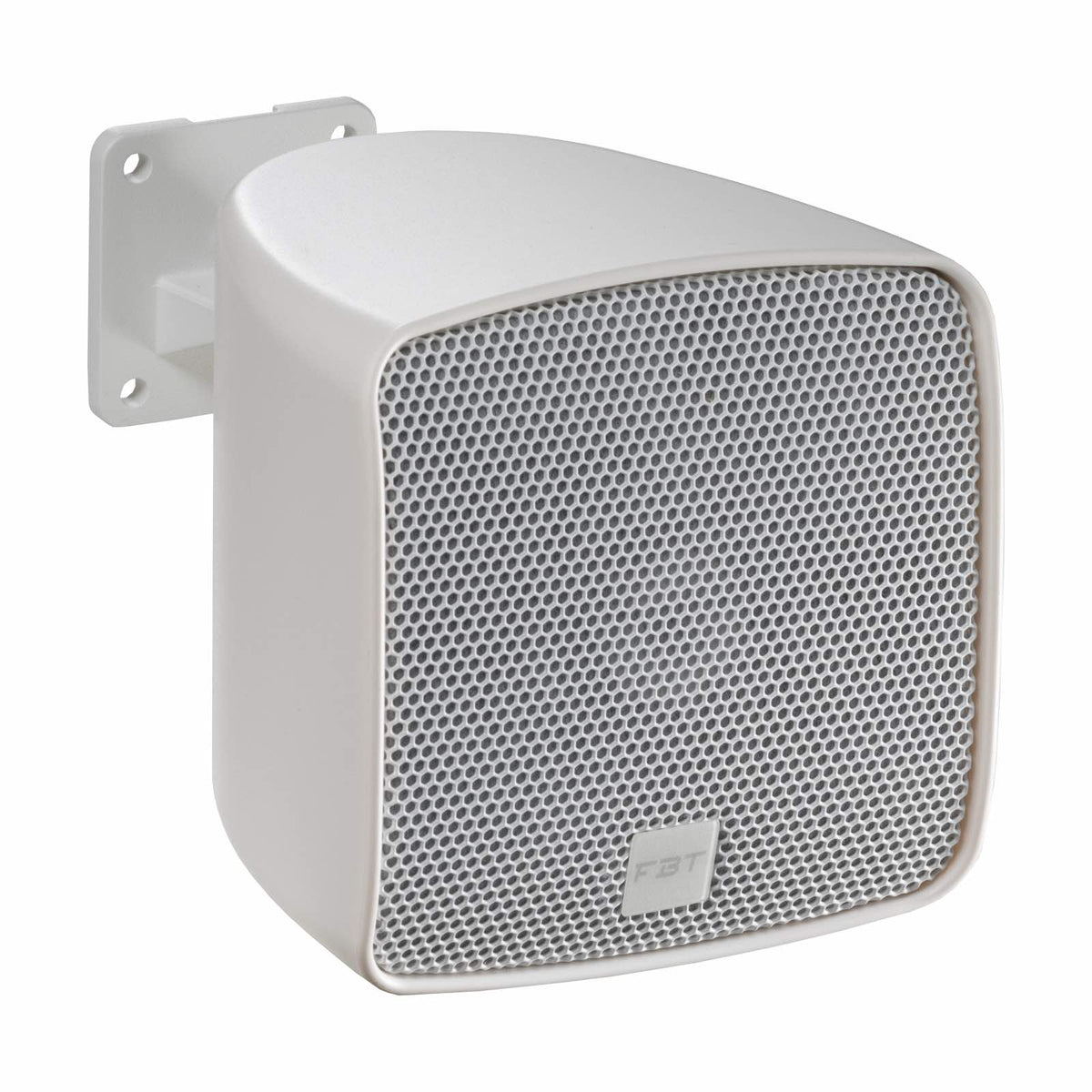

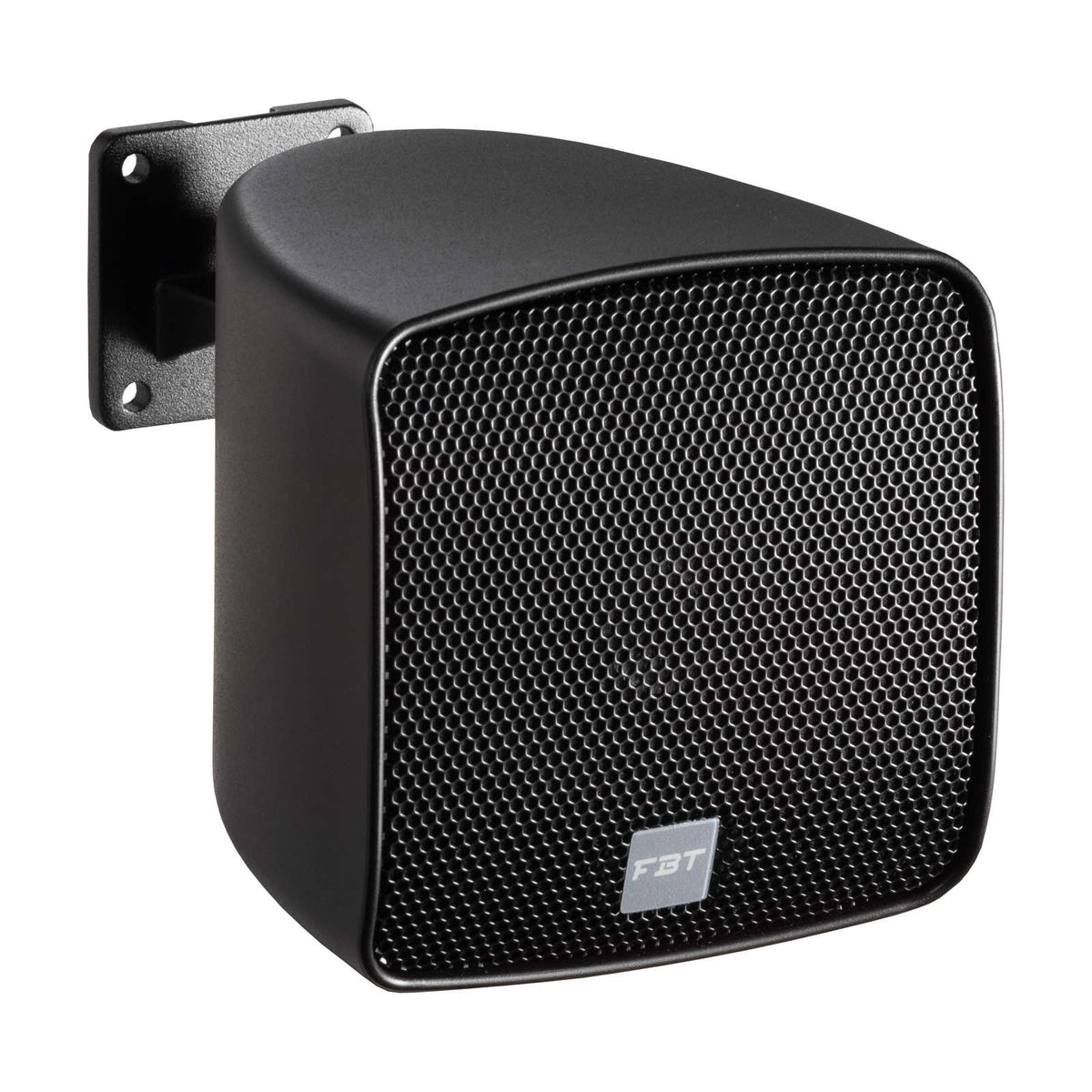

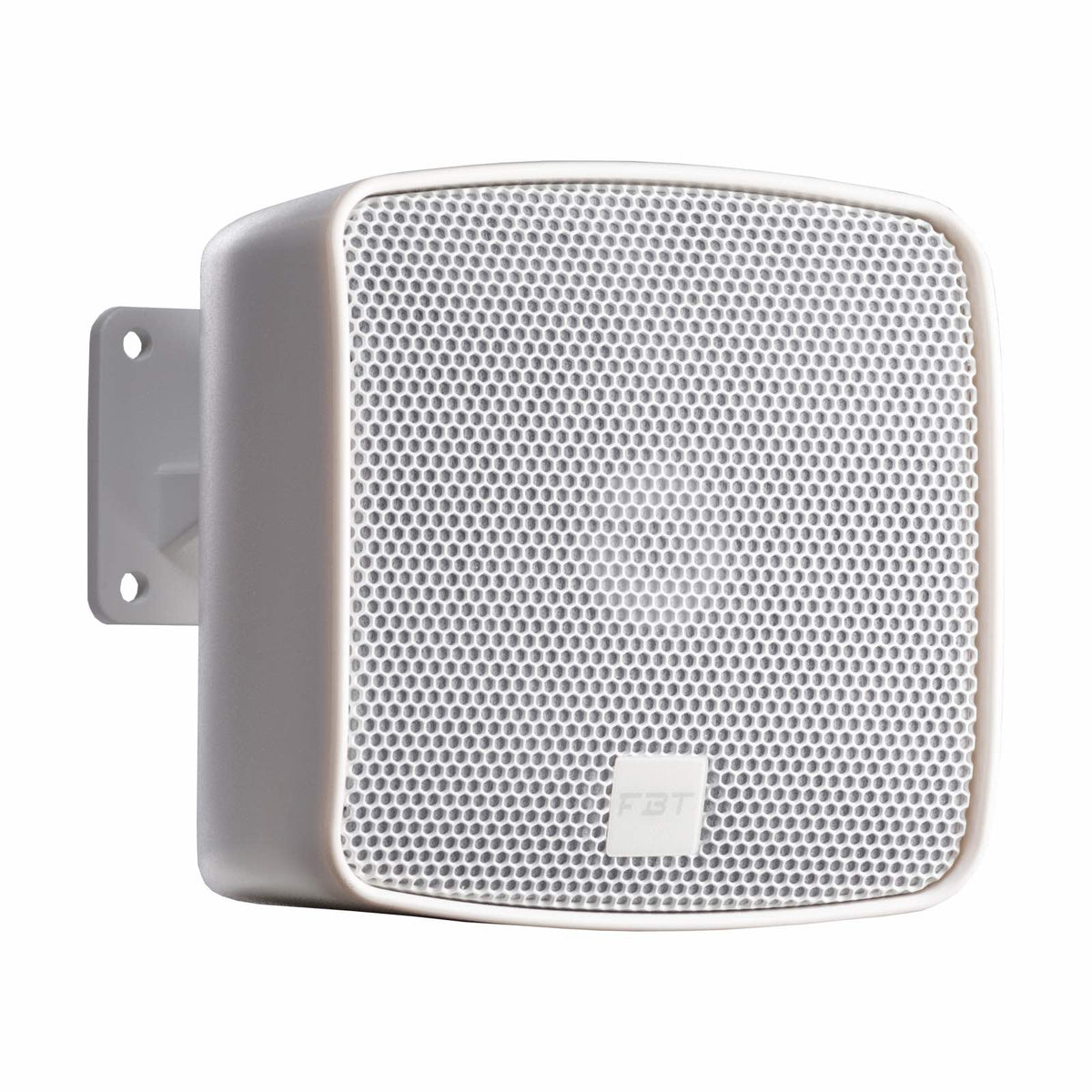

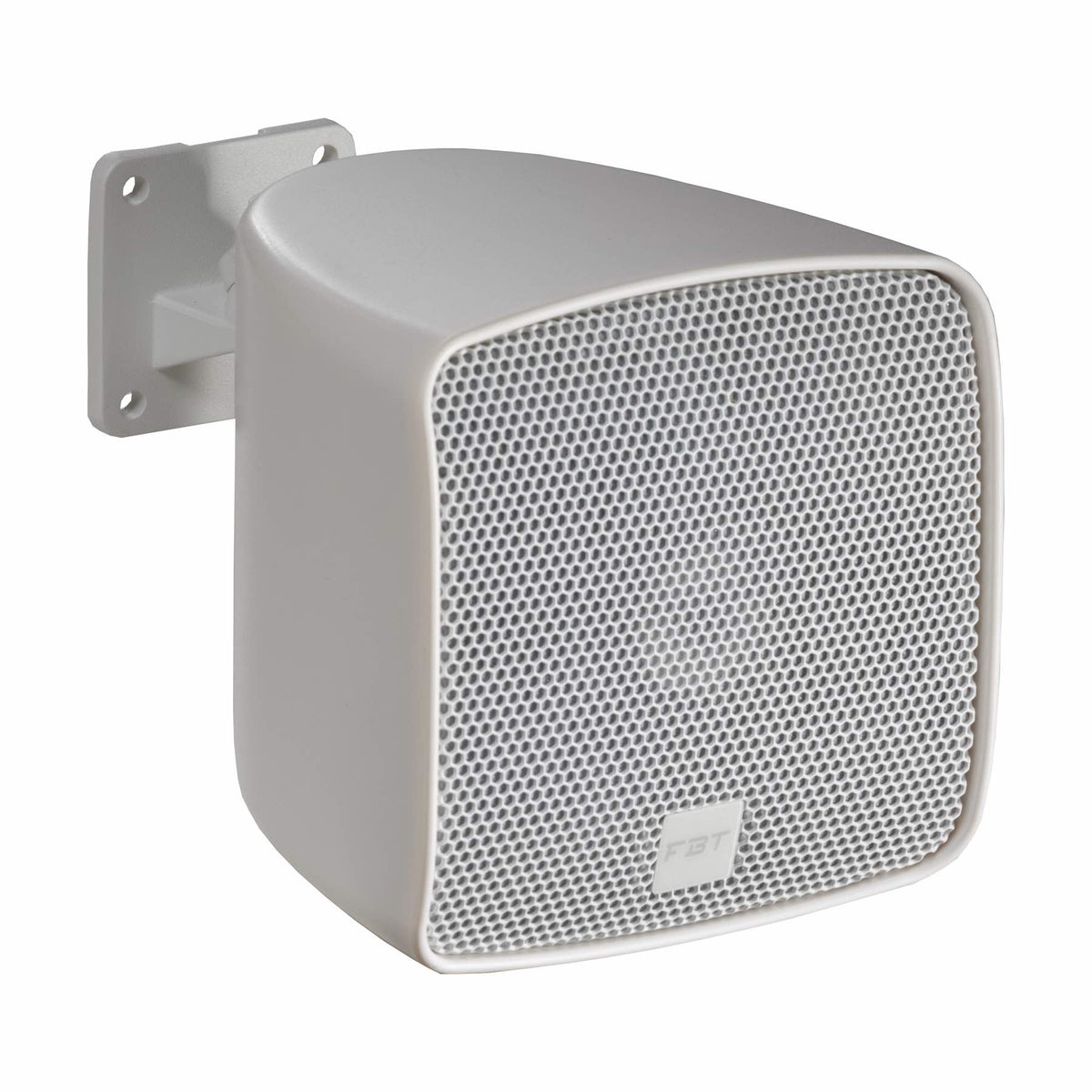

- The included directional bracket with a ball joint supports wall or ceiling installation and aiming towards the listening area.
- 120° conical dispersion covers a broad listening area. The coaxial arrangement places both drivers on the same axis.
Technical Specifications
- Drivers: 1 × 3.4-inch LF with a 0.8-inch voice coil; 1 × 0.6-inch dome tweeter with a 0.6-inch voice coil
- Recommended Amplifier Power: 40 W RMS
- Long-term Power: 20 W
- Short-term Power (IEC 268-5): 80 W
- Nominal Impedance in Low-impedance Mode: 16 Ω
- Sensitivity (1 W / 1 m): 91 dB
- Frequency Response: 140 Hz - 20 kHz (−6 dB)
- Maximum SPL, Continuous / Peak: 105 / 108 dB
- Dimensions (W × H × D): 110 × 114 × 159 mm
- Weight: 0.85 kg
What’s Included
- 1 × FBT CANTO 3CT Passive Speaker
- Directional wall or ceiling bracket with a ball joint
- Safety cable
Use the included safety cable when mounting the speaker on a wall.
Suspended installation must be carried out by qualified personnel using original FBT supports and an independent secondary safety system.
Who Is It For
For background music and announcements, meeting and teaching rooms, bars and other fixed sound systems. The compact cabinet and included mount suit installations requiring a small speaker and adjustable aiming.
