Electro-Harmonix Deluxe Big Muff Pi 2 Effects Pedal

Electro-Harmonix Deluxe Big Muff Pi 2 Effects Pedal

Electro-Harmonix Deluxe Big Muff Pi 2 is an analog effects pedal. Its two-dual-op-amp circuit adds parametric midrange EQ, a noise gate and a dry-signal blend to the Big Muff 2 platform.

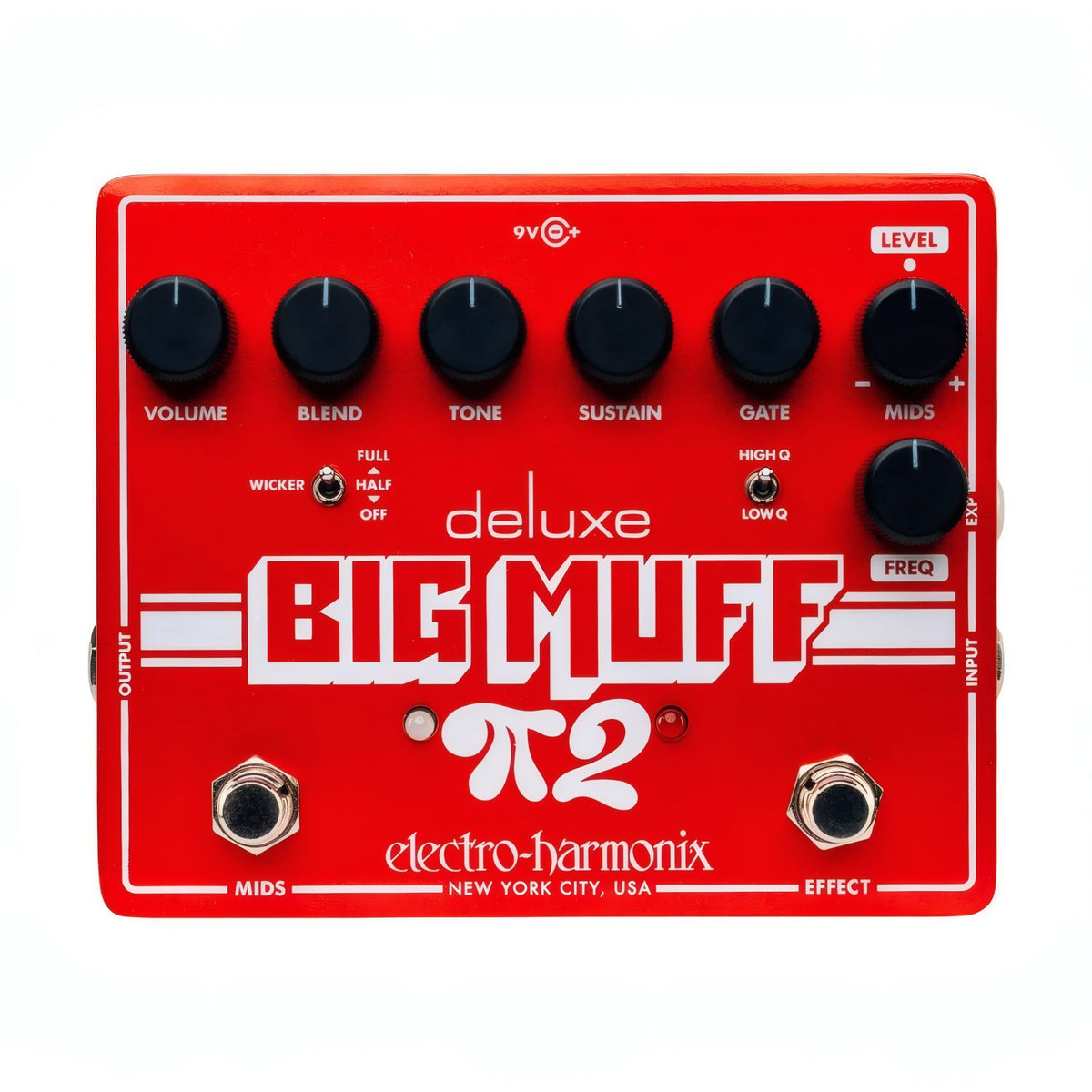

VOLUME, TONE and SUSTAIN set output level, tonal balance and distortion. BLEND restores the amount of dry signal you need, GATE sets the noise-gate threshold, and WICKER offers two additional high-frequency bandwidth settings.

A dedicated footswitch engages the MIDS section. Select the centre frequency, boost or cut it and choose a broader or narrower EQ response. Connecting an expression pedal or CV controller to EXP allows frequency sweeps for fuzz-wah sounds.

Both footswitches support latching and momentary operation. Internal trim pots provide further input-gain and MIDS adjustments; record their factory positions before making changes.

Main Features

• Two dual op-amps provide the Big Muff 2 fuzz circuit.
• BLEND brings dry-signal definition back into the distorted sound.
• GATE suppresses unwanted noise and hum.
• WICKER extends the high-frequency bandwidth in two steps.
• A dedicated MIDS switch engages EQ during a performance.
• The Q switch selects wider or narrower frequency correction.
• EXP provides MIDS frequency control from an expression pedal or CV.
• Both footswitches support momentary effect and MIDS accents.

Technical Specifications

• Circuit: analog mono fuzz using two dual op-amps
• Main controls: VOLUME, TONE and SUSTAIN set output, tonal balance and gain/sustain
• BLEND: continuously variable from fully dry to fully distorted signal
• GATE: adjustable noise-gate threshold; fully counterclockwise disables the gate
• WICKER: OFF, HALF and FULL; HALF and FULL extend high-frequency bandwidth
• MIDS LEVEL: independently footswitchable parametric midrange boost/cut up to ±10 dB
• MIDS FREQ and Q: approximately 310 Hz-5 kHz; LOW selects wider and HIGH narrower bandwidth

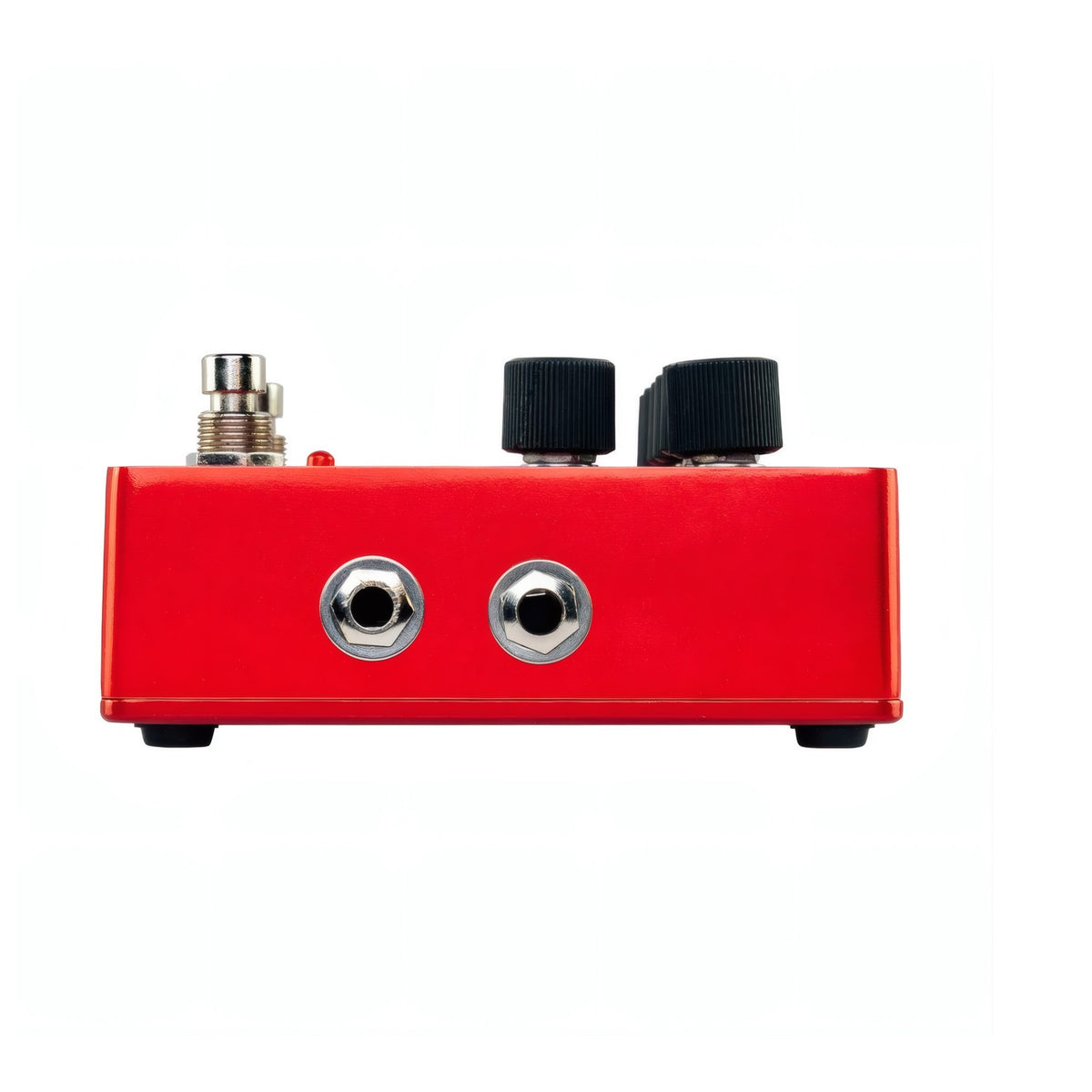

• EXP: 6.3 mm TRS expression pedal or 0-5 V CV through a TS plug
• Expression compatibility: 10-100 kΩ with wiper at TRS tip; EHX Single/Dual Expression, Boss FV-500L, Moog EP-3, M-Audio EX-P
• External sweep: MIDS FREQ sets the maximum expression-pedal or CV-controlled frequency
• Bypass and footswitches: buffered bypass; both switches support latching or momentary action above 0.5 s, with independent saved enable/disable settings
• Internal adjustment: 4 trim pots for input gain, HIGH Q bandwidth, HIGH Q volume and overall MIDS output
• Internal input gain: up to 12 dB, factory 3 dB; other factory trim settings vary between units

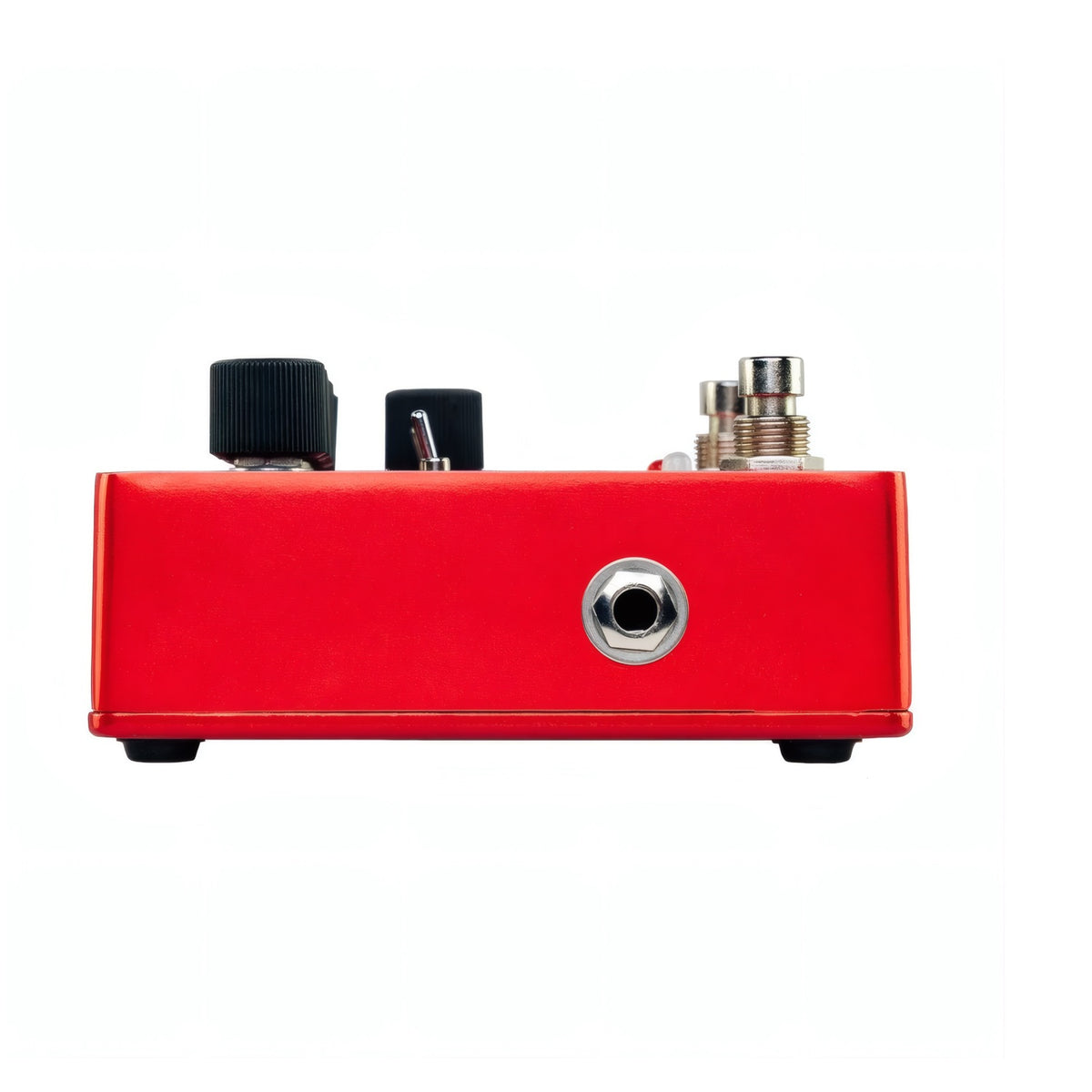

• Audio impedance: mono input 2 MΩ, output 500 Ω

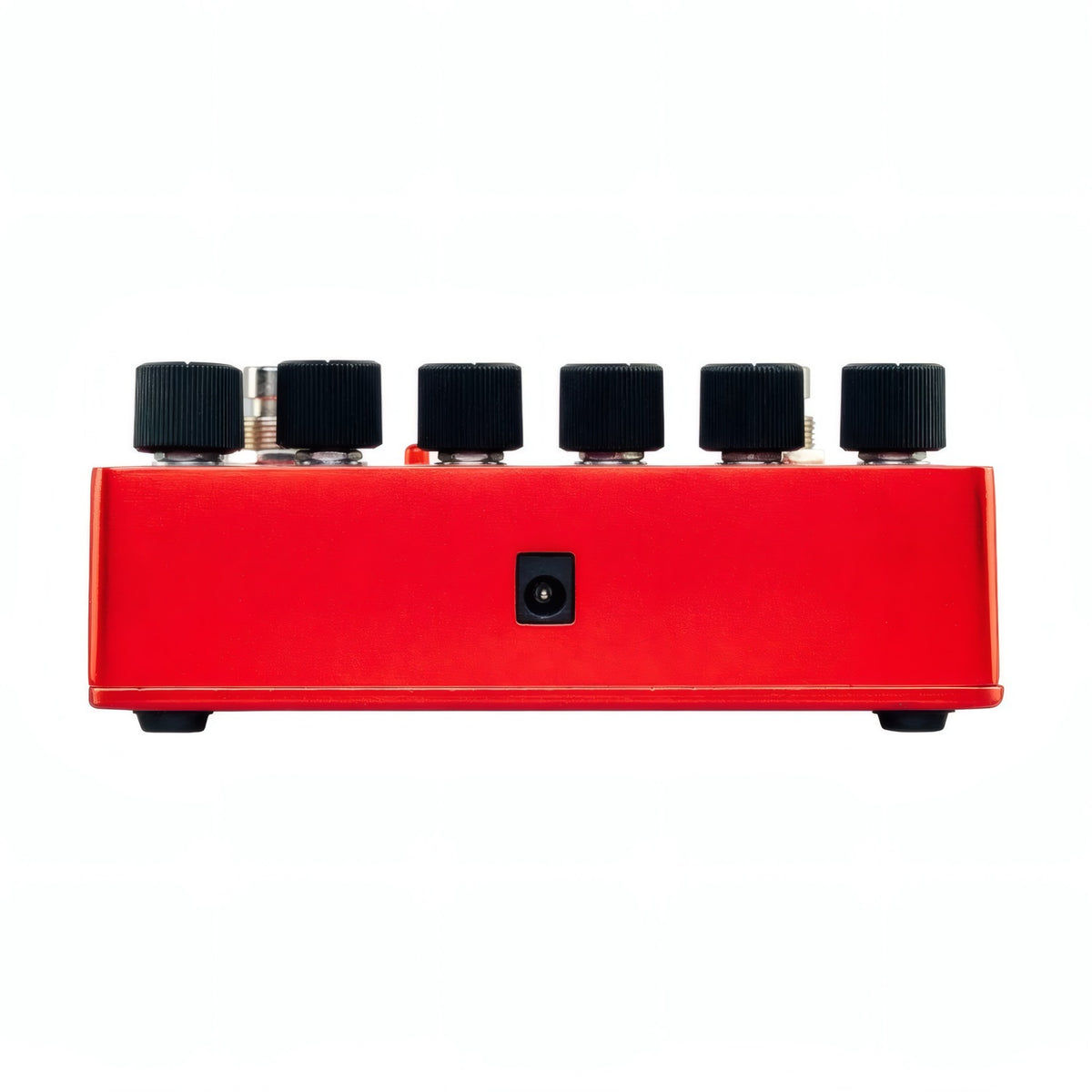

• Power: 9 V DC, 45 mA, centre-negative; maximum 12 V DC; supply rated at least 50 mA; EHX 9.6DC-200 included
• Dimensions: 5.75 x 4.75 x 2.5 inches

What’s Included

• 1 x Electro-Harmonix Deluxe Big Muff Pi 2 Effects Pedal
• EHX 9.6DC-200 power adapter

Who Is It For

For guitar riffs and lead parts requiring fuzz, independent midrange EQ or expression-controlled frequency sweeps.
