Electro-Harmonix Adrian Belew Echoflanger Effects Pedal

Electro-Harmonix Adrian Belew Echoflanger Effects Pedal

Electro-Harmonix Adrian Belew Echoflanger is an analog effects pedal. This limited-edition BBD-based reissue recreates the Echoflanger and adds two combination modes inspired by Adrian Belew’s sounds.

Six modes cover chorus, flanging, short echo and fixed comb filtering. Chorus + Flange combines the two modulation effects, while Slap Back + Filter Matrix brings short echo together with a fixed filter.

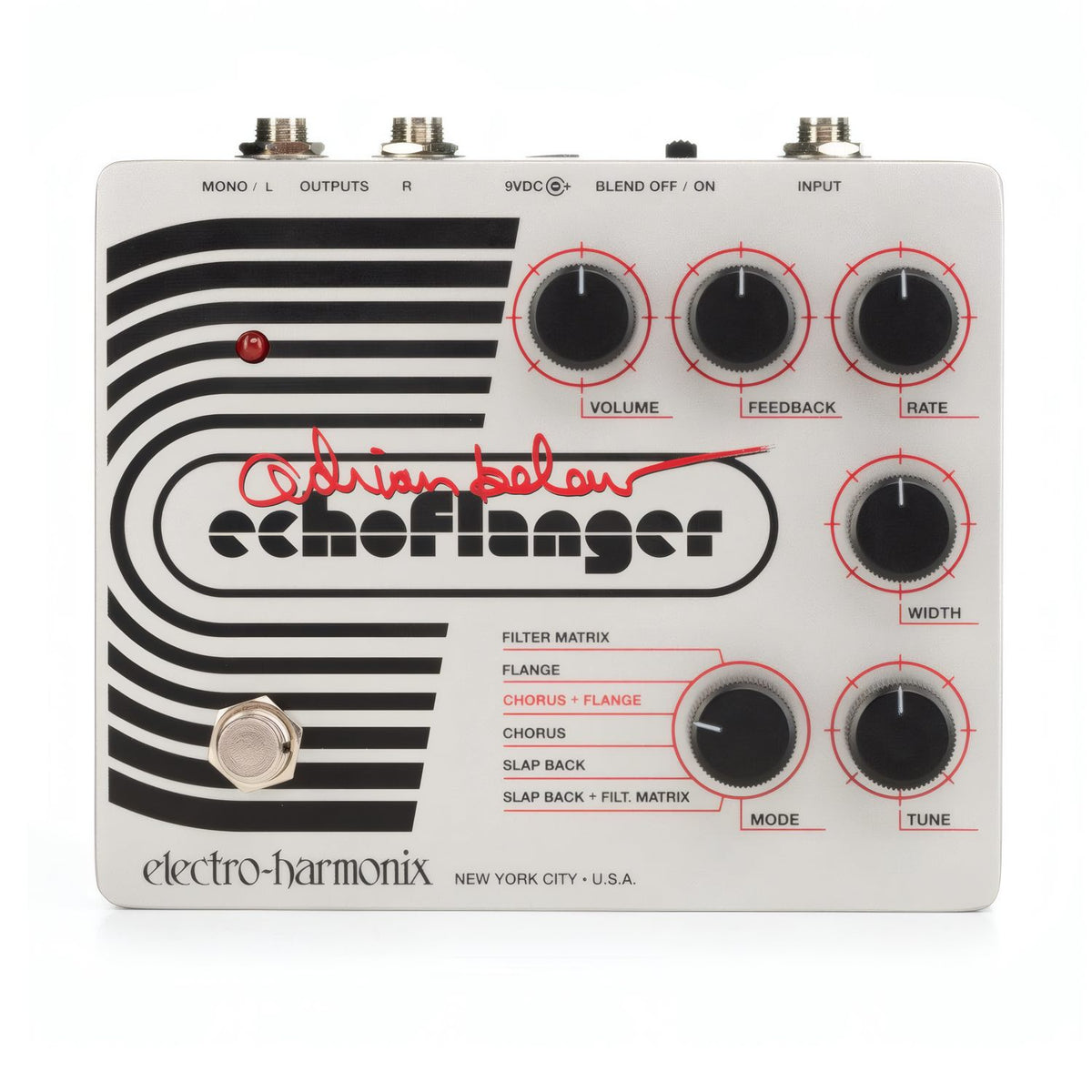

FEEDBACK changes effect intensity or the number of echoes and can push the circuit into self-oscillation at high settings. RATE, WIDTH and TUNE shape modulation speed, depth and centre point according to the selected mode.

The BLEND switch removes the dry signal for vibrato-type effects. Use MONO/L with one amplifier or add the R output for a stereo setup with two amplifiers.

Main Features

• Six modes cover modulation, short echo and combined effects.
• A BBD circuit produces analog time and pitch modulation.
• Chorus + Flange combines both effects in one mode.
• FEEDBACK ranges from subtle processing to self-oscillation.
• BLEND selects a dry/effect mix or an effect-only signal.
• Two outputs support stereo operation with two amplifiers.
• Momentary footswitch action enables short effect accents.
• An included power adapter supplies the pedal for immediate use.

Technical Specifications

• Circuit: analog BBD modulation, Adrian Belew Echoflanger reissue
• Modes: Filter Matrix, Flange, Chorus + Flange, Chorus, Slap Back, Slap Back + Filter Matrix
• Effects: fixed comb filtering in Filter Matrix, swept filtering in Flange, modulated echo in Chorus and unmodulated short delay in Slap Back
• FEEDBACK: effect intensity or echo repeats; high settings can cause self-oscillation
• RATE and WIDTH: approximately 0.1-10 Hz rate and modulation depth; both disabled in Filter Matrix, Slap Back and Slap Back + Filter Matrix
• TUNE: modulation centre, filter frequency or echo delay, depending on mode
• VOLUME: overall effect output level
• BLEND: includes or removes the dry signal for conventional modulation or vibrato-type effects

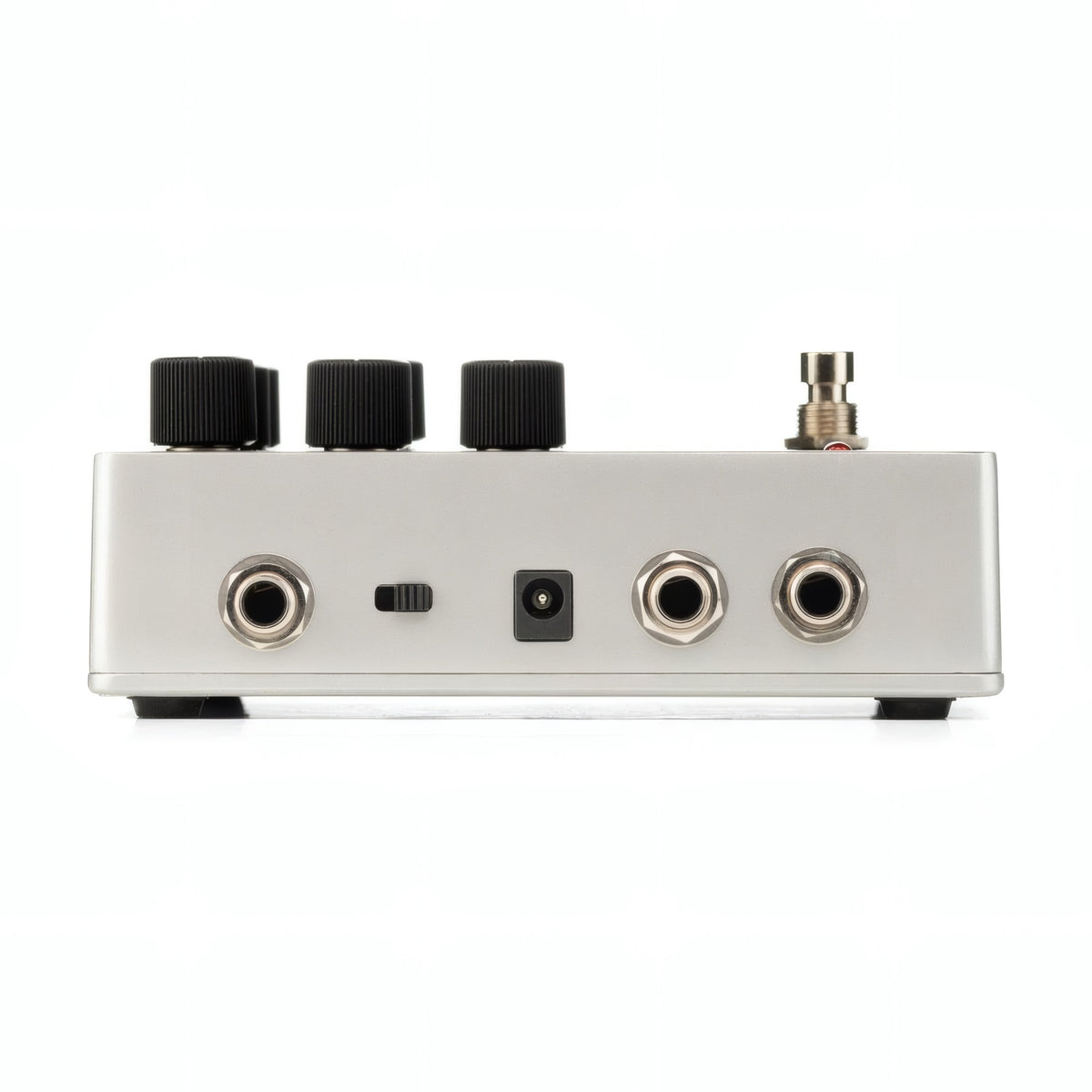

• Audio connections: instrument input, MONO/L and R outputs; summing the outputs to mono can reduce or cancel the effect
• Impedance and levels: input 330 kΩ, output 550 Ω; maximum input +5.6 dBu, output +16 dBu
• Bypass: True Bypass with mechanical relays
• Footswitch: latching or momentary action when held for over 0.5 s; momentary operation can be disabled and the setting is retained
• Power: 9 V DC, 190 mA, centre-negative; maximum 10.5 V DC; EHX 9.6DC-200 adapter included
• Dimensions: 5.75 x 4.75 x 2.5 inches
• Compatibility: instrument or preceding pedal, one amplifier in mono or two amplifiers for stereo
• Connection order: attach audio connections before applying power

What’s Included

• 1 x Electro-Harmonix Adrian Belew Echoflanger Effects Pedal
• EHX 9.6DC-200 power adapter

Who Is It For

For chorus, flanging, short echo and experimental effects in mono or stereo amplifier setups.
