DPA DAD9056 MicroLock Adapter for Lectrosonics Systems

DPA DAD9056 MicroLock Adapter for Lectrosonics Systems

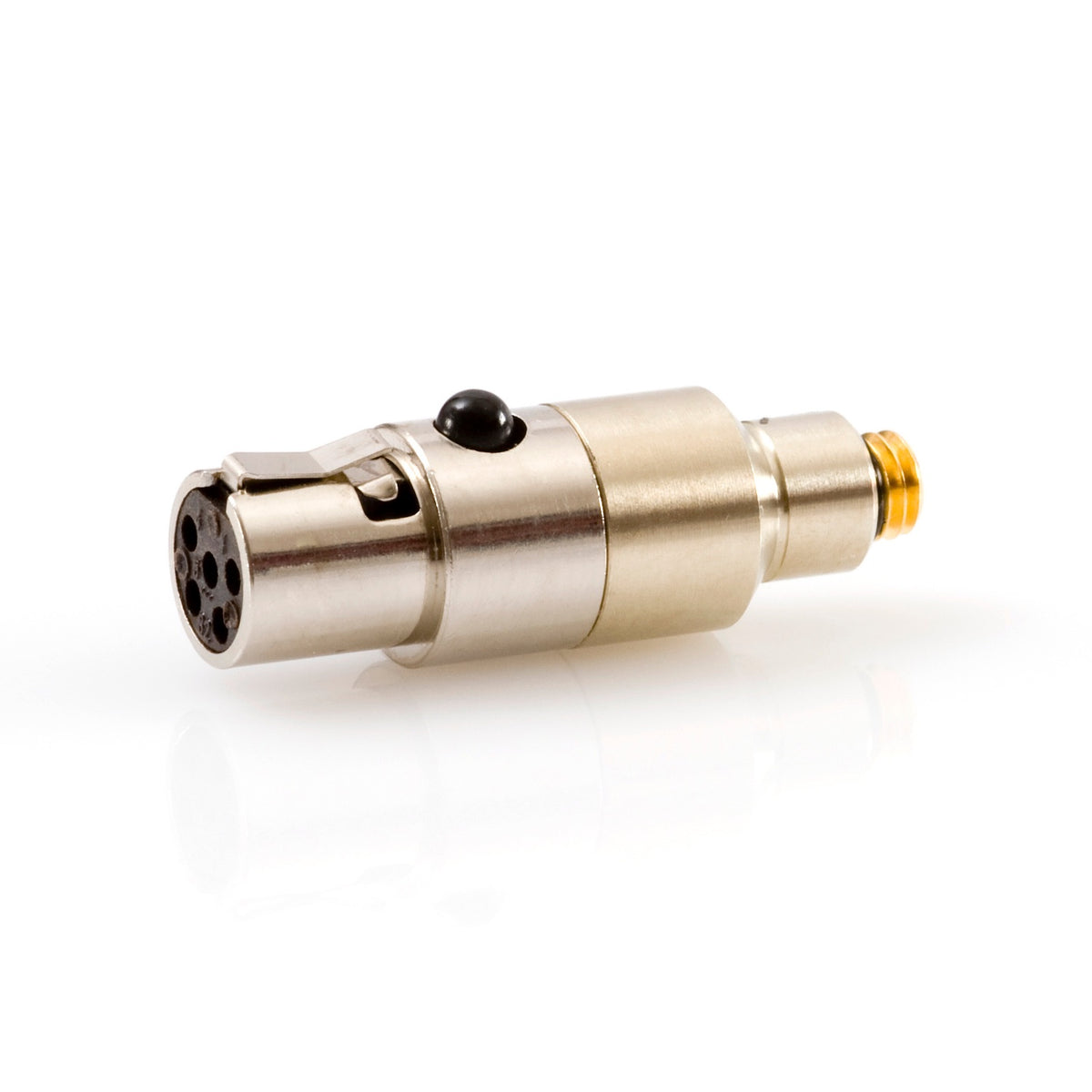

The DPA DAD9056 is a microphone adapter with MicroLock and TA-5F Switchcraft connectors.

It also mates with a DPA microphone that has a MicroDot connector, but the mechanical lock works only when both connected parts are MicroLock. Mechanical fit alone does not establish electrical compatibility.

Compatibility

• Lectrosonics: LM, SM and UM Series transmitters (for low-DC microphones)

For Lectrosonics SSM, use the DAD9003 adapter. The UHF (low level) and UM190 transmitters use DAD9021.

Technical Specifications

• Microphone connector: MicroLock
• Transmitter connector: TA-5F Switchcraft

What’s Included

• 1 × DPA DAD9056 adapter
