DPA DAD9032 MicroLock Adapter for Beyerdynamic and Mipro Systems

DPA DAD9032 MicroLock Adapter for Beyerdynamic and Mipro Systems

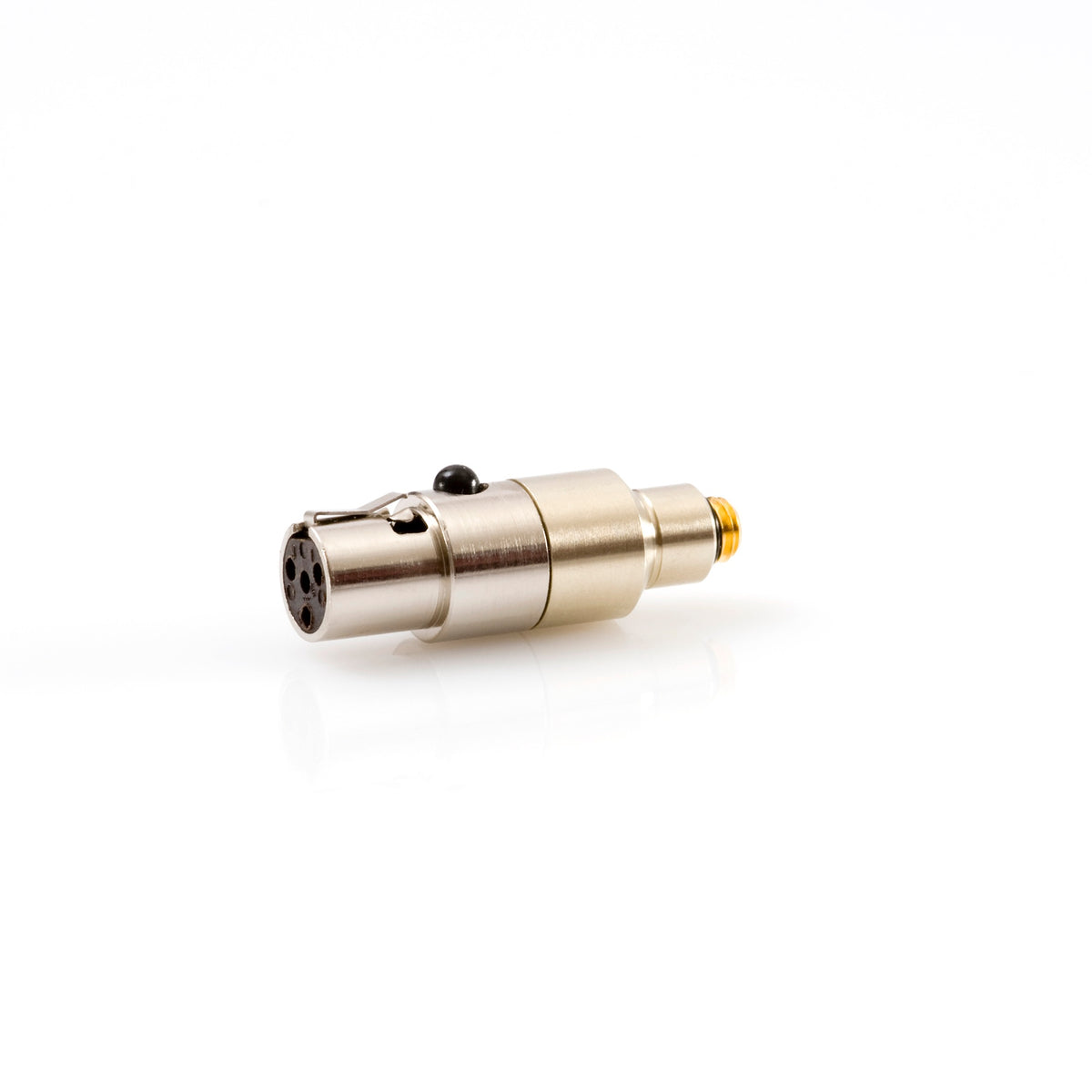

The DPA DAD9032 is a MicroLock adapter with a TA-4F Switchcraft connector.

It connects a DPA microphone to the Beyerdynamic and Mipro wireless transmitters listed below. It also mates with MicroDot, but the mechanical lock works only between two MicroLock parts. A physical fit alone does not establish electrical compatibility.

Compatibility

• Beyerdynamic: OPUS 300, OPUS 500, OPUS 600, OPUS 800, OPUS 900
• Beyerdynamic: TG1000 manufactured before December 2014
• Mipro: ACT-707T, ACT-707TE, ACT-707TM, ACT-707TS, ACT-71T, ACT-7T
• Mipro: ACT-MT103, ACT-MT303, ACT-MT801, ACT-MT808

DPA specifies DAD9010 for Beyerdynamic TG1000 units manufactured after December 2014. Check the transmitter's production date before choosing an adapter.

Technical Specifications

• Microphone connector: MicroLock
• Transmitter connector: TA-4F Switchcraft

What’s Included

• 1 × DPA DAD9032 adapter
