DPA DAD9021 MicroLock Adapter for Audio-Technica and Lectrosonics Systems

DPA DAD9021 MicroLock Adapter for Audio-Technica and Lectrosonics Systems

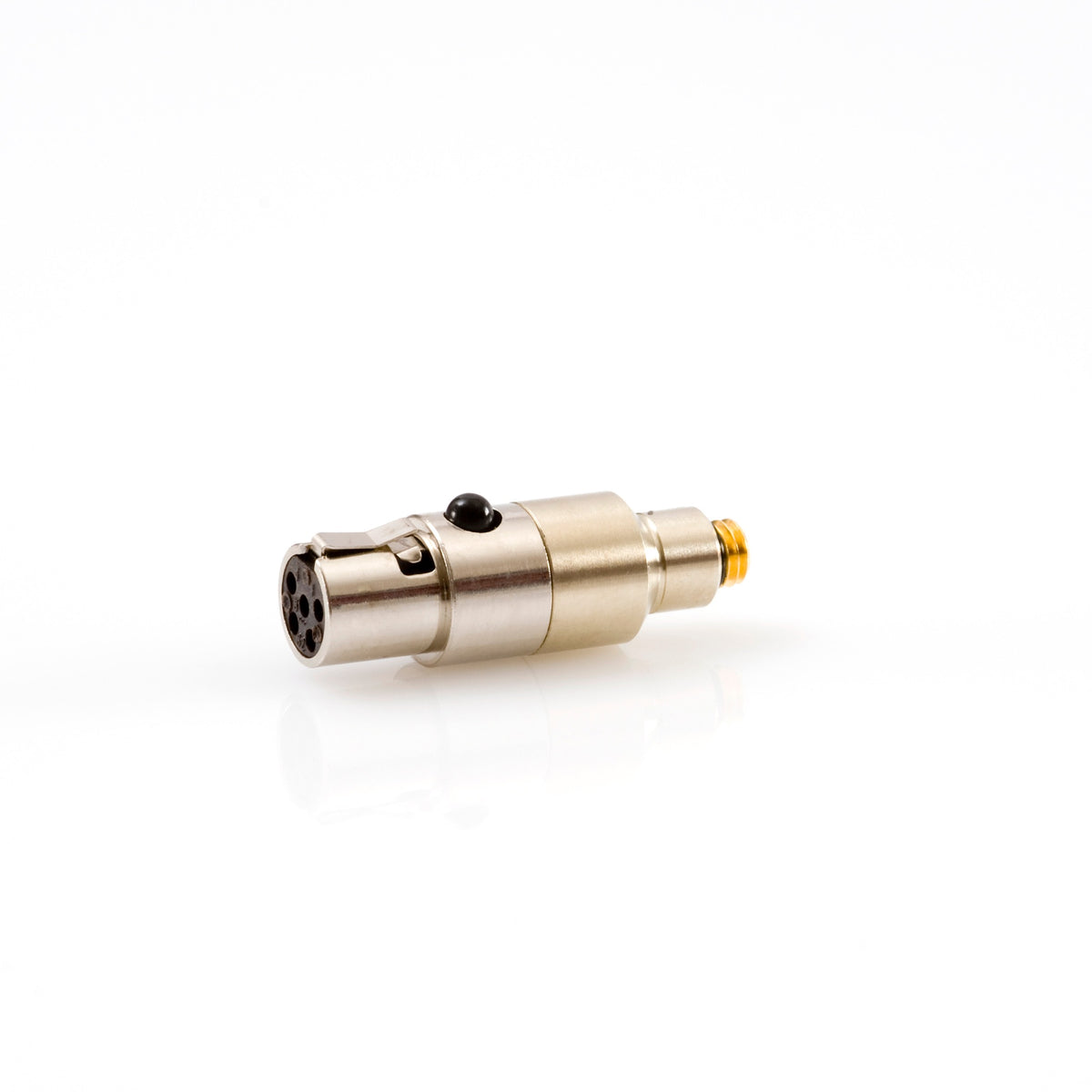

The DPA DAD9021 is a MicroLock adapter with a TA-5F Switchcraft connector.

It connects a DPA microphone to the Audio-Technica and Lectrosonics wireless transmitters listed below. DPA specifies 0 dB attenuation for normal sound pressure levels.

The adapter also mates with a MicroDot microphone connector, but the mechanical lock works only when both parts are MicroLock. Connector shape alone does not confirm electrical compatibility.

Compatibility

• Audio-Technica: ATW-T101 (U100)
• Lectrosonics: UHF (low level), UM190

DPA specifies DAD9033 for Audio-Technica ATW-T1000 and ATW-T310, and DAD9003 for Lectrosonics SSM.

Technical Specifications

• Microphone connector: MicroLock
• Transmitter connector: TA-5F Switchcraft
• Attenuation: 0 dB

What’s Included

• 1 × DPA DAD9021 adapter
