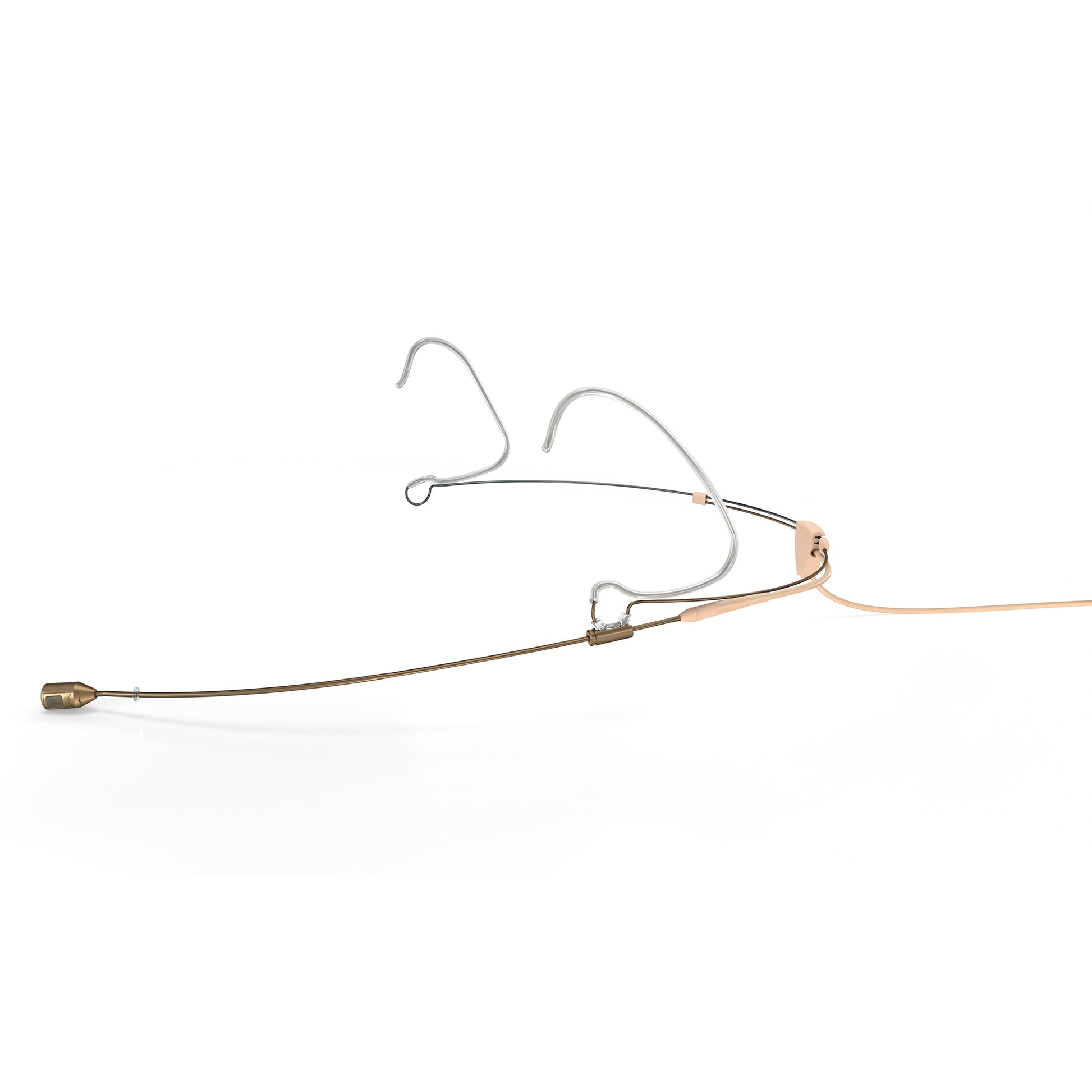

DPA 4488-DP-R-F34 CORE+ Directional Headset Microphone

DPA 4488-DP-R-F34 CORE+ Directional Headset Microphone

DPA 4488-DP-R-F34 is a professional directional headset microphone for speech, vocals, theatre, broadcast, conferences and stage applications. This beige DPA 4488 series model features CORE+ technology, a dual-ear headset construction and a Mini-Jack / locking 3.5 mm connection.

The 4488 series uses a cardioid polar pattern that helps reduce pickup of surrounding sound and lowers the risk of feedback. This makes it suitable for stages, theatres, events and other applications where clear voice reproduction is required in environments with higher ambient sound.

CORE+ technology is designed for lower distortion and extended dynamic range. The microphone can handle high sound pressure levels, making it suitable not only for speech but also for vocal and active stage use.

This F34 version is supplied with a DAD9034 MicroLock to locking 3.5 mm adapter. The Mini-Jack connection is intended for compatible wireless transmitters, including Sennheiser type systems with a locking 3.5 mm connector.

Main Features

• Directional headset microphone for professional speech and vocal reinforcement
• Dual-ear headset construction for stable wearing
• CORE+ technology for lower distortion and extended dynamic range
• Cardioid polar pattern helps reduce pickup of surrounding sound
• Adjustable boom can be used on the left or right side
• Stainless steel frame with PVD coating
• 3-point ear grip design
• Integrated cable routing for discreet and secure use
• MicroLock modular connector
• DAD9034 MicroLock to locking 3.5 mm adapter included
• Mini-Jack connection for Sennheiser type wireless transmitters
• Beige finish for discreet use on stage or on camera
• IP58 resistance to dust and moisture

Technical Specifications

• Manufacturer: DPA Microphones
• Model: 4488-DP-R-F34
• Series: 4488
• Type: condenser headset microphone
• Headset Construction: dual-ear headset construction
• Operating Principle: pressure gradient
• Capsule Diameter: 5.4 mm
• Polar Pattern: cardioid
• Technology: CORE+
• Connector: MicroLock
• Adapter: DAD9034 MicroLock to locking 3.5 mm
• Output Connector: Mini-Jack / locking 3.5 mm
• Color: beige
• Cable Length: 1.2 m
• Cable Diameter: 1.6 mm
• Frequency Range: 20 Hz - 20 kHz
• Effective Frequency Range: 100 Hz - 20 kHz with +4 - 6 dB boost at 15 kHz
• Sensitivity: 6 mV/Pa / -44 dB re 1 V/Pa
• Equivalent Noise Level: 26 dB(A), typical
• Equivalent Noise Level, ITU-R BS.468-4: 38 dB, typical
• Max SPL, THD <1%: 134 dB SPL RMS / 137 dB SPL peak
• Max SPL, THD 10%: 144 dB SPL peak
• Dynamic Range: 111 dB
• Output Impedance: 30 - 40 Ω
• Power Requirements: 5 - 10 V plug-in power
• Current Consumption: 1.5 mA, microphone only
• Polarity: positive pressure produces positive voltage on the MicroDot pin
• Temperature Range: -40 °C to +45 °C
• Relative Humidity: up to 90%
• Frame: one-size-fits-all stainless steel frame with PVD coating
• Boom: two-way adjustable, detachable, anti-rotation, sliding lock design
• Ear Grips: 3-point design
• Cable Management: 90° adjustable, side-sliding cable guide
• Protection: IP58 resistance to dust and moisture
• Weight: 14 g
• Compatibility: Sennheiser type wireless transmitters and other compatible systems with a locking 3.5 mm connection
• Applications: speech, vocals, theatre, broadcast, conferences, stage

What’s Included

• DPA 4488-DP-R-F34 CORE+ Directional Headset Microphone
• DAD9034 MicroLock to locking 3.5 mm adapter

Who Is It For?

DPA 4488-DP-R-F34 is intended for actors, speakers, vocalists, presenters, broadcast users and sound engineers who need a directional, stable and discreet headset microphone for speech or vocal applications with a Mini-Jack / locking 3.5 mm connection.
