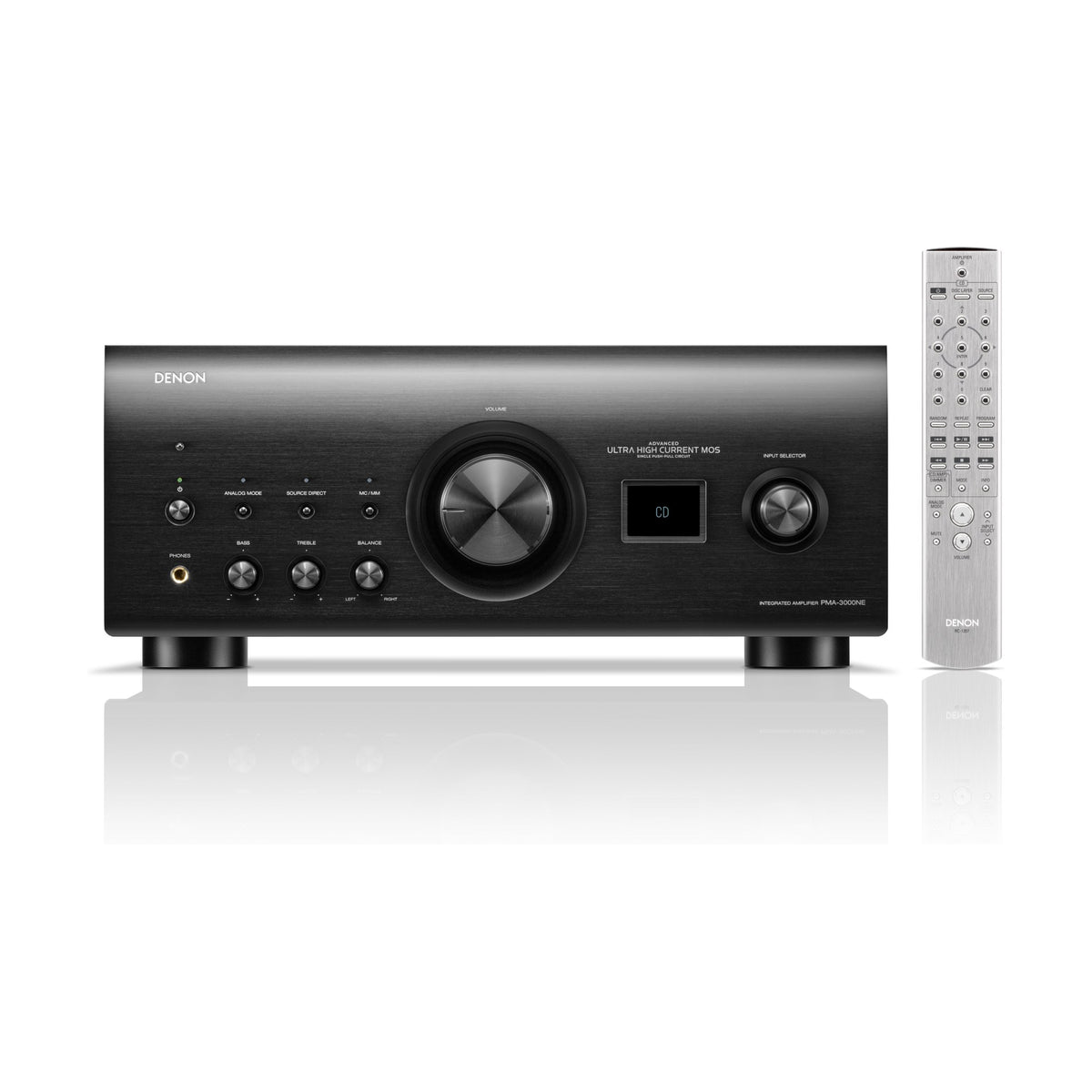

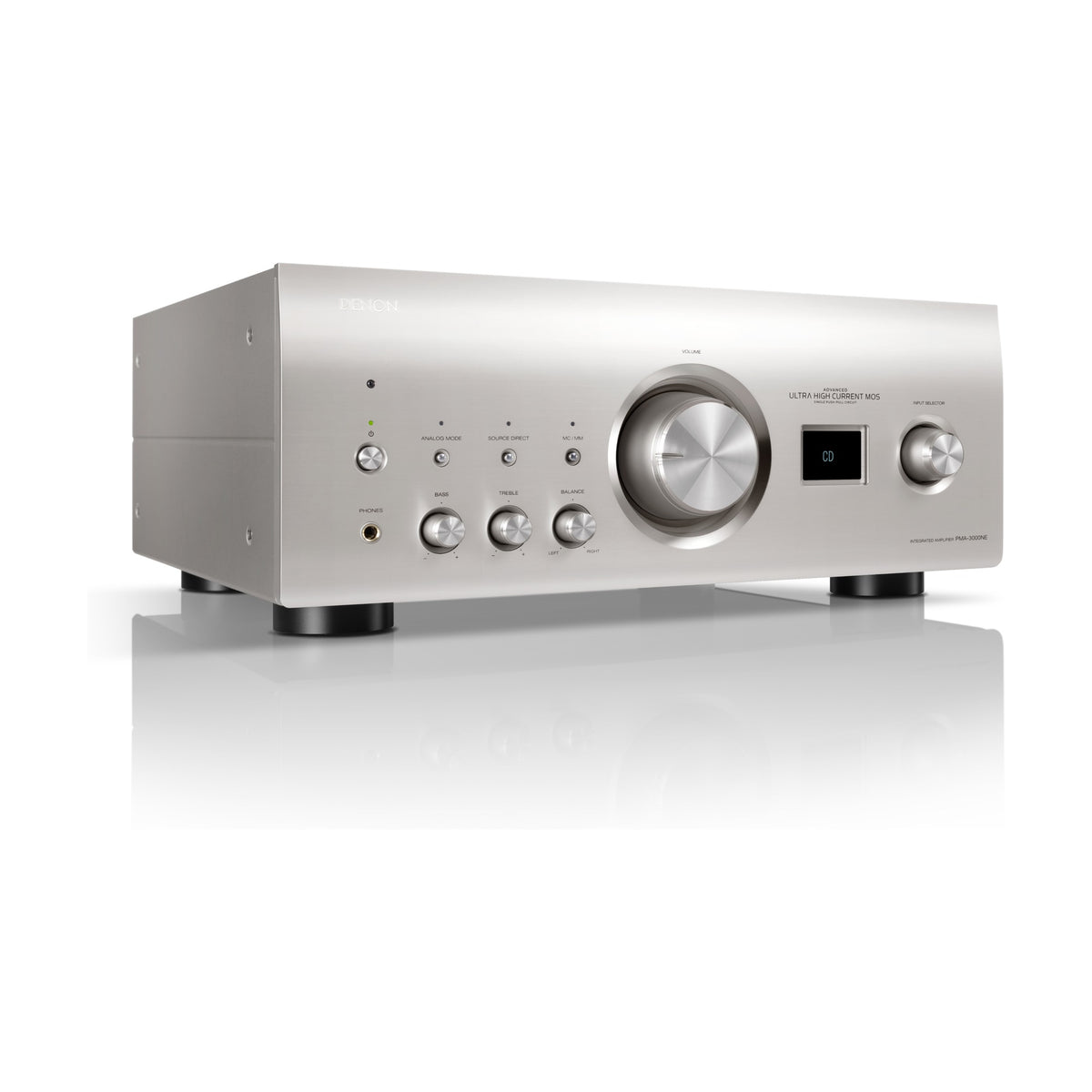

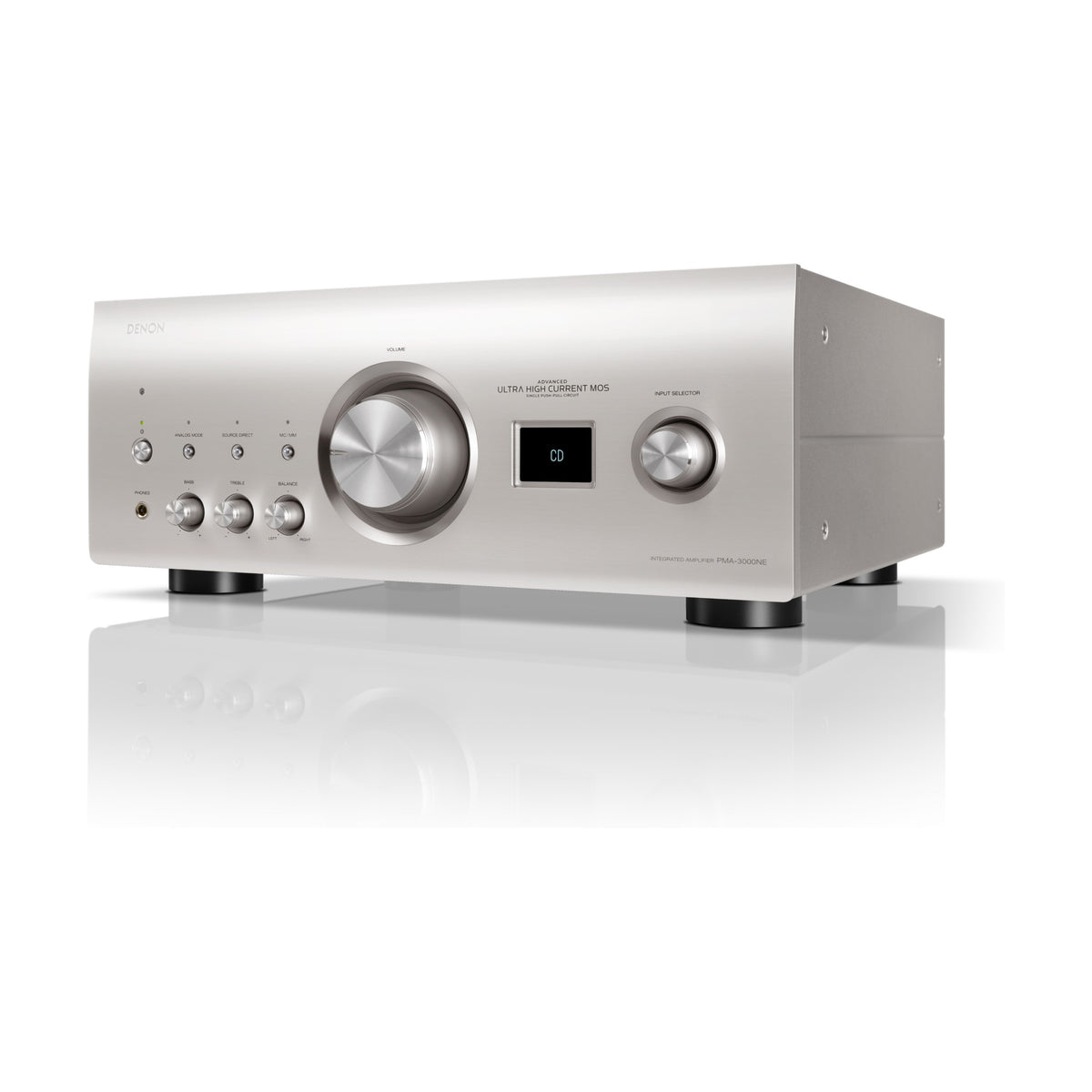

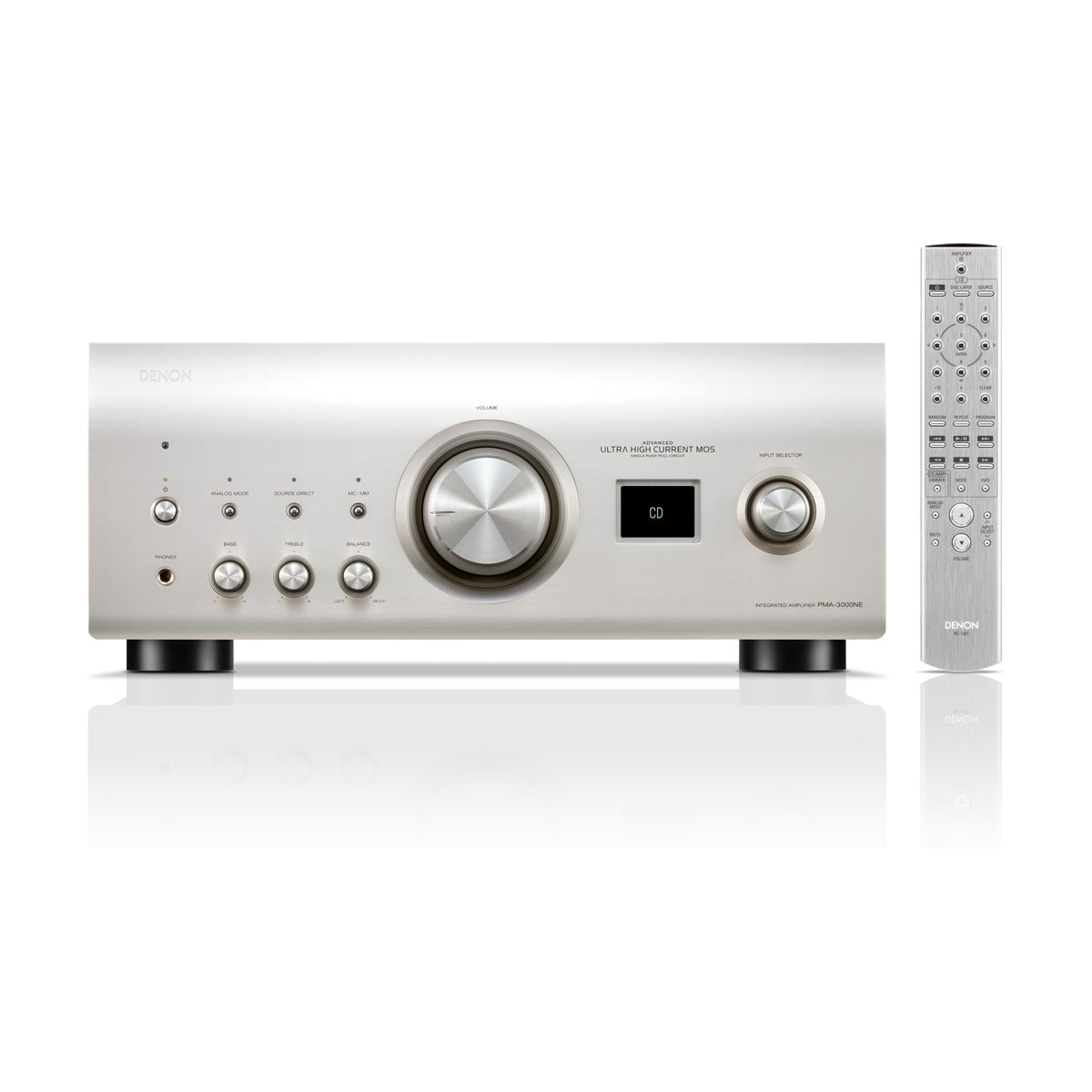

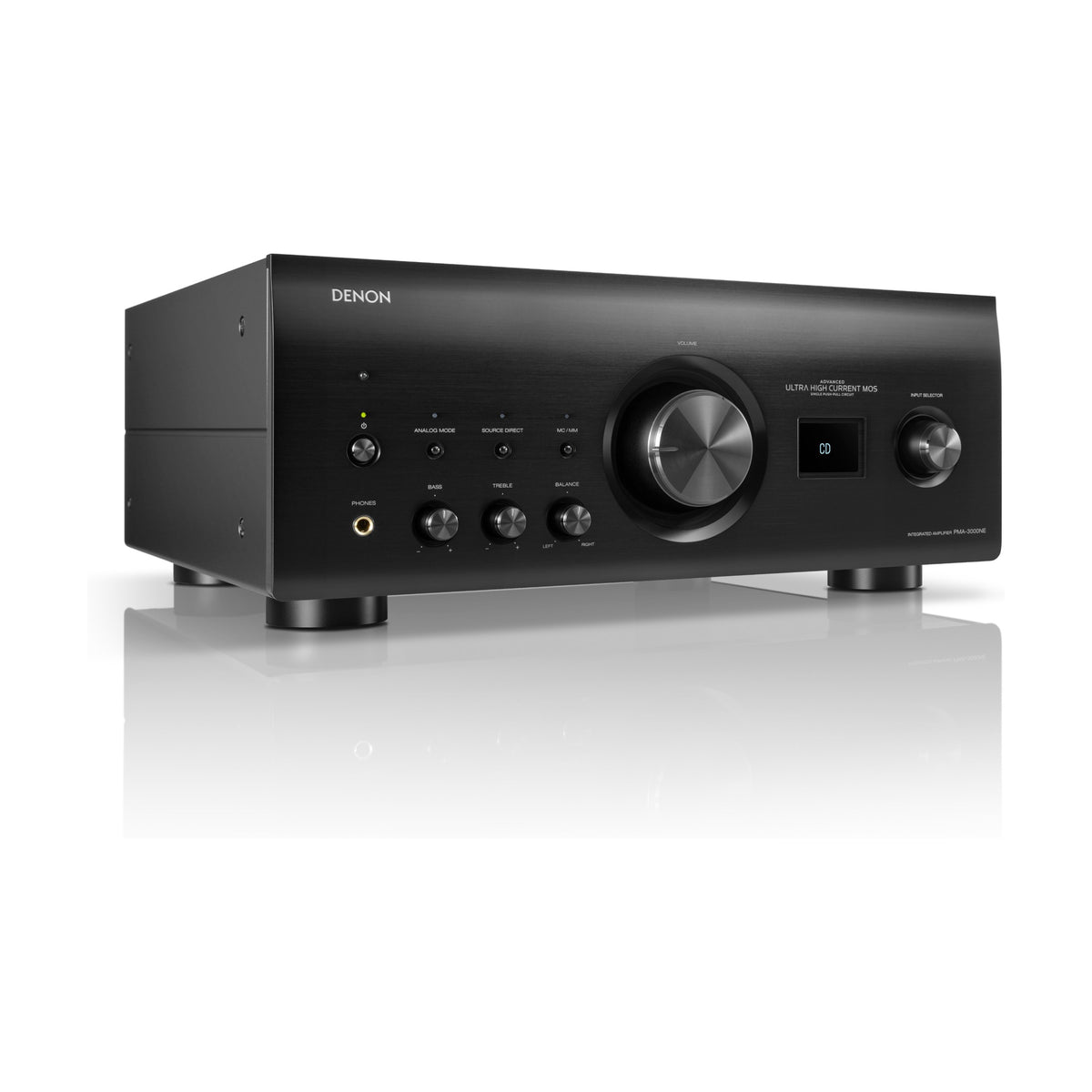

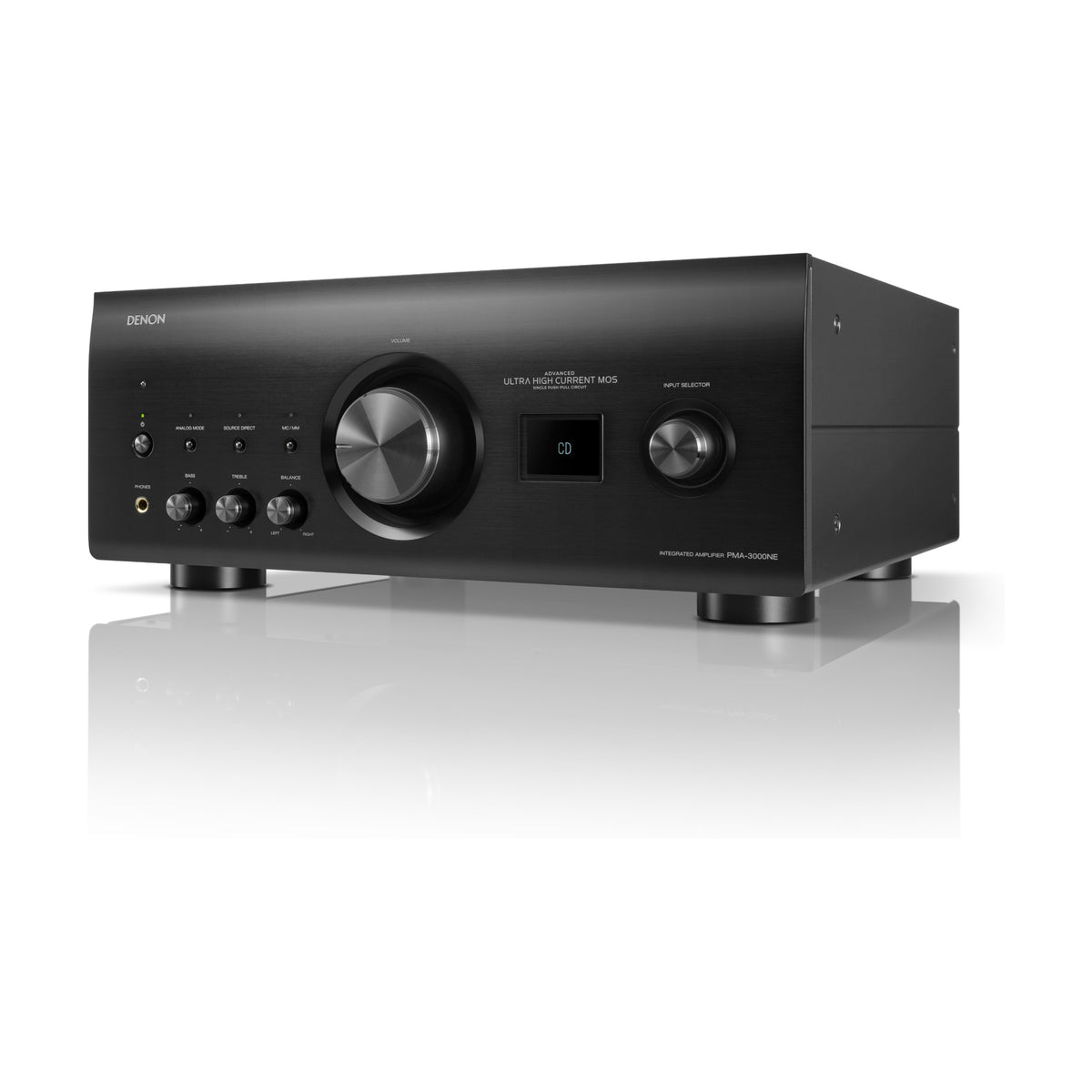

Denon PMA-3000NE Integrated Amplifier

Denon PMA-3000NE Integrated Amplifier

Denon PMA-3000NE is an integrated stereo amplifier for passive loudspeakers. It combines a UHC-MOS power amplifier, an MM/MC phono stage and a USB-B DAC, allowing a turntable, computer and other music sources to share one system.

Ultra AL32 Processing handles digital audio, while four ESS ES9018K2M DACs and the DAC Master Clock design perform conversion. The USB-B input accepts PCM up to 384 kHz / 32 bit and DSD up to 11.2 MHz from a compatible computer.

Three optical inputs and one coaxial input accept stereo PCM audio from a TV or player. USB-B is not a USB flash-drive connection: playback runs on the computer, and Windows requires the Denon USB driver.

Source Direct bypasses the bass and treble tone controls, while Analog Mode disables digital circuitry when listening to analogue sources. The EXT.PRE input allows power-amplifier operation with an external preamplifier; volume must then be controlled by that external device.

Main Features

• MM and MC cartridge support allows direct connection of a compatible turntable.
• UHC-MOS circuitry and a variable-gain preamplifier handle the stereo signal.
• A/B speaker terminals select one pair or two pairs with suitable impedance.
• TV Auto Play switches the amplifier on when a digital input signal is detected.

Technical Specifications

• Channels: 2
• Power into 8 Ω: 2 × 80 W, 20 Hz to 20 kHz, THD 0.07%
• Power into 4 Ω: 2 × 160 W, 1 kHz, THD 0.7%
• Speaker impedance: 4–16 Ω; A+B operation: 8–16 Ω
• Frequency response: 5 Hz to 100 kHz, 0 / −3 dB
• THD: 0.01% at rated output −3 dB, 8 Ω, 1 kHz
• Phono: MM / MC
• Analogue connections: 4 stereo RCA inputs including Phono; REC OUT; EXT.PRE IN
• Digital inputs: 3 optical, 1 coaxial; USB-B DAC
• Optical / coaxial audio: Stereo PCM up to 192 kHz / 24 bit
• USB-B audio: PCM up to 384 kHz / 32 bit; DSD 2.8 / 5.6 / 11.2 MHz
• Digital circuitry: 4 × ESS ES9018K2M; Ultra AL32 Processing; DAC Master Clock
• Headphone output: 1
• Controls: Bass, treble, balance; Source Direct; Analog Mode
• Power supply: 230 V AC, 50 / 60 Hz; power consumption 400 W
• Dimensions (W × D × H): 434 × 443 × 182 mm
• Net weight: 24.6 kg

What’s Included

• Denon PMA-3000NE amplifier
• RC-1207 remote control
• 2 × R03 / AAA batteries
• Power cord

Who Is It For

PMA-3000NE suits a home stereo system with passive loudspeakers, a computer and a turntable with an MM or MC cartridge.
