Denon PMA-1700NE Integrated Amplifier

Denon PMA-1700NE Integrated Amplifier

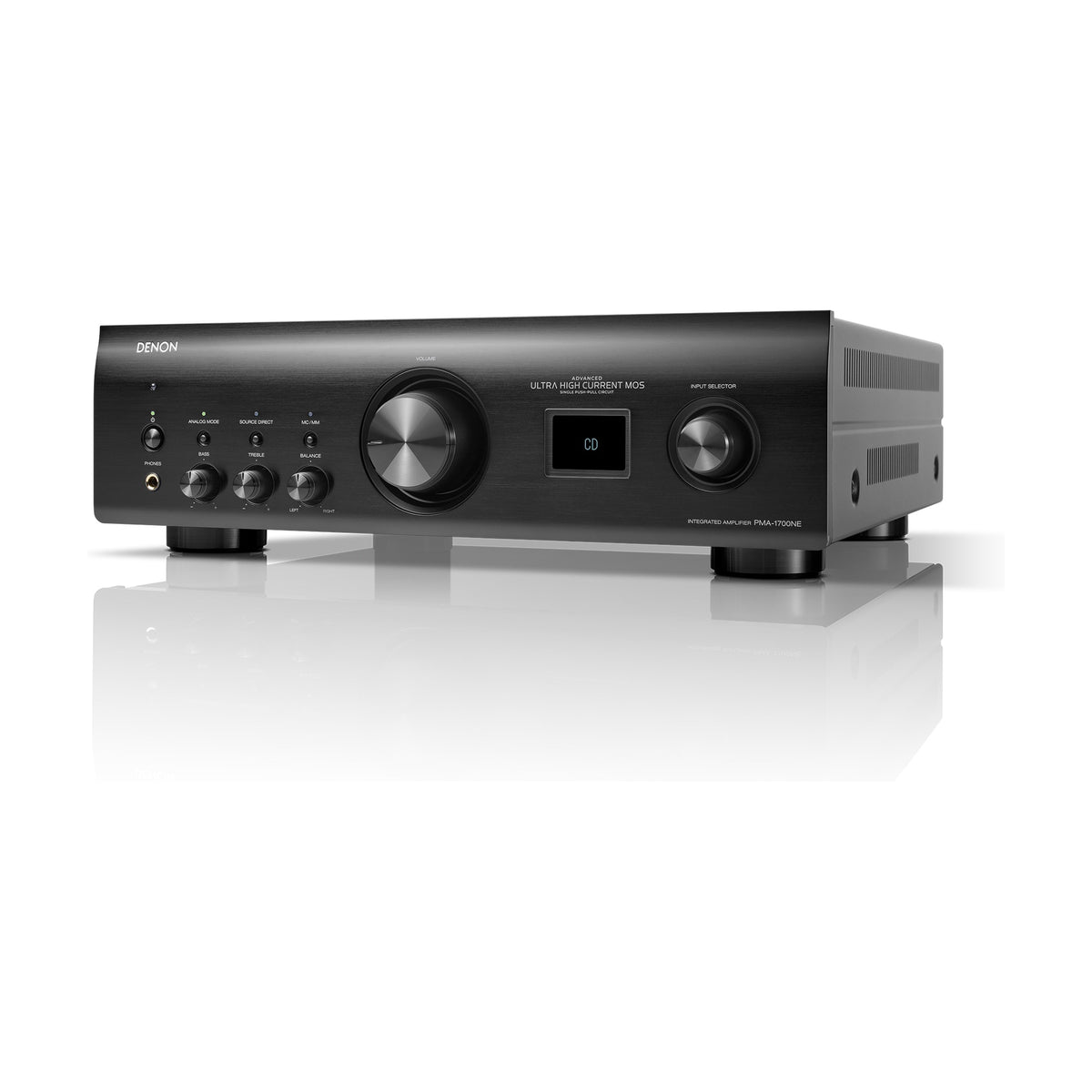

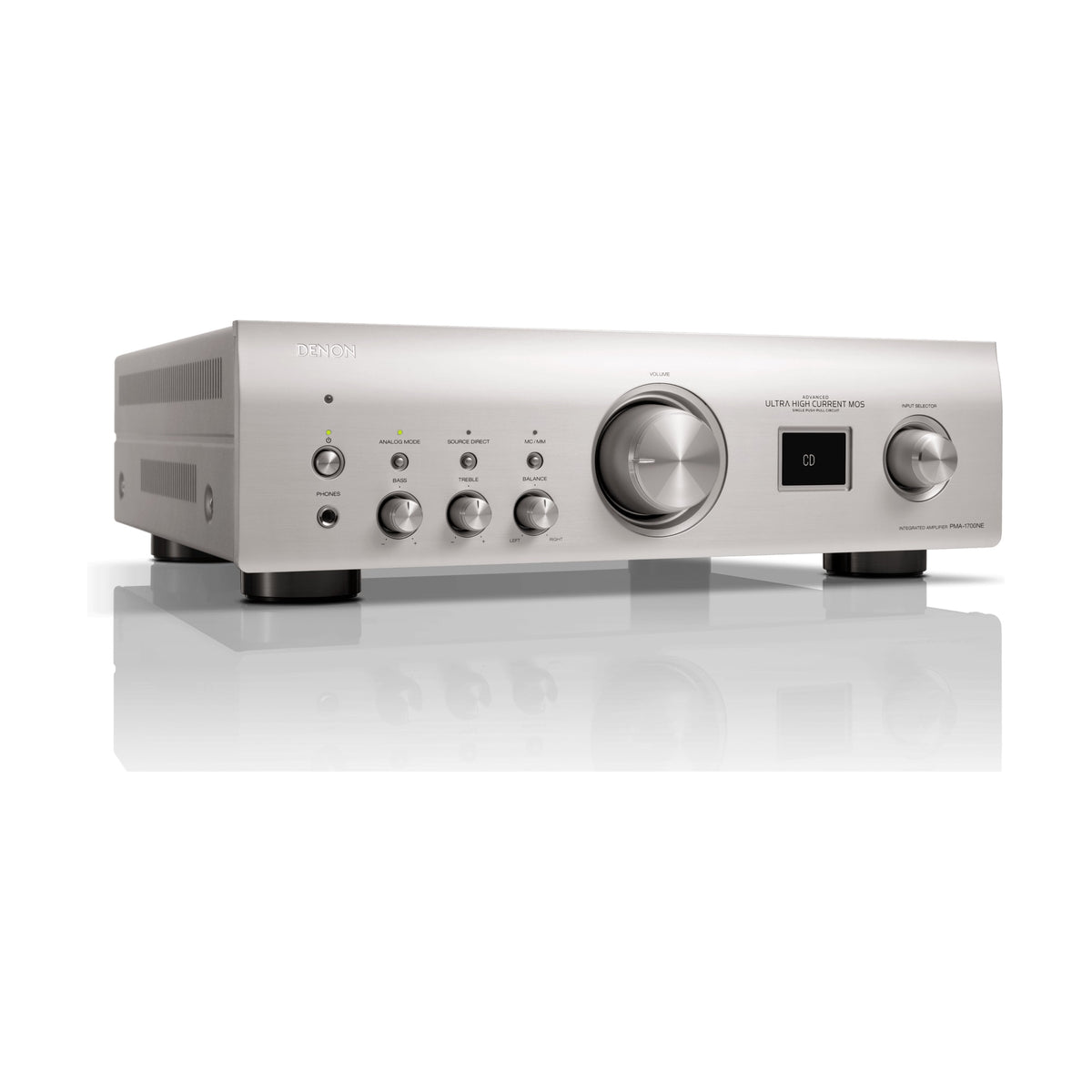

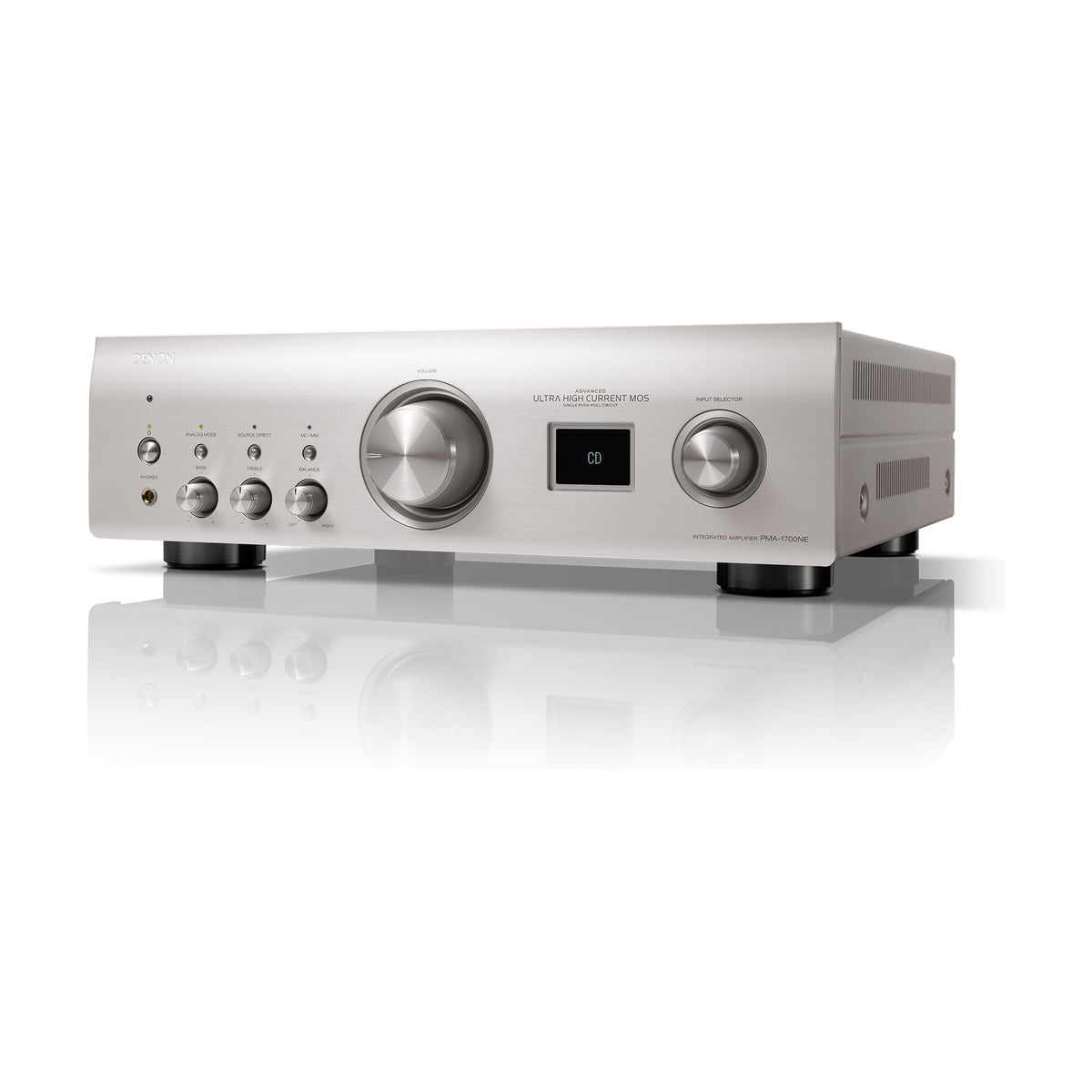

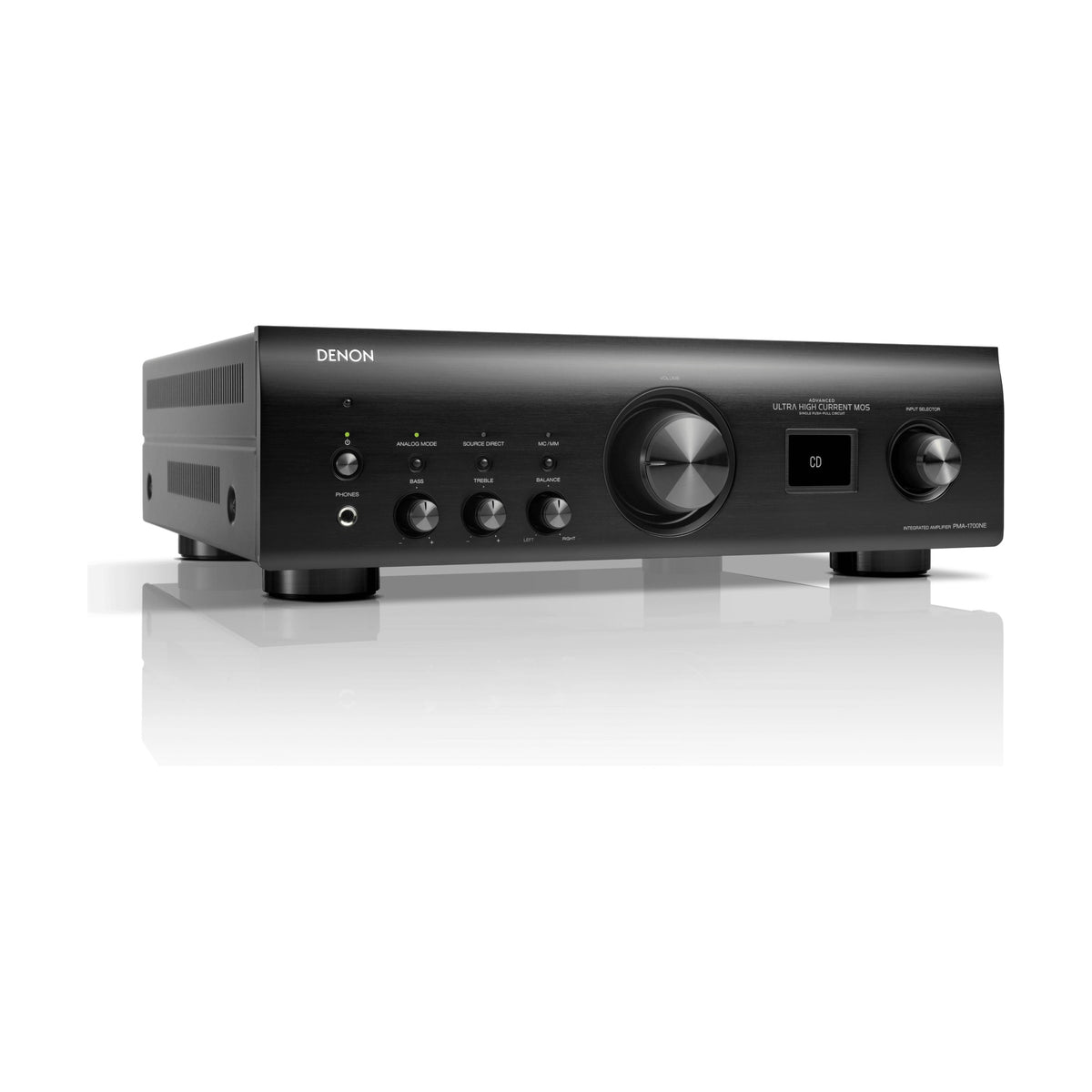

Denon PMA-1700NE is an integrated stereo amplifier with a USB-B DAC and an MM/MC phono stage. Its UHC-MOS amplifier drives passive loudspeakers, while analogue and digital inputs accommodate a turntable, CD player, television or computer.

Advanced AL32 Processing Plus processes digital audio, while the PCM1795 DAC and DAC Master Clock design handle conversion. USB-B supports PCM up to 384 kHz / 32 bit and DSD up to 11.2 MHz.

USB-B playback uses a computer, and Windows requires the Denon USB driver. Two optical inputs and one coaxial input accept stereo PCM up to 192 kHz / 24 bit. The TV digital audio output must be set to PCM.

A six-block chassis and digital isolator separate circuits and reduce the effect of noise from a connected computer. Analog Mode disables digital circuitry, Source Direct bypasses tone controls, and EXT.PRE accommodates an external preamplifier.

Main Features

• An MM/MC phono input and dedicated recording output extend an analogue system.

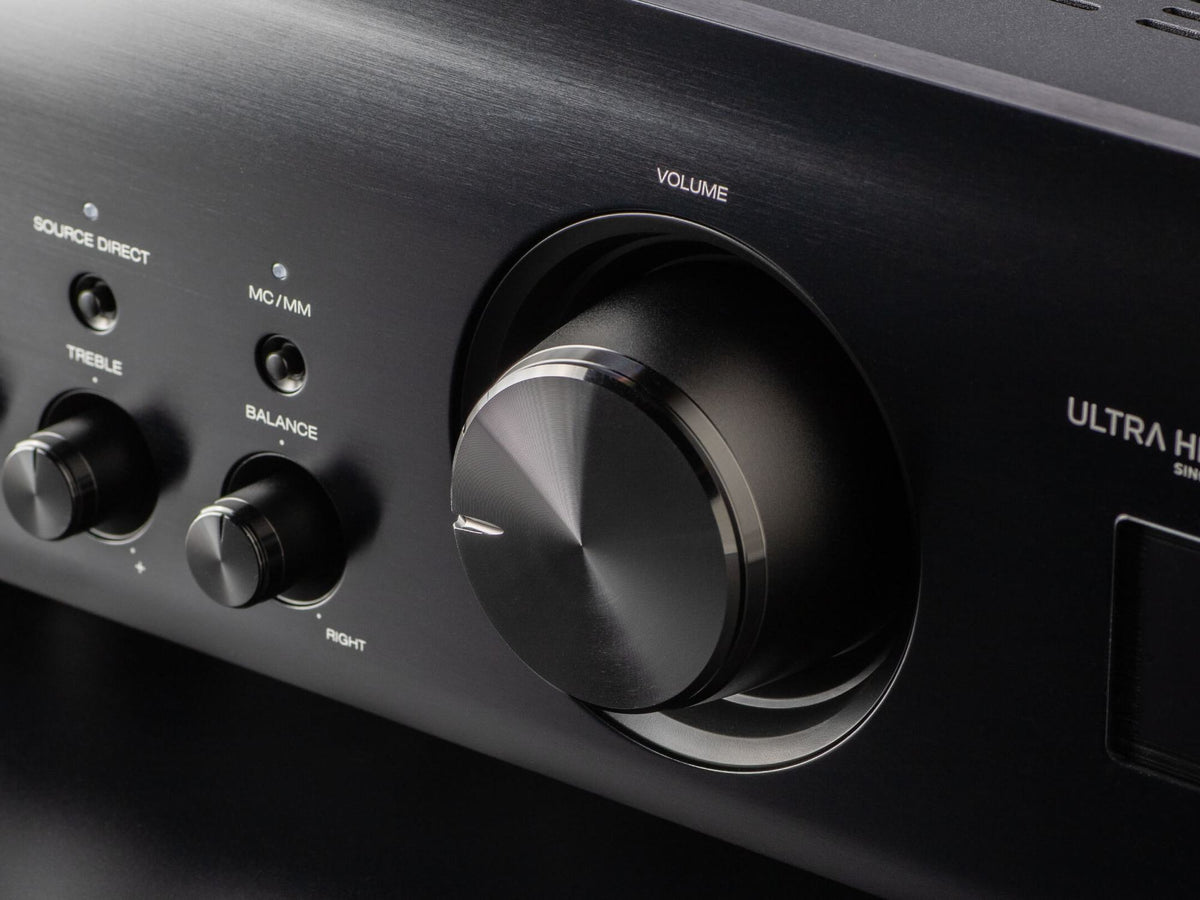

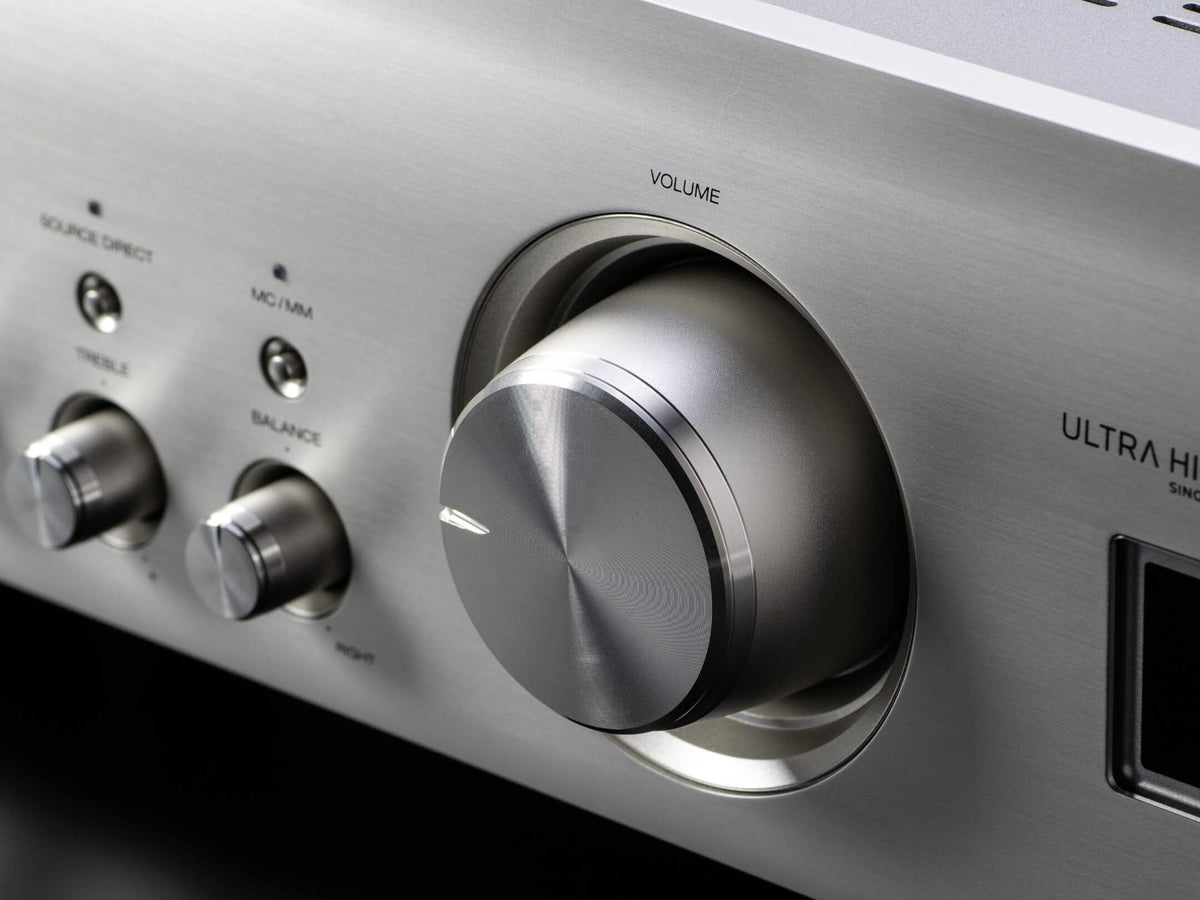

• A variable-gain preamplifier controls volume, balance and tone.
• A/B terminals select the speaker pair; in EXT.PRE mode, volume is controlled by the external preamplifier.
• TV Auto Play turns the amplifier on when digital audio is detected, and automatic standby reduces idle consumption.

Technical Specifications

• Channels: 2
• Power into 8 Ω: 2 × 70 W, 20 Hz to 20 kHz, THD 0.07%
• Power into 4 Ω: 2 × 140 W, 1 kHz, THD 0.7%
• Speaker impedance: 4–16 Ω; A+B operation: 8–16 Ω
• Frequency response: 5 Hz to 100 kHz, 0 / −3 dB
• THD: 0.01% at rated output −3 dB, 8 Ω, 1 kHz
• Phono: MM / MC
• Analogue connections: 4 stereo RCA inputs including Phono; REC OUT; EXT.PRE IN
• Digital inputs: 2 optical, 1 coaxial; USB-B DAC
• Optical / coaxial audio: Stereo PCM up to 192 kHz / 24 bit
• USB-B audio: PCM up to 384 kHz / 32 bit; DSD 2.8 / 5.6 / 11.2 MHz
• Digital circuitry: PCM1795; Advanced AL32 Processing Plus; DAC Master Clock
• Headphone output: 1
• Controls: Bass, treble, balance; Source Direct; Analog Mode
• Power supply: 230 V AC, 50 / 60 Hz; power consumption 295 W
• Dimensions (W × D × H): 434 × 410 × 135 mm
• Net weight: 17.6 kg

What’s Included

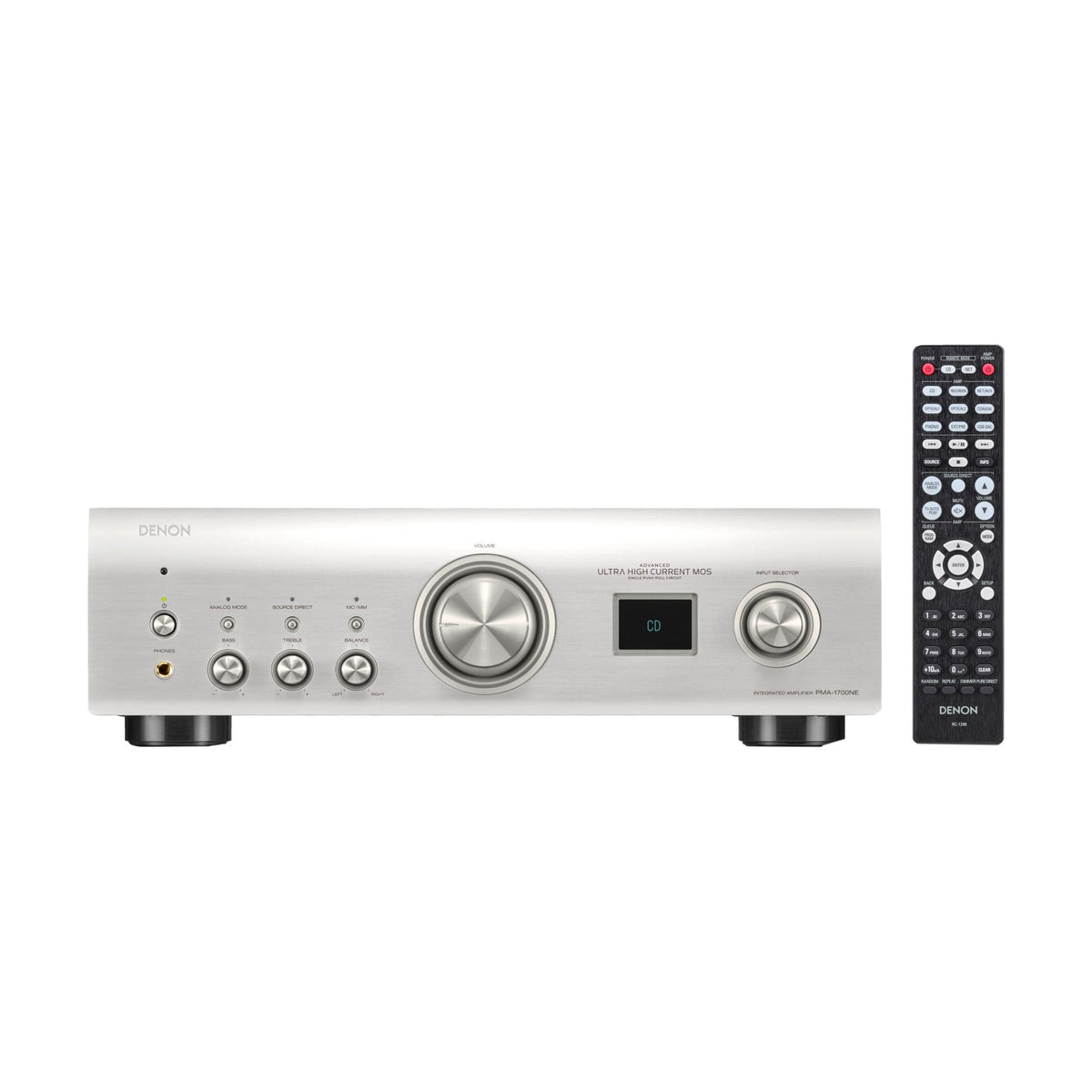

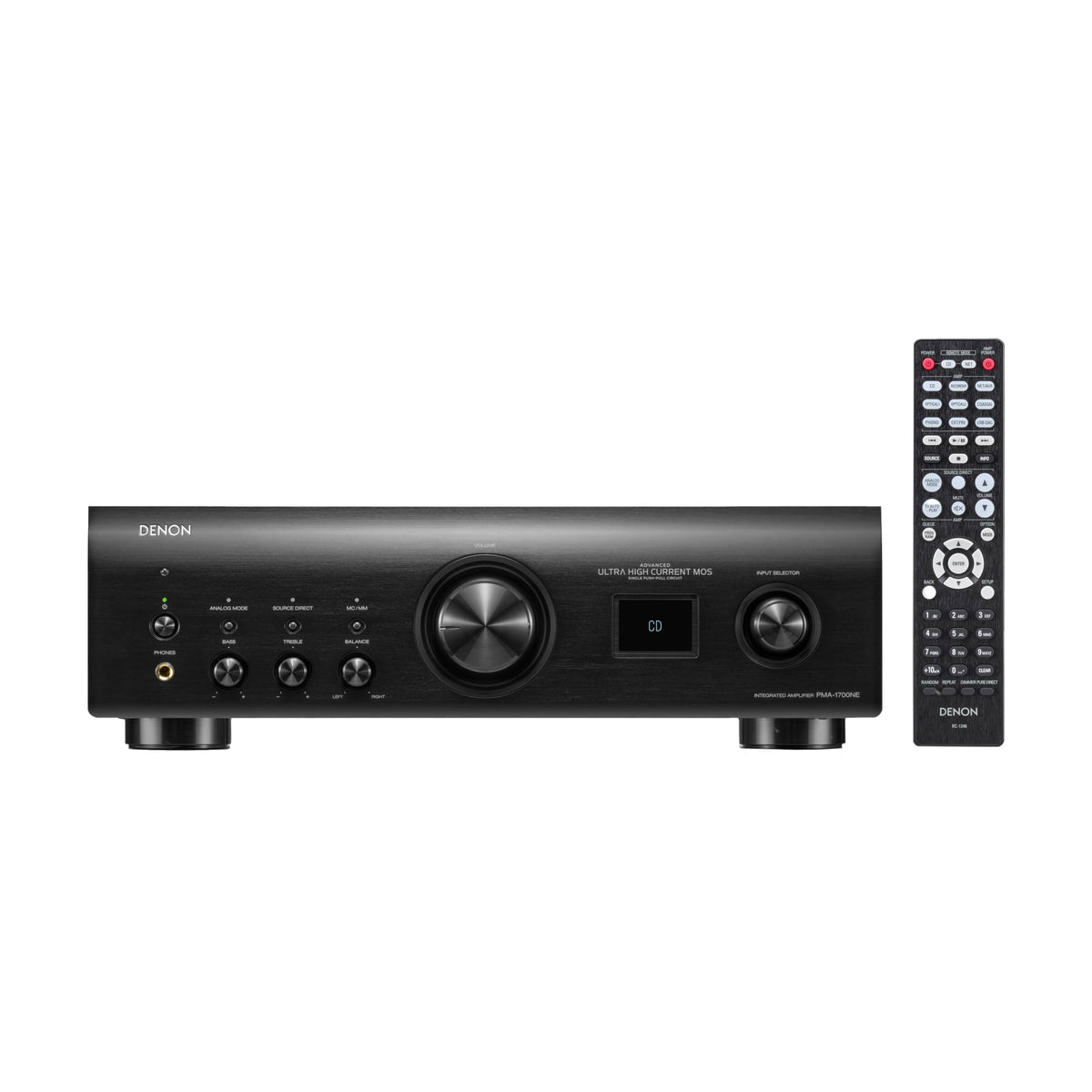

• Denon PMA-1700NE amplifier
• RC-1249 remote control
• 2 × R03 / AAA batteries
• Power cord

Who Is It For

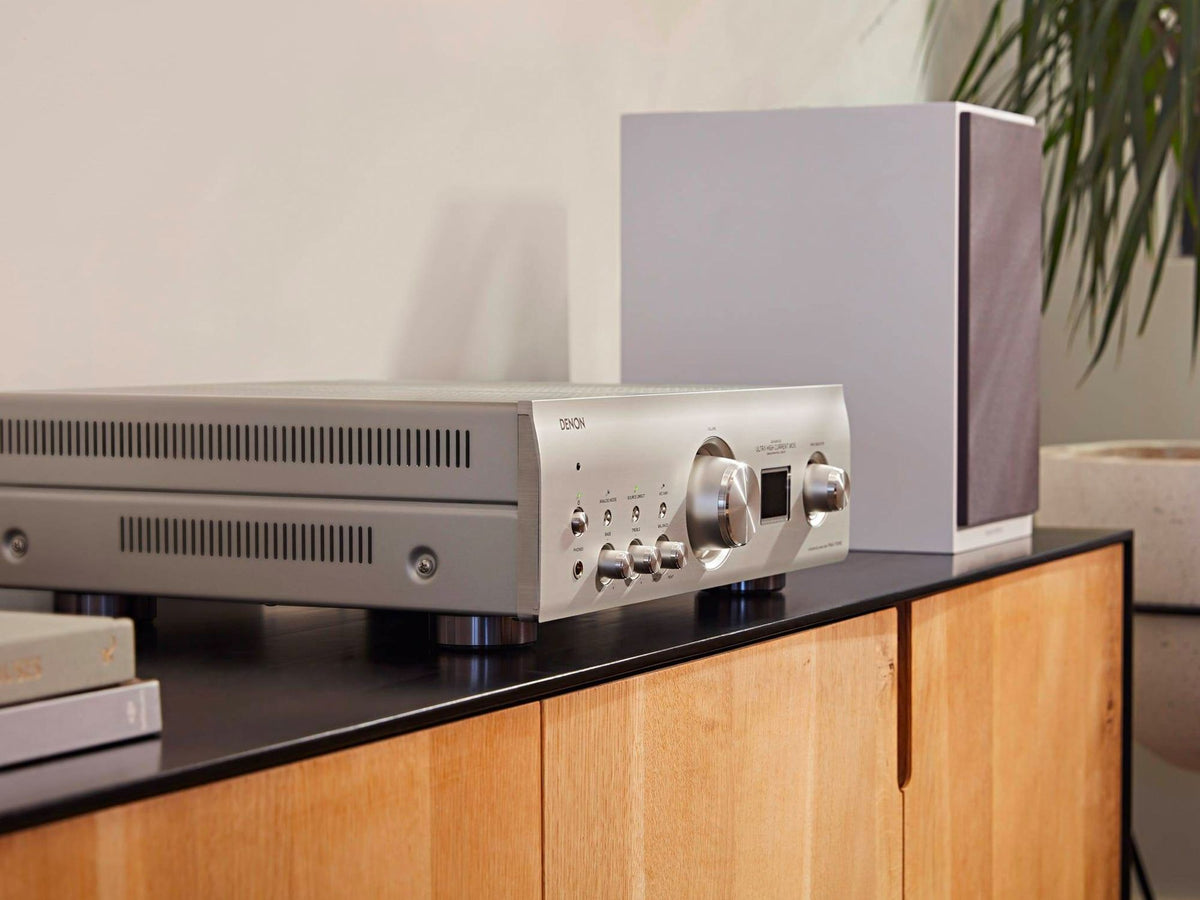

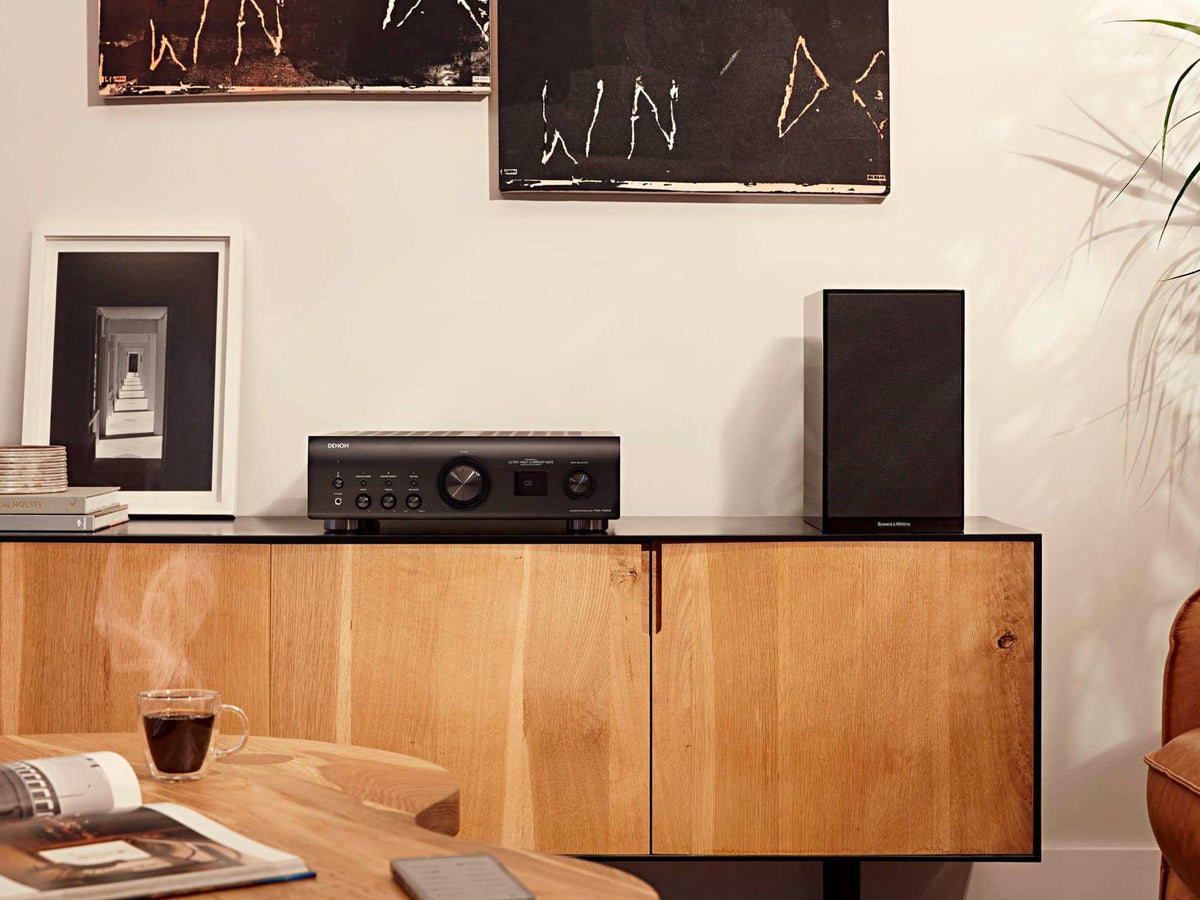

PMA-1700NE suits a home stereo system with passive loudspeakers, a computer and a turntable with an MM or MC cartridge.
