Denon DP-300F Turntable

Denon DP-300F Turntable

Denon DP-300F is a fully automatic belt-drive turntable supplied with an MM cartridge. Select a 30 or 17 cm record and press Start: the tonearm starts playback, then returns to its rest and the platter stops when the record ends.

A cueing lever lifts the tonearm so you can start at a chosen point on the record. A removable headshell, adjustable tracking force and anti-skating support compatible replacement cartridges.

The switchable built-in phono equalizer enables connection to a line-level AUX input. Switch it off when connecting to an amplifier’s phono MM input.

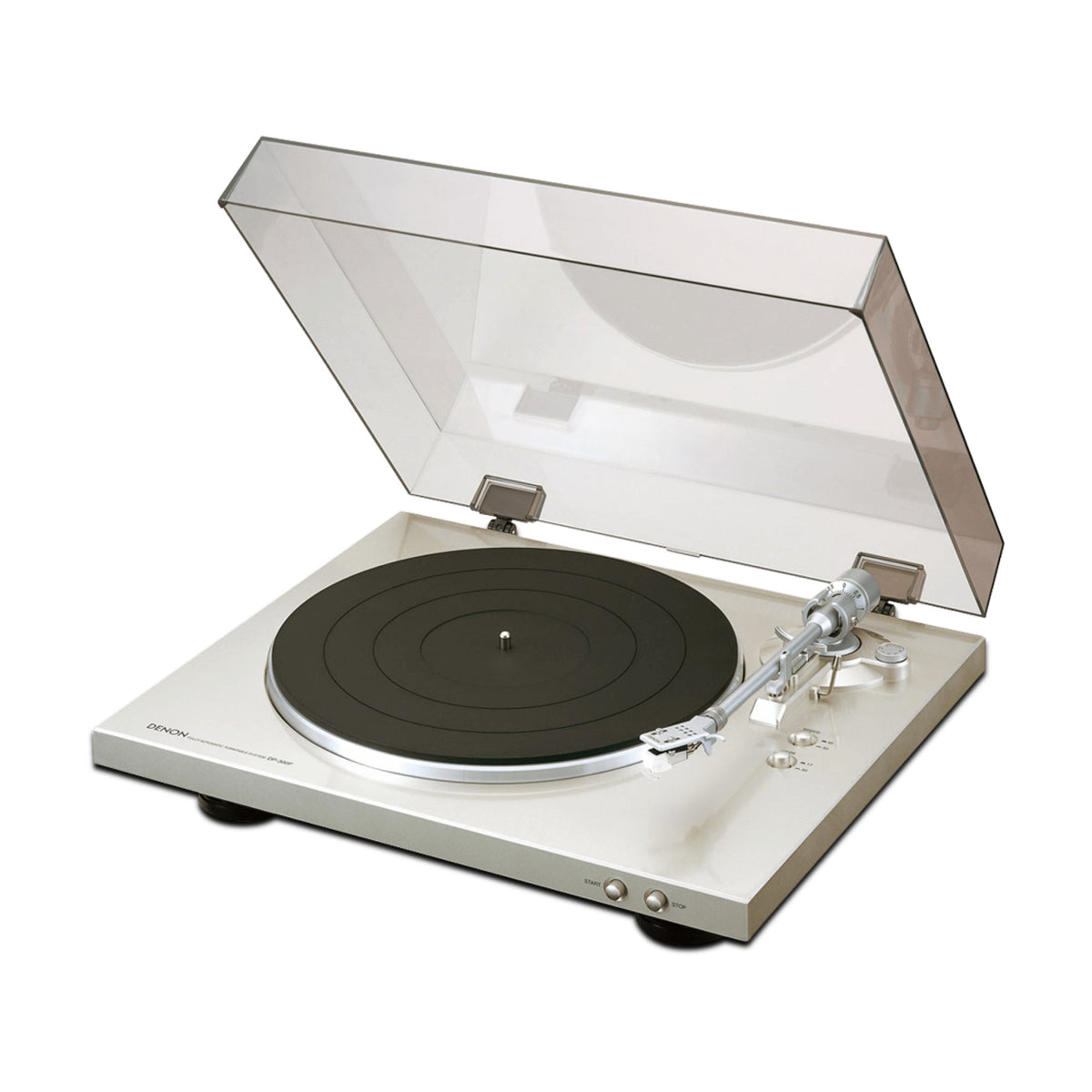

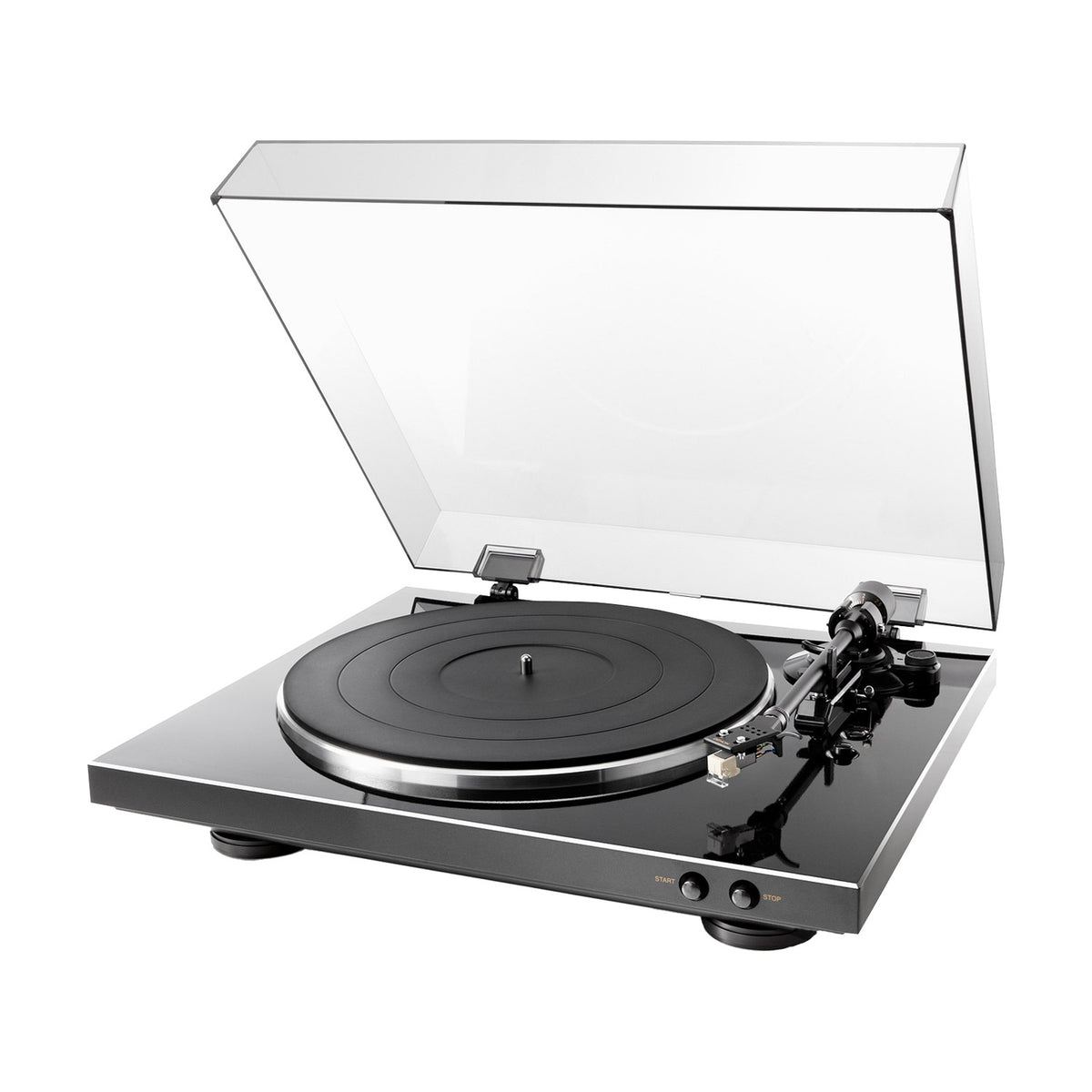

The hinged cover can be raised for listening or closed to protect the turntable. Initial assembly involves fitting the belt-driven platter, counterweight and cartridge headshell, then setting tracking force.

Main Features

• A 4 mm-thick base with a gloss finish and a 5 mm-thick aluminium platter.
• Automatic start and stop, plus a manual tonearm cueing lever.

Technical Specifications

• Operation: Fully automatic Turntable; manual start also possible
• Drive: Belt; DC servo motor; die-cast aluminium platter
• Wow and flutter / SNR: 0.10% WRMS / 60 dB
• Speeds: 33⅓ / 45 rpm
• Tonearm: Straight, static balance; 221.5 mm; 19 mm overhang; tracking error up to 3°
• Tracking force: 0–4 g in 0.1 g steps; adjustable anti-skating
• Cartridge and stylus: MM, recommended force 2.0 g; replacement stylus DSN-85
• Cartridge compatibility: 4.5–9.5 g without headshell; supplied cartridge 5 g; headshell 10 g including fasteners
• Replacement headshell: PCL-310BK / PCL-310SP
• System compatibility: Phono MM or line-level AUX input, according to the phono equalizer switch setting
• Output voltage: 2.5 mV with equalizer off; 150 mV with equalizer on

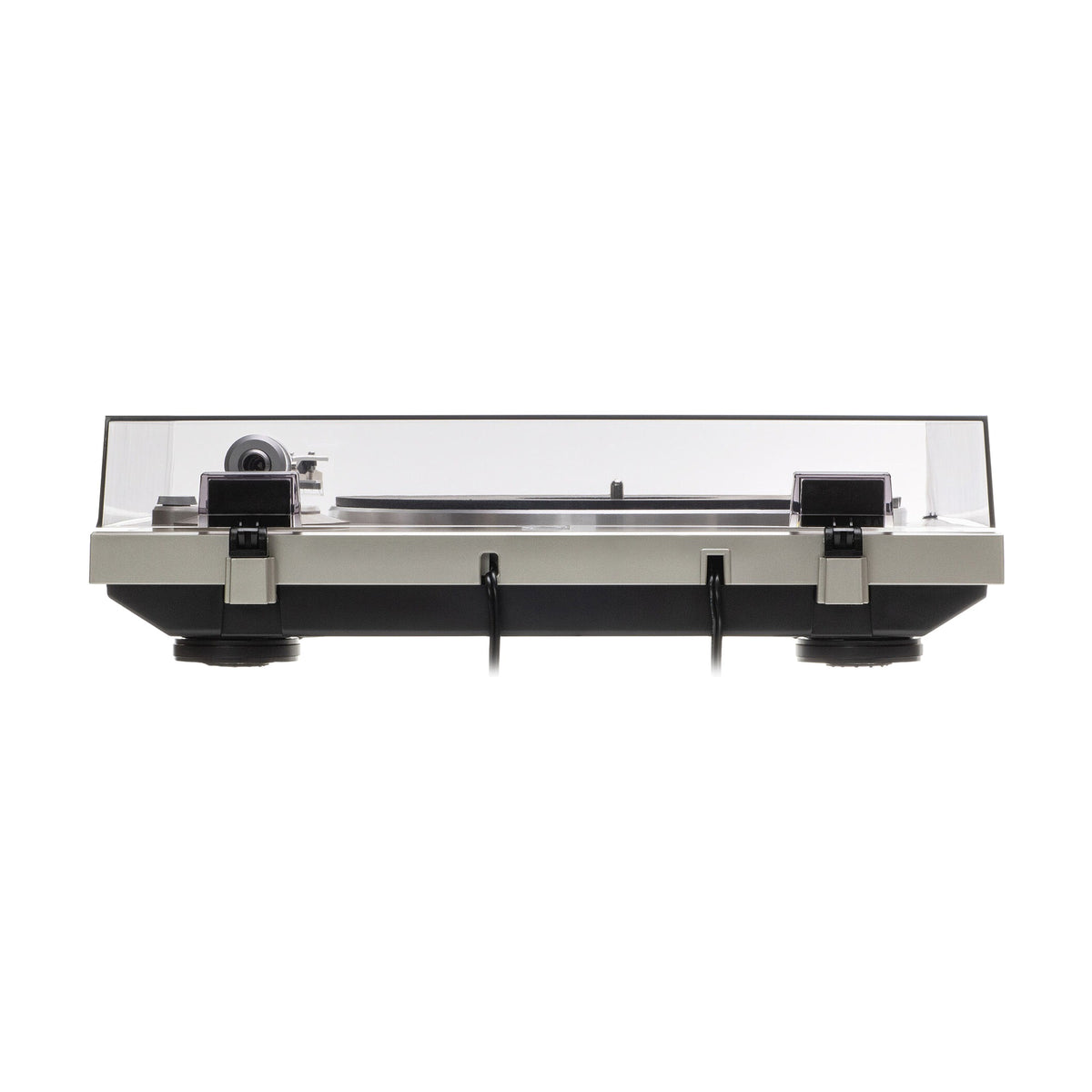

• Audio connection: Attached stereo RCA cable
• Power supply / consumption: 230 V AC, 50 Hz / 2 W
• Dimensions (W × D × H): 434 × 381 × 122 mm with cover closed; 434 × 413 × 386 mm with cover open
• Net weight: 5.5 kg

What’s Included

• 1 × Denon DP-300F turntable
• Platter with belt and mat
• Headshell with MM cartridge
• Dust cover and 2 hinges
• Counterweight and spare cartridge lead wire
• 45 rpm adapter

Who Is It For

For vinyl listening in a home stereo system. Active speakers require a suitable analogue input and the turntable’s built-in phono equalizer must be enabled.
