Denon AVR-X580BT AV Receiver

Denon AVR-X580BT AV Receiver

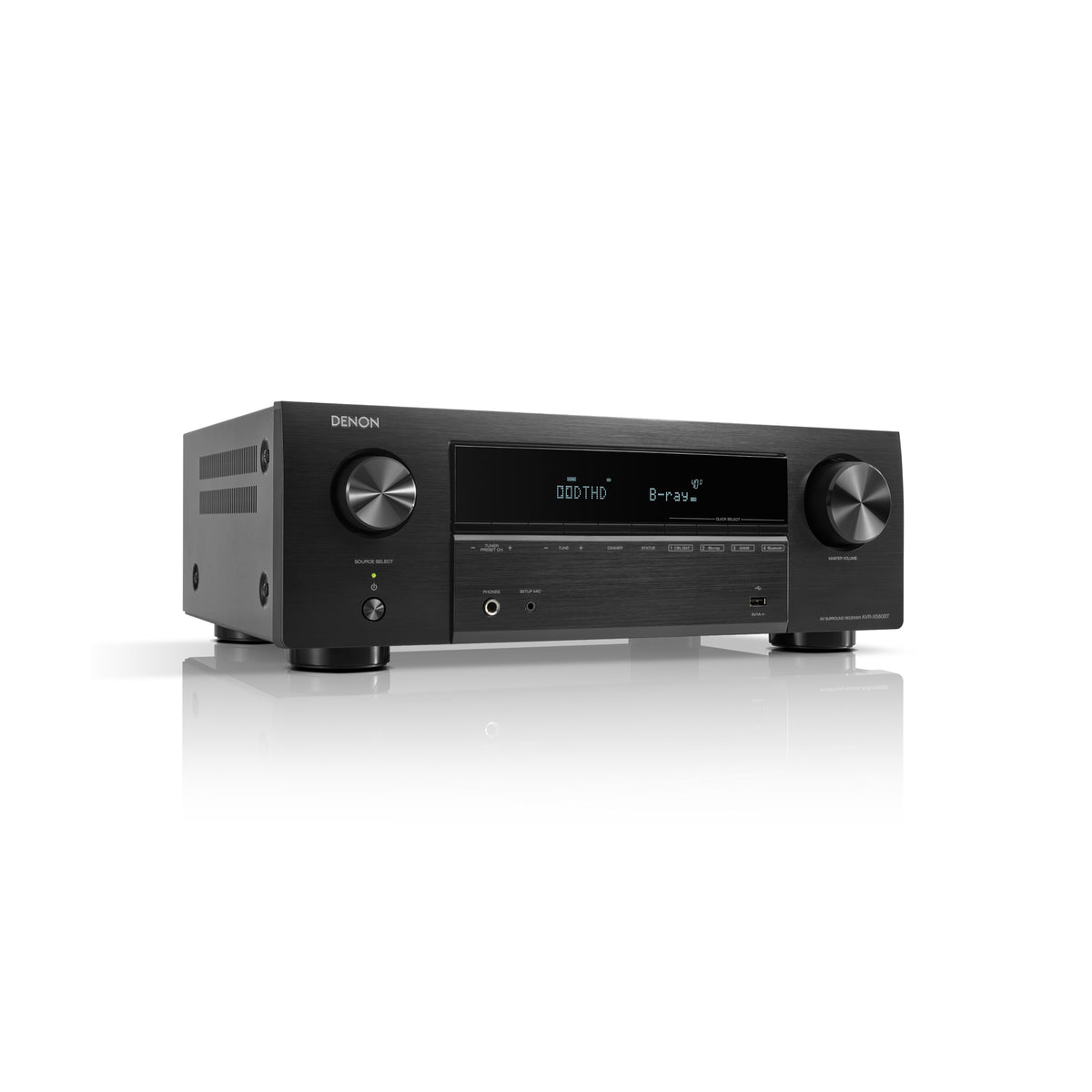

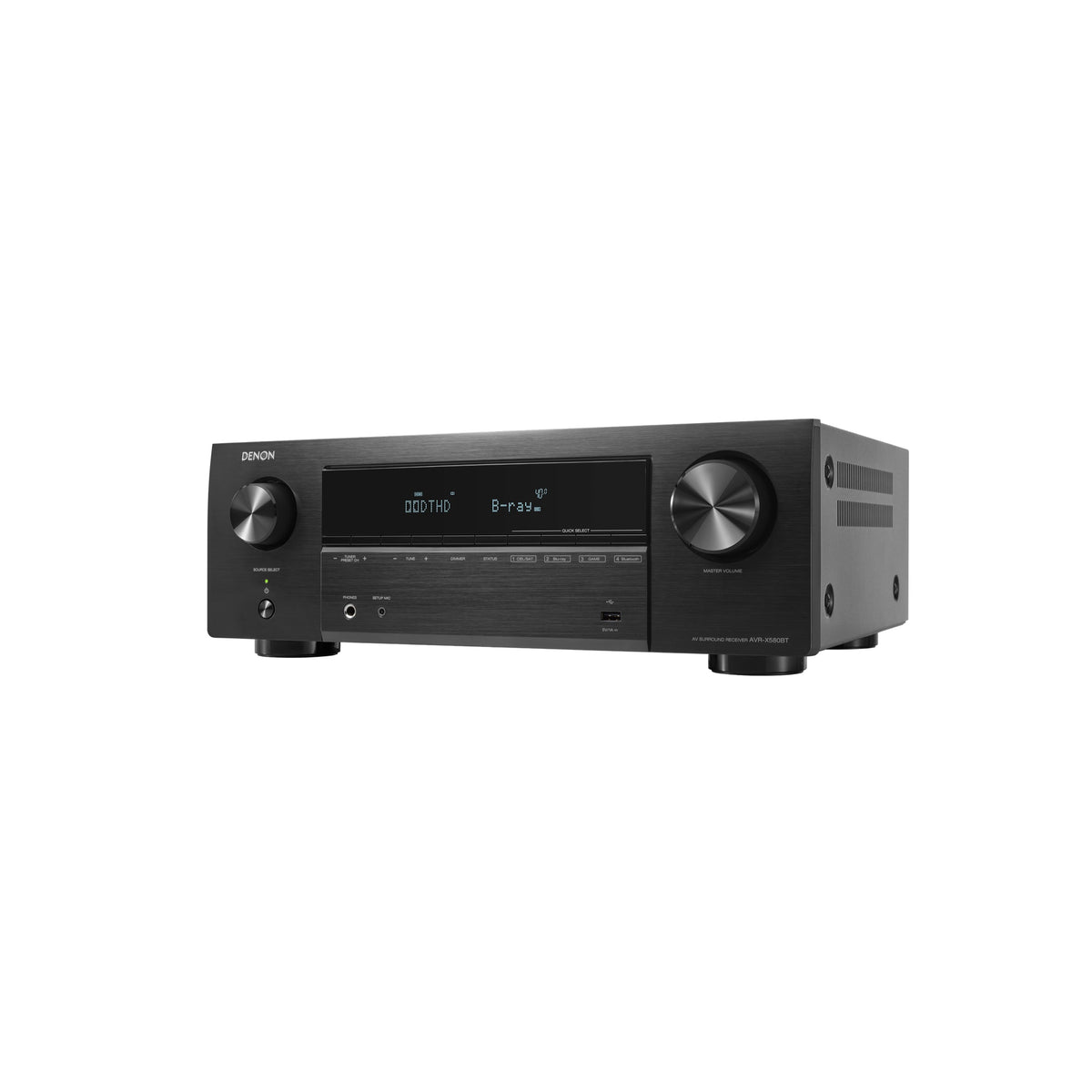

Denon AVR-X580BT is a 5.2-channel home cinema AV receiver. The Black unit combines amplification for five passive speakers, two powered subwoofer outputs, HDMI video switching and Bluetooth audio playback.

Five power amplifiers deliver 70 watts per channel into 8 ohms, measured from 20 Hz to 20 kHz with two channels driven. Dolby TrueHD and DTS-HD decoding serves surround soundtracks, while the 5.2 layout accommodates centre and rear speakers. This five-channel model has no height speaker outputs.

Four HDMI inputs and one output pass video up to 8K/60 Hz or 4K/120 Hz from compatible sources. HDMI eARC returns TV audio over one connection. HDR10+, HLG, Dynamic HDR, Dolby Vision, VRR, QFT and ALLM support video and gaming when the connected devices also support them.

The supplied microphone enables automatic speaker setup for the room. Denon Setup Assistant guides initial configuration, and four Quick Select buttons recall input, volume and sound-mode settings. A front USB port plays compatible files up to 192 kHz / 24-bit.

Main Features

• The 5.2-channel layout drives five passive speakers and connects two powered subwoofers.
• Power is rated at 70 W per channel into 8 ohms, 20 Hz to 20 kHz, 0.08% THD, two channels driven.
• Dolby TrueHD and DTS-HD decoding plays compatible surround soundtracks.
• Four HDMI inputs connect disc players, streaming devices and game systems.
• Video pass-through up to 8K/60 Hz and 4K/120 Hz serves compatible displays and sources.
• HDMI eARC returns TV audio to the receiver through one HDMI connection.
• VRR, QFT and ALLM support compatible gaming equipment.
• Bluetooth receives music from a compatible phone or other device.
• Automatic setup with the microphone helps configure speakers for the listening position.
• Four Quick Select buttons recall saved listening settings.
• The front USB port plays compatible audio files up to 192 kHz / 24-bit.

Technical Specifications

• Channel configuration: 5.2; 5 power amplifiers
• Power into 8 ohms: 70 W per channel, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven
• Surround formats: Dolby TrueHD, Dolby Digital Plus, DTS-HD
• HDMI connections: 4 inputs, 1 output with ARC / eARC
• Video signal: up to 8K/60 Hz or 4K/120 Hz
• Video features: HDR10+, HLG, Dynamic HDR, Dolby Vision, VRR, QFT, ALLM
• Digital audio inputs: 2 optical, 1 coaxial
• Analogue audio inputs: 2 stereo
• Subwoofer outputs: 2
• Bluetooth: 4.2
• USB audio resolution: up to 192 kHz / 24-bit
• Power consumption: 310 W; 0.1 W standby
• Dimensions: 434 × 330 × 151 mm (W × D × H)
• Product weight: 7.6 kg

What’s Included

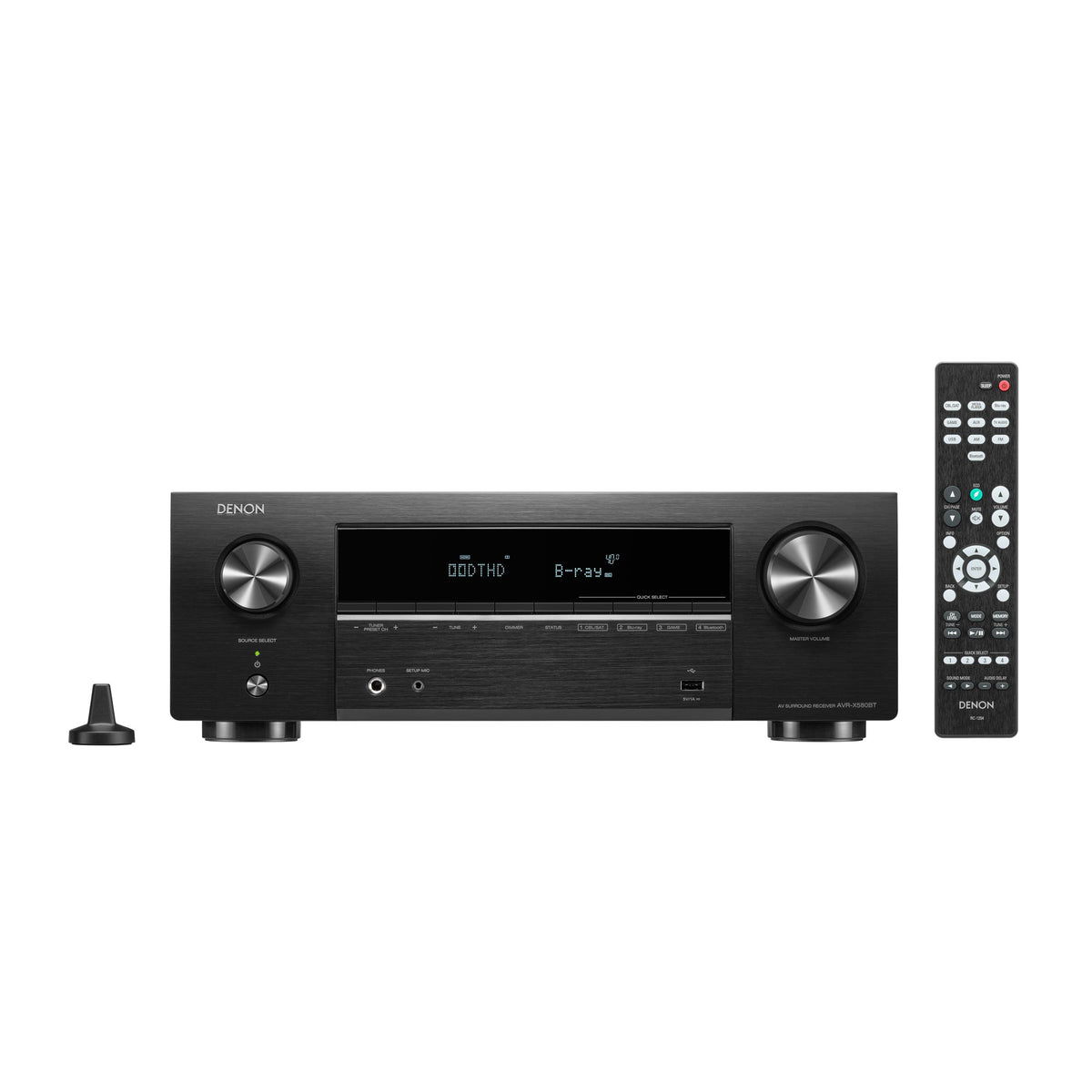

• Denon AVR-X580BT Black AV receiver
• RC-1254 remote control
• Sound calibration microphone
• FM indoor and AM loop antennas
• Speaker cable labels
• Region-appropriate power cord
• 2 AAA batteries for the remote

Who Is It For

Suitable for a 5.1 or 5.2 home cinema with a TV, video player or games console. Passive speakers and optional powered subwoofers are separate purchases.
