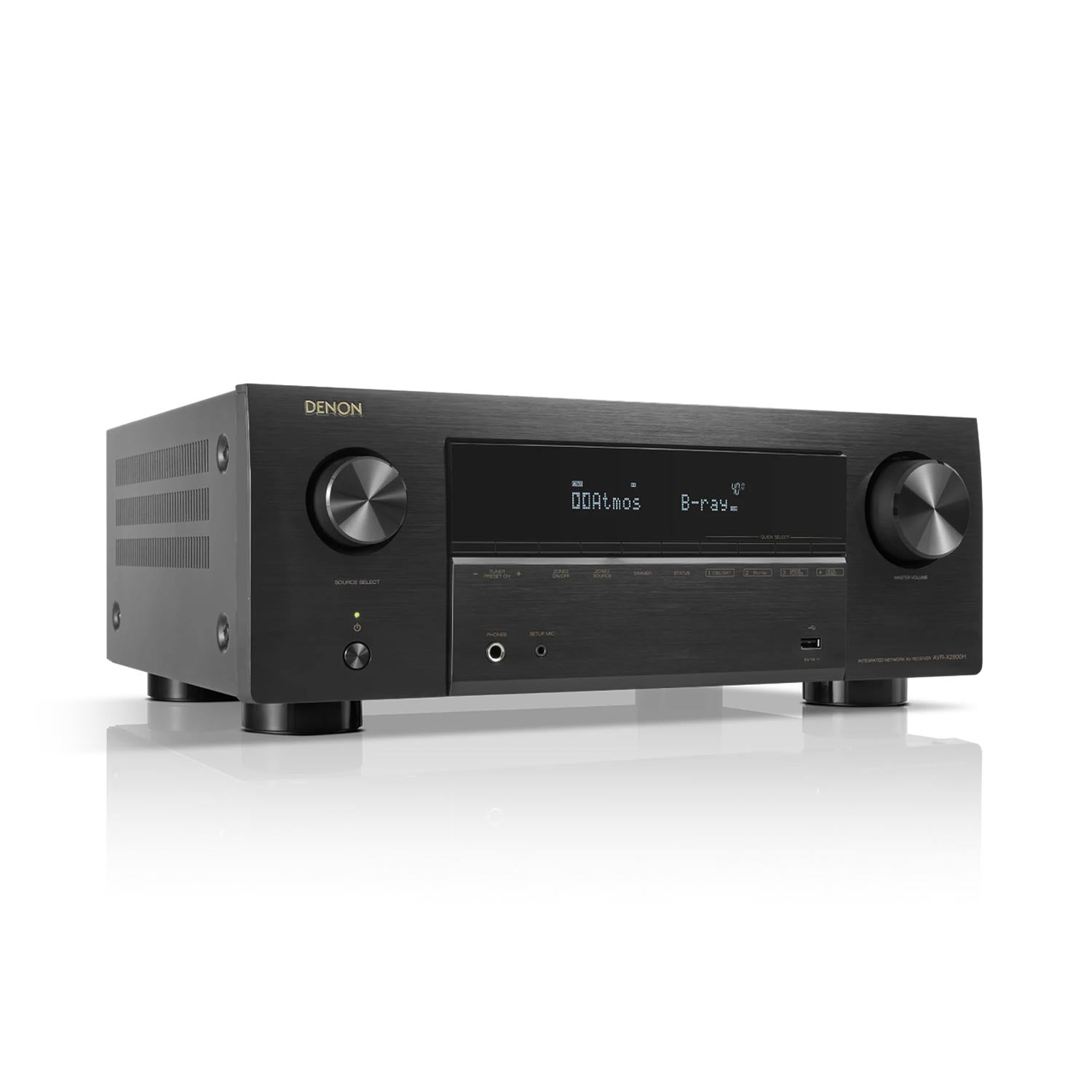

Denon AVR-X2800H 7.2-Channel 8K AV Receiver

Denon AVR-X2800H 7.2-Channel 8K AV Receiver

Denon AVR-X2800H is a 7.2-channel 8K AV receiver designed for home cinema systems and music playback, with support for Dolby Atmos, DTS:X, HEOS, AirPlay 2 and advanced HDMI video technologies.

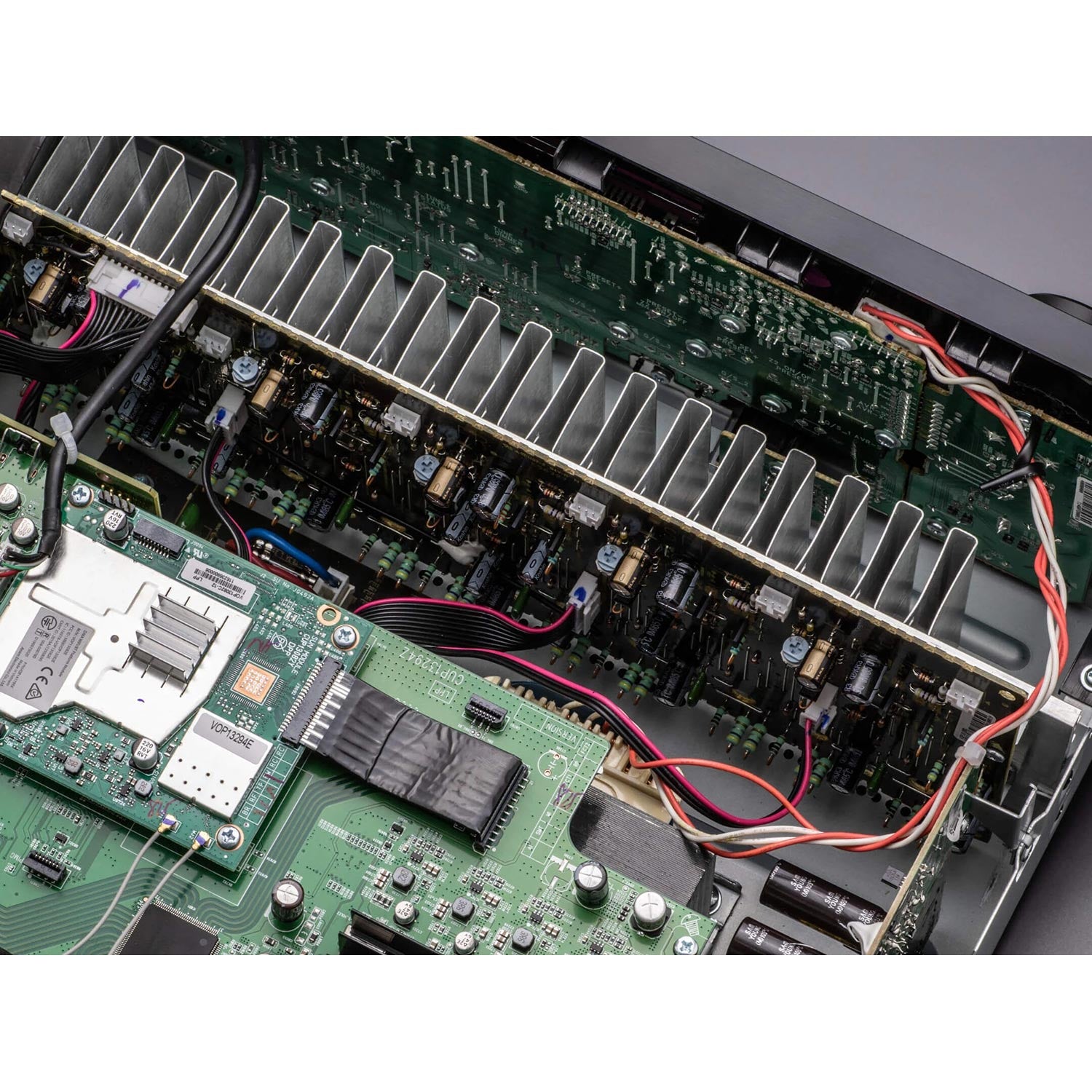

The seven-channel power amplifier uses a separate amplification circuit for each channel. It delivers 95W per channel into 8 ohms, measured from 20 Hz to 20 kHz with 0.08% total harmonic distortion and two channels driven. The receiver can be configured for a 7.2 or 5.2.2-channel system, while Dolby Atmos and DTS:X provide immersive object-based surround sound.

Six HDMI inputs and two HDMI outputs provide connectivity for a television, game console, media player and other video sources. Three HDMI inputs support 8K/60 Hz and 4K/120 Hz signals, while VRR, QFT and ALLM are designed for use with compatible gaming systems. HDR10+, Dolby Vision, Dynamic HDR and HLG pass-through preserve the dynamic range, colour and contrast of compatible video content.

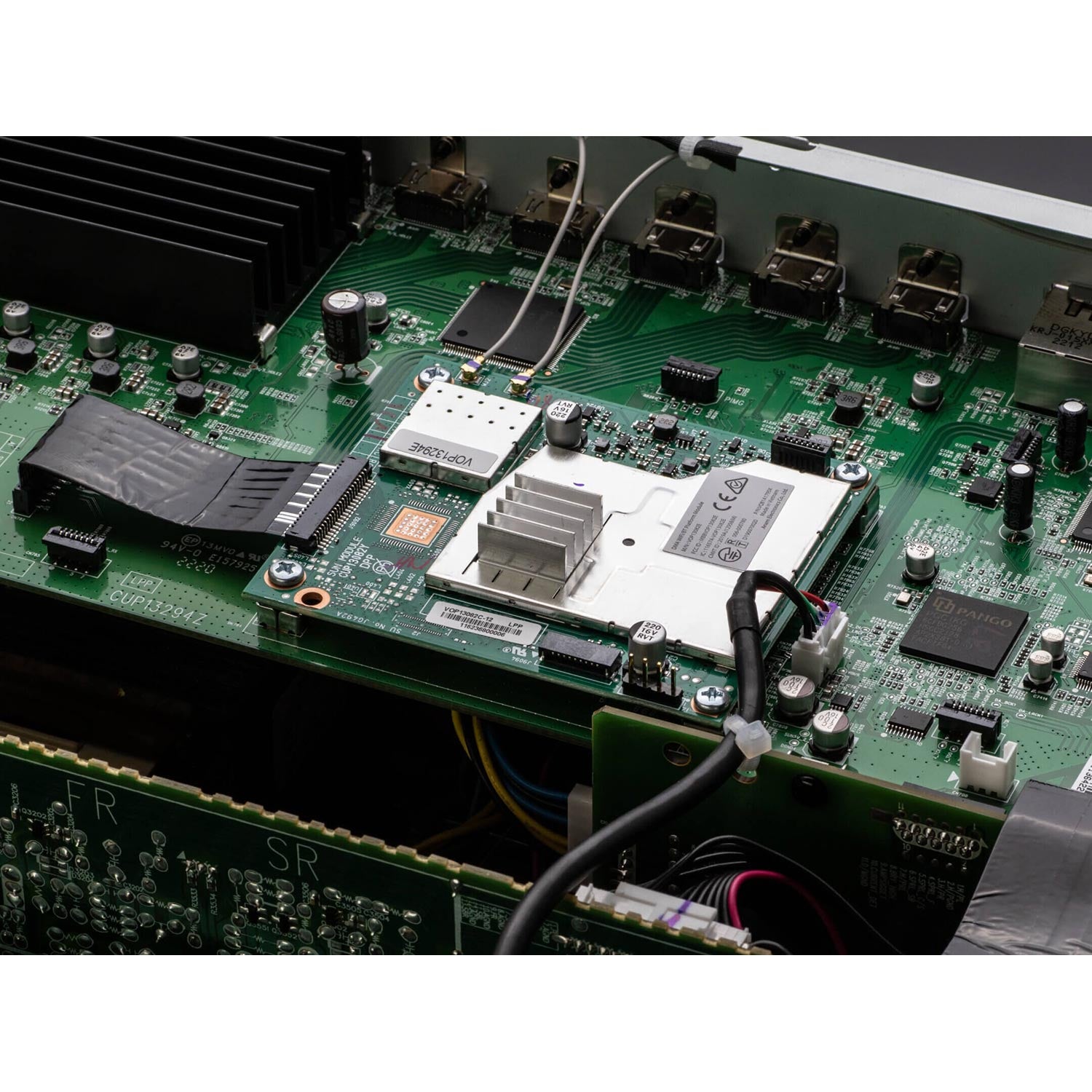

HEOS Built-in enables wireless music streaming and integration with other HEOS devices in a multi-room audio system. The receiver also supports Wi-Fi, Bluetooth, AirPlay 2, internet radio, music servers and high-resolution FLAC, ALAC, WAV and DSD files. A dedicated MM phono input allows a compatible turntable to be connected directly.

Audyssey MultEQ XT room correction uses the included calibration microphone to optimise system settings for the listening environment. Denon Setup Assistant guides the user through initial configuration, while the ZONE2 function can deliver a separate two-channel audio source to another room.

Main Features

• 7.2-channel configuration supports 7.2 or 5.2.2 home cinema systems
• 95W per channel into 8 ohms with two channels driven provides power for compatible speakers in medium-sized rooms
• Dolby Atmos and DTS:X support enables immersive object-based sound with height channels
• Dolby Atmos Height Virtualization and DTS Virtual:X can create virtual height and surround effects without dedicated height speakers
• Three 8K-ready HDMI inputs support 8K/60 Hz and 4K/120 Hz video signals
• VRR, QFT and ALLM help reduce image tearing and latency with compatible gaming devices
• HDR10+, Dolby Vision, Dynamic HDR and HLG pass-through provide compatibility with modern HDR video sources
• HDMI eARC carries high-quality television audio to the AV receiver through a single HDMI cable
• HEOS Built-in provides wireless music streaming and multi-room audio capabilities
• Wi-Fi, Bluetooth and AirPlay 2 enable convenient playback from network sources and mobile devices
• Audyssey MultEQ XT automatically adjusts speaker settings for the room’s acoustic characteristics
• Dedicated MM phono input allows a compatible turntable to be connected directly

Technical Specifications

• Product type: integrated network AV receiver
• Number of power amplifier channels: 7
• Power output: 95W + 95W, 8 ohms, 20 Hz–20 kHz, 0.08% THD, two channels driven
• Power output: 125W + 125W, 6 ohms, 1 kHz, 0.7% THD, two channels driven
• Speaker impedance: 4–16 ohms
• Surround sound formats: Dolby Atmos, Dolby TrueHD, Dolby Surround, Dolby Atmos Height Virtualization, DTS:X, DTS-HD Master Audio, DTS Neural:X, DTS Virtual:X
• Room correction: Audyssey MultEQ XT
• Additional Audyssey features: Dynamic EQ, Dynamic Volume

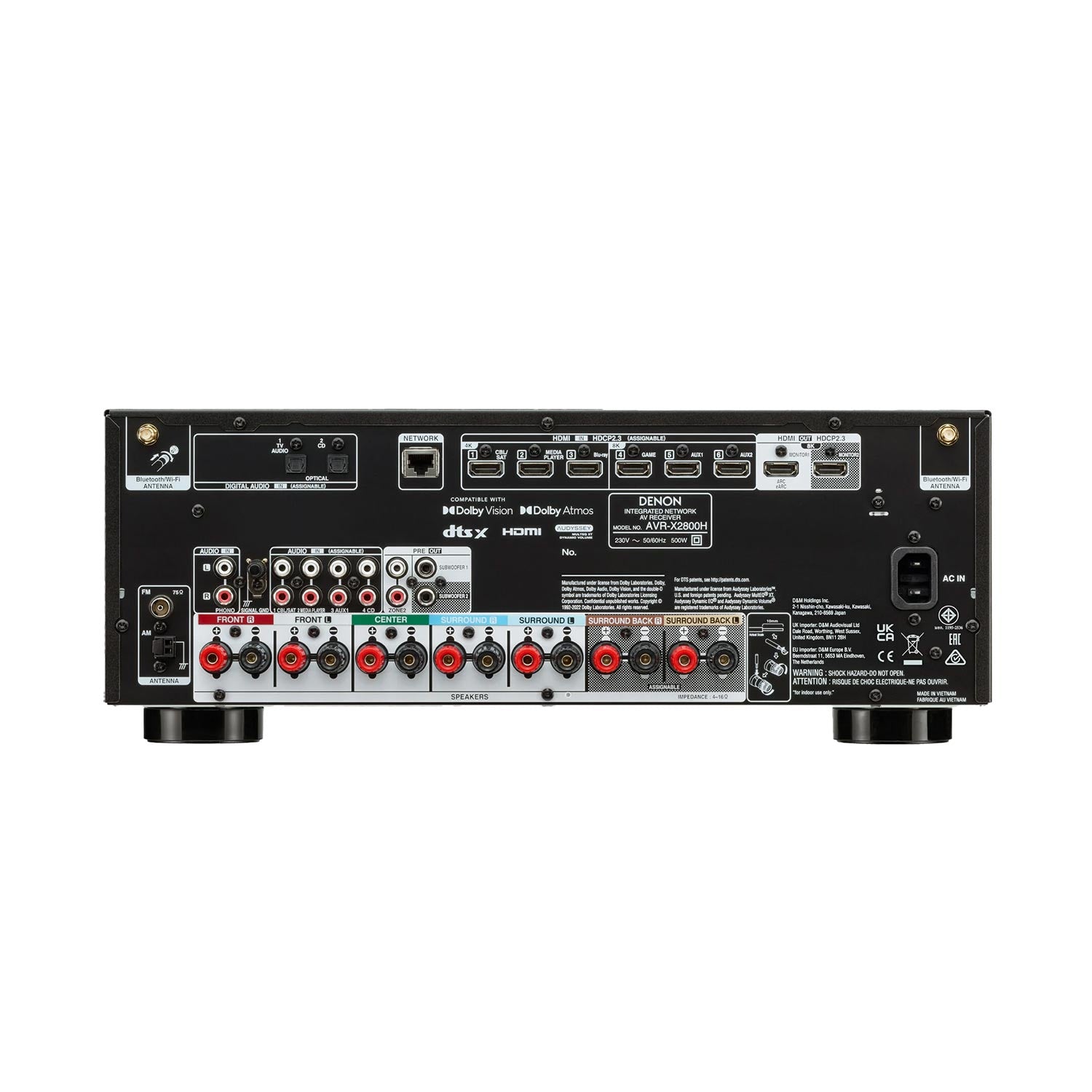

• HDMI inputs / outputs: 6 / 2
• 8K-ready HDMI inputs: 3
• HDMI video support: 8K/60 Hz, 4K/120 Hz, 8K upscaling, HDCP 2.3, 3D signal pass-through
• HDR support: HDR10, HDR10+, Dolby Vision, Dynamic HDR, HLG
• Gaming features: VRR, QFT, ALLM
• Audio return channel: ARC, eARC
• Analogue audio inputs: 4
• Phono input: 1, MM type
• Digital audio inputs: 2 optical, 1 coaxial
• Subwoofer outputs: 2
• Number of speaker terminals: 7
• Assignable configurations: Speaker A/B, bi-amp, ZONE2
• Network connections: Ethernet, Wi-Fi
• Wireless technologies: Bluetooth, AirPlay 2, HEOS
• Supported lossless audio formats: FLAC, ALAC and WAV up to 192 kHz / 24-bit
• DSD playback: 2.8 MHz and 5.6 MHz
• USB: front USB-A port for audio playback
• Radio tuner: FM / AM
• Multi-zone capability: 2 zones
• Power supply: 230V AC, 50 / 60 Hz
• Power consumption: 500W
• Standby power consumption: 0.1W
• Dimensions with antennas positioned horizontally (W × H × D): 434 × 167 × 341 mm
• Dimensions with antennas positioned vertically (W × H × D): 434 × 237 × 341 mm
• Dimensions without antennas (W × H × D): 434 × 167 × 330 mm
• Weight: 9.5 kg

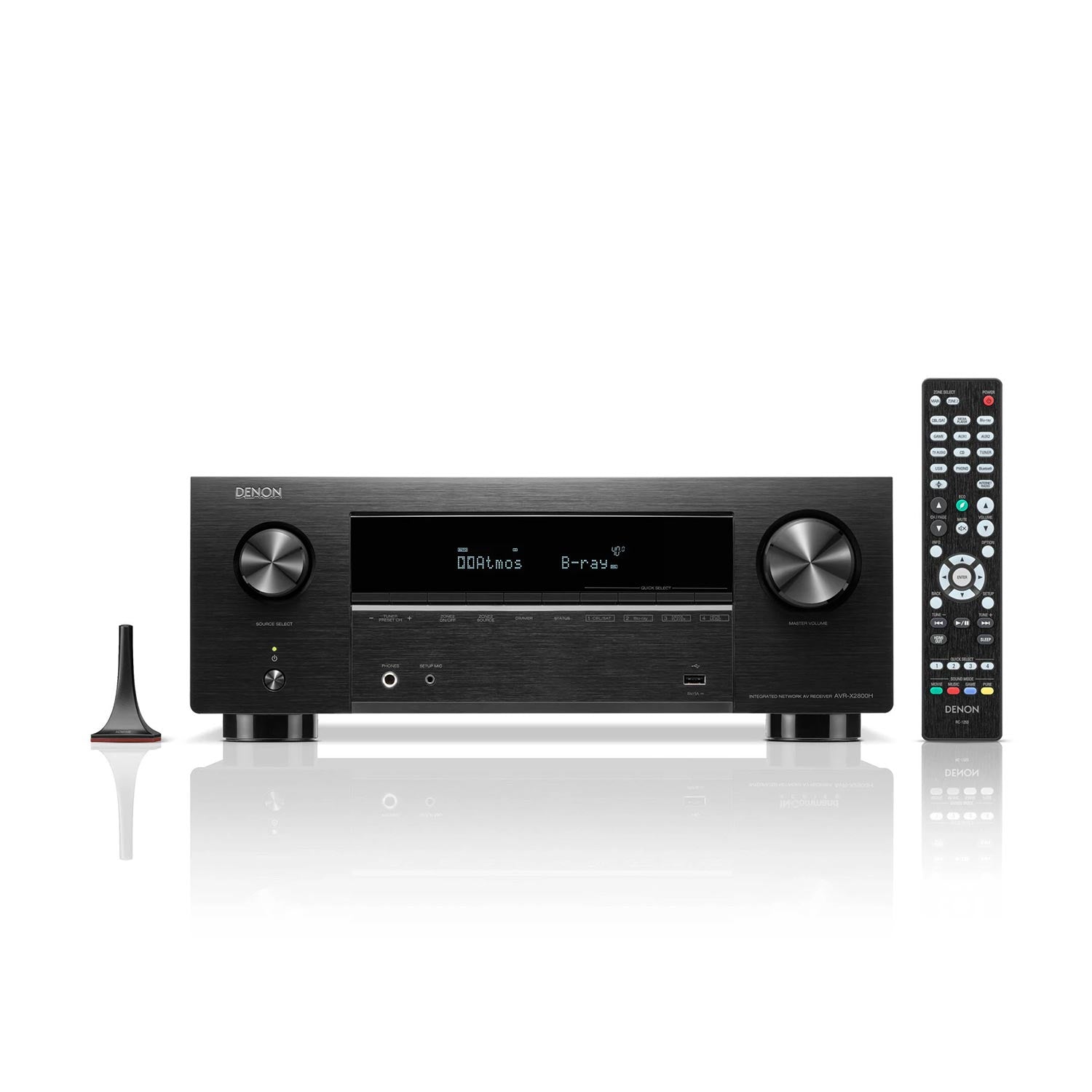

In the Box

• Denon AVR-X2800H AV receiver
• RC-1253 remote control
• 2 × R03 / AAA batteries
• Sound calibration microphone
• Sound calibration microphone stand
• 2 external antennas for Bluetooth and Wi-Fi connectivity
• FM indoor antenna
• AM loop antenna
• Power cord
• Quick Start Guide
• Safety Instructions
• Notes on Radio
• Cautions on Using Batteries
• Cable labels

Who Is It For

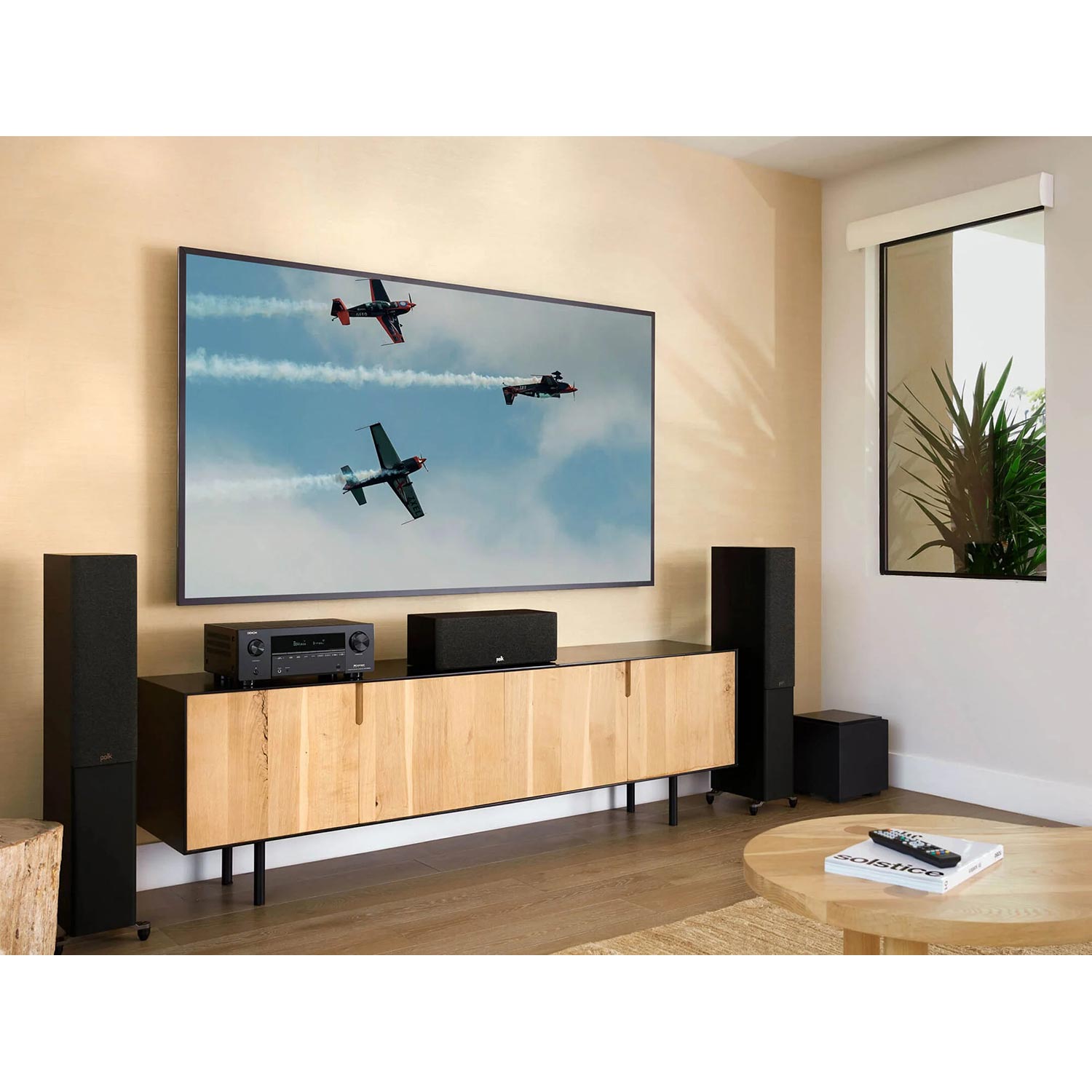

Denon AVR-X2800H is designed for 7.2 or 5.2.2-channel home cinema systems in medium-sized rooms. It is suitable for films, television, gaming, network music streaming and vinyl playback when a single central device is required to manage video sources, speakers and multi-room audio.
