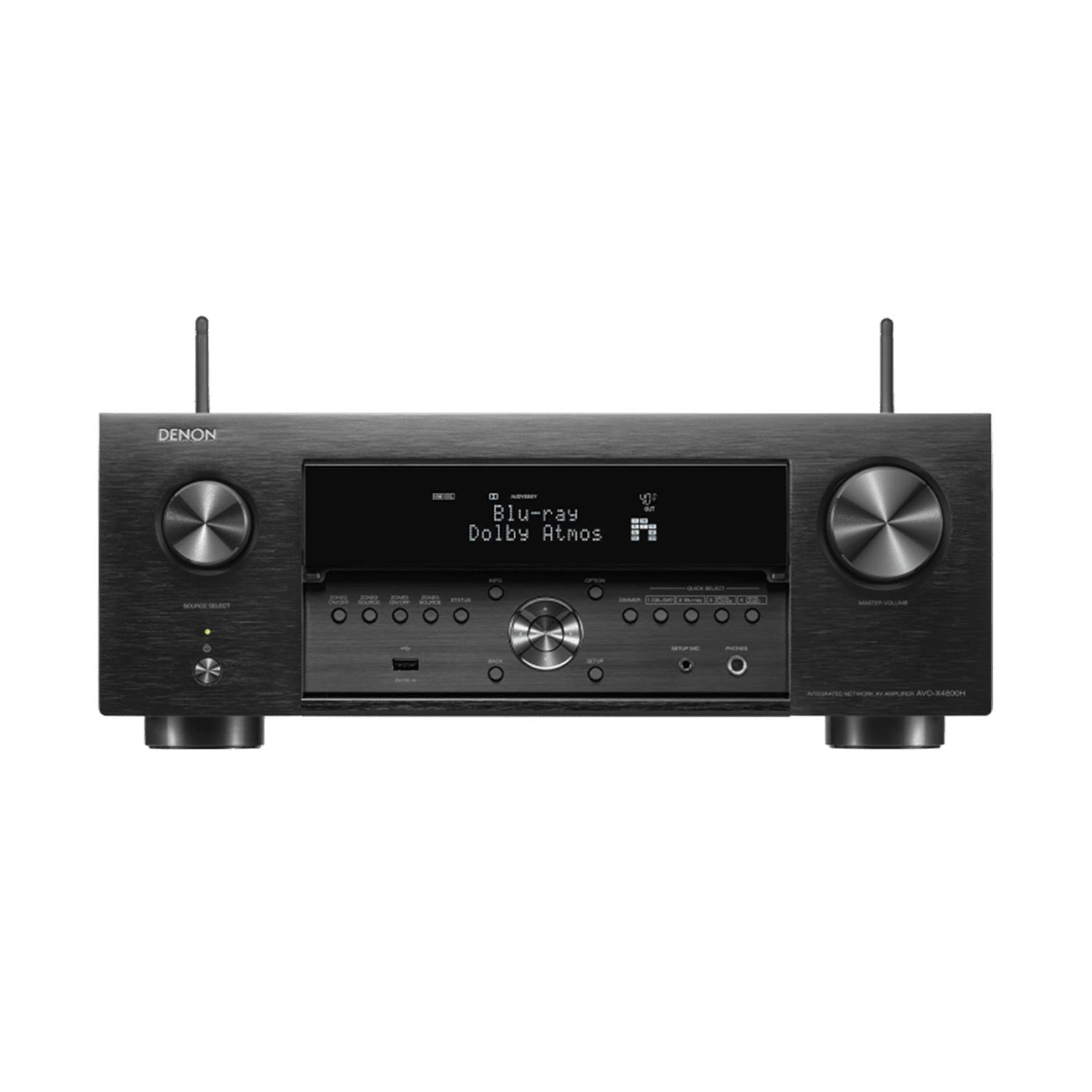

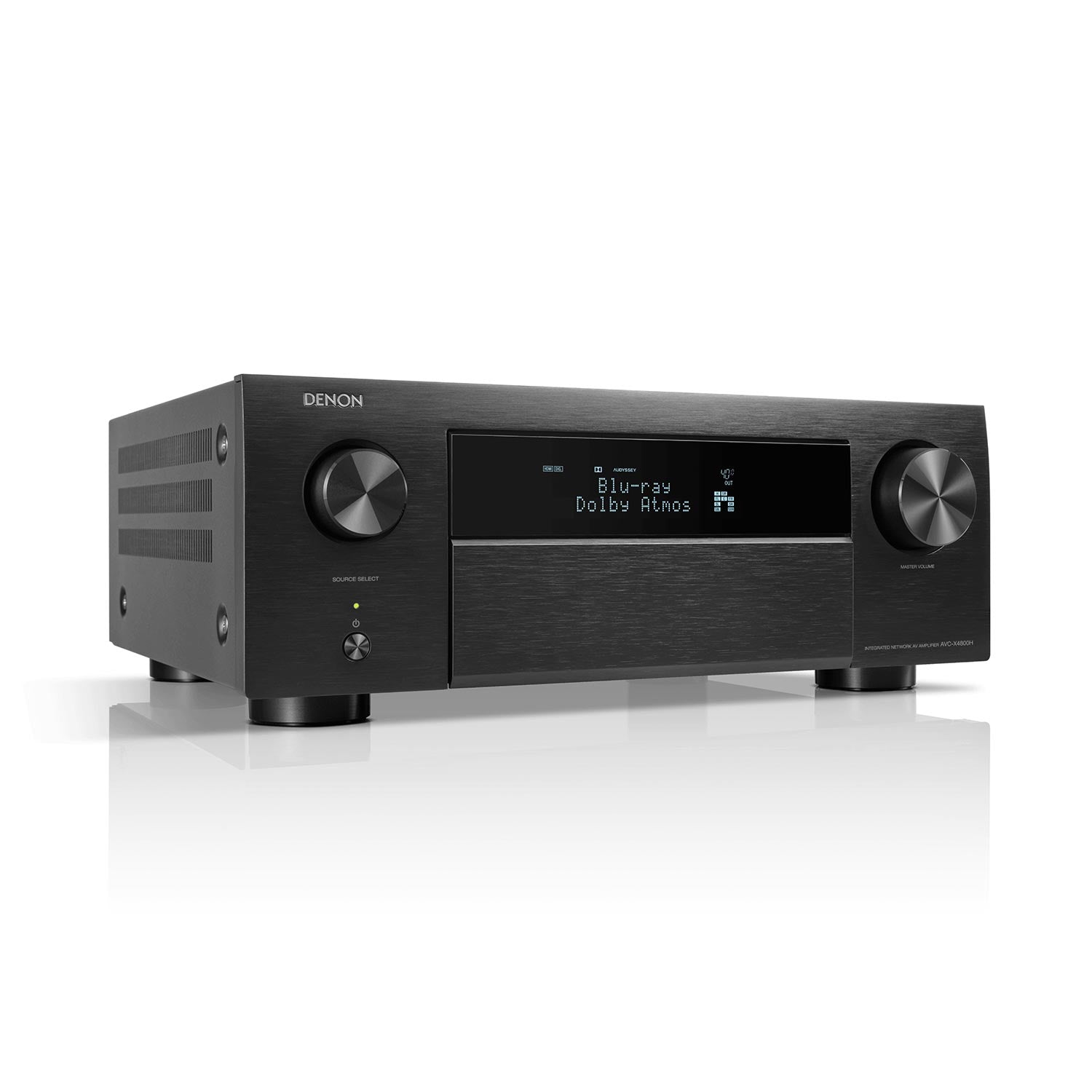

Denon AVC-X4800H 9.4 Channel 8K Home Theater AV Amplifier

Denon AVC-X4800H 9.4 Channel 8K Home Theater AV Amplifier

Denon AVC-X4800H is a 9.4 channel home theater AV amplifier for larger cinema systems, immersive audio, 8K video sources, game consoles and multi-zone audio control.

The model includes 9 power amplifier channels and supports up to 11.4 channel processing via pre-out connections. This allows expanded Dolby Atmos, DTS:X, Auro-3D and IMAX Enhanced systems, while four independent subwoofer outputs provide more flexibility for low-frequency placement and calibration.

AVC-X4800H supports 8K/60 Hz and 4K/120 Hz HDMI video, HDR10+, Dolby Vision, Dynamic HDR, HLG, HDCP 2.3 and gaming-related HDMI functions such as ALLM, VRR and QFT. Seven HDMI inputs and three HDMI outputs allow multiple video sources, a TV, a projector or an additional zone to be connected.

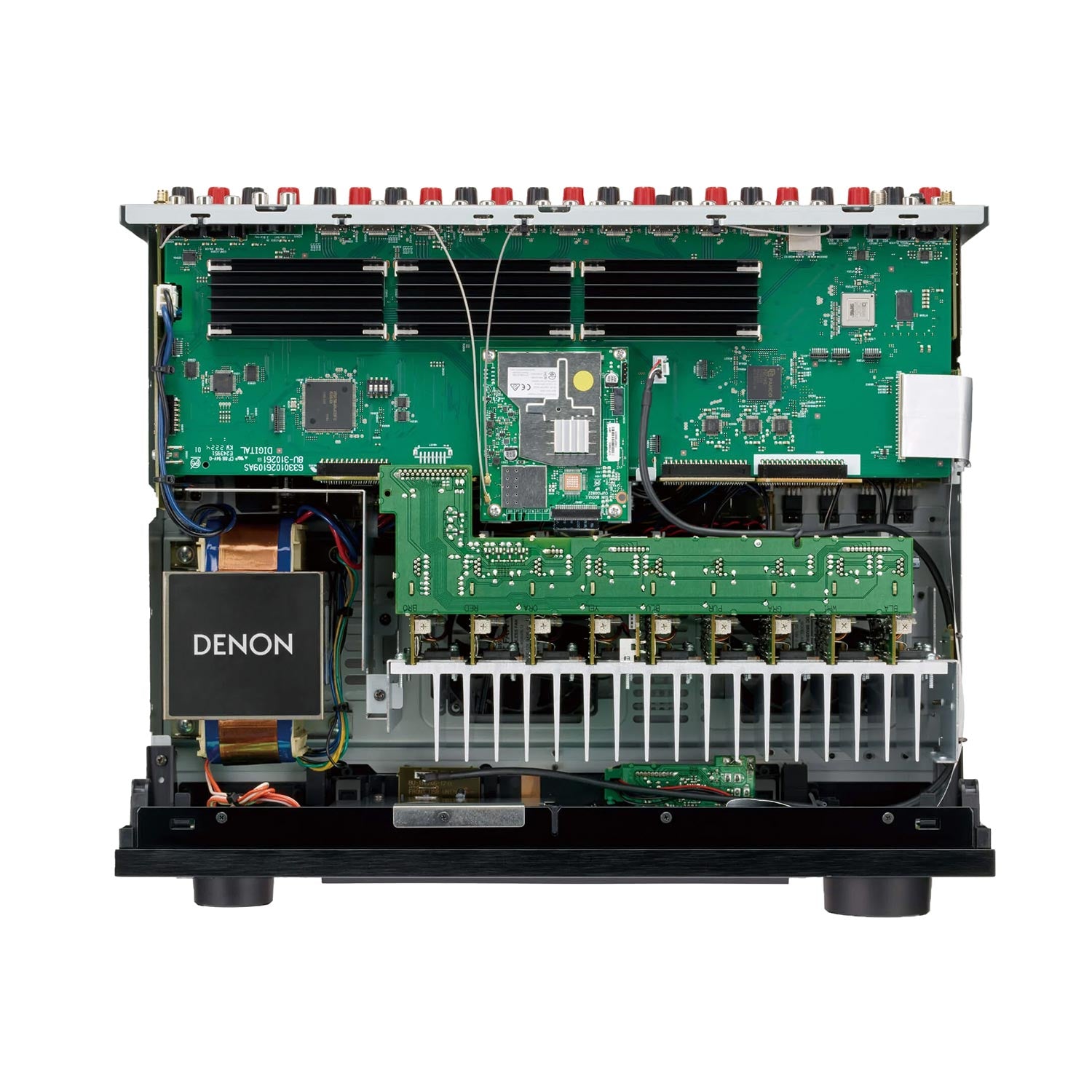

Denon audio technologies include discrete power amplifiers, D.D.S.C. HD Digital 32-bit processing, AL32 Processing Multichannel, Pure Direct mode and Clock Jitter Reducer. Audyssey MultEQ XT32 is built in for room acoustic calibration, with Dirac Live upgrade capability available separately.

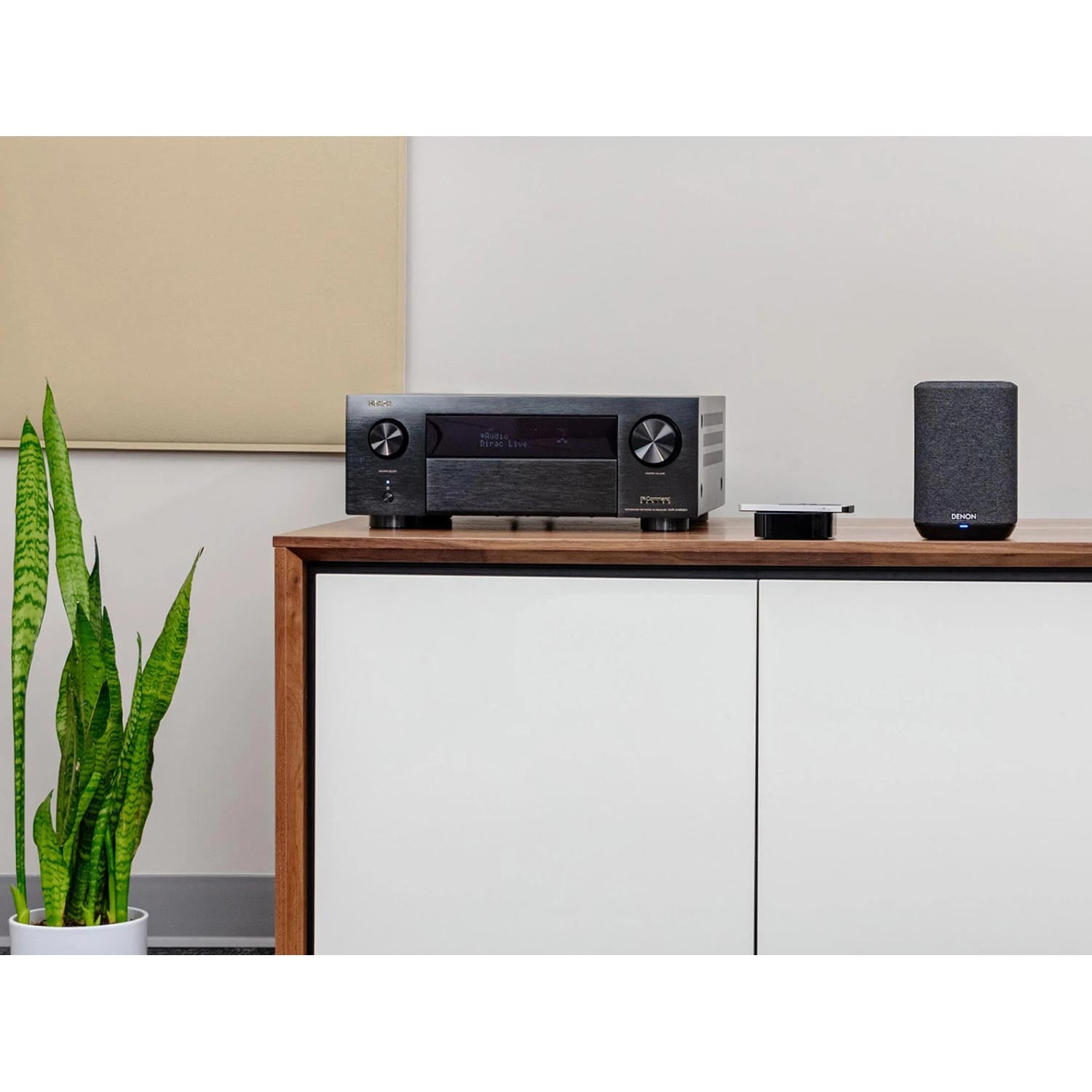

Integrated HEOS allows music streaming over the network, multi-room audio control and wireless playback features. The amplifier supports Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect, TuneIn, Roon Tested functionality, high-resolution FLAC, ALAC and WAV files up to 192 kHz / 24-bit and DSD 2.8 / 5.6 MHz playback.

Main Features

• 9.4 channel AV amplifier for larger home theater systems
• 9 power amplifier channels with up to 125 W per channel at 8 Ω
• Up to 11.4 channel processing via pre-out connections
• Dolby Atmos, DTS:X, Auro-3D and IMAX Enhanced support
• 7 HDMI inputs and 3 HDMI outputs, including eARC
• 8K/60 Hz and 4K/120 Hz HDMI support
• HDR10+, Dolby Vision, Dynamic HDR and HLG support
• ALLM, VRR and QFT functions for gaming video transmission
• Audyssey MultEQ XT32 room acoustic calibration
• Dirac Live upgrade capability
• 4 independent subwoofer outputs
• HEOS integration for music streaming and multi-room audio
• Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect, TuneIn and Roon Tested support
• Phono MM input for turntable connection
• Designed and manufactured in Japan

Technical Specifications

• Manufacturer: Denon
• Model: AVC-X4800H
• Type: home theater AV amplifier
• Channel Configuration: 9.4
• Number of Power Amplifiers: 9
• Maximum Processing Channels: 11.4
• Power at 8 Ω: 125 W, 20 Hz - 20 kHz, 0.05%, 2 channels
• Power at 6 Ω: 165 W, 1 kHz, 0.7%, 2 channels
• Power at 6 Ω, 1 Channel: 200 W, 1 kHz, 1%
• Audio Formats: Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualization, Dolby Atmos Music, DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X, Auro-3D, IMAX Enhanced, 360 Reality Audio, MPEG-H
• Room Correction: Audyssey MultEQ XT32
• Additional Room Correction: Dirac Live upgrade capability
• Audio Processing: D.D.S.C. HD Digital 32-bit, AL32 Processing Multichannel, Pure Direct, Clock Jitter Reducer
• HDMI Inputs: 7
• HDMI Outputs: 3, including eARC
• HDMI Support: 8K/60 Hz, 4K/120 Hz, 8K pass-through, 8K upscaling, GUI overlay
• HDMI Features: HDMI 2.1, HDCP 2.3, ARC, eARC, Auto LipSync
• HDR Support: HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
• Gaming Features: ALLM, VRR, QFT
• 3D Signal Pass-Through: yes
• DSD over HDMI: yes

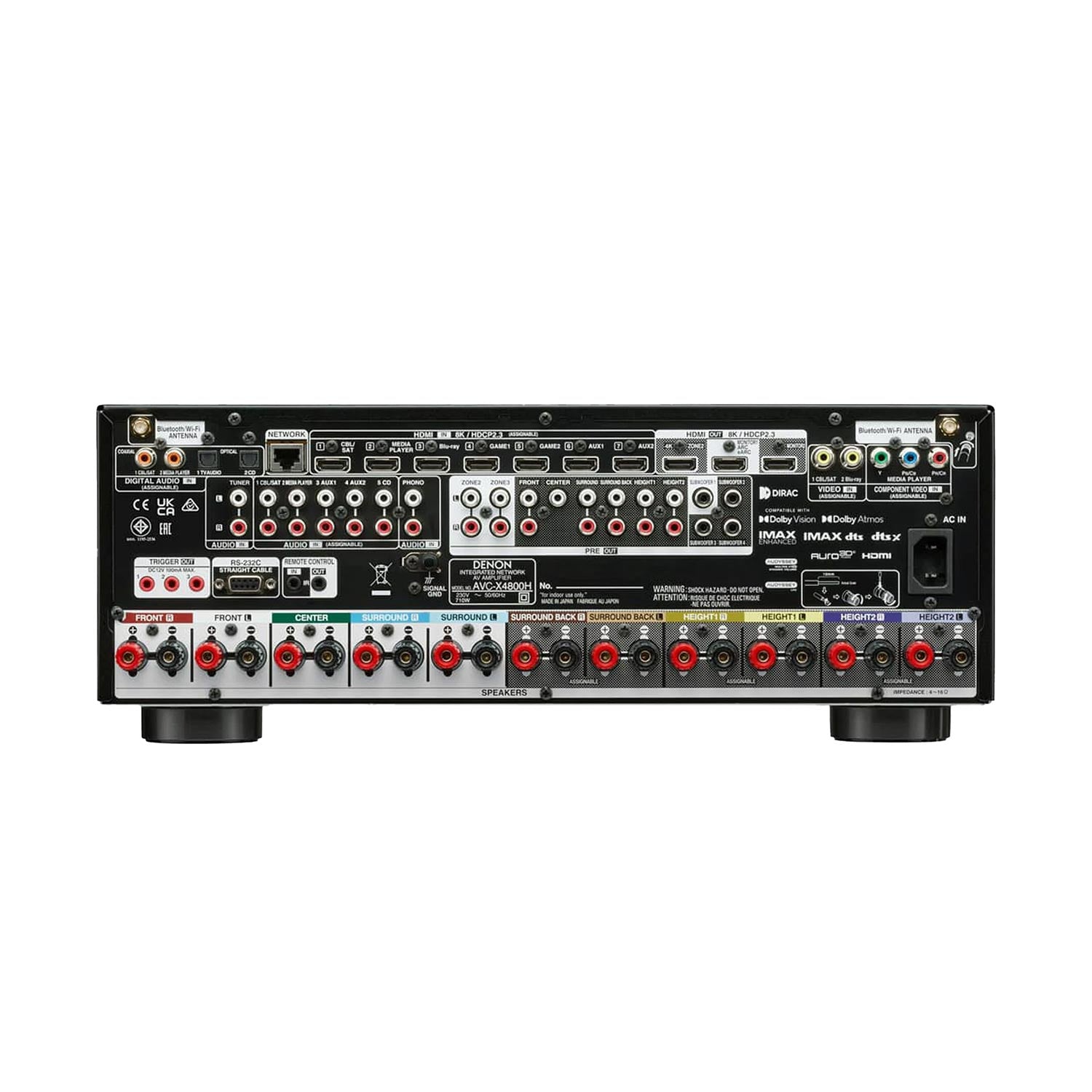

• Analog Inputs: 5
• Phono Input: MM
• Digital Optical Inputs: 2
• Digital Coaxial Inputs: 2
• Pre-Out Outputs: 11.4 channels
• Subwoofer Outputs: 4 independent
• Speaker Terminals: 11
• Speaker A/B: assignable
• Bi-Amp Mode: assignable
• Multi-Room Zones: 3
• Zone 2 HDMI Output: yes
• Control: IP Control, RS232 Control, Web Control, App Control
• DC Trigger Outputs: 3
• HDMI Diagnostics: yes
• Network Features: HEOS, Media Server, Denon AVR Remote, Ethernet, Wi-Fi, Bluetooth
• Voice Control Compatibility: Alexa, Google Voice Assistant, Apple HomePod / Siri
• Streaming Features: AirPlay 2, Spotify Connect, TuneIn, Roon Tested
• Supported Compressed Formats: MP3, WMA, AAC
• Supported Lossless Formats: FLAC, ALAC, WAV
• High-Resolution Audio Support: FLAC HD, WAV, ALAC up to 192 kHz / 24-bit
• DSD Playback: 2.8 MHz / 5.6 MHz
• Front Display: 2-line FLD
• Control App: Denon AVR Remote
• Remote Control: RC-1252
• Front USB Input: yes
• Metal Front Panel: yes
• ECO Mode: yes
• Auto Power Off: yes
• Sleep Timer: yes
• Power Consumption: 710 W
• Power Consumption without Sound: 65 W in ECO mode / 110 W without ECO mode
• Standby Power Consumption: 0.1 W
• CEC Standby Power Consumption: 0.5 W
• Network Standby Power Consumption: less than 2.0 W
• Dimensions without Antennas: 434 x 389 x 167 mm
• Dimensions with Vertical Antennas: 434 x 389 x 236 mm
• Weight: 13.4 kg
• Weight with Packaging: 16.0 kg
• Color: black

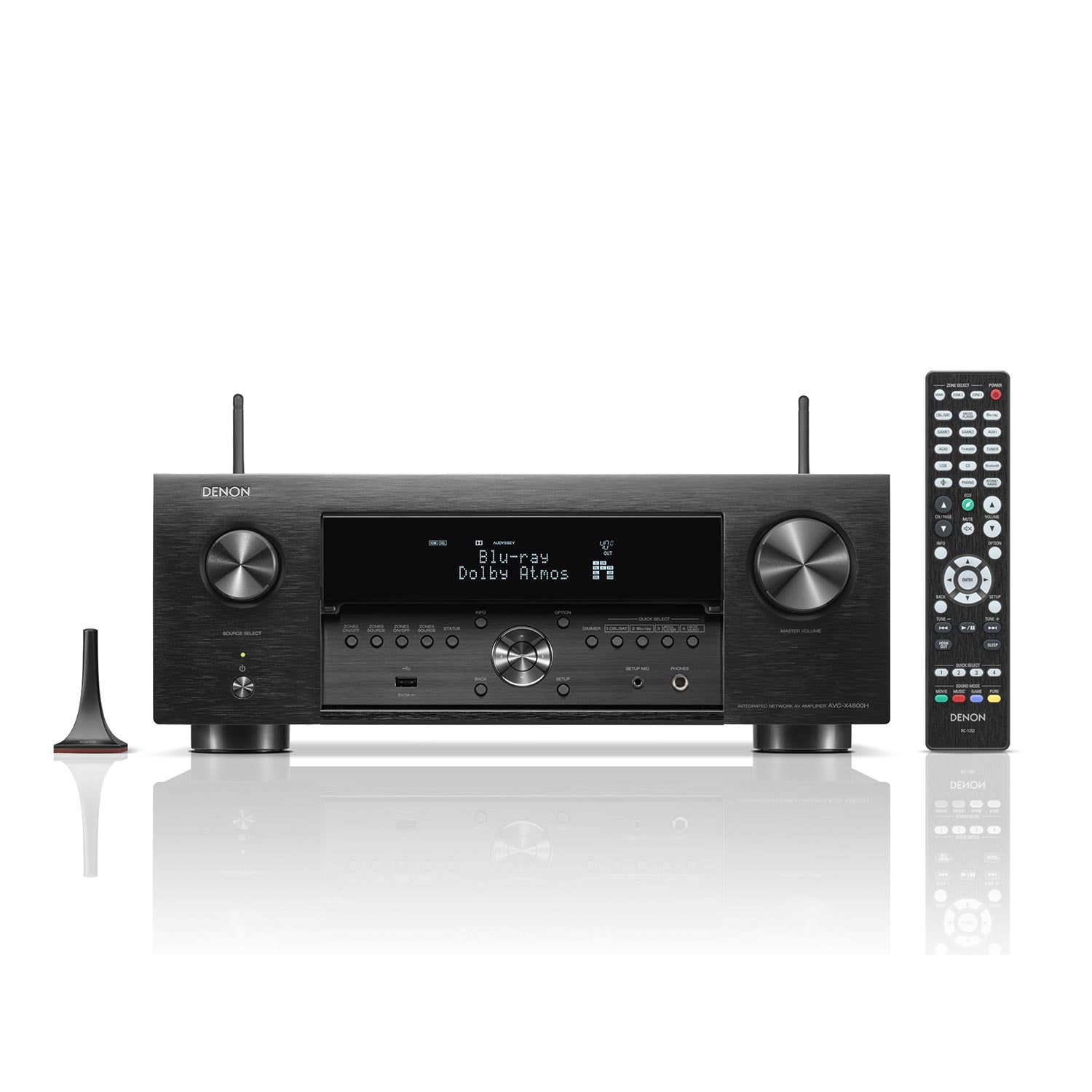

What’s Included

• Denon AVC-X4800H 9.4 Channel 8K Home Theater AV Amplifier
• RC-1252 remote control
• Audyssey calibration microphone

Who Is It For?

Denon AVC-X4800H is intended for larger home theater systems that require 9 channels of amplification, advanced immersive audio processing, multiple HDMI sources, 8K / 4K120 video support, multiple subwoofer outputs and room acoustic correction. It is suitable for users planning a Dolby Atmos, DTS:X, Auro-3D or IMAX Enhanced system with the option to expand channel count later using an external power amplifier.
