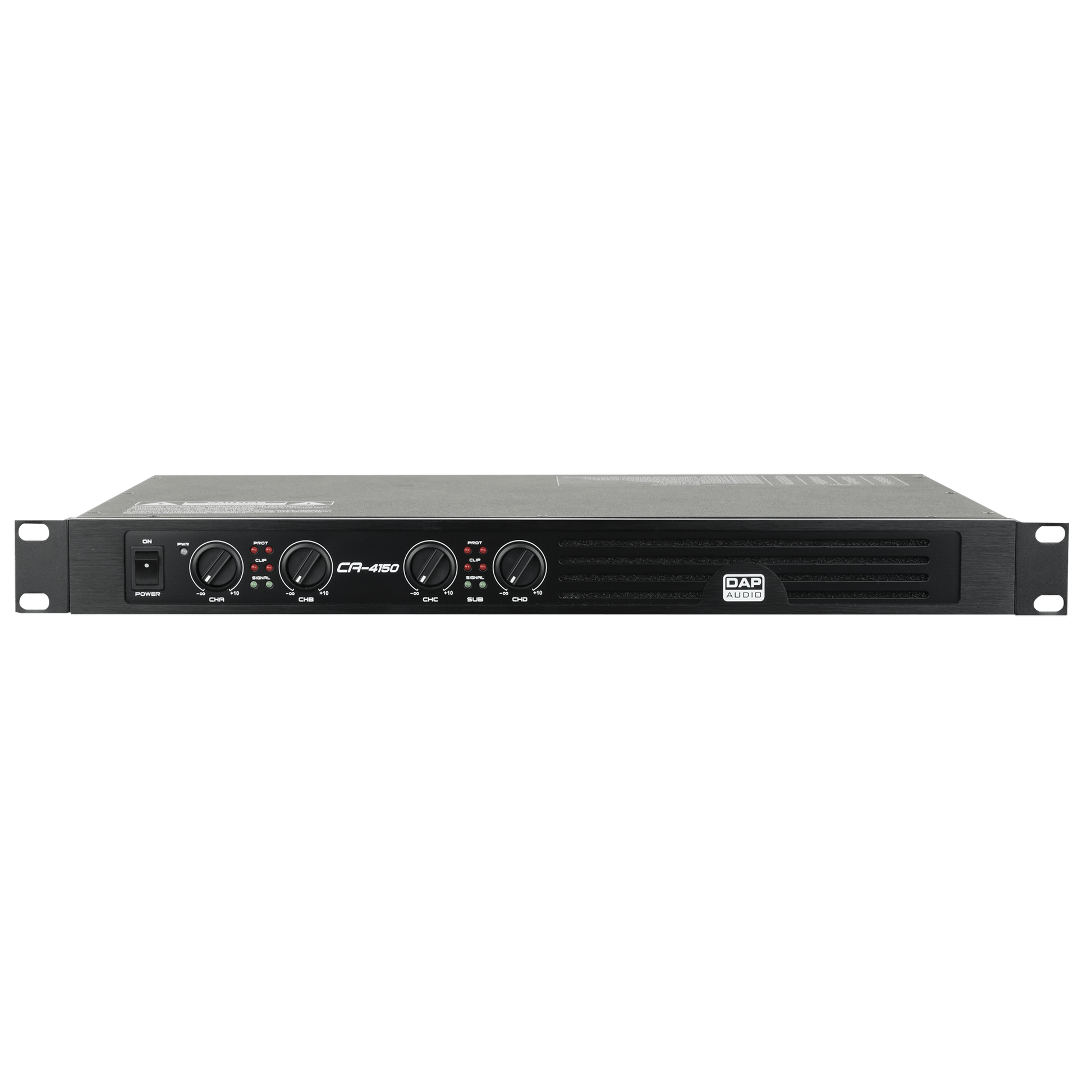

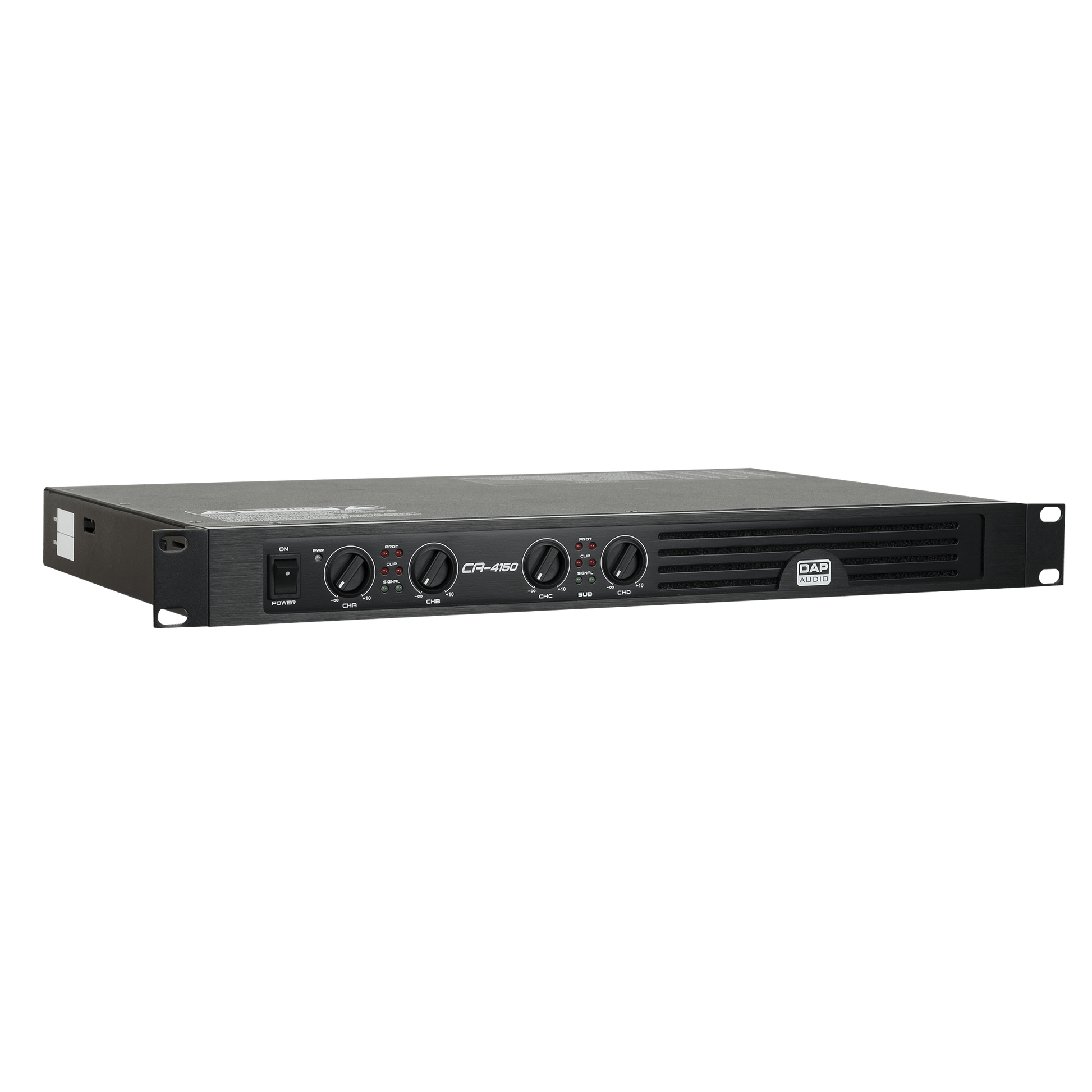

DAP CA-4150 Amplifier

DAP CA-4150 4-channel digital amplifier

The DAP CA-4150 is an ultra-compact and efficient 1U high 4-channel digital amplifier, delivering 150 W of power to each channel at a 4-ohm load. This device utilizes advanced Class D technology, which boasts high efficiency and minimal heat dissipation, making it ideal for fixed installations and mobile sound solutions where space is limited. This amplifier powers sound systems, ensuring stability, clear sound, and reliable overload protection.

Key features

• Class D technology: ensures high power with low weight and minimal energy consumption.
• 4 independent channels: provides flexibility for controlling multiple sound zones or complex speaker configurations with a single device.
• Compact 1U design: allows efficient use of space in equipment racks without occupying much room.

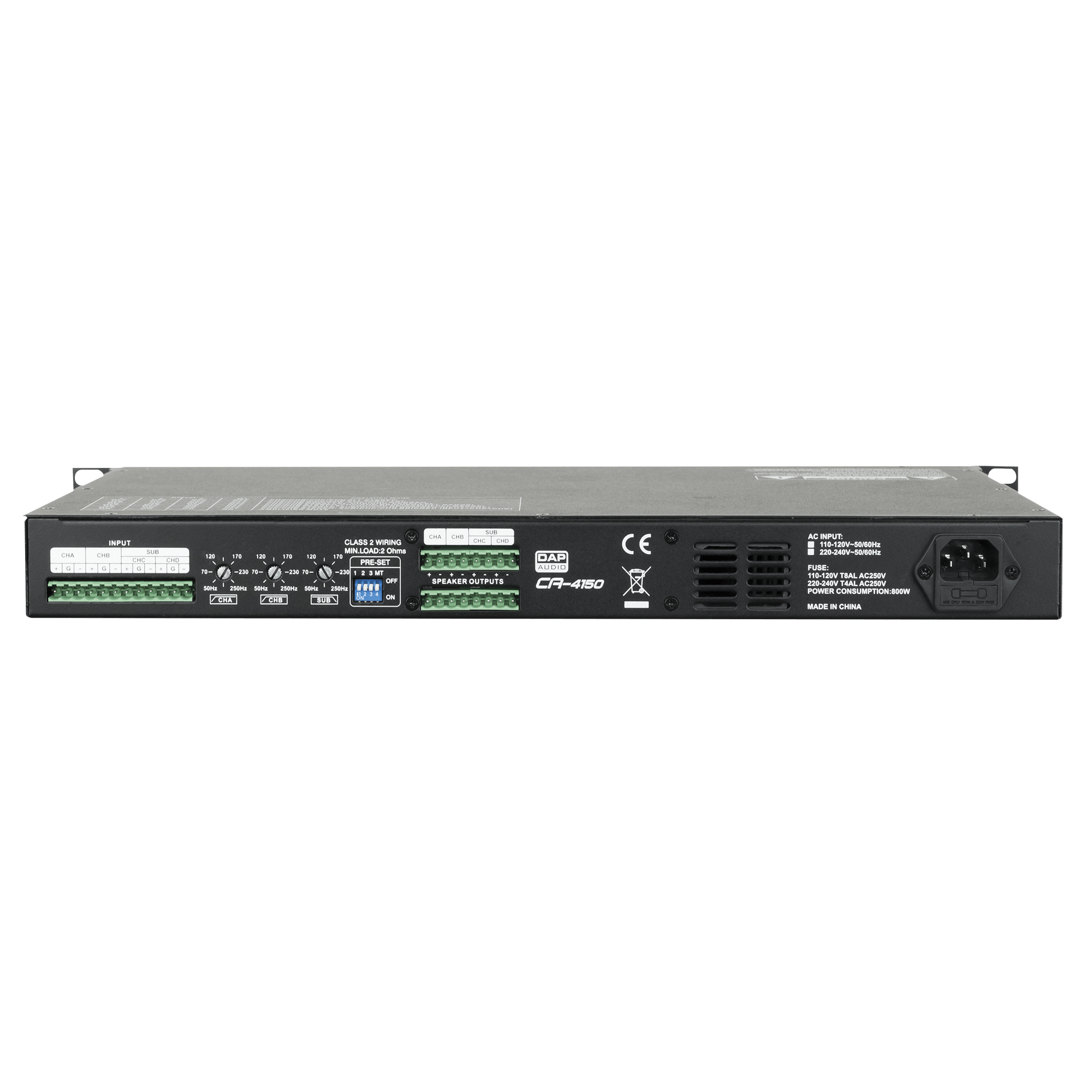

• Flexible connectivity: features standard XLR and convenient Euroblock inputs, as well as terminal outputs.
• Integrated protections: soft start, short-circuit protection, DC protection, overheating protection, and a built-in Clip limiter for safe operation.

Technical specifications

• Manufacturer: DAP
• Model: CA-4150
• Product code: D4512
• Output power (4 Ohm): 4 x 150 W RMS
• Output power (8 Ohm): 4 x 80 W RMS
• Output power (Bridge mode, 8 Ohm): 2 x 300 W RMS
• Amplifier class: Class D
• Frequency response: 20 Hz : 20 kHz
• Signal-to-noise ratio (S/N Ratio): > 95 dB
• Distortion (THD): < 0.1 %
• Input connectors: 4 x 3-pin XLR, 4 x Terminal (Euroblock)
• Output connectors: 4 x Terminal
• Power supply: SMPS (Switched-mode power supply)
• Dimensions: 483 x 285 x 44 mm (19", 1U)
• Weight: 4.2 kg

Package contents

• 1 x DAP CA-4150 amplifier
• 1 x Power cable
• 1 x Euroblock connector set
• 1 x User manual

Intended for:

• Restaurants, bars, and cafes: for managing multi-zone background music systems with one compact station.
• Conference and training rooms: for reliable and practically inaudible sound amplification in professional installations.
• Gyms and recreation areas: where stable operation and high efficiency are required.
• Offices and shopping centers: as a key element for public address and background music systems.
