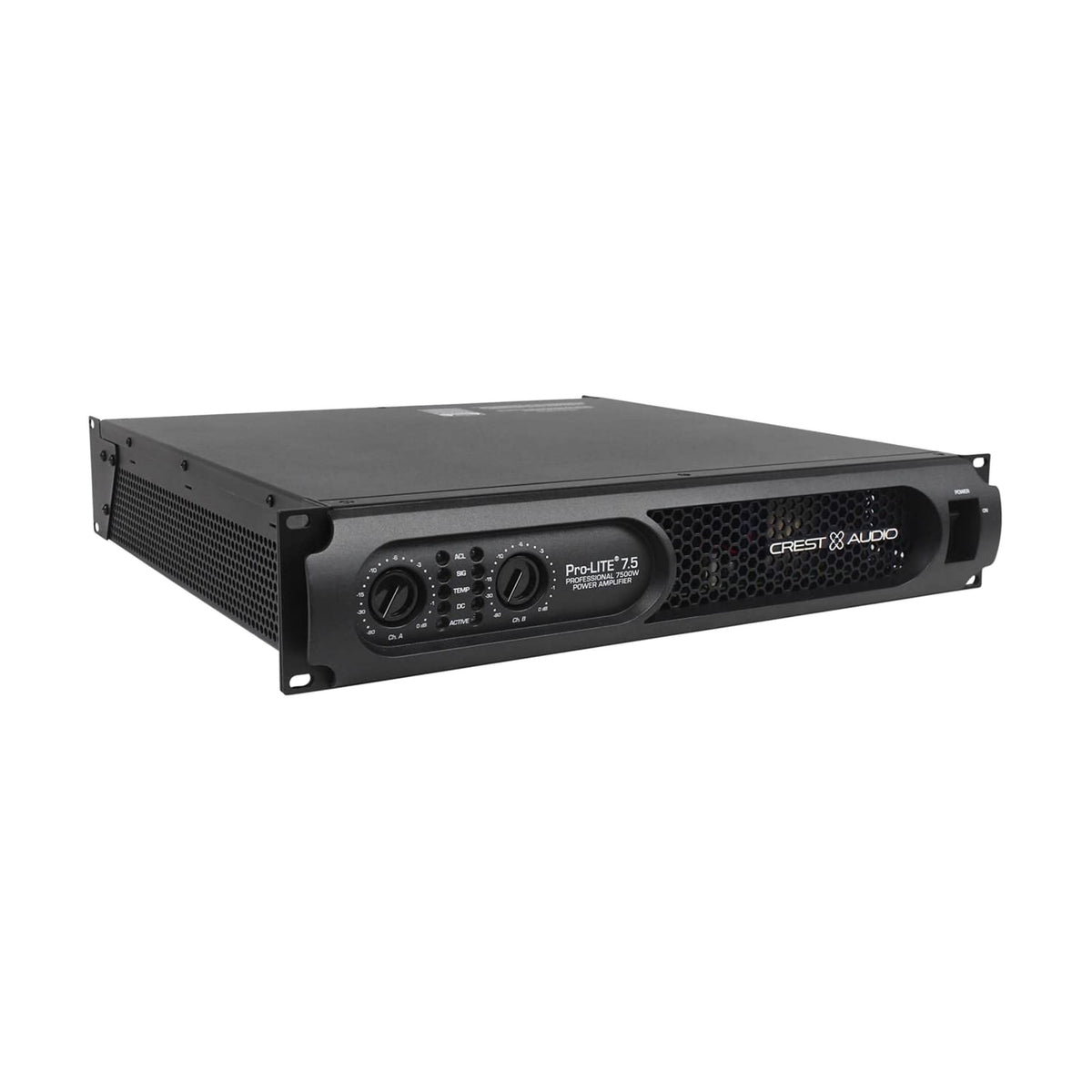

Crest Audio Pro-LITE 7.5 Power Amplifier

Crest Audio Pro-LITE 7.5 Power Amplifier

The Crest Audio Pro-LITE 7.5 is a two-channel Class D power amplifier.

A switch-mode supply keeps the amplifier’s weight low. It provides amplification for passive PA speakers and subwoofers in sound reinforcement systems.

Each channel offers full-range, high-pass or subwoofer operation with a 100 Hz crossover. This allows separate channels to feed subwoofers and mid/high loudspeakers.

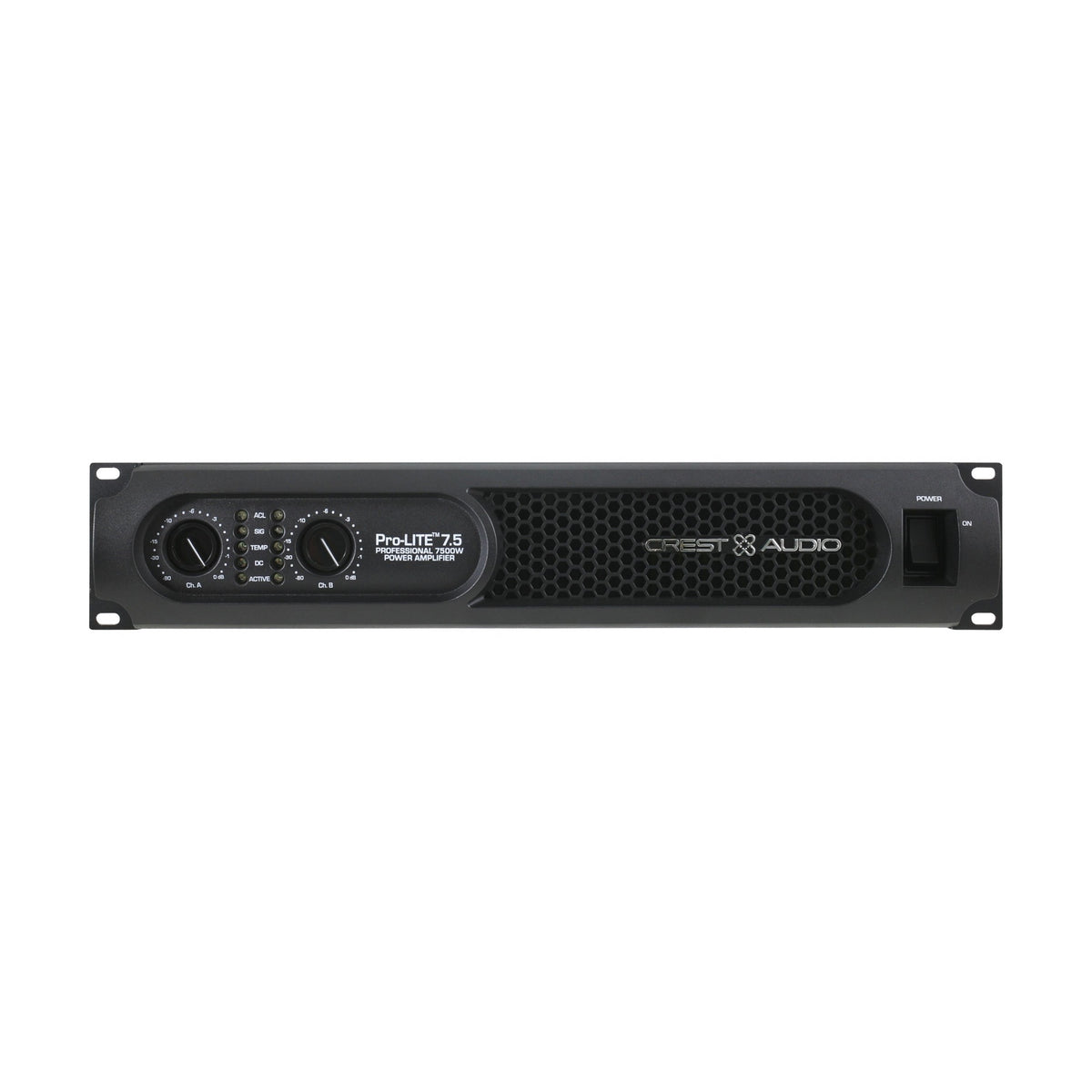

Front-panel attenuators set input levels. Five LEDs per channel report active status, signal, ACL limiting, temperature and DC protection.

Main Features

• Automatic Clip Limiting reduces severe clipping as the amplifier reaches its output limit.
• Balanced XLR/TRS inputs connect to mixers and loudspeaker processors.
• Locking speaker outputs help prevent accidental cable disconnection.
• Independent channel filters support separate frequency bands within a system.
• Protection covers temperature, DC, incorrect loads and under/overvoltage conditions.
• Variable-speed fans adjust cooling to operating temperature.
• Separate attenuators make it possible to set independent loudspeaker levels.
• Thru outputs pass input signals on to another amplifier.

Technical Specifications

• Channels: 2
• Amplifier Class: D; switch-mode power supply
• Power, 2 Ω: 3790 W per channel
• Power, 4 Ω: 2450 W per channel
• Power, 8 Ω: 1425 W per channel
• Power Test Conditions: 1 kHz, 1% THD, both channels driven
• Power at 0.15% THD: 2030 W / 4 Ω; 1200 W / 8 Ω per channel, 1 kHz
• 20 ms Burst Power: 4800 / 2810 / 1550 W per channel at 2 / 4 / 8 Ω
• Minimum Load Impedance: 2 Ω per channel
• Frequency Response: 20–25000 Hz (+0 / -3 dB)
• Input Sensitivity: 2.25 V / 4 Ω; 2.2 V / 2 Ω (±3%, 1 kHz)
• Input Impedance: 20 kΩ balanced; 10 kΩ unbalanced
• Voltage Gain: 32 dB
• Maximum Voltage Swing: 124 V RMS
• Damping Factor: >200:1 (8 Ω, 20–1000 Hz)

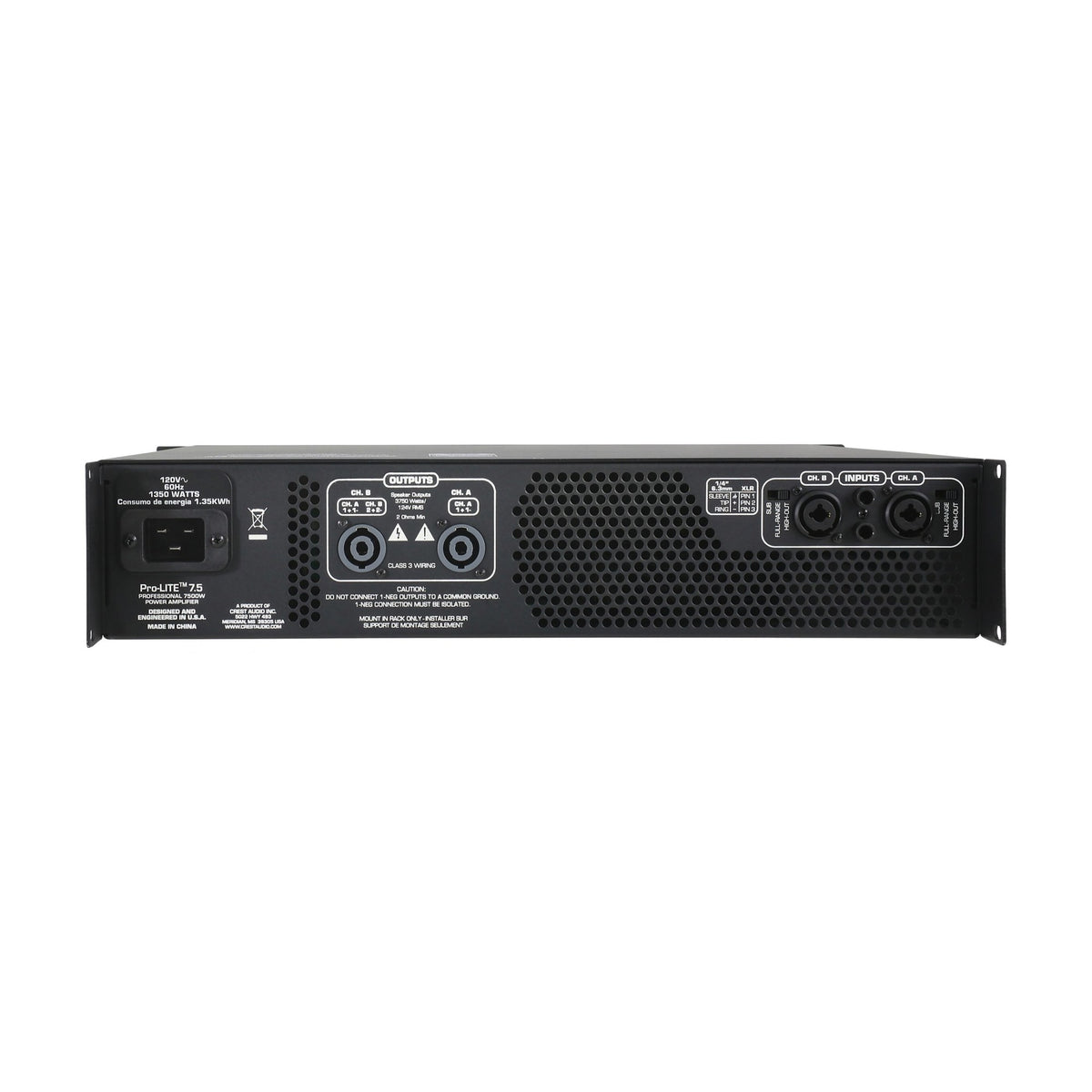

• Inputs: 2 × balanced XLR / 6.3 mm TRS
• Speaker Outputs: 2 × twist-lock connectors
• Signal Links: 2 × 6.3 mm Thru outputs
• Crossover Filters: 100 Hz, High Pass / Full Range / Subwoofer per channel
• Cooling: 3 temperature-controlled variable-speed fans
• Power Consumption, 1/8 Power: 1440 / 950 / 560 W at 2 / 4 / 8 Ω
• Idle Power Consumption: 120 W
• AC Power: 220–240 V, 50 Hz or 120 V, 60 Hz version; IEC
• Dimensions (H × W × D): 89 × 483 × 447 mm
• Net Weight: 6.61 kg excluding mains cord

At 2 Ω, steady-state sine-wave output is time-limited by the circuit breaker. AC voltage depends on the regional version. Bridge operation is not supported.

What’s Included

• Crest Audio Pro-LITE 7.5 power amplifier, 1 unit
• Region-appropriate mains power cord

Who Is It For

For passive loudspeaker systems where amplifier weight matters. This is the non-DSP version; connected loudspeakers must stay within the stated total load limits.
