Crest Audio Pro-LITE 3.0 Power Amplifier
The Crest Audio Pro-LITE 3.0 is a two-channel Class D power amplifier.
A switch-mode supply keeps the amplifier’s weight low. It provides amplification for passive PA speakers and subwoofers in sound reinforcement systems.
Each channel offers full-range, high-pass or subwoofer operation with a 100 Hz crossover. This allows separate channels to feed subwoofers and mid/high loudspeakers.

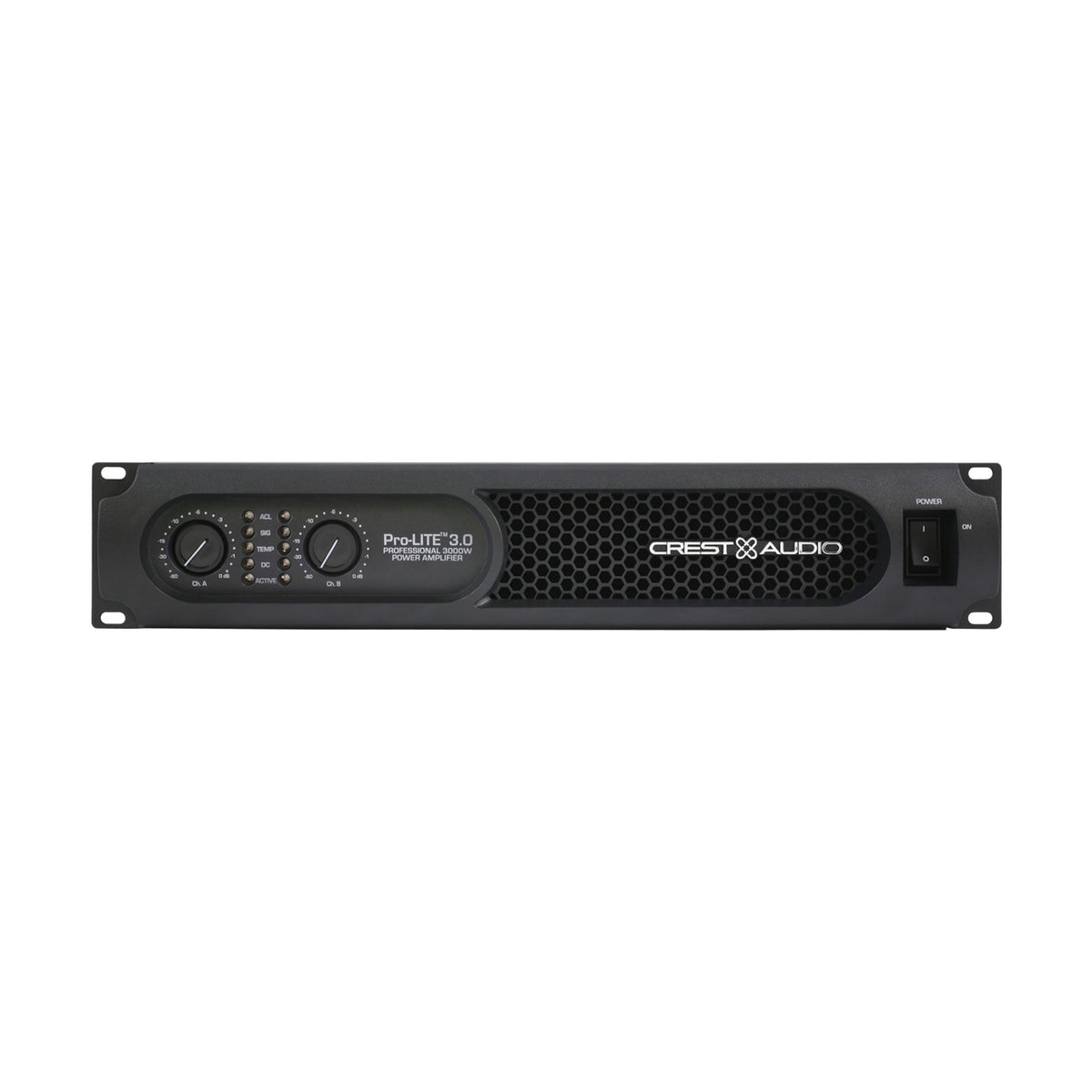

Front-panel attenuators set input levels. Five LEDs per channel report active status, signal, ACL limiting, temperature and DC protection.
Main Features
- Automatic Clip Limiting reduces severe clipping as the amplifier reaches its output limit.
- Balanced XLR/TRS inputs connect to mixers and loudspeaker processors.
- Locking speaker outputs help prevent accidental cable disconnection.
- Independent channel filters support separate frequency bands within a system.
- Protection covers temperature, DC, incorrect loads and under/overvoltage conditions.
- A variable-speed fan adjusts cooling to operating temperature.
- Separate attenuators make it possible to set independent loudspeaker levels.
- Bridge and parallel-input modes offer additional system configurations.
Technical Specifications
- Channels: 2
- Amplifier Class: D; switch-mode power supply
- Power, 2 Ω: 1500 W per channel
- Power, 4 Ω: 900 W per channel
- Power, 8 Ω: 500 W per channel
- Power Test Conditions: 1 kHz, 1% THD, both channels driven
- Power at 0.15% THD: 830 W / 4 Ω; 450 W / 8 Ω per channel, 1 kHz
- 20 ms Burst Power: 1820 / 1000 / 540 W per channel at 2 / 4 / 8 Ω
- Bridge Power: 3000 W / 4 Ω (1% THD); 1550 W / 8 Ω (0.15% THD), 1 kHz
- Minimum Load Impedance: 2 Ω per channel; 4 Ω bridged
- Frequency Response: 20–28000 Hz (+0 / -3 dB, 1 W)
- Input Sensitivity: 0.74 V / 4 Ω; 0.71 V / 2 Ω (±3%, 1 kHz)
- Input Impedance: 15 kΩ balanced; 7.5 kΩ unbalanced
- Voltage Gain: 37 dB
- Maximum Voltage Swing: 71 V RMS
- Damping Factor: >255:1 (8 Ω, 20–1000 Hz)

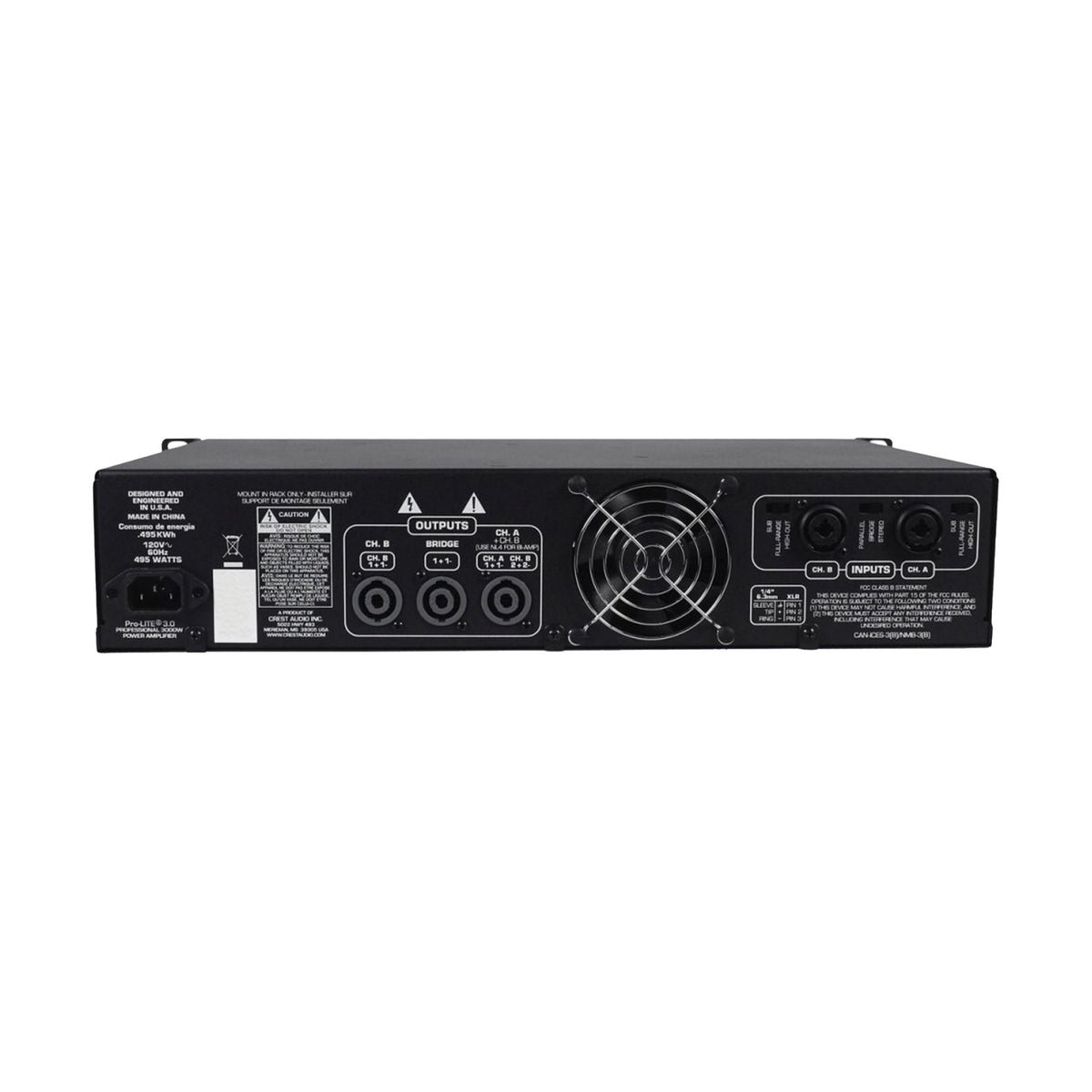

- Inputs: 2 × balanced XLR / 6.3 mm TRS
- Speaker Outputs: 3 × 4-pin twist-lock connectors
- Crossover Filters: 100 Hz, High Pass / Full Range / Subwoofer per channel
- Cooling: 1 temperature-controlled variable-speed fan
- Power Consumption, 1/8 Power: 540 / 320 / 190 W at 2 / 4 / 8 Ω
- Idle Power Consumption: 60 W
- AC Power: 220–240 V, 50 Hz or 120 V, 60 Hz version; IEC
- Dimensions (H × W × D): 89 × 483 × 282 mm
- Net Weight: 5.54 kg excluding mains cord
At 2 Ω, steady-state sine-wave output is time-limited by the circuit breaker. AC voltage depends on the regional version. Bridge operation is supported.
What’s Included
- Crest Audio Pro-LITE 3.0 power amplifier, 1 unit
- Region-appropriate mains power cord
Who Is It For
For passive loudspeaker systems where amplifier weight matters. This is the non-DSP version; connected loudspeakers must stay within the stated total load limits.
