Crest Audio CPX 2 Power Amplifier

Crest Audio CPX 2 Power Amplifier

The Crest Audio CPX 2 is a two-channel power amplifier.

Designed for passive loudspeakers, it supports mobile PA rigs and fixed installations. Separate stereo channels can be combined in bridged mono when a single higher-power output is required.

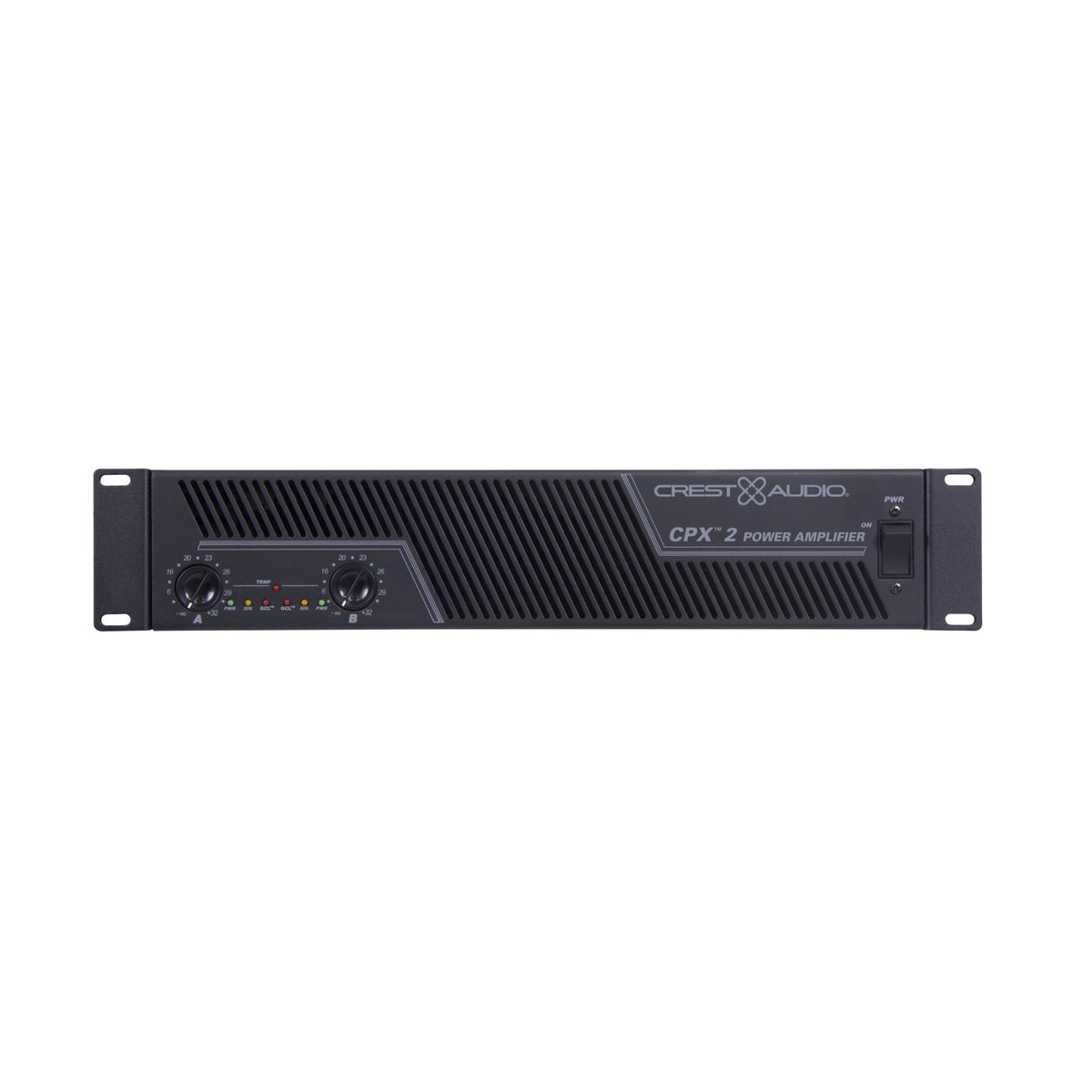

Gain Comparator Limiting reduces gain as clipping approaches. A rear switch enables or defeats GCL, while front LEDs show signal, limiting, thermal protection and power status.

Each channel has a switchable 150 Hz crossover and 40 Hz low-cut filter. Line-level outputs support additional amplification and separate frequency bands.

Main Features

• Stereo and bridged mono operation adapt the amplifier to two-channel or single-load systems.
• Balanced XLR/TRS inputs accept line-level mixer signals.
• Twist-lock speaker connectors secure output cables.
• Independent front attenuators set the level of each channel.
• GCL limiting helps prevent severe clipping at high signal levels.
• Short-circuit, thermal and DC protection safeguard the amplifier and its load.
• Turn-on and turn-off muting reduce switching transients.
• Temperature-controlled cooling responds to the amplifier’s thermal load.

Technical Specifications

• Channels: 2
• Amplifier Class: AB
• Power, 2 Ω: 450 W per channel
• Power, 4 Ω: 690 W per channel
• Power, 8 Ω: 430 W per channel
• Bridge Power: 1380 W / 8 Ω; 900 W / 4 Ω
• Power Test Conditions: 1 kHz, 1% THD, repetitive 20 ms bursts
• Minimum Load Impedance: 2 Ω per channel; 4 Ω bridged
• Frequency Response: 12–35000 Hz (+0 / -2 dB, 1 W)
• Input Sensitivity: 1.17 V RMS (rated power, 4 Ω)
• Input Impedance: 10 kΩ, balanced
• Voltage Gain: 32 dB (×40)
• Signal-to-Noise Ratio: >88 dB (A-weighted, rated power, 8 Ω)
• Damping Factor: >250:1 (8 Ω, 20–2000 Hz)
• Maximum Channel Voltage: 60 V RMS
• Inputs: 2 × XLR / 6.3 mm TRS; barrier strip
• Signal Outputs: 2 × 6.3 mm High Out; 2 × 6.3 mm Low Out / Thru

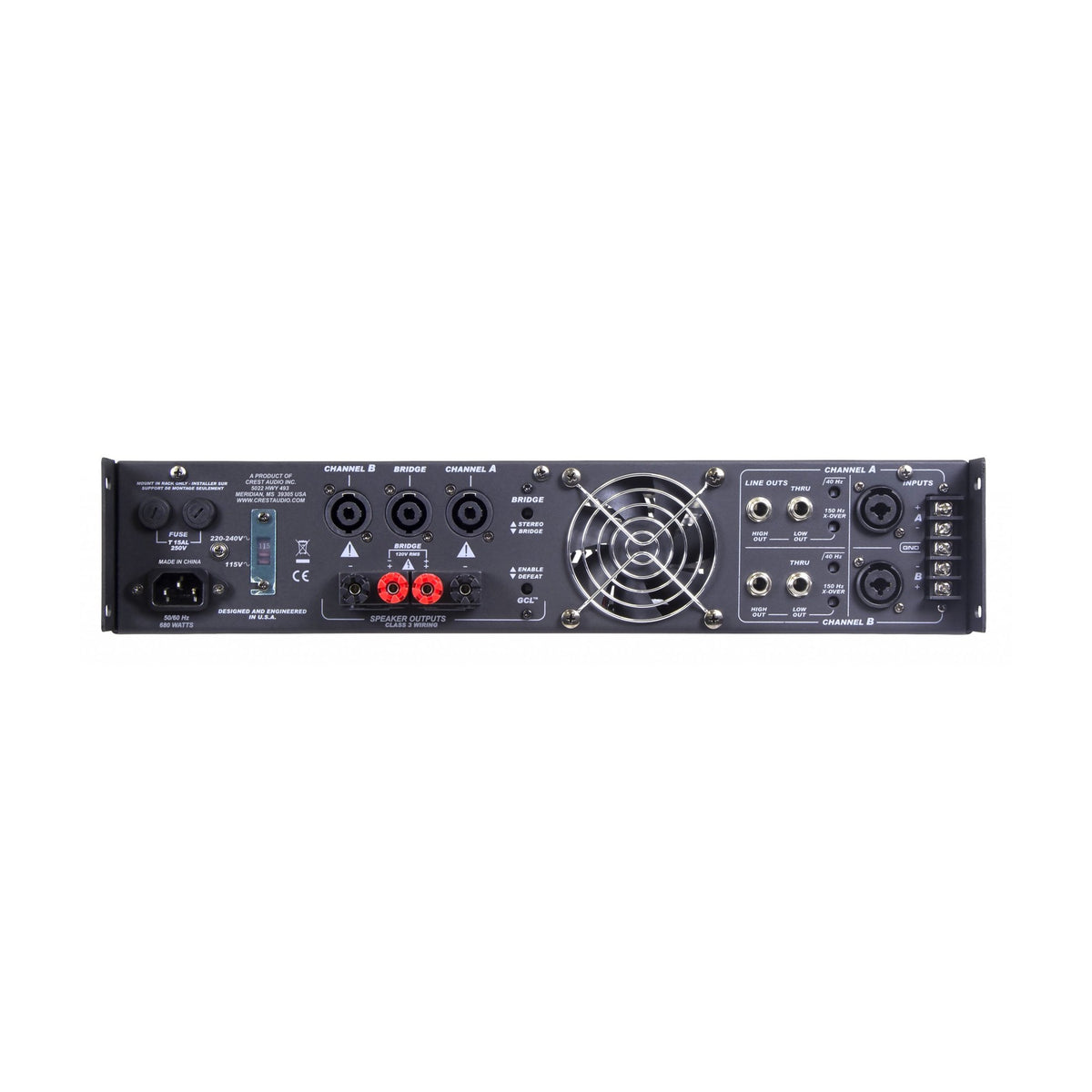

• Speaker Outputs: 3 × 4-pin twist-lock connectors and binding posts
• Crossover: 150 Hz, 24 dB/oct., Linkwitz-Riley
• Low-Cut Filter: 40 Hz, 12 dB/oct.
• Operating Modes: stereo, bridged mono
• Cooling: 1 temperature-controlled fan
• AC Power: selectable 115 V or 220–240 V, 50/60 Hz; IEC
• Dimensions (H × W × D): 89 × 483 × 380 mm
• Net Weight: 20.5 kg

What’s Included

• Crest Audio CPX 2 power amplifier, 1 unit
• Region-appropriate mains power cord

Who Is It For

For passive PA loudspeakers and subwoofers in live sound or installed systems. Match total loudspeaker impedance to the selected operating mode; the listed power figures use the manufacturer’s burst measurement conditions.
