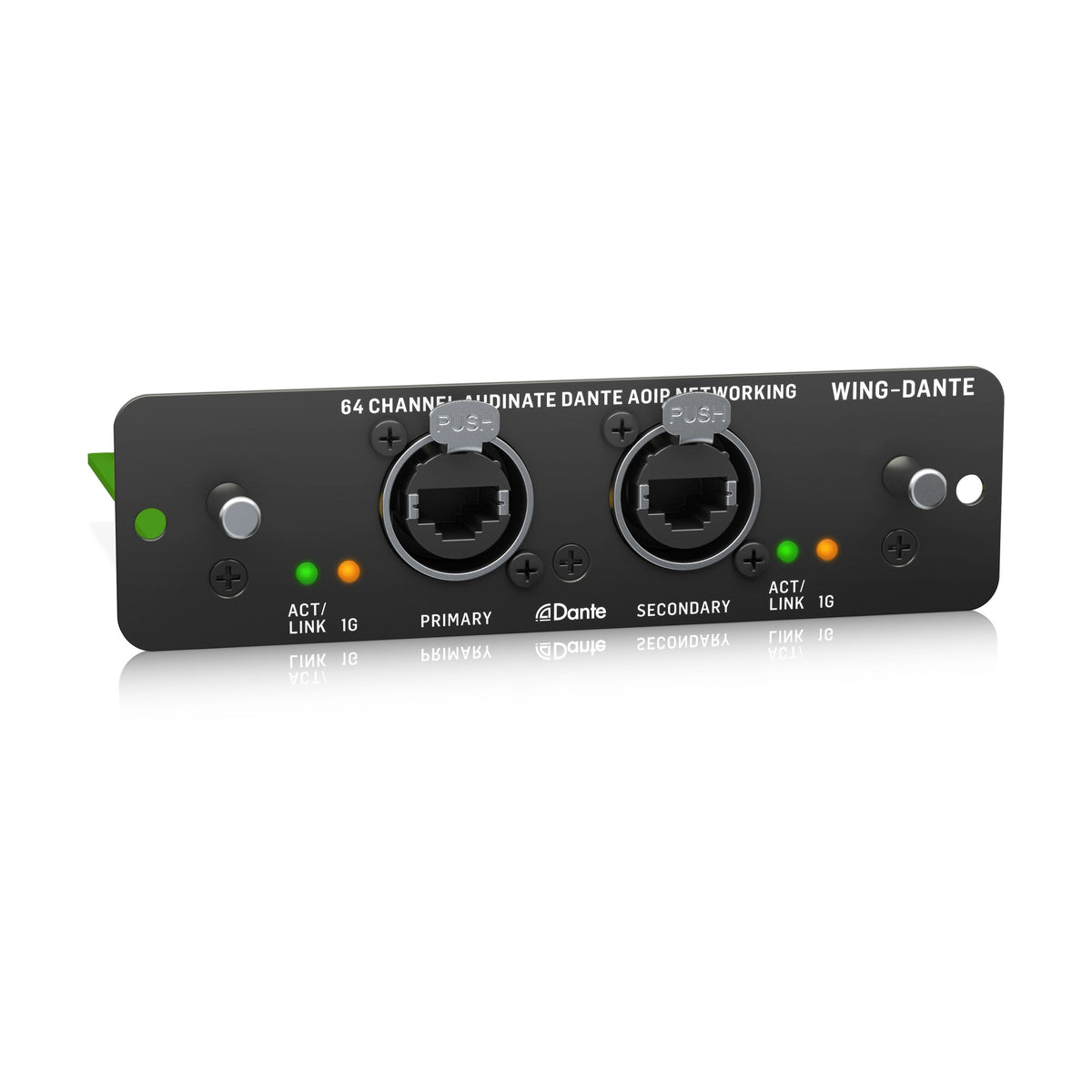

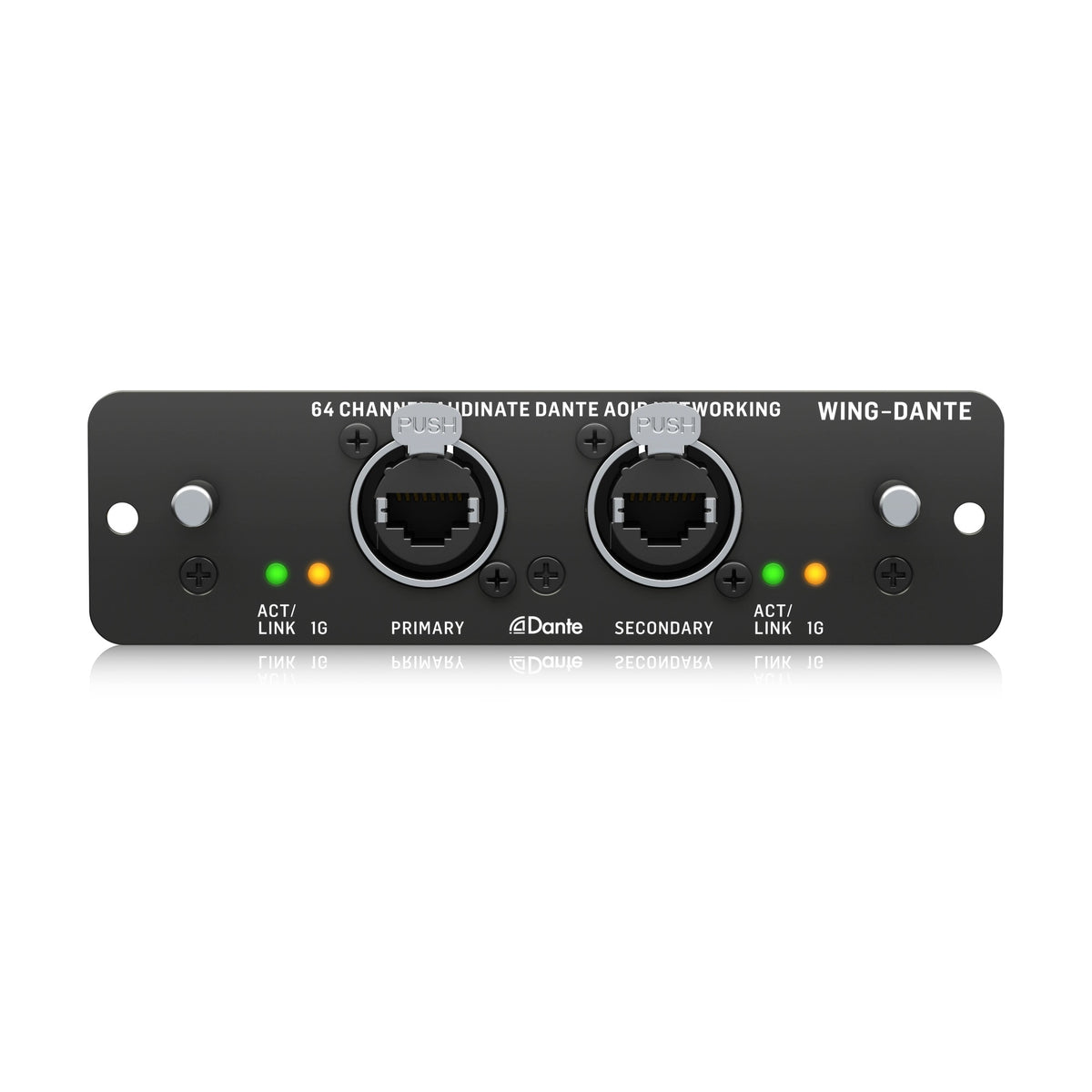

Behringer WING-DANTE Network Card

Behringer WING-DANTE Network Card

The card carries up to 64 audio channels in each direction over Dante at a 48 kHz sample rate.

WING-DANTE fits the WING series external expansion slot in place of the WING-LIVE card, connecting the console to Dante / AES67 audio networks over standard Ethernet infrastructure.

Two network ports provide primary and secondary connections. Redundant operation creates a second network path, and Dante Controller manages audio routing and network configuration.

For computer recording, Dante Virtual Soundcard is available separately. This software is not included; replacing WING-LIVE removes its SD-card recording functionality from that slot.

Main Features

• 64 × 64-channel operation sends and receives multitrack audio through one network system.
• Dante and AES67 support connects compatible network-audio equipment.
• Primary and Secondary ports support single-link or redundant networking.
• 24-bit transmission with sample-accurate synchronization preserves digital audio integrity.
• 100 Mbit/s or 1 Gbit/s Ethernet infrastructure integrates the console into an existing audio network.

Technical Specifications

• Channels: up to 64 input and 64 output
• Audio Format: 48 kHz, 24-bit
• Protocols: Audinate Dante, AES67
• Connectors: 2 RJ45, compatible with Neutrik etherCON
• Network: 100 Mbit/s or 1 Gbit/s, DSCP QoS
• Compatibility: WING series external expansion slot; WING firmware 1.08 or later
• Software: Dante Controller; Dante Virtual Soundcard sold separately
• Power: supplied by the compatible console through the expansion slot

What’s Included

• 1 × Behringer WING-DANTE Network Card
• Mounting screws

Who Is It For

For WING users connecting to Dante stage boxes, other consoles or computer recording systems. Account for the external slot being occupied in place of the WING-LIVE card.
