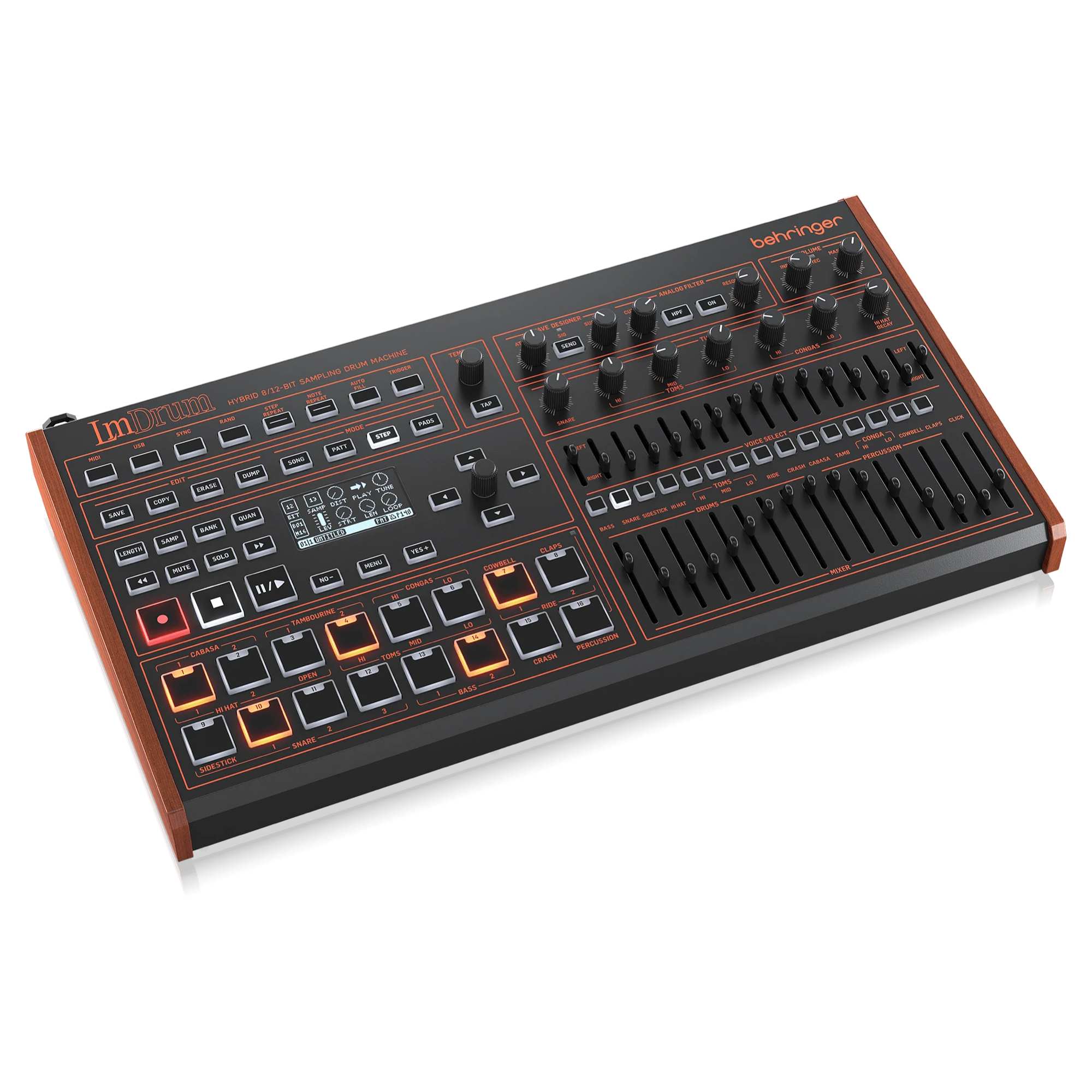

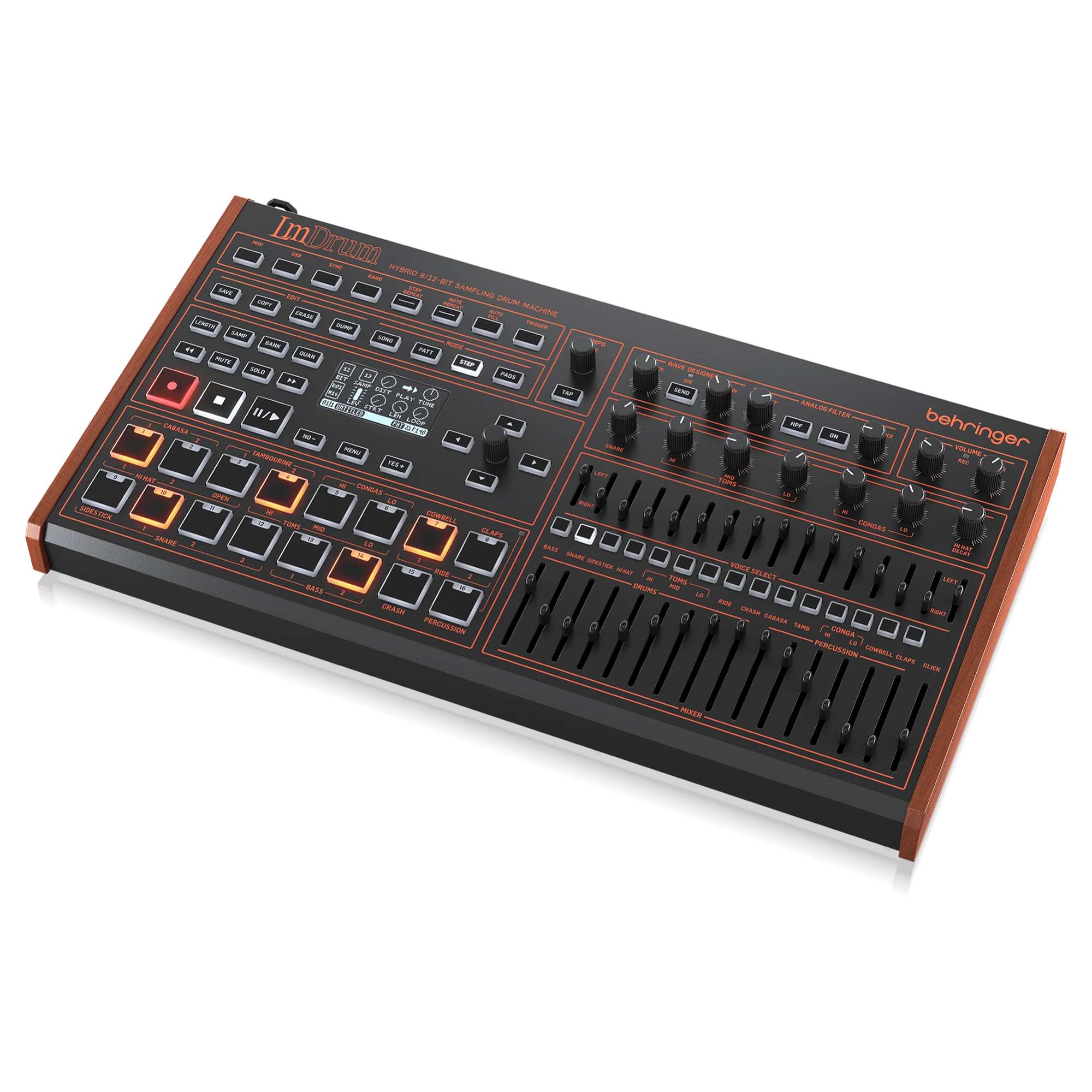

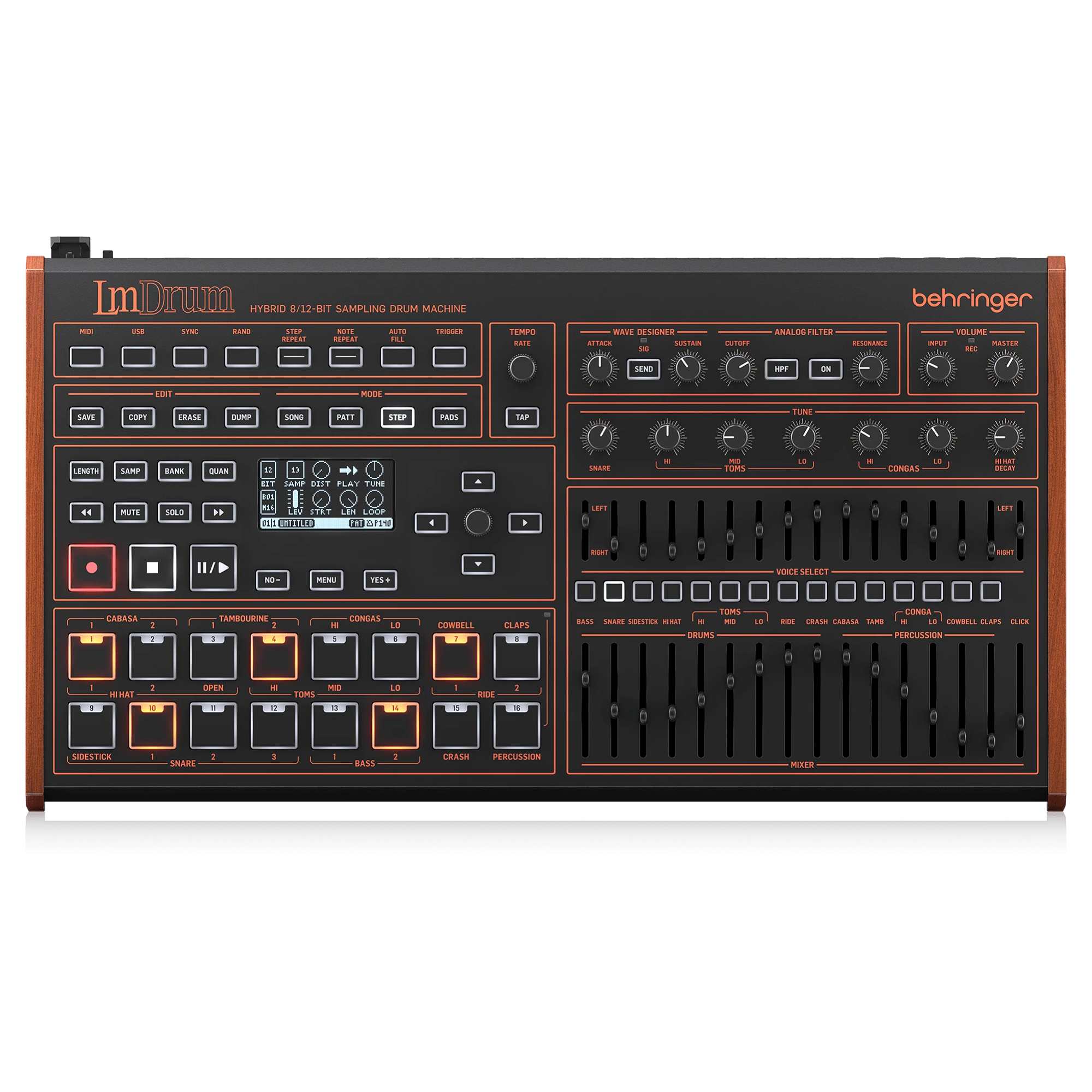

Behringer LM DRUM Hybrid Sampling Drum Machine

Behringer LM DRUM Hybrid Sampling Drum Machine

Behringer LM DRUM is a hybrid sampling drum machine designed for rhythm programming, recording custom samples, studio music production and live performance.

LM DRUM features 109 built-in drum sounds and an 8/12-bit sampling engine that recreates the distinctive character of 1980s digital drum machines. Users can also record their own samples through the line input or load WAV files using the SynthTribe application.

The digital sound engine is combined with analog circuitry featuring a 3320 VCF and 2164 VCA. The integrated effects bus includes a Wave Designer for shaping the attack and sustain portions of a sound, together with an analog filter that can operate in low-pass or high-pass mode. Each voice can be assigned to the effects bus independently.

The 64-step sequencer supports polymetric sequencing, step repeat, note repeat, real-time programming, probability, swing, flam, randomization, track mute and track solo. Rhythms can be performed using 16 velocity-sensitive pads with aftertouch or triggered from an external MIDI controller or electronic drum kit.

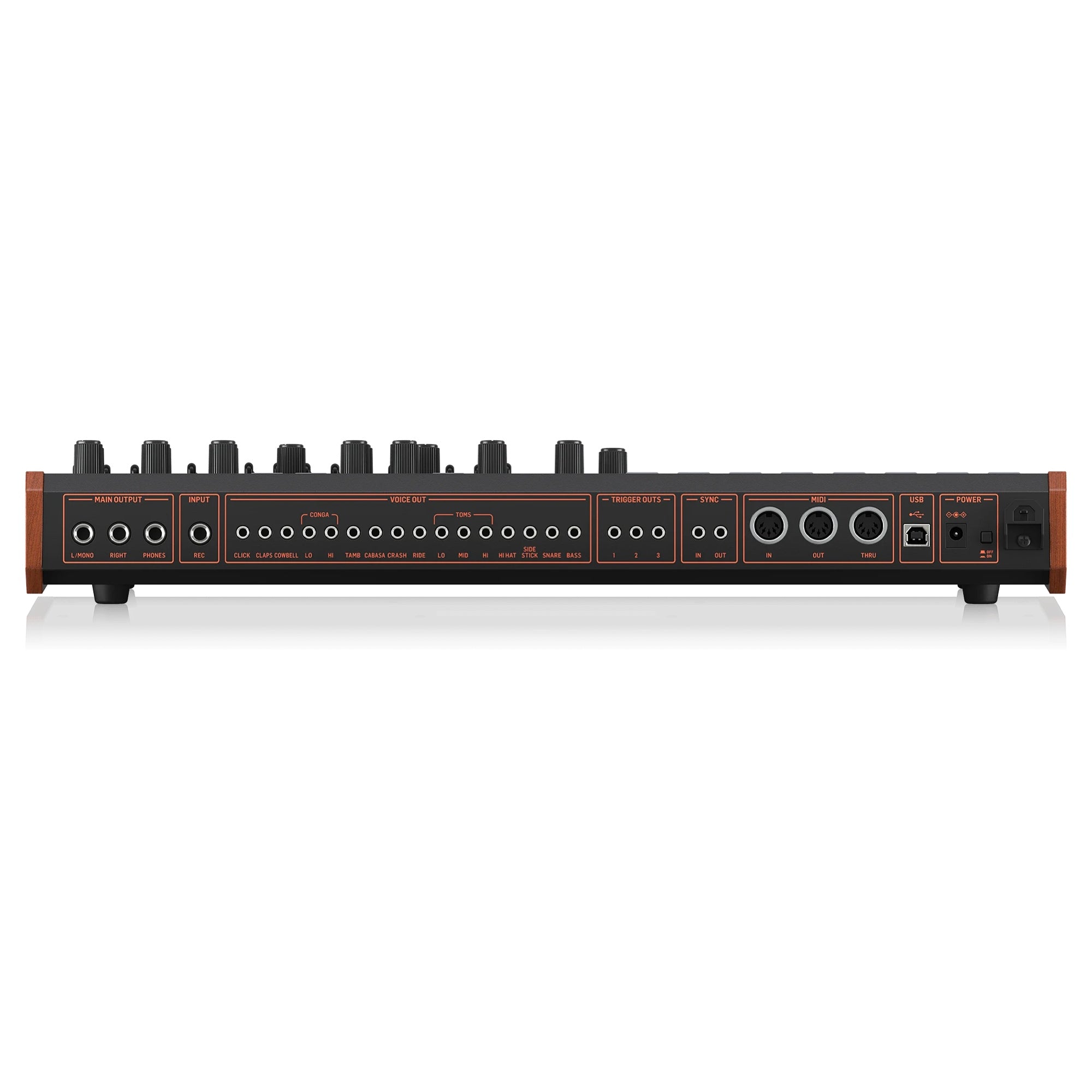

Sixteen individual analog voice outputs allow each drum sound to be recorded or processed separately with external equipment. LM DRUM also provides stereo main outputs, a headphone output, three assignable analog trigger outputs, sync connections, MIDI In, Out and Thru, and USB MIDI connectivity.

Main Features

• Hybrid drum machine combining an 8/12-bit sampling engine with analog sound-shaping circuitry
• 109 built-in drum sounds provide a broad selection of classic 1980s-style drum machine tones
• Line input enables custom samples to be recorded directly into the internal memory
• WAV files can be loaded and managed from a computer using the SynthTribe application
• 16-voice architecture supports detailed, multi-layered drum and percussion arrangements
• Independent level and pan controls for all 16 voices provide direct control over the main stereo mix
• Wave Designer enables attack and sustain shaping for each selected voice
• Dual-mode analog filter can operate as either a low-pass or high-pass filter
• 64-step sequencer supports polymeter, probability, swing, flam and randomization functions
• 16 velocity-sensitive pads with aftertouch support expressive real-time rhythm programming
• Internal memory stores up to 8 songs and 128 patterns, with setlist chaining for live performance
• 16 individual analog voice outputs simplify multitrack recording and external sound processing
• MIDI, USB MIDI and analog sync connections allow integration with computers, synthesizers and other electronic music equipment

Technical Specifications

• Product type: hybrid sampling drum machine
• Sound generation: 8/12-bit sampling engine with analog VCF and VCA circuitry
• Number of voices: 16
• Built-in sounds: 109
• Analog circuitry: 3320 VCF and 2164 VCA
• Filter: dual-mode analog low-pass or high-pass filter
• Filter controls: cutoff and resonance
• Sound-shaping section: Wave Designer with attack and sustain controls
• Sequencer: up to 64 steps
• Tempo range: 20–240 BPM
• Pattern memory: 128 patterns
• Song memory: 8 songs
• Pads: 16 velocity-sensitive pads with aftertouch
• User sample format: 12-bit, 24 kHz mono
• User sample memory: 14.17 MB, up to 310 seconds
• Sample import: WAV files up to 1 MB via the SynthTribe application
• Recording input: 1 x 6.35 mm TS, unbalanced, optimized for line-level signals
• Main outputs: 2 x 6.35 mm TS, unbalanced
• Headphone output: 1 x 6.35 mm TRS, stereo
• Individual voice outputs: 16 x 3.5 mm TS
• Analog trigger outputs: 3 x 3.5 mm TS, +5 V, assignable
• Sync input: 1 x 3.5 mm TS
• Sync output: 1 x 3.5 mm TS
• MIDI connections: MIDI In, MIDI Out and MIDI Thru, 5-pin DIN
• USB connection: USB 2.0 Type-B, class-compliant USB MIDI
• Power requirements: 12 V DC, 2000 mA
• Operating temperature range: 5–45 °C
• Dimensions: 479 x 264 x 73 mm (W x D x H)
• Weight: 3.12 kg

What’s Included

• External 12 V DC, 2000 mA power supply

Who Is It For

Behringer LM DRUM is designed for electronic music producers, performers and music technology enthusiasts looking for a programmable drum machine with distinctive 8/12-bit sound, custom sample recording and extensive integration options. Its individual voice outputs are particularly useful for multitrack studio recording, while the pattern, song and real-time control functions make it suitable for live performance.
