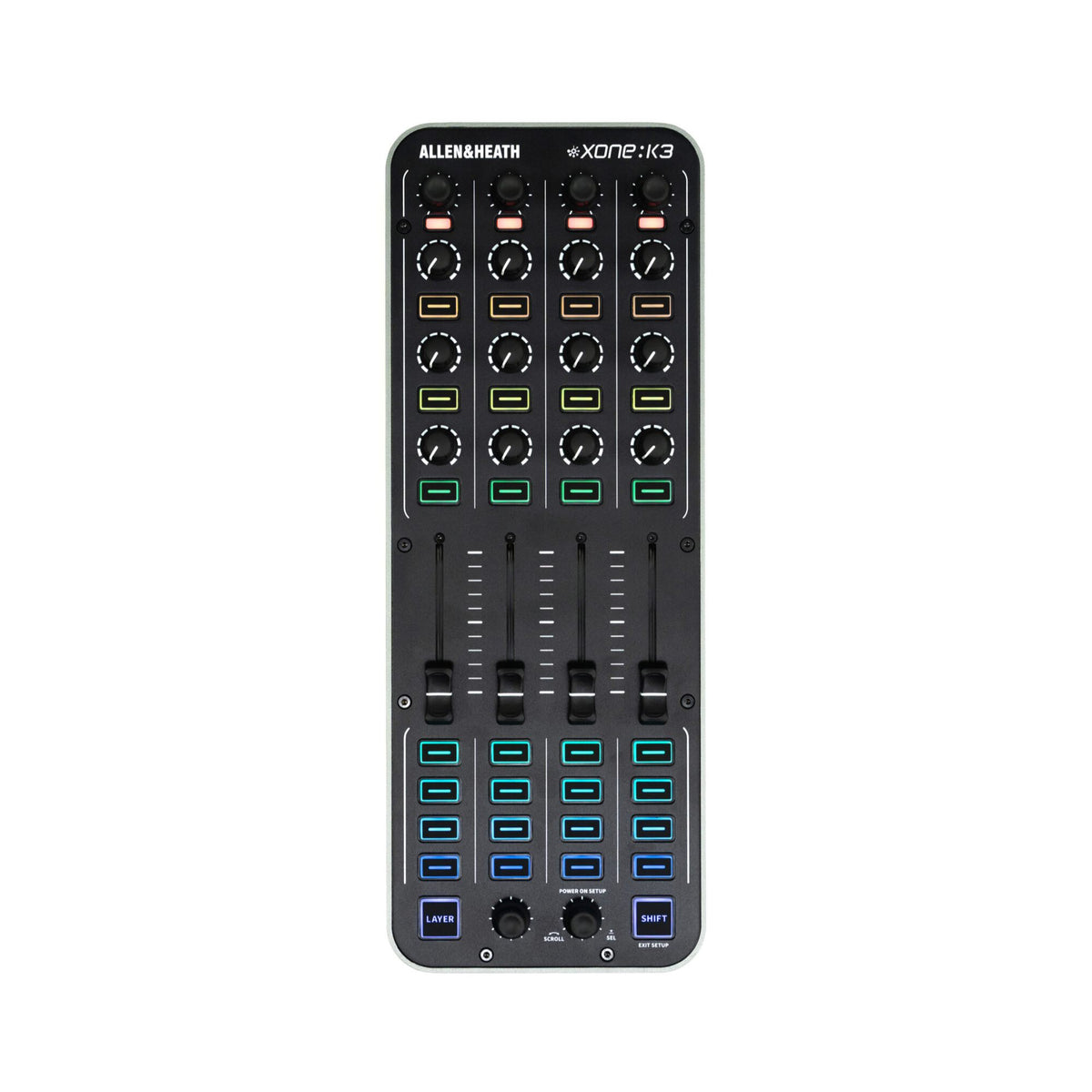

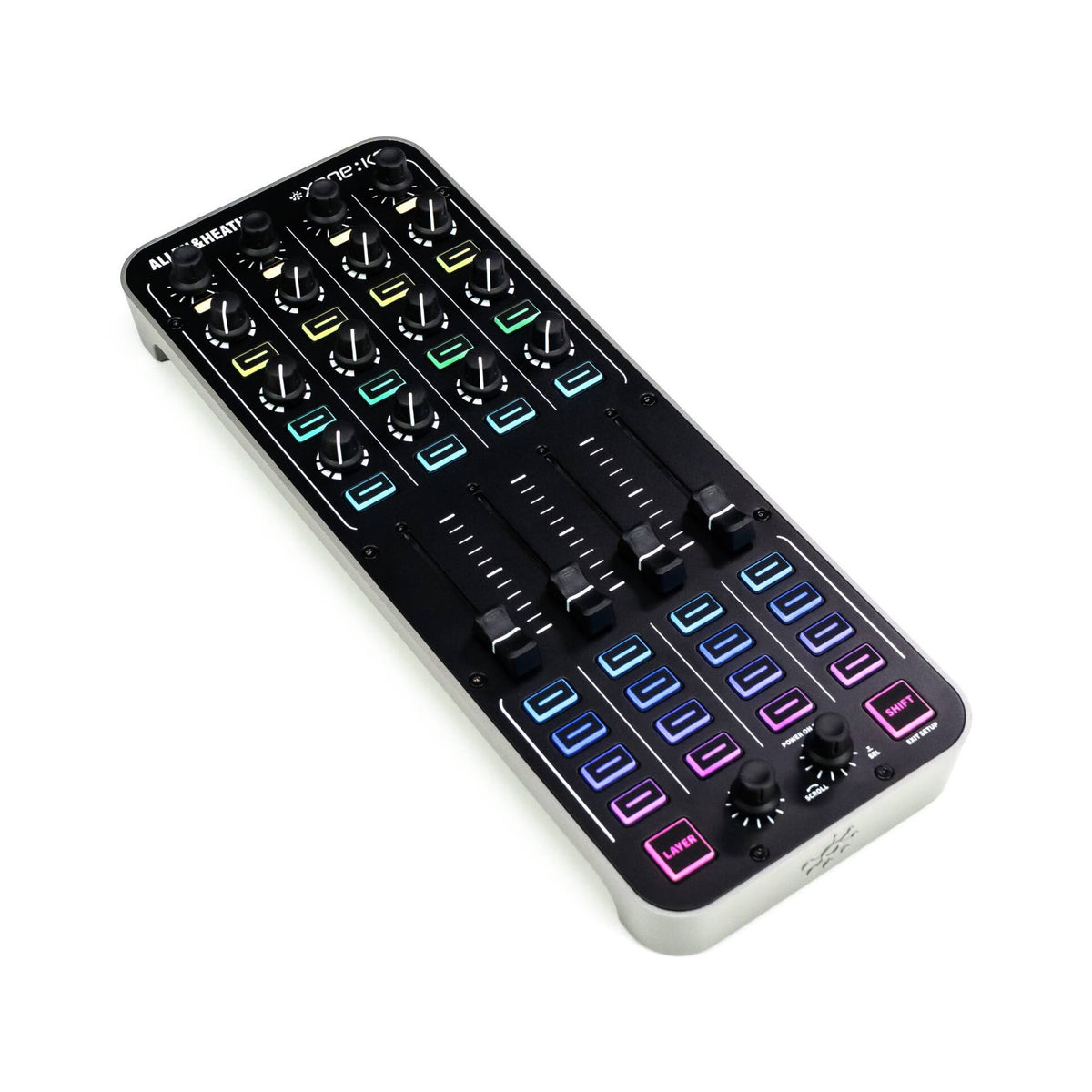

Allen & Heath Xone:K3 MIDI Controller

Allen & Heath Xone:K3 MIDI Controller

Allen & Heath Xone:K3 is a customisable MIDI controller. It provides physical control of MIDI-enabled DJ, music, video and lighting software.

The surface combines buttons, rotary potentiometers, push encoders and four faders. Three control layers allow each physical control to operate different software parameters.

The free Xone Controller Editor configures MIDI CC and Note messages, LED colours and layer behaviour. Custom mappings can be stored on the controller and backed up as files. Existing Xone:K1 and Xone:K2 mappings are supported.

USB-C carries MIDI data and powers the unit. Multiple K3 controllers connected through a USB hub are recognised independently by the host. X:LINK connects compatible Xone devices, but a USB-powered K3 does not supply power to other X:LINK units.

A die-cast metal chassis, steel faceplate and nutted potentiometers form the physical construction. Xone:K3 sends control commands; audio playback requires a separate audio interface or a mixer with an interface.

Main Features

• 52 physical controls provide direct access to different software parameters.
• Three layers offer up to 174 MIDI command assignments.
• RGB illumination identifies selected layers and button states.
• Xone Controller Editor creates custom control layouts and stores them on the unit.
• Support for Xone:K1 and Xone:K2 mappings helps transfer an existing control layout.
• Class-compliant USB MIDI operation requires no dedicated controller driver on supported hosts.
• X:LINK input and output integrate the controller into a compatible Xone system.
• Four 60 mm faders provide continuous control of assigned parameters.

Technical Specifications

• Physical Controls: 30 buttons, 12 rotary potentiometers, 6 push encoders, 4 faders
• Control Travel: 270° potentiometers, 60 mm faders
• Control Layers: 3; up to 174 MIDI commands
• MIDI Channels: 1–16
• Illumination: 34 RGB LEDs, 16-colour palette
• USB: USB-C, USB 2.0 Full Speed, 12 Mbps
• X:LINK Connections: 2 × RJ45, input and output
• Compatibility: Windows, macOS, iOS and most Android devices supporting USB MIDI
• Power: 5 V via USB or a compatible X:LINK connection
• Power Consumption: 2.25 W maximum; 450 mA maximum current
• Dimensions (W × D × H): 135 × 358 × 49.5 mm
• Product Weight: 1.25 kg

What’s Included

• 1 × Allen & Heath Xone:K3 MIDI controller
• 1 × 1 m USB-C to USB-C cable

Who Is It For

Suitable for controlling DJ applications, music production software and live performance setups. MIDI-enabled video and lighting applications can use their own custom mappings. A separately purchased powered adapter may be needed for a mobile host.
